Netafim 25AP46 Series Leitfaden

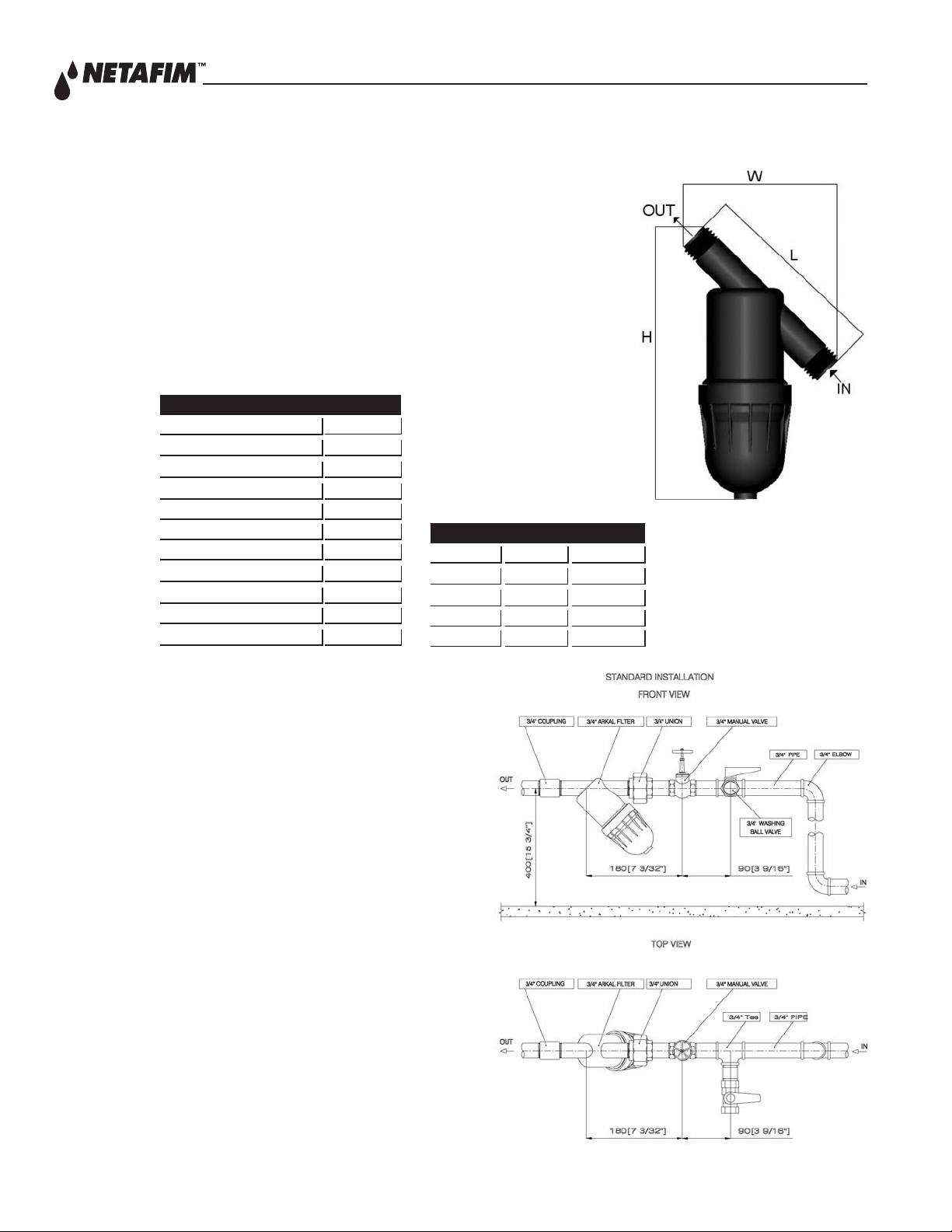

TECHNICAL DATA

FLOW RANGE

MAXIMUM PRESSURE

FILTERING SURFACE AREA

FILTERING VOLUME

LENGTH (H)

WIDTH (W)

WEIGHT

DISTANCE BETWEEN ENDS (L)

INLET/OUTLET DIAMETER

MAXIMUM TEMPERATURE

1 - 12 GPM

140 psi

25 sq. in.

5.8 cu. in.

5 22/32”

7 15/32”

.66 lbs.

6”

3/4” Male

140º F

3-12

FEATURES

• All plastic ﬁlter with two 3/4” male connections.

• Filter element consists of grooved discs, mounted on a spine, forming a

cylindrical ﬁlter element. The discs are compressed together by a spring

located at the bottom of the ﬁlter cover.

• Screw-on ﬁlter cover.

• Resistant to chemicals and liquid fertilizers.

• Available ﬁltration grades: 040, 080, 120, and 140.

3/4” MANUAL DISC FILTER

INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS

INSTALLATION

1. Use Teﬂon tape on ﬁlter threads - Do Not Use Pipe Dope.

2. Ensure correct inlet/outlet direction.

3. When connecting ﬁlter to pipe, do not overtighten.

4. Ensure correct alignment and no undue stress is

exerted on the ﬁlter body.

MAINTENANCE AND CLEANING

DISMANTLING

1. Ensure system is turned off and no pressure

remains in the pipeline.

2. Unscrew cover at bottom of ﬁlter.

3. Pull out entire ﬁlter element.

CLEANING

MESH/MICRON

MESH MICRON DISC COLOR

040

080

120

140

400

200

130

115

Blue

Yellow

Red

Black

1. Move tightening ring to end of spine and ﬂush

discs with pressurized water.

2. If discs are not clean after ﬂushing with water:

a. If the discs have an accumulation of algae in the grooves,

soak the discs and spine in a small bucket of Clorox

bleach for one hour and then reﬂush with fresh water.

b. If the discs have an accumulation of iron in the grooves,

soak the discs and spine in a small bucket of 10% Muriatic

Acid for one hour and then reﬂush with fresh water.

Muriatic Acid can be purchased at any pool supply store.

MFINS34 3/11

WINTERIZATION

Drain all the water from the ﬁlter to avoid cracking due to freezing.

MAINTENANCE AND CLEANING

ASSEMBLY

1. Verify that spring is in place inside the ﬁlter cover.

2. Insert ﬁlter element and make sure it is seated correctly.

3. Replace cover.

4. Tighten ﬁlter cover securely. Do not overtighten.

5470 E. Home Ave.

Fresno, CA 93727

888.638.2346 • 559.453.6800

FAX 800.695.4753

www.netaﬁmusa.com

MATERIALS KEY

CODE MATERIAL

PBT

POLYESTER

STAINLESS STEEL

POLYPROPYLENE

NITRILE RUBBER

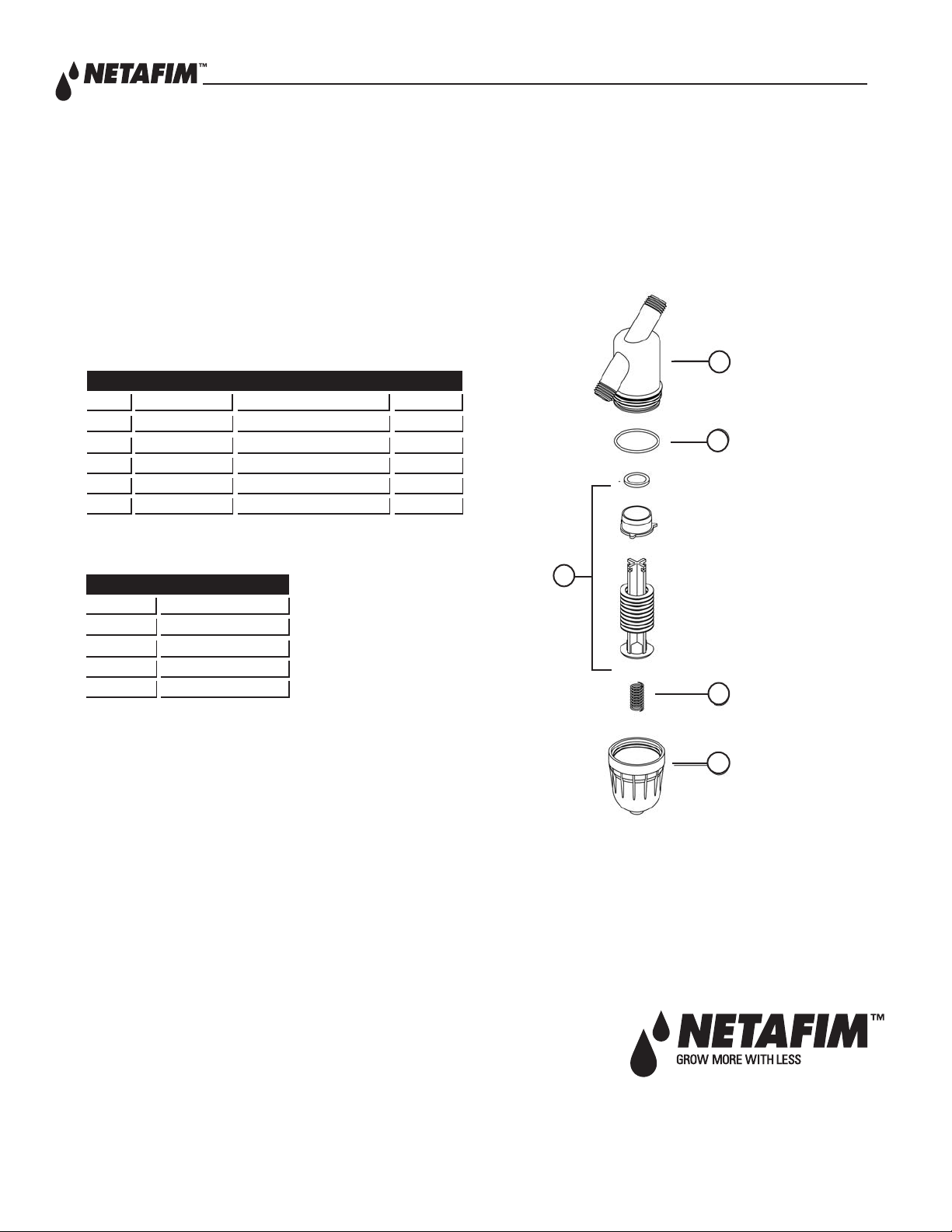

PARTS BREAKDOWN - 3/4” FILTER

KEY MODEL NUMBER

25AP230112

25AP530140

25AP530130

25AP23013

25AP46-***

DESCRIPTION

FILTER BODY

COVER O-RING

COMPRESSION SPRING

FILTER COVER

RING SET WITH SPINE

MATERIALS

PBT

Substitute *** for proper mesh size.
