NetApp AFF Bedienungsanleitung

AFF systems

ONTAP Systems

NetApp

April 04, 2022

This PDF was generated from https://docs.netapp.com/us-en/ontap-systems/c190/install-setup.html on

April 04, 2022. Always check docs.netapp.com for the latest.

Table of Contents

AFF systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê1

AFF C190 System Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê1

AFF A200 System Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê80

FAS2700 System Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê156

AFF A250 System Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê279

AFF A300 System Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê374

AFF A320 System Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê486

AFF A400 System Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê573

AFF A700 and FAS9000 System Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê689

AFF A700s System Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê837

AFF A800 System Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê929

AFF A900 systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê1037

AFF systems

AFF C190 System Documentation

Install and setup

Start here: Choose your installation and setup experience

You can choose from different content formats to guide you through installing and setting

up your new storage system.

•Quick steps

A printable PDF of step-by-step instructions with live links to additional content.

•Video steps

Video step-by-step instructions.

•Detailed steps

Online step-by-step instructions with live links to additional content.

Quick steps - AFF C190

This section gives graphic instructions for a typical installation of your system from

racking and cabling, through initial system bring-up. Use the AFF C190 Systems

Installation and Setup Instructions if you are familiar with installing NetApp systems.

Videos - AFF C190

There are two videos - one showing how to rack and cable your system and one showing

an example of using the System Manager Guided Setup to perform initial system

configuration.

Video one of two: Hardware installation and cabling

The following video shows how to install and cable your new system.

Installation and Setup of an AFF C190

Video two of two: Performing end-to-end software configuration

The following video shows end-to-end software configuration for systems running ONTAP 9.2 and later.

NetApp video: Software configuration for vSphere NAS datastores for FAS/AFF systems running ONTAP 9.2

Detailed steps - AFF C190

This section gives detailed step-by-step instructions for installing a AFF C190 system.

Step 1: Prepare for installation

To install your AFF C190 system, you need to create an account and register the system. You also need to

inventory the appropriate number and type of cables for your system and collect specific network information.

You need to have access to the NetApp Hardware Universe (HWU) for information about site requirements as

well as additional information on your configured system. You might also want to have access to the Release

Notes for your version of ONTAP for more information about this system.

What you need

You need to provide the following at your site:

•Rack space for the storage system

•Phillips #2 screwdriver

•Additional networking cables to connect your system to your network switch and laptop or console with a

Web browser

•A laptop or console with an RJ-45 connection and access to a Web browser

Steps

1. Unpack the contents of all boxes.

2. Record the system serial number from the controllers.

3. Set up your account:

a. Log in to your existing account or create an account.

b. Register (NetApp Product Registration) your system.

4. Download and install NetApp Downloads: Config Advisor on your laptop.

5. Inventory and make a note of the number and types of cables you received.

The following table identifies the types of cables you might receive. If you receive a cable not listed in the

table, see the NetApp Hardware Universe to locate the cable and identify its use.

Type of cable… Part number and length Connector type For…

10 GbE cable

(order

dependent)

X6566B-05-R6 (112-00297), 0.5m

X6566B-2-R6 (112-00299), 2m

Cluster interconnect network

X6566B-2-R6 (112-00299), 2m

X6566B-3-R6 (112-00300), 3m

X6566B-5-R6 (112-00301), 5m

Data

Type of cable… Part number and length Connector type For…

Optical network

cables (order

dependent)

X6553-R6 (112-00188), 2m

X6536-R6 (112-00090), 5m

X6554-R6(112-00189), 15m

SFP + FC host network

Cat 6, RJ-45

(order

dependent)

X6585-R6 (112-00291), 3m

X6562-R6 (112-00196), 5m

Ethernet host and management

network

Micro-USB

console cable

Not applicable Console connection during

software setup on non-Windows

or Mac laptop/console

Power cables Not applicable Powering up the system

6. Download and complete the Cluster Configuration Worksheet.

Step 2: Install the hardware

You need to install your system in a 4-post rack or NetApp system cabinet, as applicable.

Steps

1. Install the rail kits, as needed.

2. Install and secure your system using the instructions included with the rail kit.

You need to be aware of the safety concerns associated with the weight of the system.

3. Attach cable management devices (as shown).

4. Place the bezel on the front of the system.

Step 3: Cable controllers to your network

You can cable the controllers to your network by using the two-node switchless cluster method or by using the

cluster interconnect network.

Option 1: Cable a two-node switchless cluster, unified configuration

UTA2 ports and management ports on the controller modules are connected to switches. The cluster

interconnect ports are cabled on both controller modules.

Before you begin

Contact your network administrator for information about connecting the system to the switches.

Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.

As you insert the connector, you should feel it click into place; if you do not feel it click, remove

it, turn it around and try again.

If connecting to an optical switch, insert the SFP into the controller port before cabling to the

port.

Steps

1. Use the illustration or the step-by-step instructions to complete the cabling between the controllers and to

the switches:

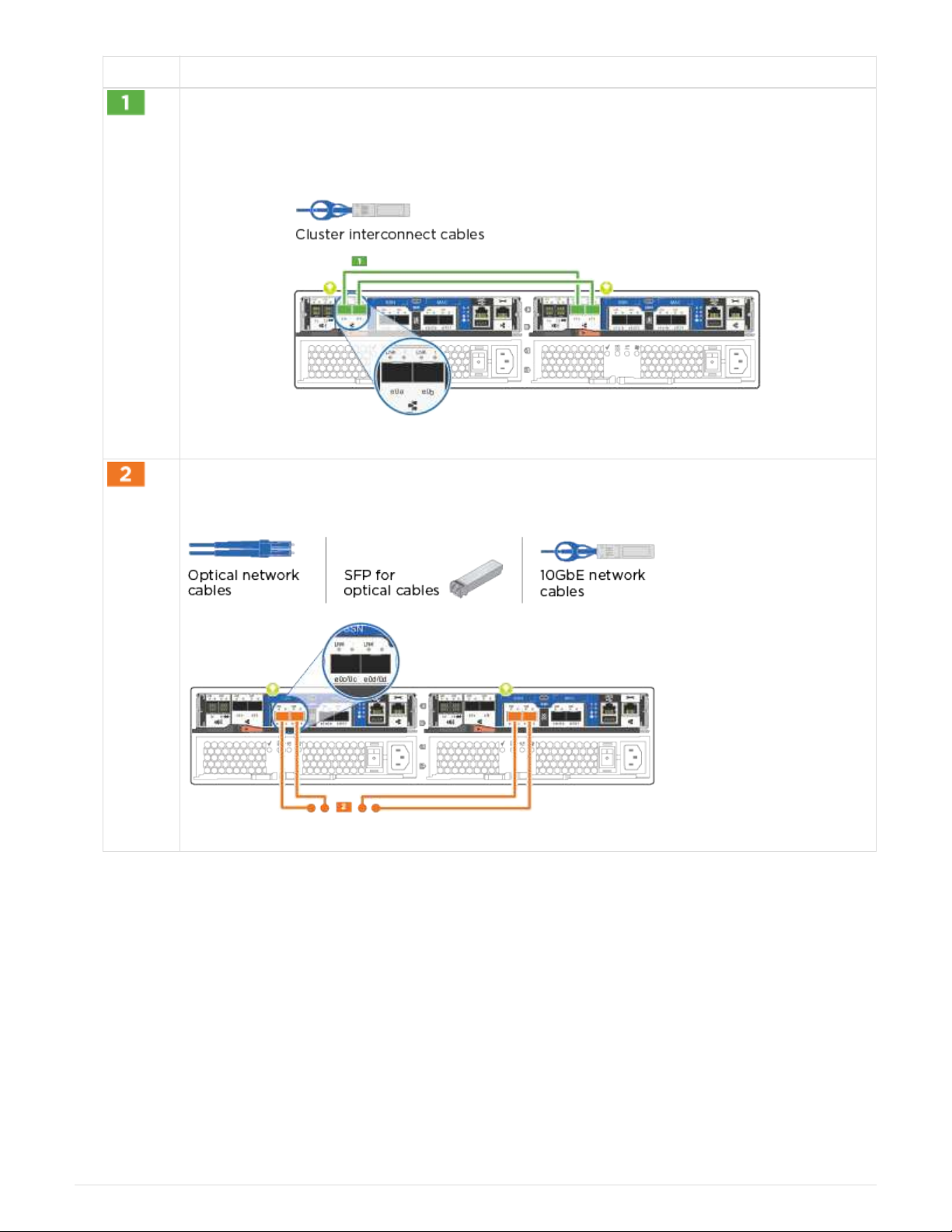

Step Perform on each controller

Cable the cluster interconnect ports to each other with the cluster interconnect cable:

•e0a to e0a

•e0b to e0b

Use one of the following cable types to cable the e0c/0c and e0d/0d or e0e/0e and e0f/0f data

ports to your host network:

Step Perform on each controller

Cable the e0M ports to the management network switches with the RJ45 cables:

DO NOT plug in the power cords at this point.

2. To complete setting up your system, see Step 4: Complete system setup and configuration.

Option 2: Cable switched cluster, unified configuration

UTA2 ports and management ports on the controller modules are connected to switches. The cluster

interconnect ports are cabled to the cluster interconnect switches.

Before you begin

Contact your network administrator for information about connecting the system to the switches.

Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.

As you insert the connector, you should feel it click into place; if you do not feel it click, remove

it, turn it around and try again.

If connecting to an optical switch, insert the SFP into the controller port before cabling to the

port.

Steps

1. Use the illustration or the step-by-step instructions to complete the cabling between the controllers and the

switches:

Step Perform on each controller module

Cable e0a and e0b to the cluster interconnect switches with the cluster interconnect cable:

Use one of the following cable types to cable the e0c/0c and e0d/0d or e0e/0e and e0f/0f data

ports to your host network:

Step Perform on each controller module

Cable the e0M ports to the management network switches with the RJ45 cables:

DO NOT plug in the power cords at this point.

2. To complete setting up your system, see Step 4: Complete system setup and configuration.

Option 3: Cable a two node switchless cluster, Ethernet configuration

RJ45 ports and management ports on the controller modules are connected to switches. The cluster

interconnect ports are cabled on both controller modules.

Before you begin

Contact your network administrator for information about connecting the system to the switches.

Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.

As you insert the connector, you should feel it click into place; if you do not feel it click, remove

it, turn it around and try again.

Steps

1. Use the illustration or the step-by-step instructions to complete the cabling between the controllers and to

the switches:
