Wireless Setup Guide
(for Windows XP, Windows Vista, Windows 7 and Mac OSx)
Wireless Setup Guide
The following steps will take ou through the process of setting up and connecting to our
wireless network. You can also use these steps to troubleshoot wireless connection issues.
Step 1: Checking Computer Network Settings:
You will need to set the network connection on our computer to obtain an IP address
automaticall . Please follow the instructions appropriate for our operating s stem below:
Below are the instructions for setting Windows XP to obtain an IP address automaticall for
our ethernet connection:
1.
Click on the Start Menu, and go to “Control Panel”.
2.
Click on “Network Connections”.
(If ou onl see "Network and Internet Connections", open that first, and then click on
"Network Connections".)
3.
Right click on “Local rea Connection” and select “Properties”.
4.
Double-click on “Internet Protocol”.
5.
Select "Obtain an IP address automatically", and "Obtain DNS server
address automatically".
6.
Click “OK”, and then click “OK” (or “Close”).
Below are the instructions for setting Windows Vista to obtain an IP address automaticall for
our ethernet connection:
1.
Click on the Start Menu, and go to “Control Panel”.
2.
Click on “Network and Sharing Centre”.
(If ou onl see "Network and Internet", open that first, and then click on "Network and
Sharing Centre".)
3.
Click on “Manage network connections” (
on the lefthandside of the window
).
4.
Right click on “Local rea Connection” and select “Properties”.
5.
Double-click on “Internet Protocol Version 4 (TCP/IPv4)”.
6.
Select "Obtain an IP address automatically", and "Obtain DNS server
address automatically".
7.
Click “OK”, and then click “OK” again.
Below are the instructions for setting Windows 7 to obtain an IP address automaticall for our
ethernet connection:
1.
Click on the Start Menu, and go to “Control Panel”.
2.
Click on “Network and Sharing Centre”.
(If ou onl see "Network and Internet", open that first, and then click on "Network and
Sharing Centre".)
3.
Click on “Change adapter settings” (
on the lefthandside of the window
).
4.
Right click on “Local rea Connection” and select “Properties”.
5.
Double-click on “Internet Protocol Version 4 (TCP/IPv4)”.
6.
Select "Obtain an IP address automatically", and "Obtain DNS server
address automatically".
7.
Click “OK”, and then click “OK” again.
Below are the instructions for setting Mac OS X to obtain an IP address automaticall for our
ethernet connection:
1.
Click on the Apple Menu, and go to "System Preferences".
2.
Click on "Network".
3.
Click on “Ethernet” or "Built-in Ethernet".
4.
Click on the "Configure" drop-down box, and select "Using DHCP" then click
"pply".
Step 2: Configuring your wireless settings:
Please ensure that your modem/router is connected to your computer using an
ethernet cable before continuing.
Troubleshooting Tip
After logging into your router, verify the following settings to troubleshoot issues with your wireless connection:
- Wireless MAC filtering is disabled.
- Your ID is not hidden.
- Confirm your wireless security settings
(Make sure you are using the correct wireless security key)
.
- Confirm your selected wireless security is supported by your wireless device.
1.
Navigate to http://192.168.20.1 in a web browser using “admin” (no quotes) as both
the username and password.

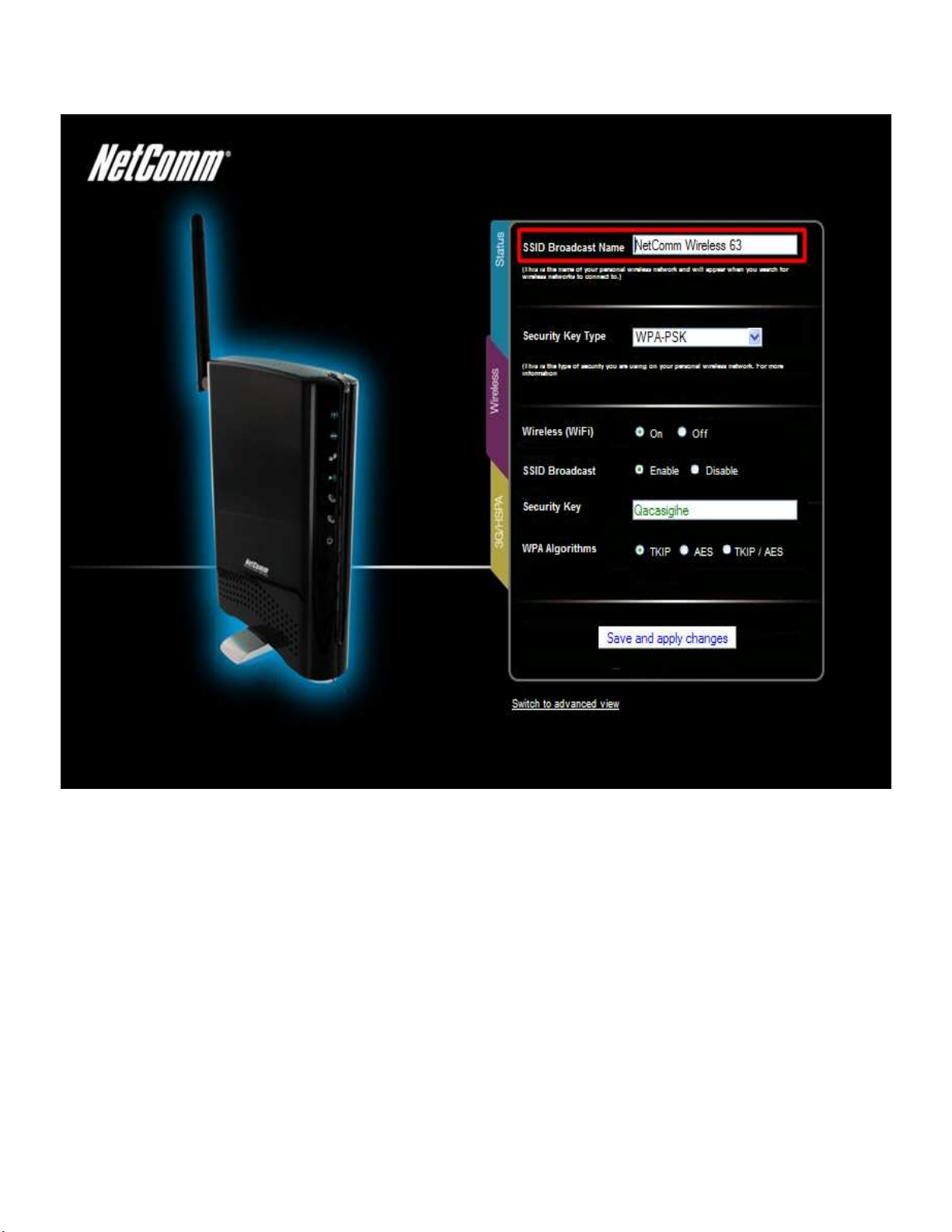

2. Select the Wireless tab as shown in the screenshot below.
3.
Check the SSID Broadcast Name. This is the wireless network name which ou ma
change if ou so choose.
4.
Ensure Wireless (WiFi) is set to on.
5.
Ensure SSID Broadcast is set to enable.
6.
The Network Name(SSID) can also be changed in the 3G8WV advanced view
interface (as shown below)b selecting Basic from the Wireless Settings menu.
(This page intentionall left blank)
1.

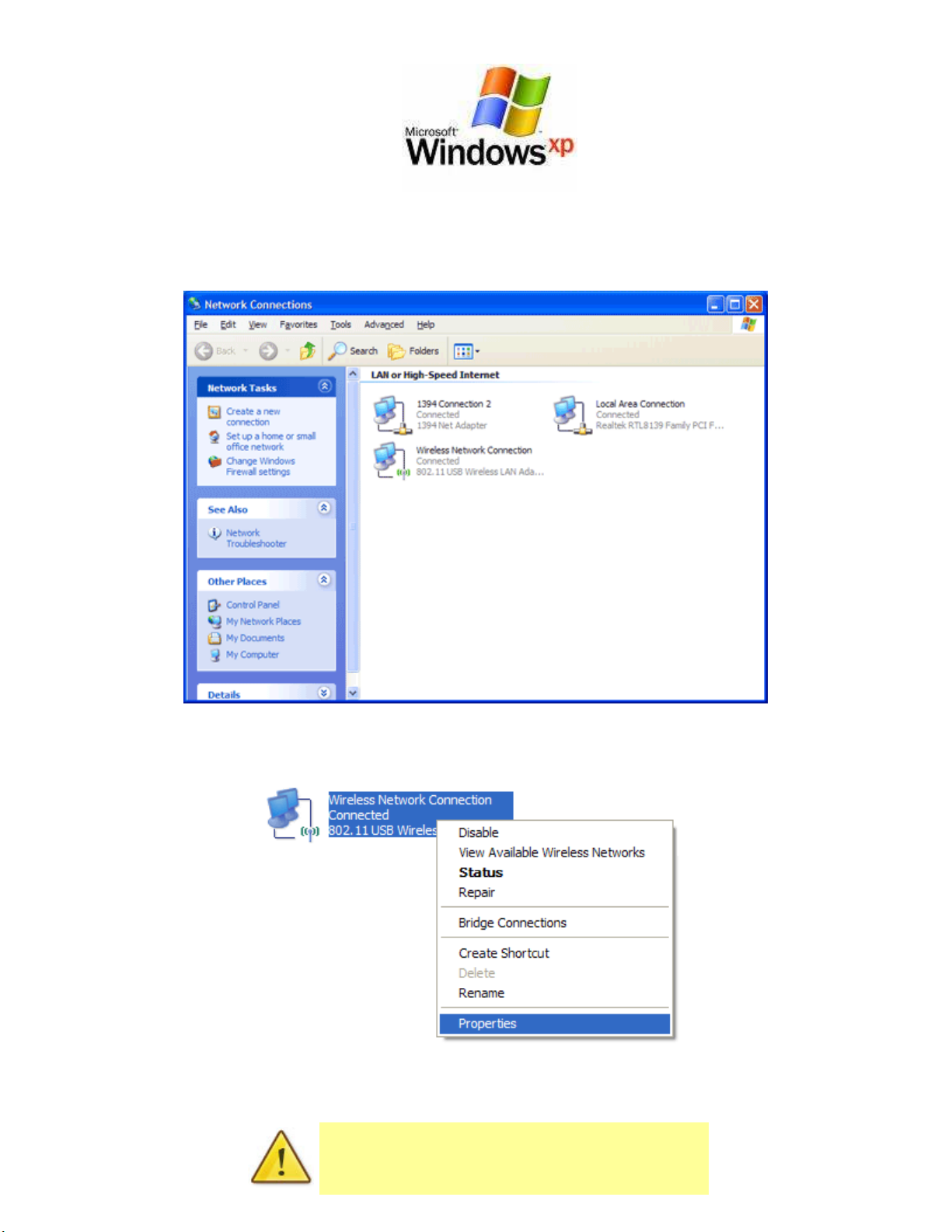

Click on the Start Menu and then “Run”. T pe: ncpa.cpl <and click “OK”>
You should now see the following window:
2.
Right click on “Wireless Network Connection” and select "Properties".
If ou cannot see a “Wireless Network Connection”
item, our wireless adapter ma not be installed or
inserted correctl . Please check this before continuing
with steps in this guide.
3.
Click on the "Wireless Networks" tab, as shown below.
(If ou do not see this tab, ou will need to enable and start the “Wireless Zero Configuration” service.
Please refer to the steps at the end of the guide to enable this)
Make sure "Use Windows to configure my wireless network settings" is TICKED.
This window will list an wireless networks ou have previousl connected to. If ou see an
entr matching the SSID ou obtained at the start of this guide, ou will need to select it and
then click "Remove".
(T picall , a number of networks will be listed here. This is nothing to worr about. You can
delete the other entries too. These are just stored settings and passwords for connecting to
the listed networks.)
If our SSID is not listed, or ou have just removed it, click “OK”.
The window will close and ou should now be returned to the “Network Connections” control
panel window.
