NetComm MyWay 3G8WV Bedienungsanleitung

NetComm MyWay

3G WiFi Router with Voice

Quick Start Guide

1. Attach the supplied antenna to the port labelled 3G Antenna on the back of

the MyWay (this should be attached in a clockwise direction).

2. Insert your SIM card into the SIM slot (you should hear it click into place).

3. Connect the power adapter to the power socket on the back of the MyWay.

4. Plug the power adapter into the wall socket and switch on the power.

5. Wait approximately 60 seconds for the MyWay to power up.

6. The MyWay will attempt to automatically detect the connection details from

your SIM card. This can take up to 2 minutes.

Hardware installation

Power

adapter

Power

point

SIM Card

Connecting to the Router via

a Cable

1. Connect the yellow Ethernet cable provided to the port labelled “LAN” on the

back of the MyWay.

2. Connect the other end of the yellow Ethernet cable to your computer or

to another Ethernet – enabled device like a gaming console, a TV or a home

cinema system.

3. Wait approximately 30 seconds for the connection to establish.

4. In the event you are not automatically connected, please follow the steps in

chapter 4 Connecting the MyWay to the Internet via 3G.

1. Ensure WiFi is enabled on your device (computer/smartphone/gaming console).

2. Scan for wireless networks in your area and connect to the network name that

matches the Wireless Network Name found on the Wireless Security Card

(included in the box).

3. When prompted for your wireless security settings, enter the Wireless security

key listed on your Wireless Security Card.

4. Wait approximately 30 seconds for the connection to establish.

5. In the event you are not automatically connected, please follow the steps on the

next page for Connecting the MyWay to the Internet via 3G.

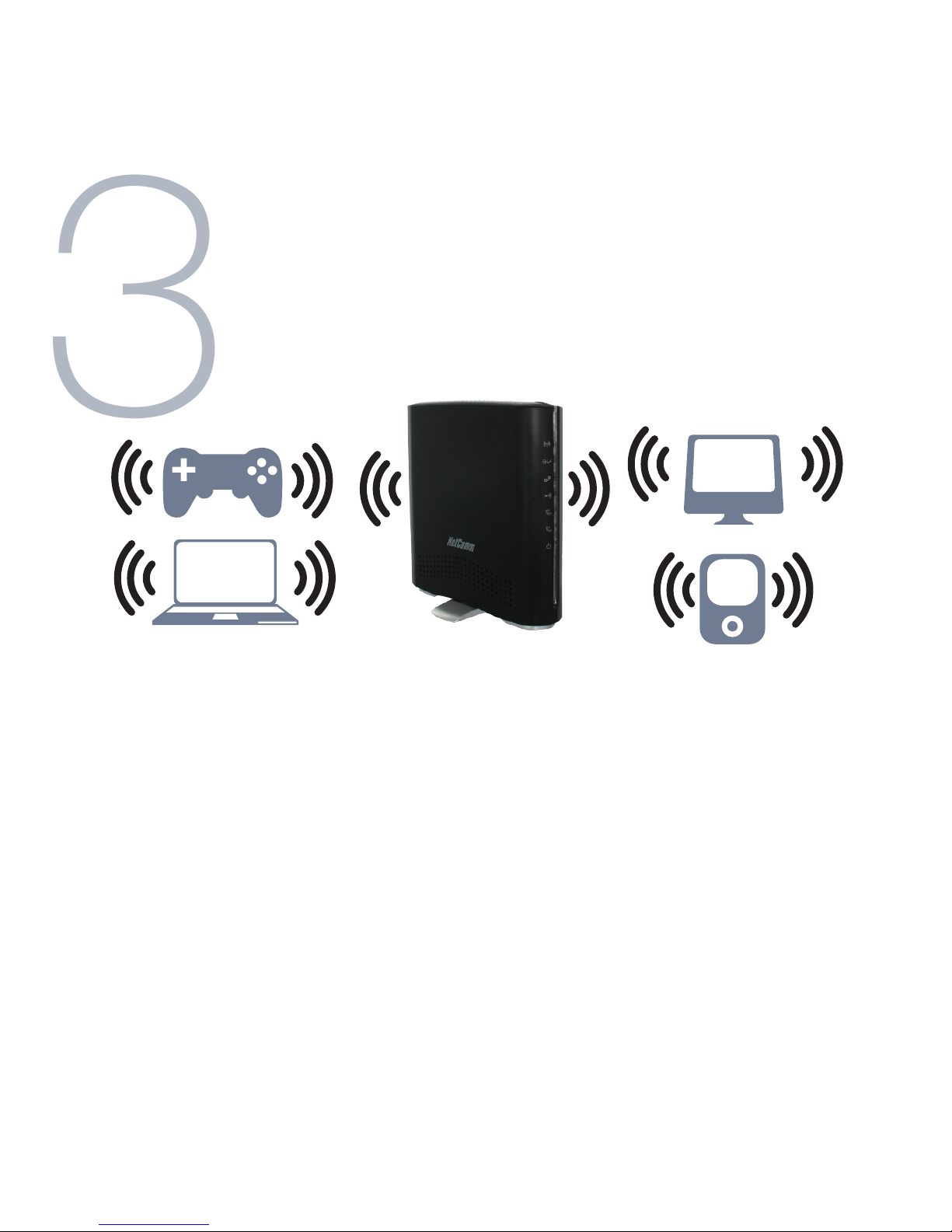

Connecting to the MyWay

via Wireless

Your 3G connection should automatically congure and connect you to your

3G service. In the event it doesn’t, please follow these steps:

1. After establishing your wireless connection in Chapter 3, open your Web

browser and type http://my.router or http://192.168.20.1 into the address bar

at the top of the web browser window and press enter.

2. Hover your mouse over the Internet Settings menu at the top of the web

browser window and click on 3G Internet Settings.

3. Disable Auto-APN using the pull down menu.

Connecting the MyWay to the

Internet via 3G

4. Enter the 3G service details as supplied by your 3G service provider. This may

include the APN*, username / password, or dialled number. Leave any elds

which are not required blank.

5. Once the correct details are entered, click the Apply button.

6. The MyWay will now attempt to connect using the details you have entered.

This can take up to 2 minutes.

7. If you are successfully connected the blue 3G light on the front of the unit

will be lit.

* For a list of common APN’s please see next page.

List of Mobile Broadband Service Providers:

Mobile Service APN

Australia

Telstra Telstra.internet

Telstra.pcpack

Telstra.datapack

Telstra.extranet

Optus – Postpaid connect

Optus – Prepaid preconnect

Three – Postpaid 3netaccess

Three – Prepaid 3services

Vodafone – Postpaid vnternet.au

Vodafone – Prepaid vfprepaymbb

Crazy John’s purtona.net

DoDo dodolns1

Blink splns888a1

Internode Internode

Primus primuslns1

TPG internet

Exetel Exetel1

Westnet Splns555a1

iiNet iiNet

New Zealand

Vodafone NZ www.vodafone.net.nz

CallPlus www.callplus.net.nz

Slingshot www.slingshot.net.nz

Telstra Clear www.telstraclear.net.nz

Telecom NZ XT internet.telecom.co.nz

Front

Panel

Icon Description

Wireless Solid blue light when WLAN is enabled. Blinks on trafc

(data transfer)

Internet/

LAN

LAN mode: Solid blue light when the router is connected

via the LAN Ethernet Port

WAN mode: Lights up when the router is connected to the

internet via xed line WAN

LAN Solid blue light when LAN connection is established. Blinks

on LAN port trafc

3G Solid blue light when the router is connected via 3G, blinks

on trafc

Line 1 Solid blue light when the handset connected to Line 1 is off

hook, blinks on incoming call.

Line 2 Solid blue light when the handset connected to Line 2 is off

hook, blinks on incoming call.

Power Solid amber light when device is powered on.

Blinking during device start up.

** Please note that all lights will ash simultaneously if a rmware upgrade takes place.

LED Indicators

Port Description

SIM Slot Insert your SIM card here (until you hear a click). Please be careful to

insert the SIM in the correct orientation by viewing the printed icon

beside the slot.

3G Antenna Attach in the 3G Antenna here in a clockwise direction.

LAN/WAN Switchable LAN/ WAN Ethernet port for Fixed Line (ADSL/Cable/

Satellite) connection or wired Ethernet clients (computers, laptops, etc)

LAN LAN Port for wired Ethernet clients (computers, laptops, etc)

Line 1 Phone port for handset

Line 2 Phone port for handset

Reset / WPS Hold this button down for over 10 seconds to reset to factory defaults.

Hold and release this button for less than 10 seconds to enable the

WPS push-button connect function.

Power Power connector, connects to a DC 12V 1.5A Power Adapter

Rear Panel

Making Voice Calls

The NetComm MyWay allows you to make high quality voice calls over the 3G

network by simply plugging a standard analogue phone into the router.

Before you get started, make sure you’ve checked the following:

1. Have you inserted your 3G SIM card that supports both data and voice into

your MyWay router?

2. Is your MyWay powered on?

3. Do you have your phone connected (via a telephone cable) to the Line 1

or Line 2 port?

4. Is the phone LED (light) on and can you hear a dial tone?

That’s it – you can now enjoy making and receiving calls from your MyWay router.

Note: Please refer to your mobile service provider for activation of your voice service and information about the call charges

that apply. For assistance with the operation of your telephone handset, please refer to the documentation provided by

the manufacturer of your analogue telephone.

How to receive a call

When an incoming call is received, both Line 1 and Line 2 lights will start ashing

and the phone(s) connected to the MyWay will ring. If the call is answered from the

telephone connected to Line 1, the telephone connected to Line 2 will receive an

engaged tone for the duration of the call.
