Chapter 1

Basic Setup

This chapter describes how to install your RangeMax WPN111 Wireless USB 2.0 Adapter and set

up basic wireless connectivity on your Wireless Local Area Network (WLAN). Advanced wireless

network set up is covered in Chapter 2, “Network Connections and Wireless Security”.

What You Need Before You Begin

You need to verify that your computer meets the minimum system requirements and identify the

wireless network settings of the WLAN where you will connect before you can set up your

wireless USB adapter and connect.

Verify System Requirements

Before installing the NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111, please make

sure that these minimum requirements have been met:

• You must have a PC with a Pentium®300 MHz or higher compatible processor with an

available USB 2.0 or 1.1 port.

•ACDdrive.

• 5 Mbytes of free hard disk space.

Note: Indoors, computers can easily connect to 802.11 wireless networks at distances of

several hundred feet. Because walls do not always block wireless signals, others

outside your immediate area could access your network. It is important to take

steps to secure your network from unauthorized access. The RangeMax WPN111

Wireless USB 2.0 Adapter provides highly effective security features, which are

covered in “Using Wireless Security Features” in Chapter 2. Deploy the security

features appropriate to your needs.

Note: The maximum speed of a USB v2.0 port is 480 Mbps. If your computer has a

USB v1.1 port, the WPN111 is limited to that port’s maximum speed, which is

14 Mbps.

NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111 User Manual

1-2

v2.0, February 2007

• Vista, Windows XP Home, Windows XP Professional, or Windows 2000. Some versions of

Windows may ask for the original Windows operating system installation files to complete the

installation of the WPN111 driver software.

Observe Wireless Location and Range Guidelines

Computers can connect over wireless networks indoors at a range which vary significantly based

on the physical location of the computer with the RangeMax WPN111 Wireless USB 2.0 Adapter.

For best results, avoid potential sources of interference, such as:

• Large metal surfaces

•Microwaves

• 2.4 GHz Cordless phones

In general, wireless devices can communicate through walls. However, if the walls are constructed

with concrete, or have metal, or metal mesh, the effective range will decrease if such materials are

between the devices.

What Is In the Box

The product package should contain the following items:

• NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111

• Installation Guide for the NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111

•NETGEAR CD, including:

– Driver and Configuration Utility Software

–NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111 User Manual (this document)

– Animated Network Properties Configuration Tutorial

– PC Networking Tutorial

• Warranty and Support information card

Note: Windows XP users must install SP2 or install the KB822603 Hot fix, which fixes

the USB 2.0 Host controller driver. Go to the following link to install the Hot fix:

http://www.microsoft.com/downloads/

details.aspx?displaylang=en&FamilyID=733dd867-56a0-4956-b7fe-

e85b688b7f86

NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111 User Manual

1-3

v2.0, February 2007

If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the

carton, including the original packing materials, in case you need to return the product for repair.

WPN111 Default Wireless Settings

If this is a new wireless network installation, use the factory default settings to set up the network

and verify wireless connectivity. If this is an addition to an existing wireless network, you will

need to identify the wireless network and wireless security settings that are already defined.

Your RangeMax WPN111 Wireless USB 2.0 Adapter factory default basic settings are:

• Network Name Service Set Identification (SSID): Any (First available network)

• Network Mode (Infrastructure or Ad-hoc): Infrastructure

• Data security WEP, WPA2-PSK, or WPA-PSK encryption: Disabled

Installation

To install the RangeMax WPN111 Wireless USB 2.0 Adapter:

1. First, install the WPN111 software:

Insert the NETGEAR CD. If the Welcome page does not open, double click Autorun.exe on

the CD.

Note: In order for the RangeMax WPN111 Wireless USB 2.0 Adapter to

communicate with a wireless access point or wireless adapter, all devices must

be set up to use the same wireless network name (SSID).

NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111 User Manual

1-4

v2.0, February 2007

a. Click Install the Software.The Check for Updates window will open.

b. If you are connected to the Internet, click Check for Updates. If not, you can choose to

install from the CD.

c. When the Installation Complete message appears, click Next.

d. On the Smart Wizard screen, click Next to proceed with the Smart Wizard setup.

2. Now, connect the wireless USB adapter.

Figure 1-1

Figure 1-2

NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111 User Manual

1-5

v2.0, February 2007

a. Locate an available USB port on your PC. Connect the USB cable to the WPN111 and

insert the other end of the cable into the USB slot on your PC. See “Placing the USB

Adapter Cradle” on page 1-10.

b. Restart your computer.

You will be prompted to select the country where you are located.

c. Select the country and click Agree.

3. Use the Smart Wizard to set up your wireless USB adapter.

a. Windows 2000 users go to Step b. Windows XP or Vista users can set up the wireless

adapter with the NETGEAR Smart Wizard (recommended) or the Windows configuration

utilities.

•NETGEAR Smart Wizard: Reveals more information about each network and

makes it easier to troubleshoot network connection problems.

•Windows configuration utilities: See the Windows documentation or “Using

Windows XP and Vista Wireless Configuration Utilities” at:

http://documentation.netgear.com/reference/enu/winzerocfg/index.htm

b. Click Next to accept the NETGEAR Smart Wizard.

Note: If you do not have a USB 2.0 port on your PC, the throughput of the

WPN111 will be limited to the 14 Mbps of the USB 1.1 standard.

Figure 1-3

NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111 User Manual

1-6

v2.0, February 2007

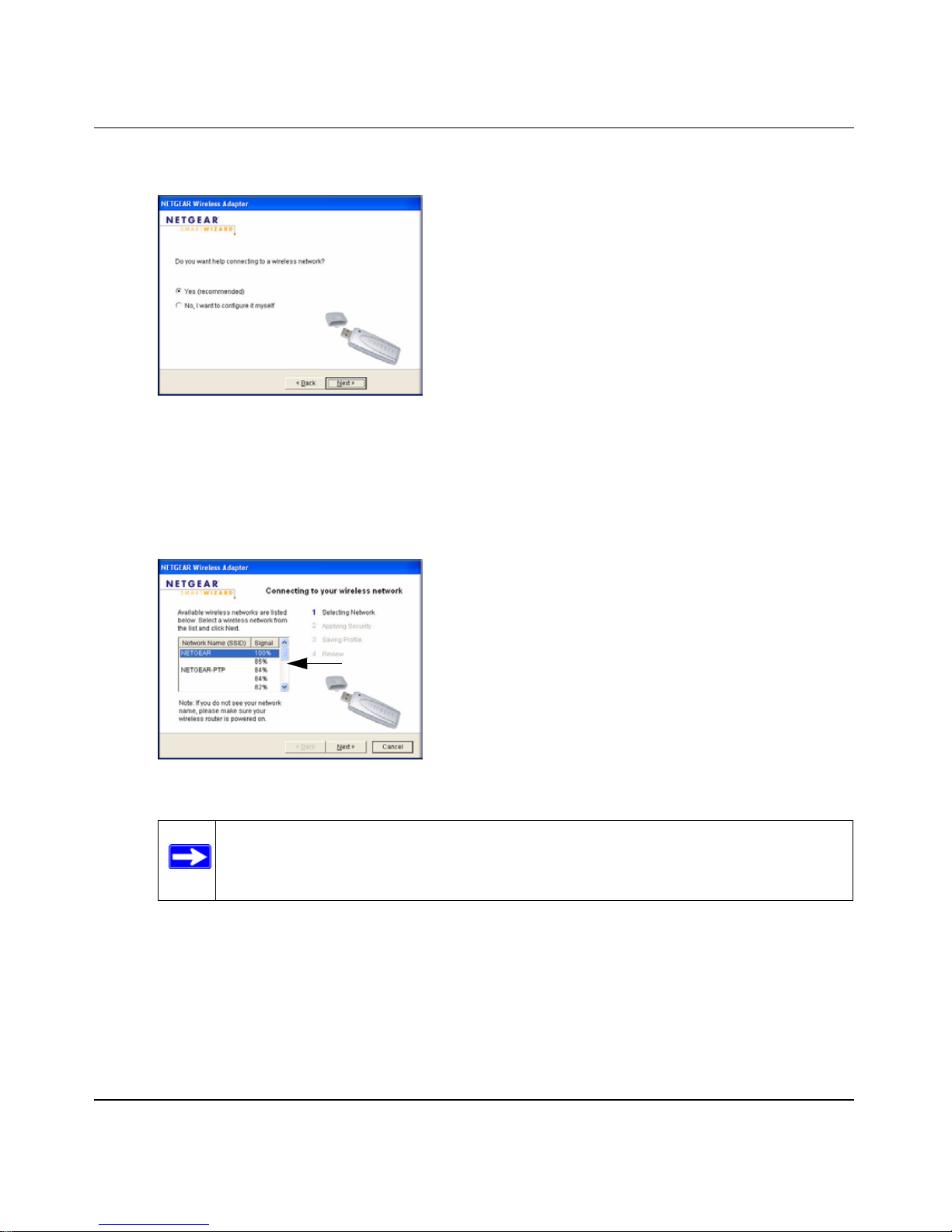

You will be prompted to let the wizard help you connect to a network (recommended).

c. Click Next to accept.

4. Connect to a wireless network.

a. Select the wireless network from the drop-down list, and the wizard records your choice.

b. If the network uses security, then the Smart Wizard detects it

c. Follow the Wizard steps for Security (if used) and for saving a Profile.

d. After you have reviewed the settings, click Finish.

Figure 1-4

Figure 1-5

Note: Hidden networks do not broadcast the Network Name (SSID). These

networks are in the drop-down list, but the Network Name (SSID) is blank.

Hidden

NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111 User Manual

1-7

v2.0, February 2007

The icon appears in the system tray and on the desktop; and the Settings page opens .

The wizard initiates your wireless connection, which could take up to a minute.

5. Use the status bar to verify your wireless connectivity. For more information about

connecting, see “Connecting to Wireless Networks and the Internet” on page 1-7.

Connecting to Wireless Networks and the Internet

The WPN111 has indicators in three locations that show the status of your connection to a wireless

network and to the Internet:

•WPN111 Icon: After you install the WPN111 software, the icon appears on the desktop

and in the lower right of the Windows task bar. It is color coded to show the status of the

connection.

•Smart Wizard Status Bar: Clicking on the system tray icon opens the Smart Wizard. The

status bar at the bottom of the page shows details about your wireless and Internet

connection.See “Smart Wizard Status Bar” on page 1-8

•LED: The LED on the wireless USB adapter shows the network connection. Solid indicates a

connection. The LED blinks when the wireless USB adapter is looking for a network

association.

Figure 1-6

Note: The maximum speed of a USB v2.0 port is 480 Mbps. If your computer has a USB

v1.1 port, the WPN111 is limited to that port’s maximum speed, which is 14

Mbps.

NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111 User Manual

1-8

v2.0, February 2007

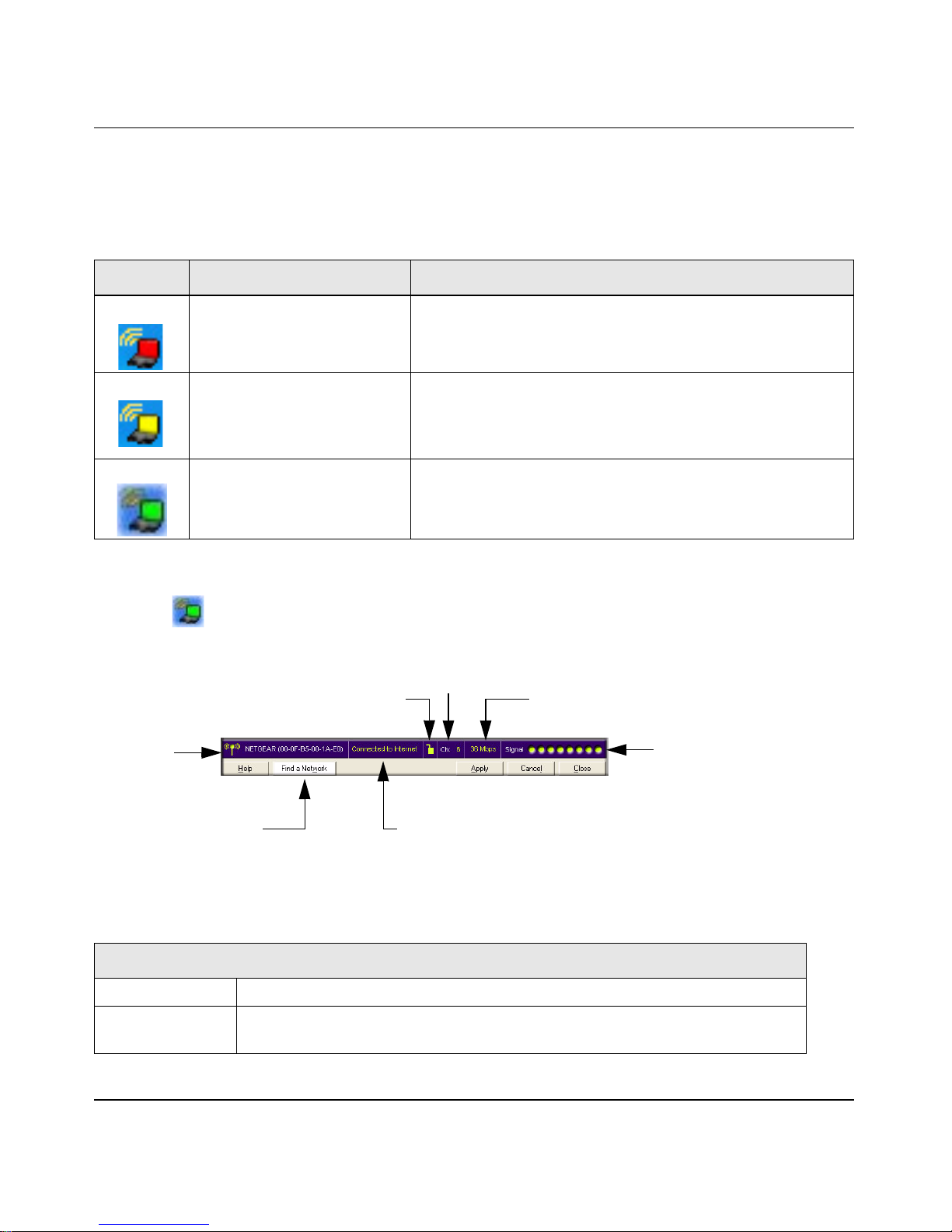

WPN111 Icon Colors

The WPN111 icon is on the desktop and in the Windows System Tray (SysTray). The System Tray

resides on one end of the taskbar in the Microsoft Windows desktop.

Smart Wizard Status Bar

Click the icon to open the Smart Wizard so you can view the status bar. The Smart Wizard

Settings page opens. The status bar is located at the bottom of the Settings page.

The following table describes how to interpret the Smart Wizard status bar

Color Condition Description

Red The wireless USB adapter

has no connection to any

other wireless node.

The wireless USB adapter cannot link to any other wireless

node or the link is lost. Check your configuration or try moving

to a location where the wireless signal quality is better.

Yellow The wireless USB adapter

has a connection with another

wireless node.

The wireless link is weak. You may need to move to a better

spot, such as closer to the wireless access point. Also, look

for possible interference such as a 2.4 GHz cordless phone or

large metal surface.

Green The wireless USB adapter

has a connection with another

wireless node.

The wireless USB adapter has established good

communication with an access point and the signal quality is

strong.

Figure 1-7

Understanding the Status Bar

Wireless network Identifies which wireless network you have joined.

Security • Locked: security enabled.

• Unlocked: security not enabled.

Wireless

network

Connection status

Security

Find a Network

Channel Throughput

Signal

strength

NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111 User Manual

1-9

v2.0, February 2007

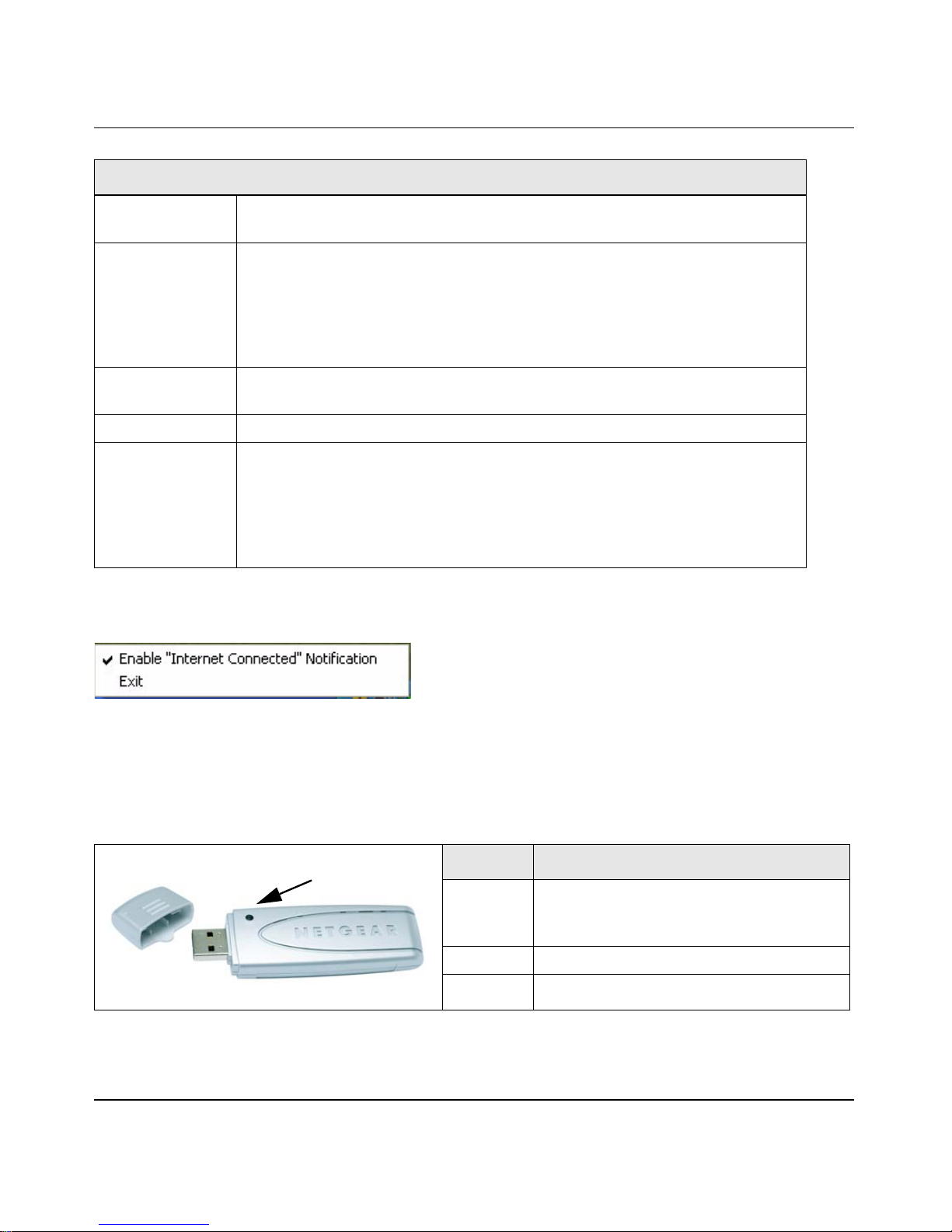

If you right-click the system tray icon, you can disable the Internet notification feature by clearing

check mark on this line. If you do so, then only the IP address is shown.

WPN111 LED

The LED on the WPN111 indicates the condition of wireless link

Channel The wireless channel used by the network. If many wireless networks in your

area use the same channel they can interfere with one another.

Throughput • Wireless throughput measured in Mega bits per second. To optimize

throughput, connect to a network with a high-speed router or access point, and

a high-speed Internet connection. See Chapter 3, “Wireless Network

Performance”.

• If your computer has a USB v1.1 port, the WPN111 is limited to that port’s

maximum speed, which is 14 Mbps.

Signal strength More dots indicates a stronger signal. Usually, you will experience higher

throughput when the signal is strongest.

Find a Network Click Find a Network to open the Connection Wizard.

Connection

status Identifies the status of your network connection.

•Connected to Internet: Wireless Internet connection is OK.

•Connected to Router: Wireless connection to the router is OK but the router

is not connected to the Internet.

•169.254.x.x or ___.___.___.___ : The wireless connection to the router is OK

but there is a problem with the router. See Chapter 4, “Troubleshooting”.

Figure 1-8

LED Meaning

Off • The WPN111 in not plugged in to the PC.

• Power save mode (default from power up

or reset).

Blink Looking for network association.

On Associated or joined with network.

Understanding the Status Bar (continued)

Status LED

NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111 User Manual

1-10

v2.0, February 2007

Placing the USB Adapter Cradle

You can attach the RangeMax WPN111 Wireless USB 2.0 Adapter directly to a USB port on your

computer, or use the USB cable to extend the range and obtain better wireless reception.

Follow these instructions to use the USB cable, plastic cradle, and loop and hook fastener provided

in the package for better USB Adapter placement on a notebook computer:

1. The RangeMax WPN111 Wireless USB 2.0 Adapter comes with three black fasteners. Locate

the one with a prickly side and attach it to the plastic cradle on the middle of the outside rear.

2. Insert the RangeMax WPN111 Wireless USB 2.0 Adapter in the plastic cradle.

3. Place one of the other pieces of loop and hook fastener on the back of your monitor near the

top for better reception.

Figure 1-9

Figure 1-10

Note: The last piece of the fastener can be placed on the side of your PC monitor

nearest your wireless access point, if you are using the USB Adapter with a

desktop PC.

Andere Handbücher für RANGEMAX WPN111

Inhaltsverzeichnis

Andere NETGEAR Adapter Handbücher

NETGEAR

NETGEAR FA120 Bedienungsanleitung

NETGEAR

NETGEAR XAVT5601 Bedienungsanleitung

NETGEAR

NETGEAR HDX111 - Powerline HD Plus Ethernet Adapter Bedienungsanleitung

NETGEAR

NETGEAR XAV5004 - POWERLINE AV 500 ADAPTER Bedienungsanleitung

NETGEAR

NETGEAR EA101C Bedienungsanleitung

NETGEAR

NETGEAR XAV1004 - Powerline AV Adapter Bedienungsanleitung

NETGEAR

NETGEAR Powerline 1000 Essentials Edition Bedienungsanleitung

NETGEAR

NETGEAR AVB5201v2 Bedienungsanleitung

NETGEAR

NETGEAR WG111T - 108 Mbps Wireless USB 2.0 Adapter Bedienungsanleitung

NETGEAR

NETGEAR AX743 - ProSafe 10 Gigabit Ethernet Bedienungsanleitung

NETGEAR

NETGEAR XAVB2602 Bedienungsanleitung

NETGEAR

NETGEAR WAB501 - 802.11a/b Dual Band PC Card Bedienungsanleitung

NETGEAR

NETGEAR MA111 Bedienungsanleitung

NETGEAR

NETGEAR XAV1301v1/XAVB1301v1 Schulungshandbuch

NETGEAR

NETGEAR GA621 Bedienungsanleitung

NETGEAR

NETGEAR WG111U - Double 108 Mbps Wireless USB 2.0... Bedienungsanleitung

NETGEAR

NETGEAR A6210 Bedienungsanleitung

NETGEAR

NETGEAR WG111v1 - 54 Mbps Wireless USB 2.0 Adapter Bedienungsanleitung

NETGEAR

NETGEAR XAV1301v1/XAVB1301v1 Bedienungsanleitung

NETGEAR

NETGEAR WG111v3 - 54 Mbps Wireless USB 2.0 Adapter Bedienungsanleitung

NETGEAR

NETGEAR WPN111 - RangeMax Wireless USB 2.0 Adapter Bedienungsanleitung

NETGEAR

NETGEAR XET1001 - Powerline Network Adapter Bedienungsanleitung

NETGEAR

NETGEAR A6200 Bedienungsanleitung

NETGEAR

NETGEAR HA501 - 802.11a Wireless 32-Bit Card Bus... Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung

RCA

RCA AH57R Bedienungsanleitung

Koolatron

Koolatron AC16 Bedienungsanleitung
