September 2009

208-10462-02

v1.0

NETGEAR, Inc.

350 East Plumeria Drive

San Jose, CA 95134

Wireless-N 150 ADSL2+

Modem Router DGN1000

Setup Manual

Trademarks

NETGEAR and the NETGEAR logo are trademarks of NETGEAR, Inc. Microsoft, Windows, and Windows NT are

registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks

of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to

make changes to the products described in this document without notice.

NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit

layout(s) described herein.

iii

Contents

Wireless-N 150 ADSL2+ Modem Router DGN1000 Setup Manual

Getting to Know Your Wireless Router

Unpacking Your New Router .............................................................................................1

Hardware Features ............................................................................................................2

Router Front Panel ......................................................................................................2

Router Back Panel ......................................................................................................4

Router Label ................................................................................................................5

Positioning Your Wireless Router ......................................................................................5

Installing Your Wireless Modem Router ............................................................................6

Installing Your Router Using the

Smart Wizard

Using the Smart Wizard .....................................................................................................8

Accessing Your Router After Installation ...........................................................................9

Upgrading the Router Firmware ......................................................................................10

Installing Your Router Manually

(Advanced, Mac, and Linux Users)

Understanding ADSL Microfilters ....................................................................................12

ADSL Microfilter ........................................................................................................12

ADSL Microfilter with Built-In Splitter ........................................................................12

Connecting Your Wireless Modem Router ......................................................................13

Verifying Your Connection ...............................................................................................16

Setting Up Your Router for Internet Access ....................................................................17

Configuring Your Wireless Network

Setting Your SSID and Wireless Security ........................................................................20

Using Push 'N' Connect (WPS) to Add Wireless Devices ...............................................21

Troubleshooting

Basic Functioning ............................................................................................................23

Power LED Not On ....................................................................................................24

Power LED is Red .....................................................................................................24

LAN or Internet Port LEDs Not On ............................................................................24

Troubleshooting the Web Configuration Interface ...........................................................25

Troubleshooting the ISP Connection ...............................................................................26

ADSL link ..................................................................................................................26

Obtaining an Internet IP Address ..............................................................................27

Troubleshooting PPPoE or PPPoA ...........................................................................28

Troubleshooting Internet Browsing ...........................................................................28

Troubleshooting a TCP/IP Network Using the Ping Utility ...............................................29

Testing the LAN Path to Your Router ........................................................................29

Testing the Path from Your Computer to a Remote Device ......................................30

Restoring the Default Configuration and Password .........................................................30

Technical Specifications

General Specifications .....................................................................................................31

Default Configuration .......................................................................................................32

Related Documents

Registration and Certifications

Getting to Know Your Wireless Router 1

Getting to Know Your Wireless Router

Congratulations on your purchase of a NETGEAR® high-speed wireless router, the Wireless-N

150 ADSL2+ Modem Router.

Before you begin installing your router, check the package contents (see “Unpacking Your New

Router” on page 1). Become familiar with the front and back panels of your router—especially the

LEDs—and the important information on the router label (see “Hardware Features” on page 2).

Then, read the section on “Positioning Your Wireless Router” on page 5 to ensure that you have

selected the best location to install your router.

This chapter describes how to set up the wireless modem router on your Local Area Network

(LAN) and connect to the Internet. It describes how to set up your wireless modem router for

Internet access and configure basic wireless connectivity.

Unpacking Your New Router

Your router should contain the following items:

• Wireless-N 150 ADSL2+ Modem Router

• AC power adapter (varies by region)

• Category 5 (Cat 5) Ethernet cable

• Telephone cable with RJ-11 connector

• Microfilters (quantity and type vary by region)

•Resource CD, including:

– The Smart Wizard Installation Assistant

– This manual

– Warranty and Support Information

If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the

carton, including the original packing materials, in case you need to return the product for repair.

Place your router in a suitable area for installation (near an AC power outlet and accessible to the

Ethernet cables for your wired computers).

Getting to Know Your Wireless Router 2

Hardware Features

Before you install and connect your router, take a moment to become familiar with the front and

back panels of the router—especially the LEDs on the front panel.

Router Front Panel

The wireless modem router front panel shown below contains status LEDs.

Figure 1

Power LAN Ports (1-4) DSL Internet Wireless WPS

Getting to Know Your Wireless Router 3

You can use the LEDs to verify various conditions.Table 1 describes each LED.

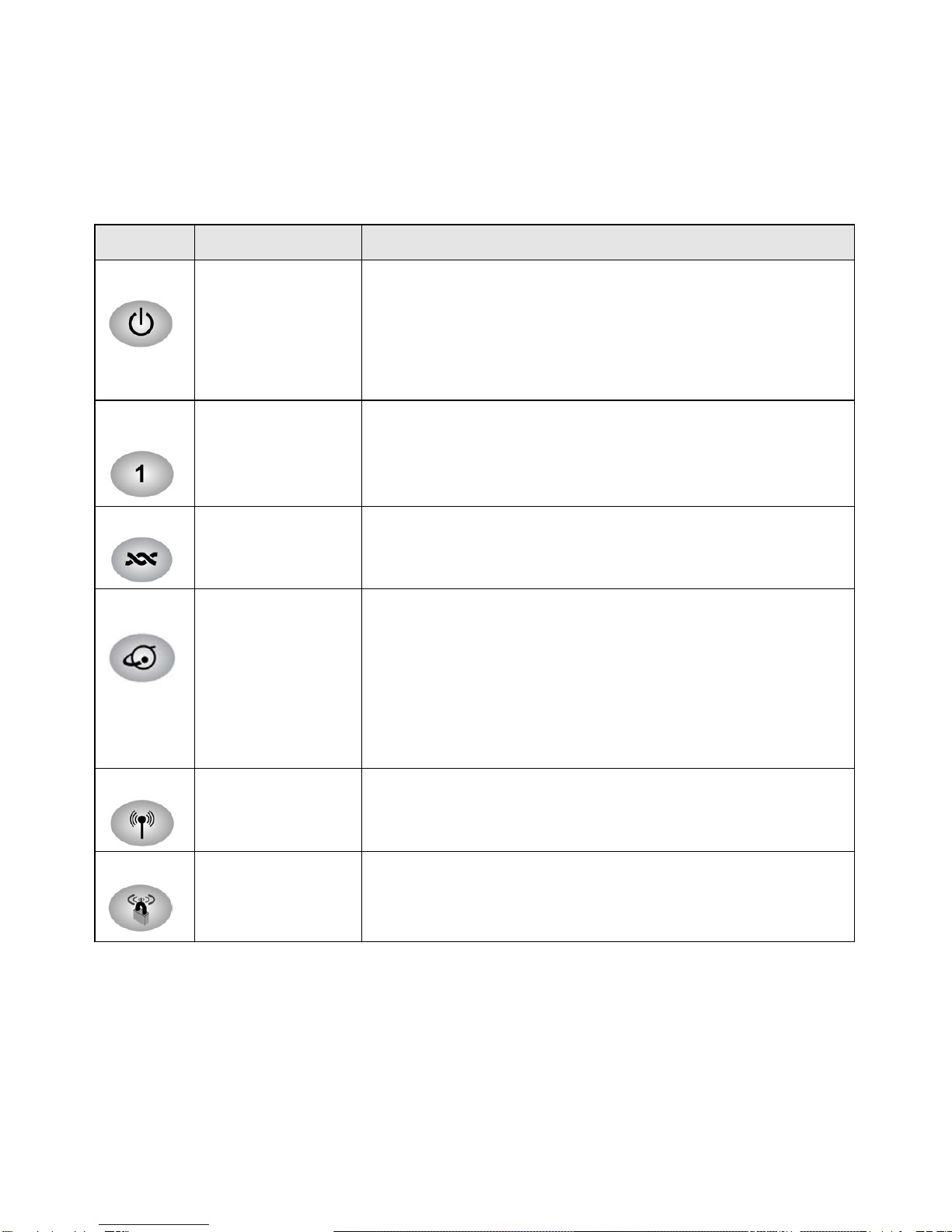

Table 1. LED Descriptions

Label LED Activity Description

Power Solid Green

Solid Red

Off

Factory reset

Power is supplied to the router.

POST (Power-On Self-Test) failure or device malfunction

Power is not supplied to the router

Lights momentarily when the reset button is pressed for 6 seconds,

then blinks red three times when released. It then turns green as the

gateway resets to the factory defaults.

LAN Ports

1 - 4 Solid Green

Blinking Green

Off

The Local port has detected an Ethernet link with a device.

Data is being transmitted or received.

No link is detected on this port.

DSL Solid Green

Blinking Green

Off

The ADSL port is synchronized with an ISP’s network-access device.

Indicates ADSL training—ADSL is synchronizing with the DSLAM.

The unit is off or there is no IP connection.

Internet Port Solid Green

Solid Red

Blinking Green

Off

There is an Internet session. If the session is dropped due to an idle

timeout, and an ADSL connection is still present, the light will remain

green. If the session is dropped for any other reason, the light will

turn off.

IP connection failed (no DHCP or PPoE response, PPPoE

authentication failed, etc.)

Data is being transmitted over the ADSL port.

No Internet connection detected or device in bridged mode.

Wireless Solid Green

Blinking Green

Off

Indicates that the Wireless port is initialized.

Data is being transmitted or received over the wireless link.

The Wireless Access Point is turned off.

WPS Solid Green

Blinking Green

Off

Indicates that wireless security has been enabled.

WPS-capable device is connecting to the device.

WPS has not been set or enabled.

Getting to Know Your Wireless Router 4

Router Back Panel

The back panel of the wireless modem router contains port connections.

Viewed from left to right, the rear panel contains the following elements:

1. RJ-11 ADSL port for connecting the wireless modem router to an ADSL line

2. Four Local Ethernet RJ-45 LAN ports for connecting the wireless modem router to the local

computers

3. Power On/Off button

4. AC power adapter input

Figure 2 124

Getting to Know Your Wireless Router 5

Router Label

The label on the bottom of the wireless modem router shows the router’s MAC address, serial

number, security PIN, and factory default login information.

Positioning Your Wireless Router

The wireless modem router lets you access your network from virtually anywhere within the

operating range of your wireless network. However, the operating distance or range of your

wireless connection can vary significantly depending on the physical placement of your router. For

example, the thickness and number of walls the wireless signal must pass through may limit the

range. For best results, place your router:

• Near the center of the area where your computers and other devices will operate, preferably

within line of sight to your wireless devices.

• Accessible to an AC power outlet and near Ethernet cables for wired computers.

• In an elevated location such as a high shelf, keeping the number of walls and ceilings between

the wireless modem router and your other devices to a minimum.

• Away from electrical devices which are potential sources of interference, such as ceiling fans,

home security systems, microwaves, or the base for a cordless phone.

Figure 3

Factory Default Reset. Press for 6 seconds to reset the router

to its factory default settings.

Getting to Know Your Wireless Router 6

• Away from any large metal surfaces, such as a solid metal door or aluminum studs. Large

expanses of other materials such as glass, insulated walls, fish tanks, mirrors, brick, and

concrete can also affect your wireless signal.

Installing Your Wireless Modem Router

To help you set up your router and get on the Internet quickly, the Resource CD contains a Smart

Wizard™. The Smart Wizard walks you through the steps required to connect your router,

microfilters, and PC(s); configure your wireless settings; and enable wireless security for your

network. When you have finished, you will be Internet ready!

You can set up your wireless modem router using one of two methods:

•Smart Wizard Setup: The Smart Wizard setup is available on your Resource CD. See

“Installing Your Router Using the Smart Wizard” on page 8 to use the Smart Wizard.

– This is the easiest option. The wizard guides you through the setup process. It automates

many of the steps and verifies that the steps have been successfully completed.

– Smart Wizard requires a PC running Microsoft Windows..

•Manual Setup: If you cannot or prefer not to use the Smart Wizard, see “Installing Your

Router Manually (Advanced, Mac, and Linux Users)” on page 11. For example, if you are

connecting to a Mac, are using a Linux operating system, or are technically knowledgeable,

select this option.

Failure to follow these guidelines can result in significant performance degradation

or an inability to wirelessly connect to the Internet.

If you have a Macintosh or Linux system, you need to use the manual installation

method (see “Installing Your Router Manually (Advanced, Mac, and Linux Users)”

on page 11).

Before running the Smart Wizard on a corporate PC to set up your home

router, check with your company’s network support staff. Corporate

network settings or Virtual Private Network (VPN) client software may

conflict with the default settings of a home router. If you are unsure about

whether there might be a conflict, use a different computer.

Andere Handbücher für DGN1000 - Wireless-N Router With Built-in DSL...

Inhaltsverzeichnis

Andere NETGEAR WLAN-Router Handbücher

NETGEAR

NETGEAR WNR2000V3 Benutzerhandbuch

NETGEAR

NETGEAR DGN2200v1 Bedienungsanleitung

NETGEAR

NETGEAR R6300v2 Bedienungsanleitung

NETGEAR

NETGEAR WNR612v2 - Wireless-N 150 Router Bedienungsanleitung

NETGEAR

NETGEAR Nighthawk X8 5 Bedienungsanleitung

NETGEAR

NETGEAR Super-G WGT624 Bedienungsanleitung

NETGEAR

NETGEAR DG834G Bedienungsanleitung

NETGEAR

NETGEAR Nighthawk AC2100 Bedienungsanleitung

NETGEAR

NETGEAR MR314 - Wireless Router Bedienungsanleitung

NETGEAR

NETGEAR C3700 Bedienungsanleitung

NETGEAR

NETGEAR RANGEMAX WNDR3300 Bedienungsanleitung

NETGEAR

NETGEAR WNHD3004 - High Performance Wireless-N HD Home Theatre... Bedienungsanleitung

NETGEAR

NETGEAR MR1100 Bedienungsanleitung

NETGEAR

NETGEAR AC778AT Bedienungsanleitung

NETGEAR

NETGEAR DGND3700 Bedienungsanleitung

NETGEAR

NETGEAR Orbi RBR10 Bedienungsanleitung

NETGEAR

NETGEAR Nighthawk C6900 Bedienungsanleitung

NETGEAR

NETGEAR WGR614 Bedienungsanleitung

NETGEAR

NETGEAR WGR614 v4 Bedienungsanleitung

NETGEAR

NETGEAR WNR1000v3 - Wireless- N Router Bedienungsanleitung

NETGEAR

NETGEAR DG834Gv4 - 54 Mbps Wireless ADSL Firewall... Bedienungsanleitung

NETGEAR

NETGEAR WNDR4500v2 Bedienungsanleitung

NETGEAR

NETGEAR JNR3000 Bedienungsanleitung

NETGEAR

NETGEAR RangeMax WPN824 Bedienungsanleitung

Beliebte WLAN-Router Handbücher anderer Marken

Milesight

Milesight UG67 Bedienungsanleitung

Airlogic

Airlogic AirSync Class 1 Betriebsanleitung

Samsung

Samsung WCH730B Bedienungsanleitung

TELEFONICA

TELEFONICA USB Adapter Bedienungsanleitung

Askey

Askey RAC2V1K Bedienungsanleitung

Alloy

Alloy WLF2454AP-S Bedienungsanleitung

TP-Link

TP-Link TL-WR542G Bedienungsanleitung

Hama

Hama 53120 Bedienungsanleitung

Intellinet

Intellinet 524582 Bedienungsanleitung

Asus

Asus RT-N10P Bedienungsanleitung

D-Link

D-Link DIR-506L Bedienungsanleitung

Sapido

Sapido GR297n Bedienungsanleitung

Asus

Asus DSL-N55U Bedienungsanleitung

AMTC

AMTC WR7502 Bedienungsanleitung

Compaq

Compaq CP-2W - iPAQ Connection Point Bedienungsanleitung

SMC Networks

SMC Networks WBR14-N2 FICHE Bedienungsanleitung

Draytek

Draytek Vigor2120 Series Bedienungsanleitung

Sitecom

Sitecom WLR-4000 Bedienungsanleitung
