VPN Configuration of ProSafe Client and Netgear DG Router

Prerequisites:

Software: VPNGL02 or VPNGL05 (Version 5.04)

Hardware: Netgear DSL router with VPN support, PC with Windows XP, Vista or 7.

Introduction:

This document will guide you on how to create a VPN policy for any of the home DSL gateways

that support VPN, as well as how to configure the VPN Pro-Safe VPN client in order to allow a

Virtual Private Network to be established over the internet.

Version 1.1

Checklist:

As we configure the Netgear DSL VPN Gateway, there will be information we’ll add which will

later be used in the configuration of the ProSafe Client Software. This information will be marked

with red numbered circles. The values we will use for this guide are already filled as light grey.

You can print this form to help keep track of this information.

Pre-Shared Key: _ _______________ 12345678 _

Client Identifier: ____ _____ _____client.com _

Router Identifier: __________ _____router.com _

Client’s IP Address: ________ _ _ __192.168.100.1 _

Router’s Network Address: ______ ___192.168.0.0 _

Router’s Network Mask: _ __ _______ 255.255.255.0 _

Router’s WAN IP Address: _ _____________ _86.41.176.179 _

➊

➋

➌

➍

➎

➏

❼

Version 1.1

Configuration of the VPN Policy on the DSL Gateway:

From the Router’s GUI, go to

VPN policies under Advanced –

VPN.

Click on Add Auto Policy.

➊The pre-shared key value

goes here.

This is your Pre-Shared Key.

➋Here we select “Fully

Qualified Domain Name”and

we give the client a name

This is your Client Identifier.

➌Here we select “Fully

Qualified Domain Name”and

we give the router a name

This is your Router Identifier.

➍Here we select “Single

Address”and we specify the

IP.

This is your Client’s IP

Address.

➎- ➏Here we select “Subnet

Address”and add the address

and mask of our router.

This is your Router’s

Network Address and

Router’s Network Mask.

To accept this settings, click

on “Apply”

➋

➌

➊

➏

➎

➍

Version 1.1

Configuration of the VPN Policy on the ProSafe Client:

Before you start configuring the VPN Client, go through the Checklist at the start and make sure

you have all the information listed there.

After installing the VPN Client

Software, click on the plus sign to

open the configuration panel.

Right click on “VPN Configuration”

and add a new Phase 1. It will be

added with the name Gateway.

Version 1.1

Click on gateway.

❼The Remote Gateway field will be

the value of your Router’s WAN

IP Address.

➊Input the Pre-Shared Key that

you have used when creating the

VPN Policy on the Router and

click on the OK Button.

Next, tick the checkbox next to

Use: Secure Gateway Tunnel.

➋The Local ID Type is DNS, and the

Value for the ID is your Client

Identifier.

➌The ID Type field will be the value

of your Router Identifier.

➌

❼

➊

➋

Version 1.1

With this, the configuration is completed. Now we can try our VPN configuration and connect to

our router.

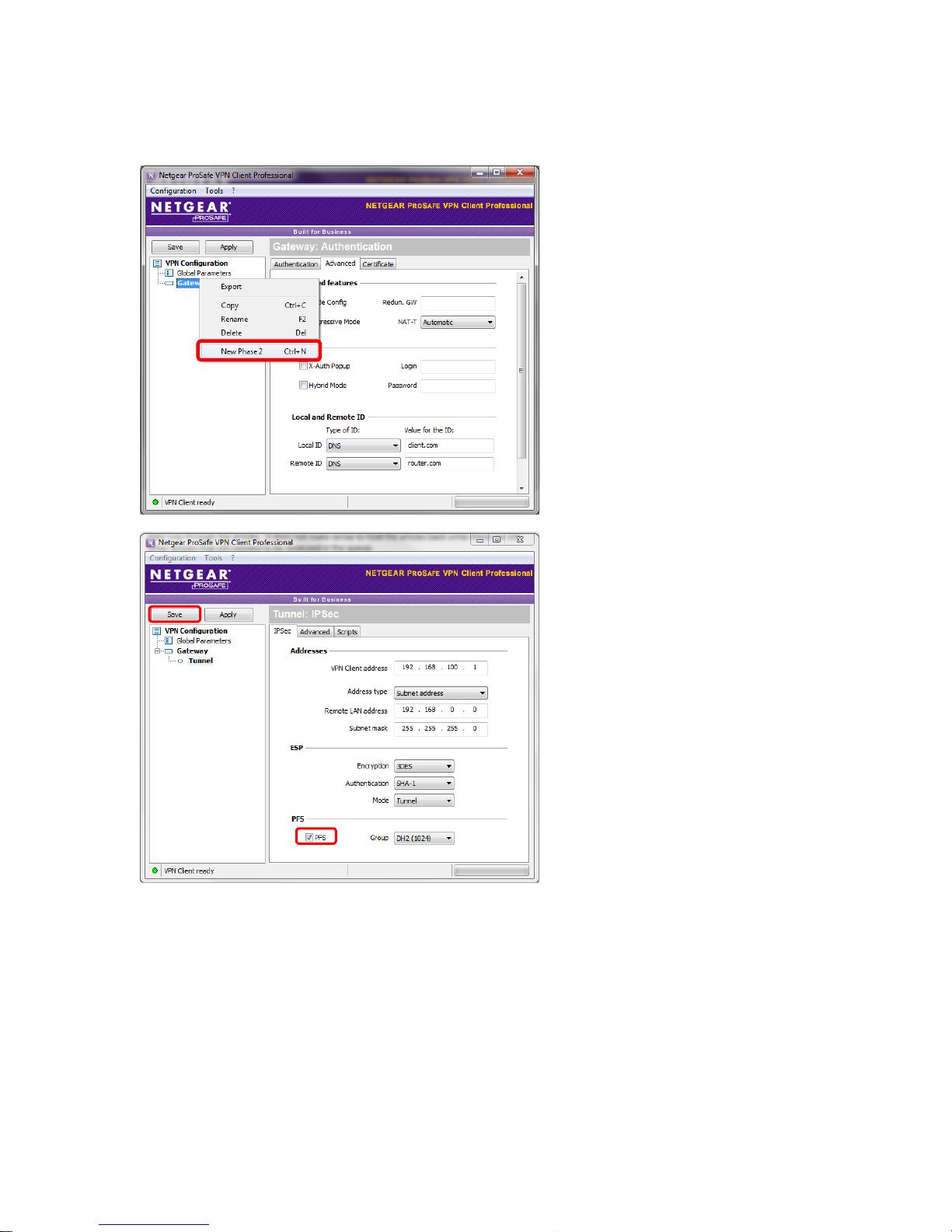

Right click on the Phase 1 and

click on New Phase 2. It will be

added with the name “Tunnel”.

Click on Tunnel.

➍Here we enter the Client’s IP

Address.

➎Here we add the Router’s

Network Address.

➏Here we add the Router’s

Network Mask.

Make sure PFS is enabled with

DH2 (1020) Group.

After you are done, click on

Save.

➍

➎

➏

Version 1.1

Connecting:

To connect the VPN Tunnel we configured, do the following:

Go to Tools and click on Connection

Panel.

Double click on the tunnel we

created.

The tray notice box should tell us we

are connected.

The Connection Panel should show a

green button indicating we are

connected.

Now we should be able to access the resources at the DSL Gateway’s network from our Client

PC.
