NETGEAR Orbi Bedienungsanleitung

User Manual

Orbi Voice

Model RBS40V

NETGEAR, Inc.

350 E. Plumeria DriveSeptember 2018 San Jose, CA 95134, USA202-11942-01

Support

Thank you for purchasing this NETGEAR product. You can visit

https://www.netgear.com/support to register your product, get help, access the latest

downloads and user manuals, and join our community. We recommend that you use

only official NETGEAR support resources.

Compliance and Conformity

For regulatory compliance information including the EU Declaration of Conformity, visit

https://www.netgear.com/about/regulatory/.

Trademarks

Any non-NETGEAR trademarks are used for reference purposes only.

Orbi Voice

Contents

Chapter 1 Overview

Supported Orbi Routers and Satellites..............................................5

Hardware Overview..............................................................................5

Power LED..............................................................................................6

Ring LED.................................................................................................6

Download the NETGEAR Orbi App....................................................8

Chapter 2 Set Up Your Orbi Voice

Sync Your Orbi Voice.........................................................................10

Sync Your Orbi Voice Using the NETGEAR Orbi App...............10

Sync Your Orbi Voice Using the Router Web Interface.............10

Add Amazon Alexa to Your Orbi Voice...........................................11

Link Alexa to Your Streaming Audio Services.................................11

Listen Out Loud With Spotify Connect............................................12

Chapter 3 Manage Your Orbi Voice

Manage Your Orbi Voice Sound Settings.......................................14

Update the Orbi Voice Firmware......................................................14

Check for Firmware Updates........................................................14

Manually Update the Firmware....................................................15

View Information Abour Your Orbi Voice........................................16

View Your Orbi Voice's Status...........................................................17

Chapter 4 Troubleshooting

The Orbi Router and Orbi Voice Do Not Sync................................20

Cannot Log In to the Router..............................................................20

Appendix A Supplemental Information

Factory Settings..................................................................................22

Technical Specifications.....................................................................23

Overview

This manual covers how to set up your Orbi Voice and configure its settings using your

Orbi router web interface and NETGEAR Orbi app.

For information about how to configure the settings for your Orbi router, see the user

manual for your Orbi router. You can get your Orbi router’s manual from its product

support page at https://www.netgear.com/support/download/.

This chapter contains the following sections:

• Supported Orbi Routers and Satellites

• Hardware Overview

• Power LED

• Ring LED

• Download the NETGEAR Orbi App

For more information about the topics covered in this manual, visit the support website

at https://www.netgear.com/support/download/.

Supported Orbi Routers and Satellites

All residential Orbi routers and satellites support the Orbi Voice. You must own an Orbi

router to connect your Orbi Voice to the Internet.

Hardware Overview

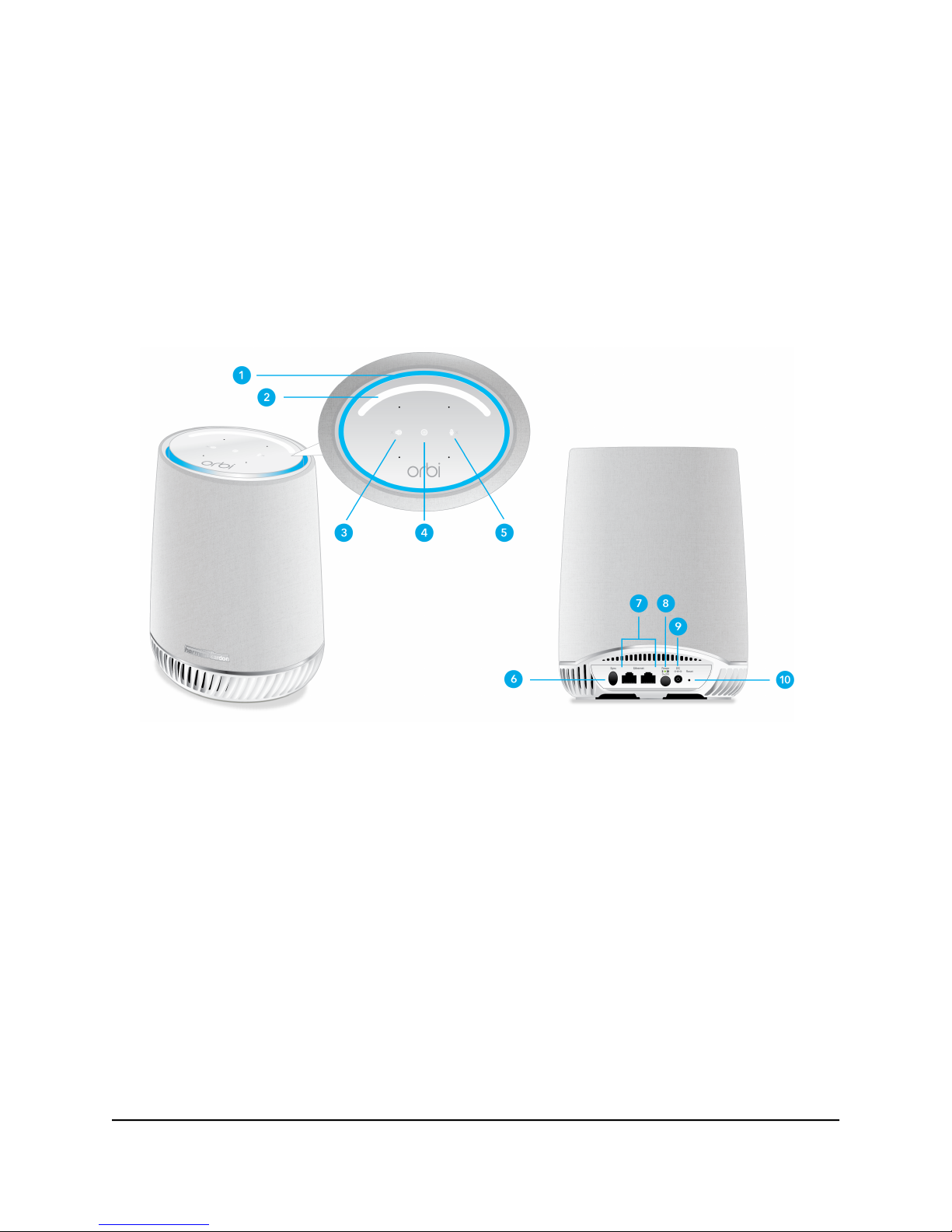

Figure 1. Top and back views

1. Ring LED. Use the ring LED to determine the sync status between your Orbi Voice

and router. After your Orbi Voice is synced to the Orbi router and Amazon Alexa is

added, your Orbi Voice’s ring LED behavior changes.

2. Volume Control slider. Touch and slide the Volume Control slider to increase or

decrease the volume.

3. Speaker On/Off button. Touch the Speaker On/Off button to mute or unmute the

speaker. If the speaker is muted, the Xicon next to the button lights red.

4. Alexa trigger button. Touch the Alexa trigger button to give a command to Alexa.

5. Microphone On/Off button. Touch the Microphone On/Off button to mute or

unmute the microphone. If the microphone is muted, the Xicon next to the button

lights red and you cannot give Alexa a command.

User Manual5Overview

Orbi Voice

6. Sync button (also used for WPS connection). Use the sync button to sync your

Orbi Voice to your Orbi router or to connect WPS-enabled devices to your Orbi

Voice.

7. Ethernet ports. Connect Ethernet devices to the Ethernet ports.

8. Power On/Off button and Power LED. Press the Power On/Off button to turn

your Orbi Voice on or off. The Power LED is located above the Power On/Off button.

9. Power connector. Connect the power adapter to the Power connector.

10. Reset button. To factory reset your Orbi Voice, press the Reset button until the

Power LED blinks amber.

Power LED

The Power LED is located above the Power On/Off button on the rear panel.

The following is the LED behavior for the Power LED:

•Solid green. Power is on.

•Solid amber. The Orbi Voice is booting.

•Blinking amber. The Orbi Voice is resetting to factory default settings.

•Blinking red. The firmware is corrupted.

•Off. Power is not supplied.

Ring LED

When your Orbi Voice syncs with your Orbi router, it lights the following colors:

Table 1. Ring LED behavior during syncing

LED BehaviorLED Color

The Orbi Voice is booting, or your Orbi Voice is attempting to sync with your Orbi router.Pulsing

white

The Orbi Voice is ready to sync with your Orbi router.Solid white

Your Orbi Voice and Orbi router successfully synced, and the connection between your Orbi Voice

and router is good.

The ring LED lights solid blue for about three minutes and then turns off.

Solid blue

User Manual6Overview

Orbi Voice

Table 1. Ring LED behavior during syncing (Continued)

LED BehaviorLED Color

Your Orbi Voice and Orbi router successfully synced, and the connection between your Orbi Voice

and router is fair.

The ring LED lights solid amber for about three minutes and then turns off.

Consider moving your Orbi Voice closer to your router.

Solid amber

Your Orbi Voice and Orbi router failed to sync. Move your Orbi Voice closer to the router and try

again.

If the ring LED lights magenta, it does not turns off.

Solid

magenta

Your Orbi Voice is synced to your Orbi router.Off

After your Orbi Voice is synced to the Orbi router and Amazon Alexa is added, your

Orbi Voice’s ring LED behavior changes. The ring LED can light the following colors to

indicate its Alexa status

Table 2. Ring LED behavior

LED BehaviorLED Color

Alexa is listening.

Note: For Alexa to start listening, press the Alexa trigger button or say “Alexa” to your

Orbi Voice.

Solid cyan

Alexa is thinking.Fast pulsing cyan and blue

Alexa is speaking.Slow pulsing cyan and blue

Your Orbi Voice’s microphone is muted.Solid red

A notification arrived.One-time yellow burst

You have unread notifications.Slow pulsing yellow

An error occurred.Pulsing amber

User Manual7Overview

Orbi Voice

Download the NETGEAR Orbi App

You can use the NETGEAR Orbi app to set up and monitor your Orbi Voice.

To download the app, visit Orbi-app.com.

Figure 2. NETGEAR Orbi app icon

User Manual8Overview

Orbi Voice

Set Up Your Orbi Voice

This chapter contains the following sections:

• Sync Your Orbi Voice

• Add Amazon Alexa to Your Orbi Voice

• Link Alexa to Your Streaming Audio Services

• Listen Out Loud With Spotify Connect

Sync Your Orbi Voice

You can use the NETGEAR Orbi app to sync your Orbi Voice with your Orbi router. You

can also log in to your Orbi router and use the router web interface to sync your satellite.

Sync Your Orbi Voice Using the NETGEAR Orbi App

You can use the NETGEAR Orbi app to sync your Orbi Voice with your Orbi router and

enable Amazon Alexa on your Orbi Voice. To download the app, visit Orbi-app.com.

To sync your Orbi Voice using the NETGEAR Orbi app:

1. Launch the NETGEAR Orbi app.

The dashboard displays.

2. Tap the Home icon > ADD SATELLITE.

Follow the prompts to sync your Orbi Voice and add Amazon Alexa.

Sync Your Orbi Voice Using the Router Web Interface

You can use the router web interface to sync your Orbi Voice to your Orbi router.

To sync your Orbi Voice using the router web interface:

1. Launch a web browser from a computer or mobile device that is connected to your

Orbi network.

2. Enter orbilogin.com.

A login window opens.

3. Enter the router admin user name and password.

The user name is admin. The default password is password. The user name and

password are case-sensitive.

The BASIC Home page displays.

4. Select Add Orbi Satellite.

5. Follow the prompts to sync your satellite.

User Manual10Set Up Your Orbi Voice

Orbi Voice
