NETGEAR RangeMax WNR1000 Bedienungsanleitung

January 2009

208-10430-01

v1.0

NETGEAR, Inc.

350 E. Plumeria Drive

Santa Jose, CA 95134 USA

N150 Wireless Router

WNR1000 Setup Manual

Trademarks

NETGEAR and the NETGEAR logo are registered trademarks, and RangeMax and Smart Wizard are trademarks of

NETGEAR. Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other

brand and product names are registered trademarks or trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to

make changes to the products described in this document without notice.

NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit

layout(s) described herein.

iii

Contents

N50 Wireless Router WNR1000 Setup Manual

Getting to Know Your Wireless Router................................................................................1

Unpacking Your New Router .............................................................................................1

Hardware Features ............................................................................................................2

Front Panel ..................................................................................................................3

Back Panel ..................................................................................................................4

Router Label ................................................................................................................5

Positioning Your Wireless Router ......................................................................................5

Installing Your Wireless Router ..........................................................................................6

Updating Your Router Firmware ........................................................................................7

Installing Your Router Using the Smart Wizard...................................................................9

Using the Smart Wizard .....................................................................................................9

Accessing Your Router After Installation .........................................................................11

Manually Installing Your Router .........................................................................................13

Connecting Your Wireless Router ....................................................................................14

Verifying Your Connection ...............................................................................................17

Setting Up Your Router for Internet Access .....................................................................18

Configuring Your Wireless Network...................................................................................21

Specifying Wireless Settings ...........................................................................................21

Setting Your SSID and Wireless Security Manually ..................................................21

Using Push 'N' Connect (WPS) to Configure Your Wireless Network .......................23

Testing Basic Wireless Connectivity ................................................................................26

Troubleshooting...................................................................................................................29

Basic Setup Checklist ......................................................................................................29

Checking Basic Router Functions ...................................................................................30

Troubleshooting Login Problems .....................................................................................32

Checking the Internet Service Connection ......................................................................33

Obtaining an Internet IP Address ....................................................................................33

Troubleshooting PPPoE ............................................................................................34

Troubleshooting Internet Browsing ...........................................................................35

Using the Ping Utility to Troubleshoot ..............................................................................35

Testing the Path from Your Computer to Your Router ...............................................35

Testing the Path from a Computer to the Internet .....................................................36

Technical Specifications .....................................................................................................37

Default Configuration Settings .........................................................................................37

Restoring the Default Password and Configuration Settings ...........................................39

Related Documents..............................................................................................................41

Registration and Certifications............................................................................................43

Getting to Know Your Wireless Router 1

Getting to Know Your Wireless Router

Congratulations on your purchase of a NETGEAR® high-speed wireless router, the N150

Wireless Router WNR1000.

Before you begin installing your router, check the package contents (see “Unpacking Your New

Router” on page 1). Become familiar with the front and back panels of your router—especially the

status lights—and the important information on the router label (see “Hardware Features” on

page 2). Then, read the section on “Positioning Your Wireless Router” on page 5 to ensure that you

have selected the best location to install your router.

Unpacking Your New Router

Your product package should contain the following items:

• The N150 Wireless Router

• A snap-on stand for your wireless router

• An AC power adapter (varies by region)

• A yellow Ethernet cable

•TheResource CD, which includes:

– The Smart Wizard Installation Assistant (Autorun.exe)

– A PDF version of this manual

– A link to the online User Manual

• Warranty and Support Information cards

If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the

carton, including the original packing materials, in case you need to return the product for repair.

A link to the online User Manual is also available from the router interface,

after the router is installed. Click Documentation on the main menu.

2 Getting to Know Your Wireless Router

To prepare your router for installation:

1. Carefully peel off the protective film covering the sides of your router.

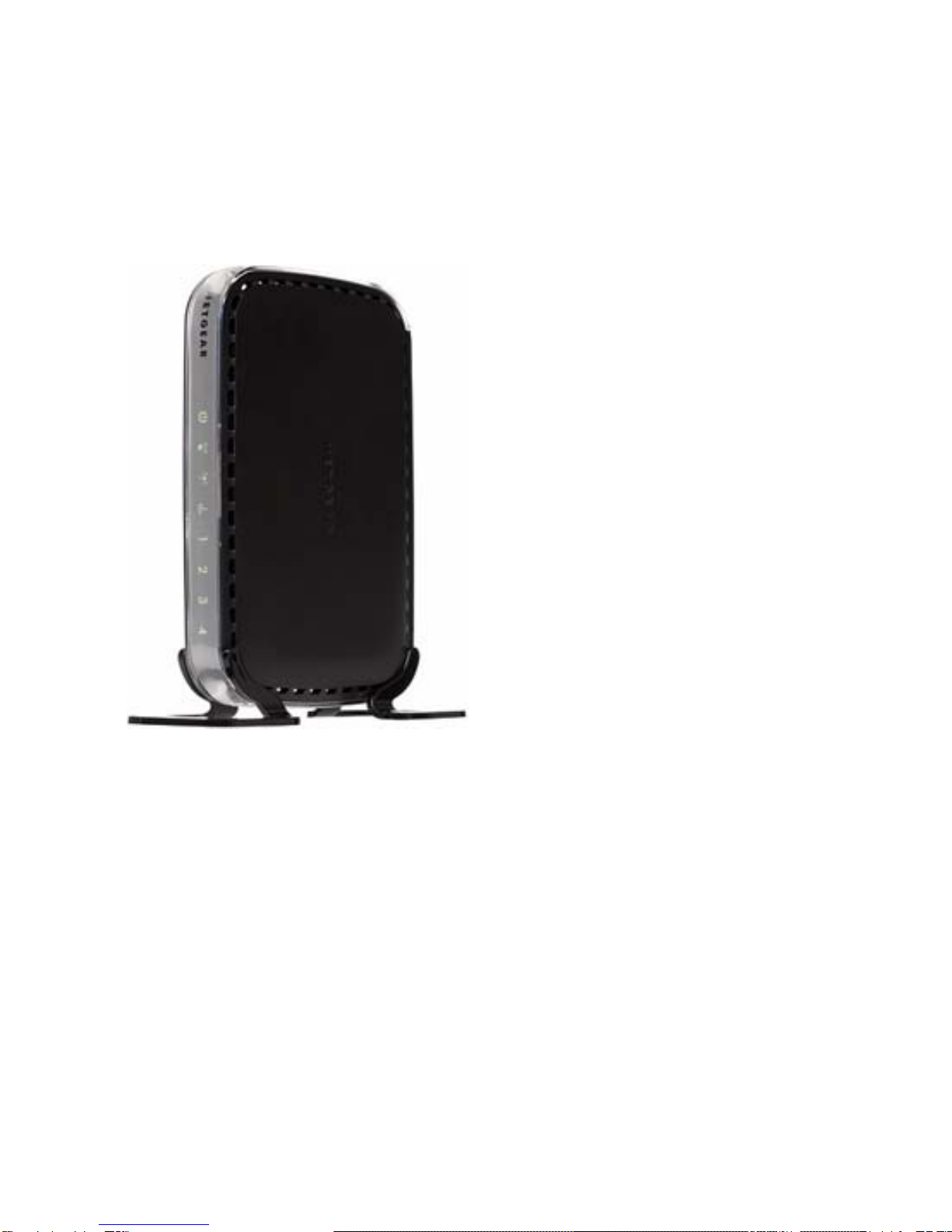

2. Set up your wireless router by inserting the router into the stand supplied with it.

3. Place your router in a suitable area for installation (near an AC power outlet and accessible to

the Ethernet cables for your wired computers).

Hardware Features

Before you install and connect your router, take a moment to become familiar with the front and

back panels of the router—especially the status lights on the front panel.

Figure 1

Getting to Know Your Wireless Router 3

Front Panel

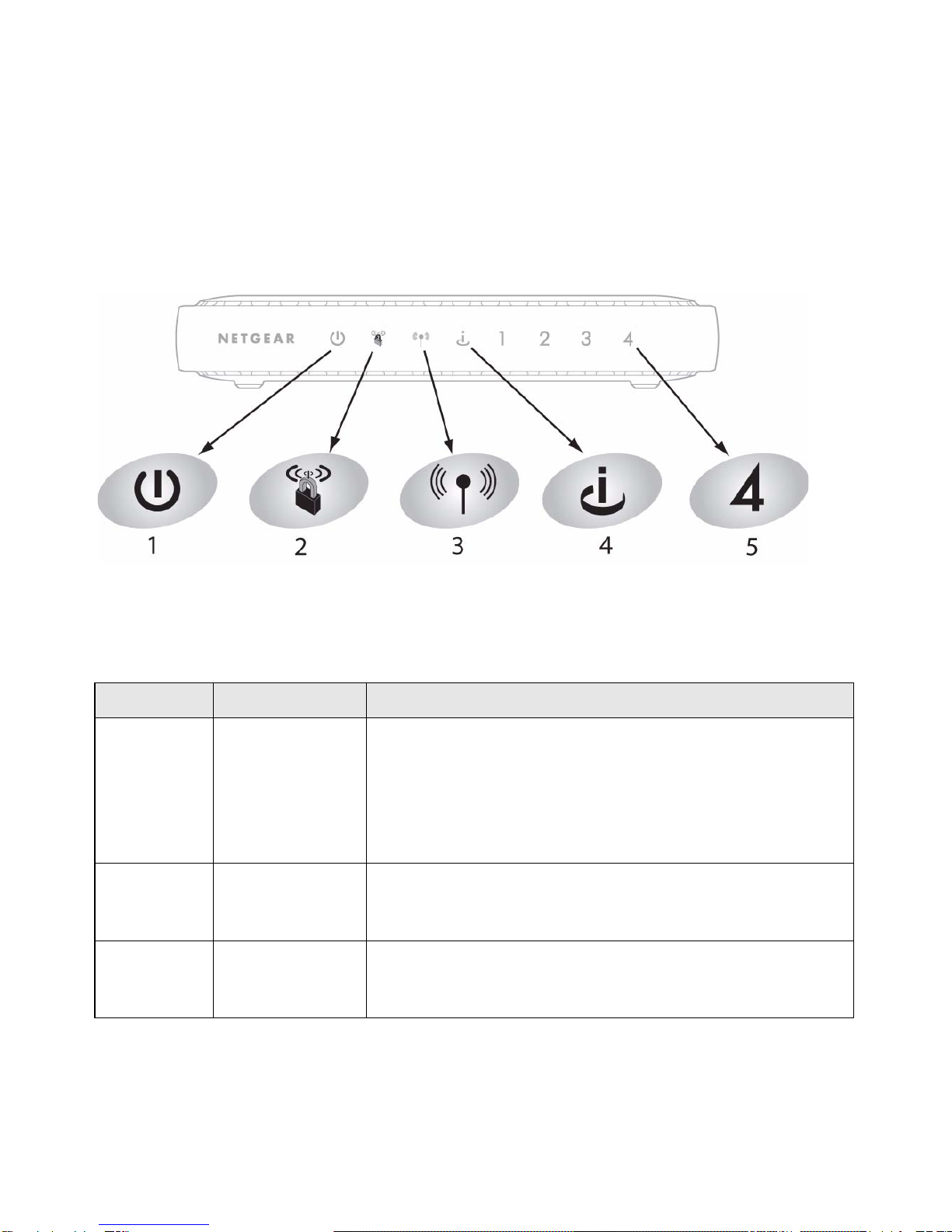

The router front panel, shown in Figure 2, contains status lights. (For more information on

interpreting the status lights, see “Verifying Your Connection” on page 17 and “Checking Basic

Router Functions” on page 30.)

You can use the status lights to verify various conditions.

Figure 2

Table 1. Status Light Descriptions

Label Activity Description

1. Power

Solid Amber

Solid Green

Blinking–Amber

Blinking–Green

Off

The router is performing the power-on self-test diagnostic.

The power is on and the router is ready.

A software update is in progress.

Firmware is corrupted. See “Checking Basic Router Functions” on

page 30 for instructions on restoring your router firmware.

Power is not being supplied to the router

2. Push 'N'

Connect

Solid Green

Blinking Green

Off

Indicates a (WPS) connection to a WPS-capable device.

WPS-capable device can associate with the router within 2 minutes.

No WPS connection exists.

3. Wireless

Solid Blue

Blinking Blue

Off

The wireless interface is enabled.

Data is being communicated over the wireless network.

The wireless interface is turned off.

4 Getting to Know Your Wireless Router

Back Panel

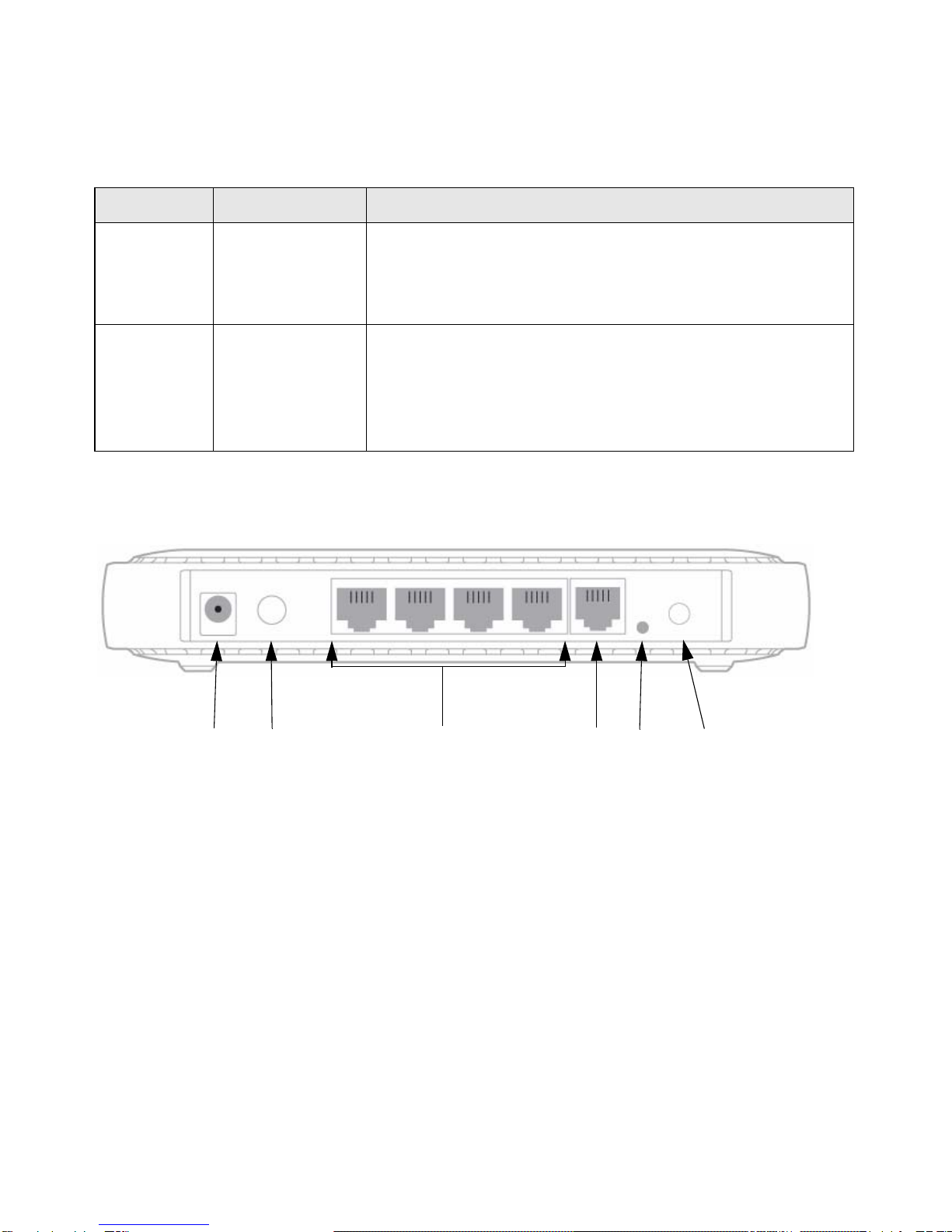

The router back panel, shown in Figure 3, contains port connections.

Viewed from left to right, the rear panel contains the following elements:

1. AC power adapter outlet for connecting the power adapter.

2. Power on/off push-button.

3. Four Local Area Network (LAN) 10/100 Mbps Ethernet ports for connecting the router to

your local computers.

4. Internet/Wide Area Network (WAN) Ethernet port for connecting the router to a cable or DSL

modem.

5. Restore factory settings button. Press for approximately 5 seconds to reset the router to the

factory default settings.

6. Push 'N' Connect (WPS) push-button.

4. Internet

Solid Amber

Solid Green

Blinking Green

Off

No IP address acquired.

The wireless router has acquired an Internet address.

Data is being communicated with the Internet.

No Ethernet cable is connected to the modem.

5. LAN

(Ports 1–4)

Solid Green

Blinking Green

Solid Amber

Blinking Amber

Off

The local port is connected to a 100 Mbps device.

Data is being transmitted at 100 Mbps.

The local port is connected to a 10 Mbps device.

Data is being transmitted at 10 Mbps.

No link is detected on this port.

Figure 3

Table 1. Status Light Descriptions (continued)

Label Activity Description

1 43265

Getting to Know Your Wireless Router 5

Router Label

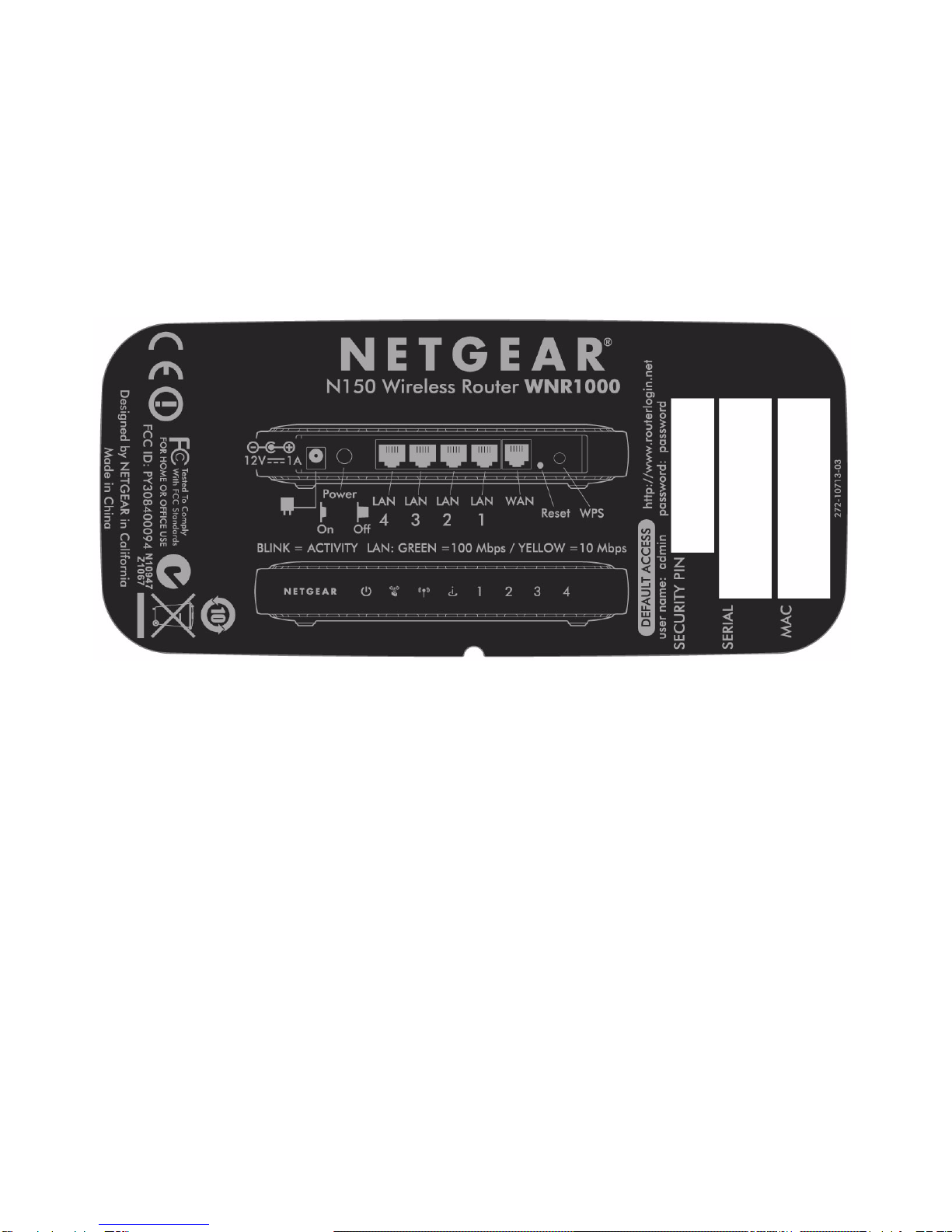

The label on the bottom of the wireless router shows the router’s MAC address, serial number,

security PIN, and factory default login information.

The ports on the router are color-coded to distinguish your Internet port from the other four ports

that connect to the wired computer(s) on your Local Area Network (LAN).

Positioning Your Wireless Router

The wireless router lets you access your network from virtually anywhere within the operating

range of your wireless network. However, the operating distance or range of your wireless

connection can vary significantly depending on the physical placement of your router. For

example, the thickness and number of walls the wireless signal must pass through might limit the

range. For best results, place your router:

• Near the center of the area where your computers and other devices will operate, preferably

within line of sight to your wireless devices.

• Accessible to an AC power outlet and near Ethernet cables for wired computers.

• In an elevated location such as a high shelf, keeping the number of walls and ceilings between

the wireless router and your other devices to a minimum.

Figure 4

6 Getting to Know Your Wireless Router

• Away from electrical devices which are potential sources of interference, such as ceiling fans,

home security systems, microwaves, or the base for a cordless phone.

• Away from any large metal surfaces, such as a solid metal door or aluminum studs. Large

expanses of other materials such as glass, insulated walls, fish tanks, mirrors, brick, and

concrete can also affect your wireless signal.

Installing Your Wireless Router

To help you set up your router and get on the Internet quickly, the Resource CD contains a Smart

Wizard™ Installation Assistant. The Installation Assistant walks you through the steps required to

connect your router, modem, and PC(s); configure your wireless settings; and enable wireless

security for your network. When you have finished, you will be Internet ready!

You can set up your wireless router using one of two methods:

•Smart Wizard Setup: The Smart Wizard Installation Assistant setup is available on your

Resource CD. See “Installing Your Router Using the Smart Wizard” on page 9 to use the

Smart Wizard Installation Assistant.

– This is the easiest option. The wizard guides you through the setup process. It automates

many of the steps and verifies that the steps have been successfully completed.

– Smart Wizard requires a PC running Microsoft Windows.

•Manual Setup: If you cannot or prefer not to use the Smart Wizard Installation Assistant, see

“Manually Installing Your Router” on page 13. For example, if you are connecting to a Mac,

are using a Linux operating system, or are technically knowledgeable, select this option. If you

choose to use this option and install your router manually, for best results, install and set up

your router in this order:

Failure to follow these guidelines can result in significant performance degradation

or an inability to wirelessly connect to the Internet.

NETGEAR does not recommend or support adding a NETGEAR router behind

another router, or replacing a gateway with a a NETGEAR router.

If you have a Macintosh or Linux system, you must use the manual installation

method (see “Manually Installing Your Router” on page 13).

Andere Handbücher für RangeMax WNR1000

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere NETGEAR WLAN-Router Handbücher

NETGEAR

NETGEAR WNA1000 - Wireless-N 150 USB Adapter Bedienungsanleitung

NETGEAR

NETGEAR ProSAFE WC7500 Bedienungsanleitung

NETGEAR

NETGEAR DGN2200v3 Bedienungsanleitung

NETGEAR

NETGEAR CENTRIA WNDR4700 Bedienungsanleitung

NETGEAR

NETGEAR AirCard 810 Mobile Hotspot Bedienungsanleitung

NETGEAR

NETGEAR DGND3700v2 Bedienungsanleitung

NETGEAR

NETGEAR NIGHTHAWK R7000 Bedienungsanleitung

NETGEAR

NETGEAR WGR614v8 - 54 Mbps Wireless Router Bedienungsanleitung

NETGEAR

NETGEAR WNR2000 Bedienungsanleitung

NETGEAR

NETGEAR C7000v2 Bedienungsanleitung

NETGEAR

NETGEAR N900 Bedienungsanleitung

NETGEAR

NETGEAR WNR3500v1 - RangeMax Wireless N Gigabit... Bedienungsanleitung

NETGEAR

NETGEAR MBR1515 Bedienungsanleitung

NETGEAR

NETGEAR N300 Bedienungsanleitung

NETGEAR

NETGEAR Verizon Jetpack AC791L Bedienungsanleitung

NETGEAR

NETGEAR DG834G - 54 Mbps Wireless ADSL Firewall... Bedienungsanleitung

NETGEAR

NETGEAR R6220 Bedienungsanleitung

NETGEAR

NETGEAR Super-G WGT624 Bedienungsanleitung

NETGEAR

NETGEAR WNDRMAC-100NAS Bedienungsanleitung

NETGEAR

NETGEAR WNR2000v4 Bedienungsanleitung

NETGEAR

NETGEAR DGN2200v1 Bedienungsanleitung

NETGEAR

NETGEAR RANGEMAX WNDR3300 Bedienungsanleitung

NETGEAR

NETGEAR WGR614L Bedienungsanleitung

NETGEAR

NETGEAR Orbi Pro WiFI 6 Bedienungsanleitung

Beliebte WLAN-Router Handbücher anderer Marken

Milesight

Milesight UG67 Bedienungsanleitung

Airlogic

Airlogic AirSync Class 1 Betriebsanleitung

Samsung

Samsung WCH730B Bedienungsanleitung

TELEFONICA

TELEFONICA USB Adapter Bedienungsanleitung

Askey

Askey RAC2V1K Bedienungsanleitung

Alloy

Alloy WLF2454AP-S Bedienungsanleitung

TP-Link

TP-Link TL-WR542G Bedienungsanleitung

Hama

Hama 53120 Bedienungsanleitung

Intellinet

Intellinet 524582 Bedienungsanleitung

Asus

Asus RT-N10P Bedienungsanleitung

D-Link

D-Link DIR-506L Bedienungsanleitung

Sapido

Sapido GR297n Bedienungsanleitung

Asus

Asus DSL-N55U Bedienungsanleitung

AMTC

AMTC WR7502 Bedienungsanleitung

Compaq

Compaq CP-2W - iPAQ Connection Point Bedienungsanleitung

SMC Networks

SMC Networks WBR14-N2 FICHE Bedienungsanleitung

Draytek

Draytek Vigor2120 Series Bedienungsanleitung

Sitecom

Sitecom WLR-4000 Bedienungsanleitung
