Netopia Network Adapater Bedienungsanleitung

User Guide

User Guide 1-1

Netopia®

VOIP ATA

User’s Guide

User Guide

User Guide 1-2

REVISION STATUS

User Guide

User Guide 1-3

Tables Of Content

Chapter 1 - Introduction ............................................................................................... 1-6

1.1 Main features ............................................................................. 1-7

Chapter 2 - Your VOIP ATA at a glance ...................................................................... 2-8

2.1 Ports and buttons........................................................................ 2-8

2.2 LED description......................................................................... 2-9

Chapter 3 - Installing Your VOIP ATA...................................................................... 3-10

3.1 Typical VOIP ATA Connection............................................... 3-10

3.1.1 ADSL Connection Diagram ..................................................... 3-10

3.1.2 Cable Connection Diagram ...................................................... 3-11

3.2 For Company Network Connection.......................................... 3-12

Chapter 4 - Setting Up Your VOIP ATA functionality via GUI .................................. 4-13

4.1 Access to VOIP ATA’s GUI.................................................... 4-13

4.1.1 Accessing GUI Using Static IP ................................................ 4-13

4.1.2 Accessing GUI Using Hub/Switch ........................................... 4-15

4.2 Setup Mode.............................................................................. 4-17

Chapter 5 - Basic Mode.............................................................................................. 5-19

5.1 Overall Status .......................................................................... 5-19

5.2 DHCP Client Status ................................................................. 5-20

5.3 TCP Status............................................................................... 5-21

5.4 System Log.............................................................................. 5-22

Chapter 6 - Basic Configurations................................................................................ 6-23

6.1 WAN Configuration................................................................. 6-23

6.2 DNS Configuration.................................................................. 6-24

6.3 Save Settings / Reboot ............................................................. 6-26

Chapter 7 – Advanced Mode ...................................................................................... 7-28

7.1 VOIP ATA Configuration........................................................ 7-28

7.2 SIP Service Provider ................................................................ 7-30

7.3 VOIP ATA Login Account Configuration................................ 7-33

7.4 VOIP ATA Timer Configuration.............................................. 7-35

7.5 Ringtone Configuration............................................................ 7-38

7.6 Misc Configuration .................................................................. 7-42

User Guide

User Guide 1-4

7.7 Address Book Configuration.................................................... 7-45

Chapter 8 – Admin Privilege ...................................................................................... 8-48

8.1 Miscellaneous Configuration.................................................... 8-48

8.2 Admin / Username Password Configuration............................. 8-49

8.3 Reset to Default ....................................................................... 8-51

8.4 Firmware Update ..................................................................... 8-52

8.4.1 How to Firmware Update......................................................... 8-52

8.5 Save / Reboot........................................................................... 8-54

Chapter 9 Making Phone Calls ................................................................................... 9-56

9.1 Internet Calls ........................................................................... 9-56

9.2 PSTN Calls.............................................................................. 9-56

9.3 VoIP Advanced Call Features .................................................. 9-56

9.3.1 Consultation Hold.................................................................... 9-56

9.3.2 Blind Transfer.......................................................................... 9-56

9.3.3 Attended Transfer .................................................................... 9-57

9.3.4 3-Way Conferencing................................................................ 9-57

9.3.5 Call Waiting............................................................................. 9-57

9.3.6 Call Forwarding....................................................................... 9-58

9.3.6.1 Forward Unconditional.............................................. 9-59

9.3.6.2 Forward When Busy.................................................. 9-59

9.3.6.3 Forward On No Answer............................................. 9-59

9.3.6.4 Canceling Call Forwarding........................................ 9-60

9.3.7 Call Return .............................................................................. 9-60

9.3.8 IP Dialing ................................................................................ 9-60

9.3.8.1 IP Address................................................................. 9-60

9.3.8.2 Through Server.......................................................... 9-60

Chapter 10 - Troubleshooting..................................................................................... 10-61

Appendix A Glossary ............................................................................................. 10-62

A1 Acronyms .............................................................................. 10-62

A2 Keywords............................................................................... 10-62

A3 Definitions............................................................................. 10-62

Appendix B Dial Plan for Pulver ............................................................................ 10-66

B1 Basic Dial Plan ...................................................................... 10-66

B1.1 Pulver - USA Dial Plan.......................................................... 10-66

User Guide

User Guide 1-5

B1.2 Explanation of the Rules ........................................................ 10-66

B2 Calling Other Service Provider Numbers through Pulver........ 10-68

User Guide

User Guide 1-6

Chapter 1 - Introduction

The VOIP ATA VoIP Analog Telephone Adaptor (VOIP ATA) products are standards-based

communication devices that deliver true, next-generation voice-over-IP (VoIP) terminations to

residences worldwide. The VOIP ATA is in a small form factor that interface legacy analog

telephones, fax machines, analog conference telephones and other analog devices to IP based

telephony networks thereby allowing users and ISPs to protect prior investments in analog phones,

fax machines, and speakerphones, and migrate to IP at their own pace. These products address the

needs of small-office environments, and the emerging VoIP voice services whereby ISPs value add

their ADSL or Cable Modem offering with VoIP services by turning their analog devices into IP

devices.

The VOIP ATA is installed at the subscriber's premises and supports 1 voice (FXS) port. The VOIP

ATA supports 1 10/100BaseT AutoMDIX Ethernet ports. This adaptor can make use of existing

broadband pipes such as digital subscriber line (DSL), fixed wireless and cable modem deployments

By turning any analog telephone into an IP telephone, the VOIP ATAs addresses the needs of the

emerging market of "second-line" residential voice-over-IP (VoIP) services. Broadband service

providers can now deploy voice services quickly to grow revenues and facilitate the development of

new services.

User Guide

User Guide 1-7

1.1 Main features

• Call Out & Call In

• Voice over IP c all (through Gatekeeper)

• IP address calling / Peer to Peer calling (Future Firmware Upgrade)

• 3Way IP Conference call

• Call features

• Call Waiting

• Call Hold

• Call Forward: No Answer / Busy / All

• Call ID (Type 1 and 2)

• Call Transfer (Dependant on ITSP)

• Setup & Configuration

• Web Based Configuration

• Password Protection for Web Configuration

• Audio Codec Feature

• G.711, G.726, G.729a

• Voice Activity Detection

• Silence Compression

• Comfort Noise Generation

• Echo Cancellation

• Jitter Provisioning

• Protocols

• SIP v2.0

• T.38 Fax over IP support

• Network Support

• Static IP Support

• NAT Traversal with STUN client

• NAT Traversal with outbound proxy

• DHCP Client

• DNS Relay Agent

• Single VPN Pass Through for IPSEC, L2TP, PPTP

• FTP and Web Management Support

User Guide

User Guide 2-8

Chapter 2 - Your VOIP ATA at a glance

The VOIP ATA may have different ports and LEDs. Let’s take a look at the different options.

Depending upon your model, it may have some or all of the features listed below

2.1 Ports and buttons

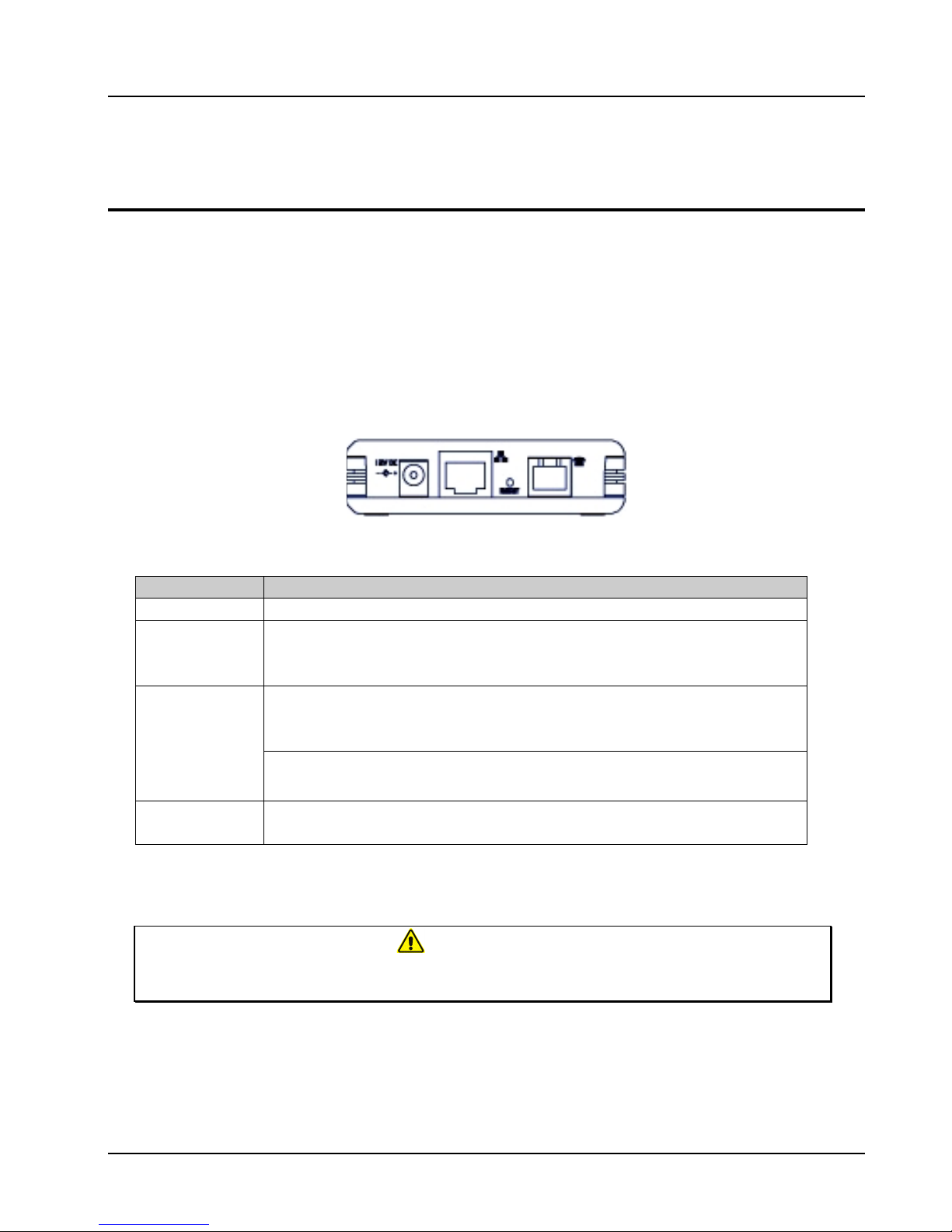

Fig 2-1 shows the back panel of the VOIP ATA.

Figure 2-1 : Back Panel

DESCRIPTIONS

12V DC

This is where you will connect the included power adapter.

MODEM

The MODEM port allows you to connect the VOIP ATA to your

router or gateway using a Category 5 (or better) Ethernet network

cable (RJ-45).

Press and hold the RESET button for 2 to 4 seconds will restore the

VOIP ATA’s WAN Static IP to 192.168.1.200 while keeping all the

other settings intact.

RESET

Press and hold the RESET button for more than 5 seconds will

restore the VOIP ATA to default factory settings.

PHONE

The PHONE port allows you to connect your telephone to the VOIP

ATA using a RJ-11 telephone cable.

Table 2-1 : Back Panel Descriptions

Warning!

All custamized setting that you have saved will be lost upon resetting the VOIP

ATA to default factory settings will

User Guide

User Guide 2-9

2.2 LED description

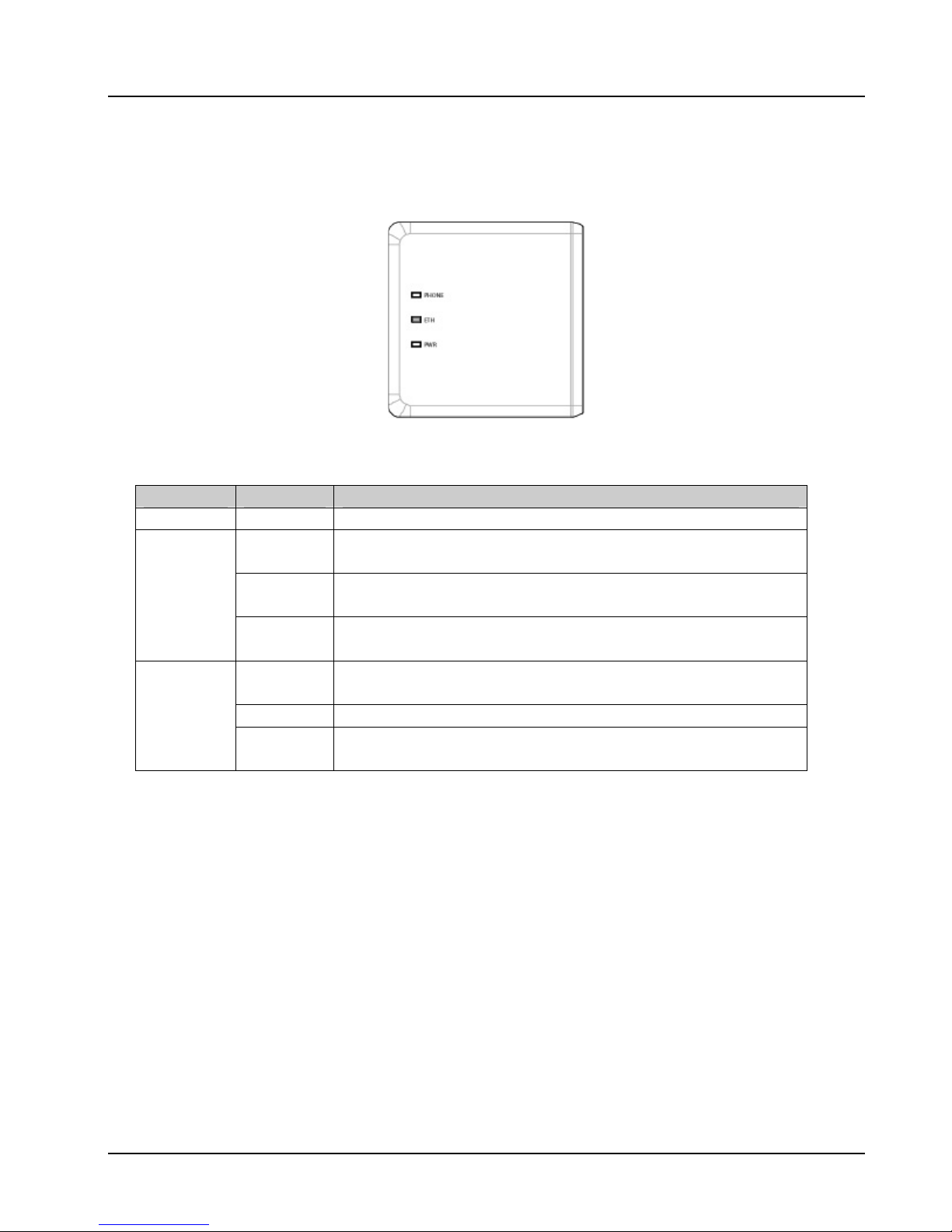

Fig 2-2 shows the LED indicators of the VOIP ATA.

Figure 2-2 : LED Indicators

LED

STATUS

DESCRIPTIONS

PWR

The VOIP ATA is receiving power.

The VOIP ATA has an Ethernet connection with cable/DSL

modem.

Blinking

The VOIP ATA is sending/receiving dVoIP ATA to/from

the cable/DSL modem.

ETH

Off

The VOIP ATA doesn’t have an Ethernet connection with

the cable/DSL modem.

This port(s) is registered to the Internet Phone Service

Provider(s).

Blinking

The telephone(s) connected to this port(s) is(are) off-hooked.

PHONE

Off

This port(s) isn’t registered to the Internet Phone Service

Provider(s).

Table 2-2 : LED Descriptions

User Guide

User Guide 3-10

Chapter 3 - Installing Your VOIP ATA

3.1 Typical VOIP ATA Connection

You need to have a ADSL modem or Cable modem before you can connect to the VOIP ATA. It

can be placed behind router or straight from the modem. Check if your Computer/Notebook has an

Ethernet Port. The Telephone set is connected to the RJ-11

3.1.1 ADSL Connection Diagram

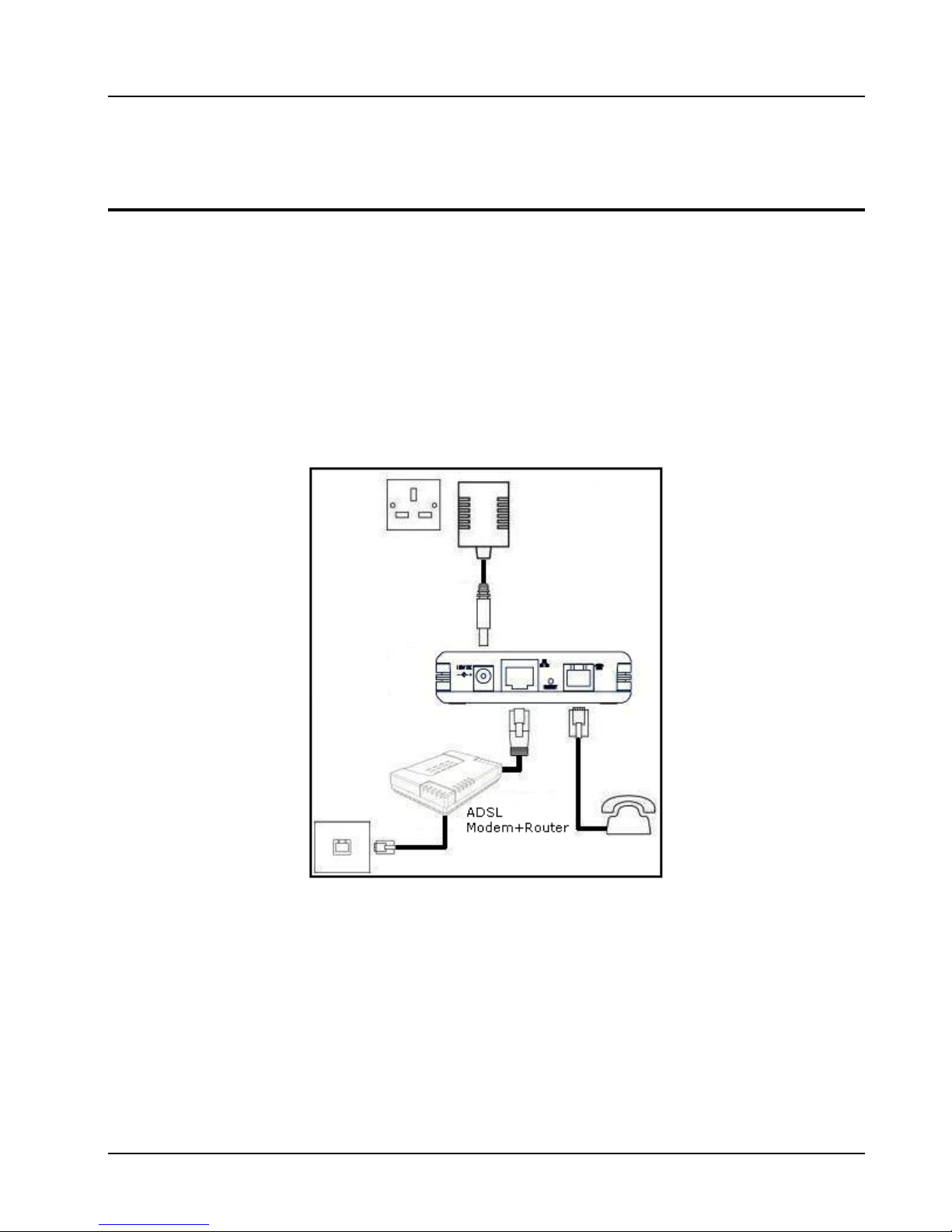

Figure 3-1 below shows a ADSL Modem+Router connection diagram.

Figure 3-1: Connection via ADSL Modem+Router
