Netro SPRITE Bedienungsanleitung

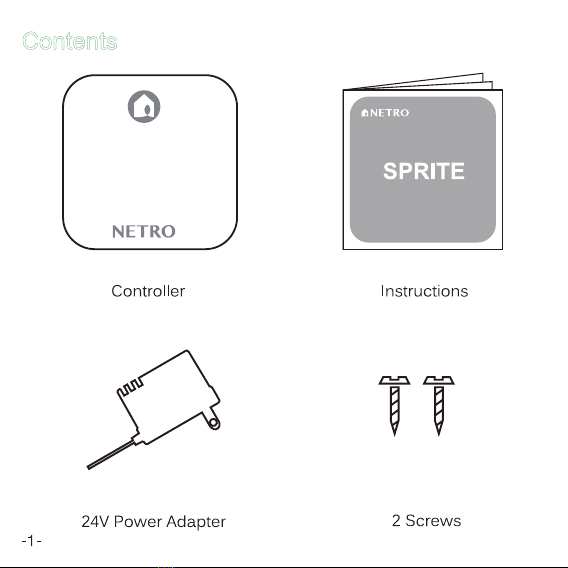

Contents
Preparation
Test the functionality of your irrigation system with your
current controller first. If it does not work, please make
sure it is repaired before installing the Sprite.
Note: If you are not sure about the condition of your sprinkler system, you
might want to check whether there are shorted zones or open zones. You
just need to use a multimeter to measure the resistance between the
common wire and each zone. The normal reading would be 20-60 Ohms.
If the reading is less than 10 Ohms then you might have a shorted circuit
in the solenoid and if it is larger than 80 Ohms you might have an open
circuit. Please contact us or irrigation professionals for additional support.
Unplug the power of your current controller.
Take a photo of the wiring in your old
controller. When you are wiring Sprite,
this photo can be the reference.
Remove your current controller.
Installation
Check the strength of the WiFi signal at the location
where your Sprite will be installed.We recommend a
signal of at least 2 bars on your phone.
Note: Sprite is unable to connect to Wireless-B(11Mbps) routers. Sprite
only supports the newer standards, namely Wireless-N,Wireless-G and
Wireless-AC. Sprite is incompatible with 5 GHz Wi-Fi networks.
Also, please make sure the SSID (name of your home Wi-Fi) and the
password does not contain special characters like spaces or quotation
marks.
Remove the front cover from the base.
Install the Sprite base to the
wall using the two screws
included. Use the air bubble to
position horizontally.
Wiring
Wiring
Setup
Weather Data
Once your Sprite is added to your account through the Netro
app, the Netro cloud server automatically acquires the local
weather data for adjusting the watering schedules.
- Change providers
By default, your Sprite is connected to DarkSky for weather data. You
can change it to a different weather source in the Netro app -> Settings
-> Controller -> Weather Provider.
