Netstor NR310C Bedienungsanleitung

First Edition, July 2011

Table of contents

1. Introduction……………………………………………………………………………………………………………………… P1

2. Configuration via GUI

2.1 Starting the RAID Manager………………………………………………………………………… P1

2.1.1 For Windows operating system……………………………………………………………… P2

2.1.2 For Mac OS X…………………………………………………………………………………………… P7

2.2 Understanding the GUI…………………………………………………………………… P10

2.3 The Host…………………………………………………………………………………………… P11

2.3.1 The Server Information…………………………………………………………… P11

2.3.2 Event Log……………………………………………………………………………………… P12

2.3.3 E-mail Alert………………………………………………………………………………… P13

2.4 The NR710C System……………………………………………………………………………………… P13

2.4.1 Identification………………………………………………………………………………………… P13

2.4.2 Information on Controller…………………………………………………………………… P13

2.4.3 RAID Configuration……………………………………………………………………………… P14

2.4.4 Firmware Upgrade………………………………………………………………………………… P18

2.4.5 AES Management…………………………………………………………………………………… P18

2.4.6 Mute Alarm……………………………………………………………………………………………… P19

2.4.7 Hardware Monitor………………………………………………………………………………… P19

2.5 Information on Controller, RAID and Disk……………………………………………… P19

2.5.1 Identification………………………………………………………………………………………… P20

2.5.2 Information on RAID…………………………………………………………………………… P20

2.5.3 Spare Disk……………………………………………………………………………………………… P20

2.5.4 RAID Settings………………………………………………………………………………………… P21

2.6 The Disk Drive…………………………………………………………………………………………………… P22

2.6.1 Identification………………………………………………………………………………………… P23

2.6.2 Information on DISK…………………………………………………………………………… P23

2.6.3 Spare Disk……………………………………………………………………………………………… P23

2.6.4 S.M.A.R.T. Information………………………………………………………………………… P24

2.6.5 About the Failure of the Hard Disk Drive………………………………………… P25

1. Introduction

This system configuration guide aims to provide users with guidelines on the Netstor RAID

Manager. The configuration of the RAID system and monitor of the drives in the NR310C module

are illustrated in this guide. The Netstor RAID Manager includes two programs. The first one:

ManagementServer, and the second one: ManagementClient.

If you are using host with NR310C, the program ManagementServer should be activated first, and

then run the program ManagementClient to manage RAID. On the other hand, if you are a client,

you only need to run program ManagementClient to administer RAID through the network, but you

should note that the program ManagementServer should be already activated on the host.

If you want the application program ManagementServer to be activated on the startup of the

computer, you simply create a shortcut of the program ManagementServer from folder

Netstor_RAID_Server under RAID_AP_v2.0, and then copy the shortcut to Start / All Programs /

Startup from the Windows operating system.

2. Configuration via GUI

‧2.1 Starting the RAID Manager

If you want to use volume larger than 2 TB, the jumper on the backplane of NR310C should be

placed over pin 1 and pin 2, and the operating system and the hardware should also support

volume larger than 2 TB. If you want to use volume under 2 TB, the jumper should be placed over

pin 2 and pin 3.

JP1：

Pin 1 and pin 2 closed (default) – volume larger than 2 TB

Pin 2 and pin 3 closed – volume under 2 TB

The steps illustrated below show you how to start the RAID Manager.

‧2.1.1 For Windows operating system

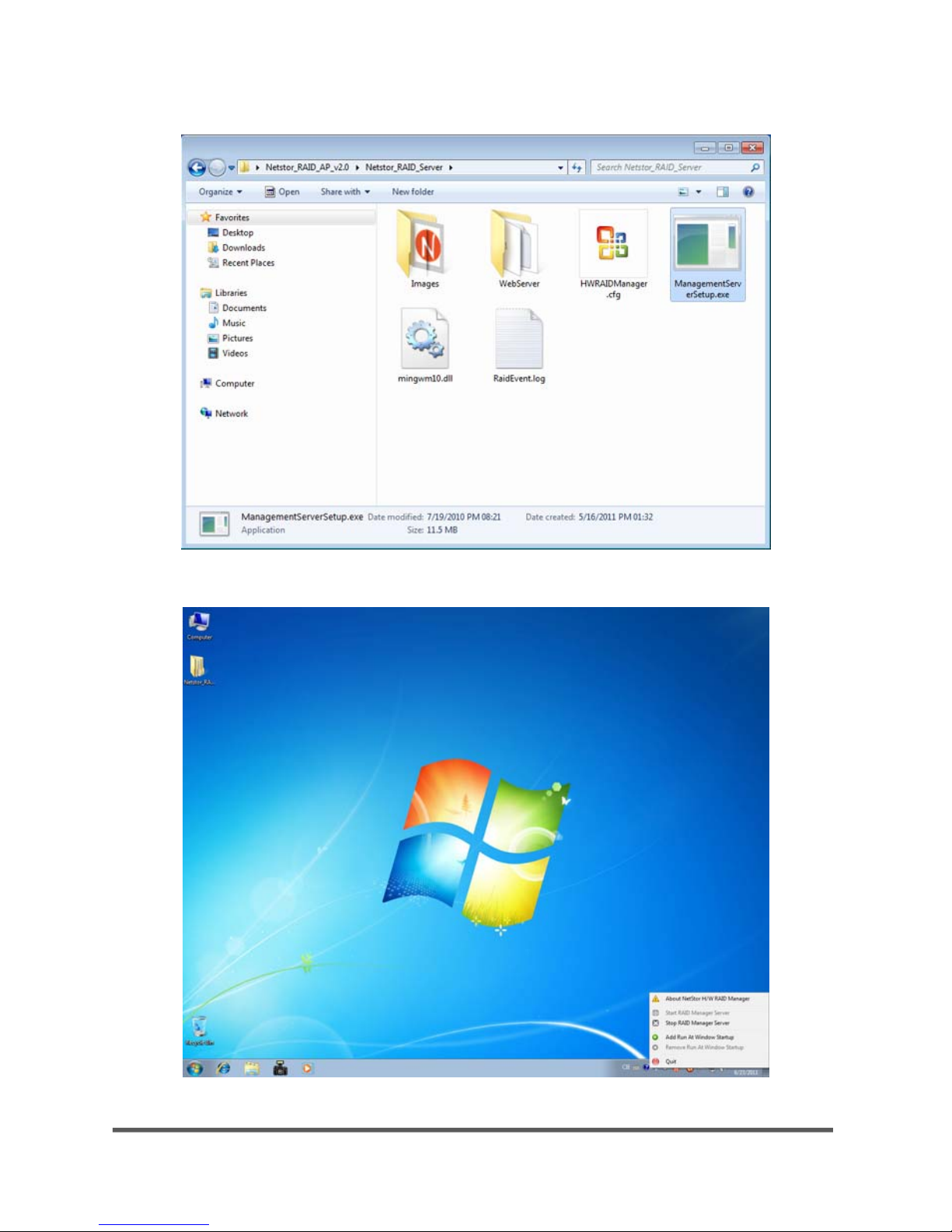

A. Find the folder RAID_AP_v2.0 from the CD, and then copy the folder to your computer. After

you copy the folder onto your computer, double click the folder on computer and you will see

two sub-folders under it. Find the folder Netstor_RAID_Server and double click it, then find

the executable program ManagementServerSetup and execute it. After the execution of

the program, you will see the icon of Netstor H/W RAID Manager that appears at the right

bottom of the screen.

‧The Netstor_RAID_Server folder

‧The executable program ManagementServerSetup

‧The Netstor H/W RAID Manager appears at the bottom right of the screen

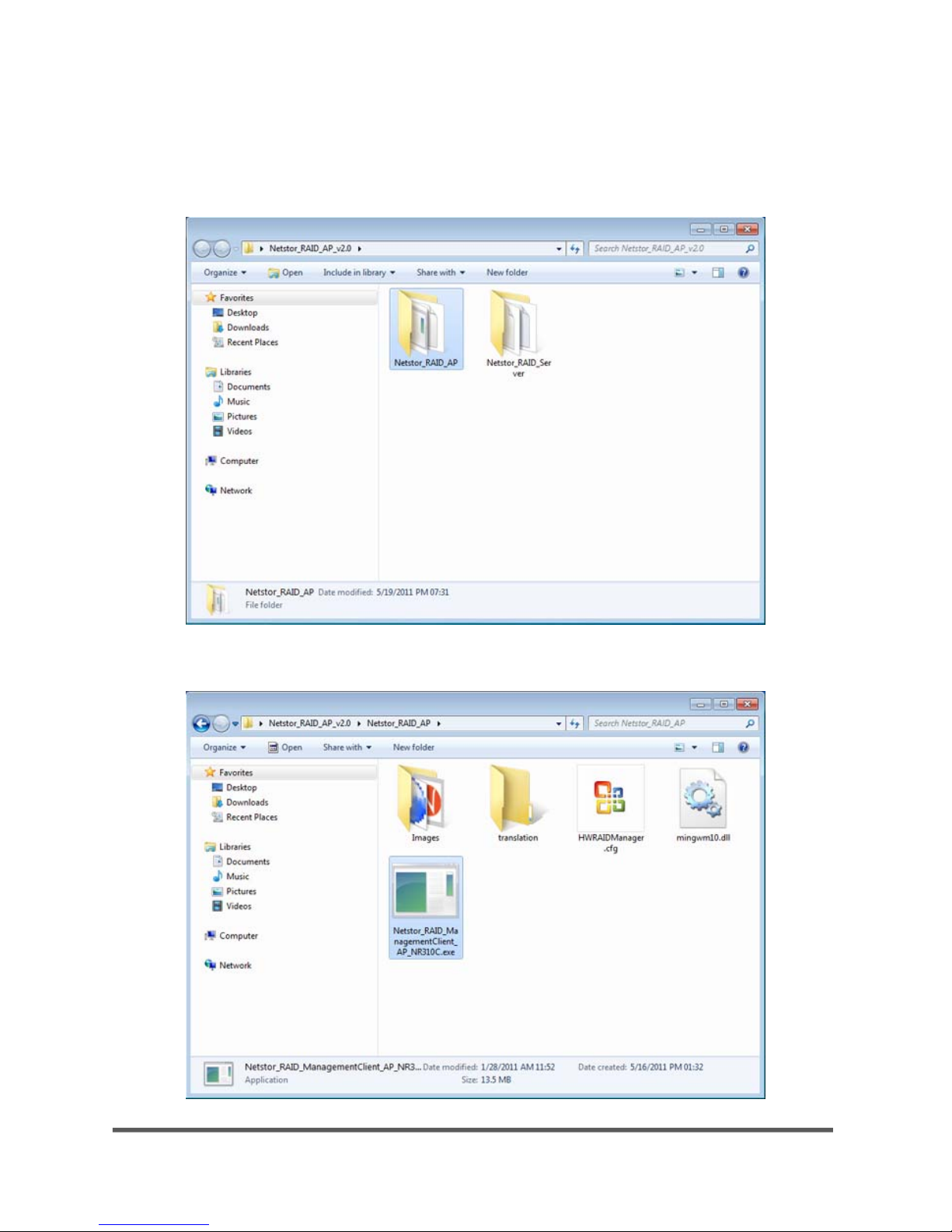

B. Go to the folder Netstor_RAID_AP under RAID_AP_v2.0, and find the executable program

Netstor_RAID_ManagementClient_AP_NR310C, and then execute it.

‧The Netstor_RAID_AP folder

‧The executable program Netstor_RAID_ManagementClient_AP_NR310C

C. For Windows 7, go to Start, click All Programs, and click Accessories, and then select Run.

After the window shows up, key in cmd (meaning command prompt) in the space, and then

click OK. A MS-DOS mode appears, and then key in ipconfig/all and press the enter key.

Find IPv4 Address shown from the screen. For example, 192.168.0.123.

For Windows XP, go to Start, and click Run, then key in cmd (meaning command prompt) in

the space, and click OK. A MS-DOS mode shows up, and then key in ipconfig/all and press

the enter key. Find your IP Address shown from the screen. For example, 192.168.0.128.

‧Key in cmd in the space and then click OK

‧Key in ipconfig/all and then press the enter key

‧Find your IP Address from the MS-DOS mode

Windows 7 Windows XP

D. If you are using computer that connects to NR310C enclosure, you enter localhost or your IP

Address shown from the MS-DOS mode as directed above, and admin in User Name, and

then you enter the default password 111111. After you key in the three entries above, you

click Connect to make connection from client to server.

‧The connection from client to server

2.‧1.2 For Mac OS X

A. Find the folder Netstor_Mac from the CD, and then copy the folder onto your computer. After

you copy the folder onto the computer, double click the folder and you will see two sub-folders

under it. Find the folder Netstor_RAID_Server_Mac and double click it, then find the

executable program WebServer and execute it. After the execution of the program, you will

see the icon of Netstor H/W RAID Manager appearing at the right bottom of the screen.

‧Find the Netstor_RAID_Server_Mac folder

‧The executable program WebServer

B. Go to the folder Netstor_RAID_Client_Mac under Netstor_Mac, and find the executable

program Netstor_New_AP, and then execute it.

‧Find the Netstor_RAID_Client_Mac folder

‧The executable program Netstor_New_AP

C. Click the Apple logo on the top left of the screen, and then select System Preferences. After

a window appears, select Network under the Internet and Network section. Select AirPort in

the Show drop-down menu. Select TCP/IP on the Network screen, and then find your

computer's IP address on the subsequent screen displayed on your Mac. For example,

192.168.3.101.
