Installation of EON smart box
Instalation of EON Smart Box
nettvplus.gr
ЕON SMART TV
For smart televisions
Download directly from the App
Store on your TV
ЕON TV
For smartphones and tablets
Download from:
IN ORDER TO CONNECT IT TO THE INTERNET, EON SMART BOX HAS TO BE CONNECTED TO A
POWER SOURCE, THE TV AND ROUTER.
Image 1: Connection inputs
1. Plug the power cord that came in the box into the appropriate port on the receiver
and plug it into an electrical outlet on the other end.
2. Then connect the EON Smart box with the TV using the HDMI cable that came in the
box. 3.
3. Finally, connect the receiver to the Internet using the LAN cable from the box
Image 2: Connecting to the EON
4. The indicating light on the front of the receiver will glow red for a few seconds and
then turn green, indicating that the device is entering standby mode
12
Image 3. Indicators light up red and green
5. The blue light is an indicator for the Internet and should be flashing until it
establishes an Internet connection with the router. After the connection is
established, it constantly glows blue
Image 4. Indicator lights up blue
6. Turn on the TV and you will see the installation home screen, which will guide you to
the next steps
Image 5. Home screen
7. A message will appear on the screen stating that you need to pair the EON remote
with the EON smart box. This will happen when you press both the volume up button
and the channel change button at the same time and hold for three seconds. Keep
the remote control no more than 25 cm away from the receiver.
Image. 6. Remote control pairing
8. If the pairing was successful, you will see the message "Pairing successful" on the screen.
9. Choose a language for the EON Smart box by using the navigation buttons on the
remote control, confirm the chosen language by pressing the “OK’’ button.
Image 7. Choose language
34
10. Confirm the internet connection screen and continue
Image 8. Connecting to the internet
11. A quick Android update follows. Please wait for it to finish and do not turn off the EON
receiver during this process.
Image 9. Automatic Android update
12. Connect your Google account with the EON Smart box through the remote control, phone
or tablet.
Image 10. Google Sign in
13. When you sign in to your Google account, you must agree to the terms of use, location,
and choice of sending automatic notifications to Google. This helps Google improve its
applications
Image 12. Terms of use
56

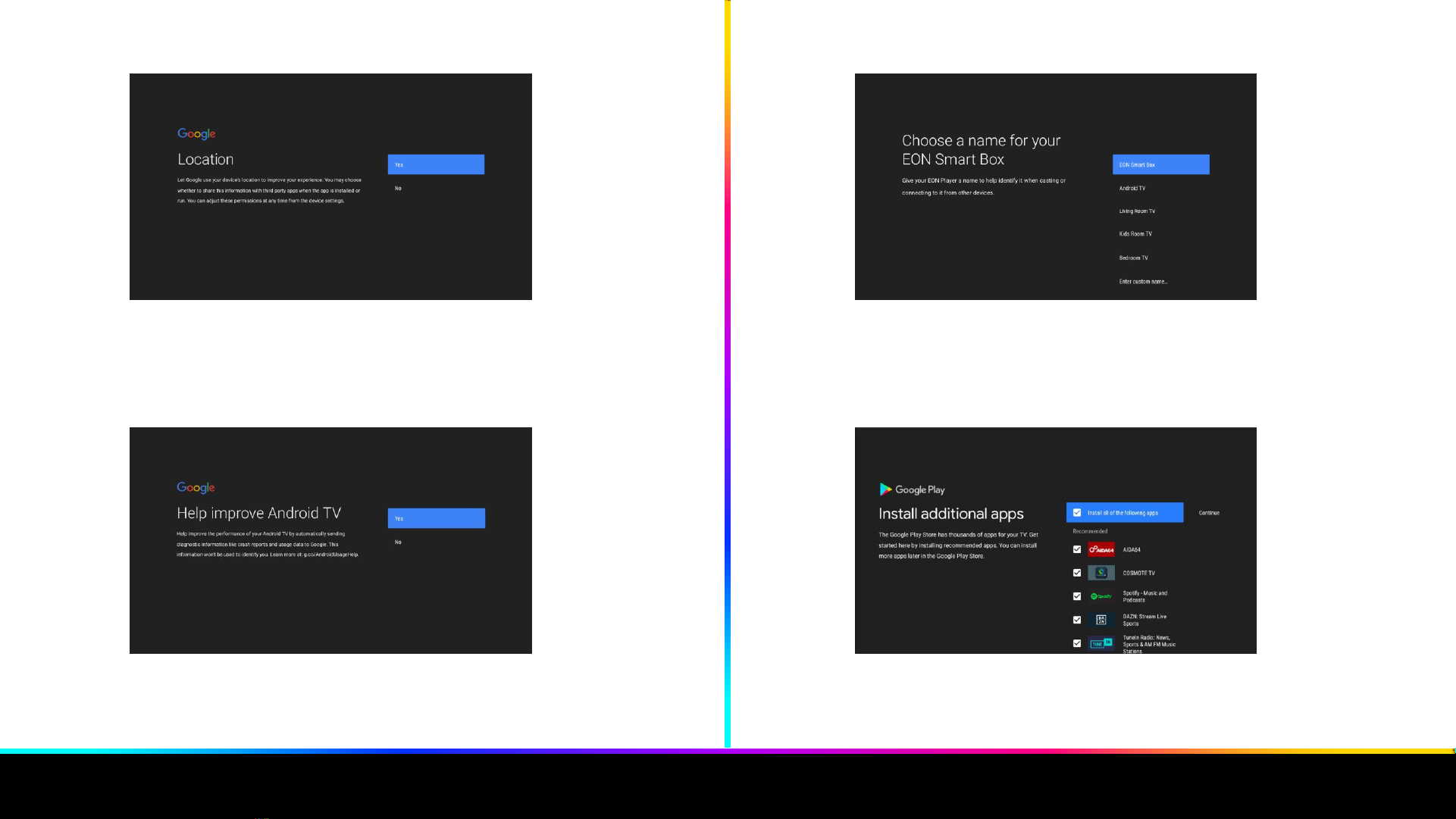

Image 13. Location
Image 14. Choice of automatic notifications
14. Follow the next three steps and then click “OK”.
Image 15. Device name
Image 16. Downloading the applications from Google Play
78
Image 17. Chromecast
15. Please wait for the next few screens to finish. It will end automatically.
Image 18. Downloading the EON TV update
Image 19. Installing the EON TV update
Image 20. Completion of EON TV update
910
Image 21. Loading
16. You have the option to create your account in EON and personalize it now or choose
the option "Create account later"
17. Enjoy the best TV content
11
REMOTE CONTROL
