NetView NVP1015 Bedienungsanleitung

USER

NVP1015 / 1017

15” / 17” LCD

1U TFT LCD Keyboard Drawer

MANUAL

ii-Tech Co pany LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechK M.com • WEB: www.iTechK M.com

NVP1015 / NVP1017 User Manual

Table of Contents

1. Table of Contents P.1

2. Introduction P.2

3. Features P.2

4. Package Contents P.3

5. Optional Accessories P.4

6. Peripheral Products P.4

7. I portant Safeguards P.5

8. Structure Diagra P.6

9. Di ension Diagra

N P1015 P.7

N P1017 P.8

10. LCD OSD Menu Operation

LCD Membrane Diagram P.9

Main Menu P.9

Sub Menu P.10-12

11. Resolution Settings

For Windows P.12

For SUN Servers P.13

12. Technical Specification P. 14

ii-Tech Co pany LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechK M.com • WEB: www.iTechK M.com

NVP1015 / NVP1017 User Manual

2. Introduction

N P Series is a combination of keyboard, mouse and monitor into a drawer, with features such as

flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an

administrator to control PC system.

N P Series provides cost effective for your limited IT budget over using CRT and rack mounting.

Also, it will be space saving for your compact environment rack and effective assistant for an

administrator to control PC system.

3. Features

• 1U height, separate sliding screen and keyboard using unique miniature

Cyber slides

• Adjustable mounting brackets from 390 to 790mm (front to rear 19” mounts

• Lightweight aluminium construction—with black anodise finish

• Slim Size keyboard with GlidePoint TM touch pad mouse

• Standard D-SUB 15-pin GA input Connector

• Supplied with 12 5A remote power adapter (single power resource)

• Bulit-in On Screen Display controlled by integral membrane switch

• Unique mechanical design to maximize rack mountable space

• Unique monitor flip-up design allows viewing through closed glass door

of cabinet.

Disclaimer

This information is subject to change without notice. The producer of this manual accepts no

responsibility for damage or claims, resulting from misuse or misinterpretation

ii-Tech Co pany LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechK M.com • WEB: www.iTechK M.com

NVP1015 / NVP1017 User Manual

4. Package Contents

LCD Monitor 1 Piece

User Manual 1 Piece

DC Power Adapter 1 Piece

Power Cord 1 Piece

Mounting Bracket 1 Pair

Fasteners 4 Pieces

ND-6 3-in-1 K M cable 1 Pieces

Before Unpacking

It is very important to locate the LCD Keyboard Drawer in a suitable environment.

• The surface for placing and fixing the LCD Keyboard Drawer should be stable and level

or mounted into a suitable cabinet.

• Make sure the place has good ventilation, is out of direct sunlight, away from sources of

excessive dust, dirt, heat, water, moisture and vibration.

• Convenience for connecting the LCD Keyboard Drawer to the related facilities should

be well considers too.

Unpacking

The LCD Keyboard Drawer comes with the standard parts shown as above. Check and make

sure they are included and in good condition. If anything is missing, or damage, contact the

supplier immediately.

ii-Tech Co pany LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechK M.com • WEB: www.iTechK M.com

NVP1015 / NVP1017 User Manual

5. Optional Accessories

Video Input

12V / 24V / 48V DC Power

SUN-31 SUN / iMAC USB to PS/2 adapter

6. Peripheral Products

Model Description

N -401 / N -801 / N -1601 4-Port / 8-port / 16-Port PS/2 K M switch

N -1602 16-Port 2-Console PS/2 K M switch

N -S801 / N -S1601 8-Port /16-port USB K M switch

N -S1602 16-port 2-Console USB K M switch

N -101 CAT.5 PS/2 K M extender

ii-Tech Co pany LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechK M.com • WEB: www.iTechK M.com

NVP1015 / NVP1017 User Manual

What the warranty does not dover

1. Any product, on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

a) Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

b) Repair or attempted repair by anyone not authorized by us.

c) Any damage of the product due to shipment.

d) Removal or installation of the product.

e) Causes external to the product, such as electric power fluctuation or failure.

f) Use of supplies or parts not meeting our specifications.

g) Normal wear and tear.

h) Any other causes which does not relate to a product defect.

3. Removal, installation, and set-up service charges.

Please read all of these instructions carefully before you use the device.

Save this manual for future reference.

• Unplug the LCD Keyboard Drawer from the power outlet before cleaning.

• Do not spray liquid cleaners or aerosol directly on the device. Wet a cloth with a neutral

detergent (e.g. clean water) and squeeze it tight, then clean the screen slightly with it.

• Do not expose the LCD Keyboard Drawer directly to rain, water, moisture or sunlight.

• Avoid pressure on the LCD screen to prevent permanent damage to the display.

• Do not attempt to service the device yourself. Improper operation may void your

warranty. Refer all servicing to qualified service personnel.

•

Safe storage environment of the LCD Keyboard Drawer is ranging between –20

and 60

C. Permanent damage could occur if the LCD Keyboard Drawer is stored

outside the safe range.

• Unplug the LCD Keyboard Drawer immediately and call qualified service

personnel under the following conditions:

1. The GA signal cord is frayed or damaged.

2. If the monitor has been exposed to rain, liquid or water.

3. If the monitor has been dropped or the casing has been damaged.

7. I portant Safeguards

ii-Tech Co pany LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechK M.com • WEB: www.iTechK M.com

NVP1015 / NVP1017 User Manual

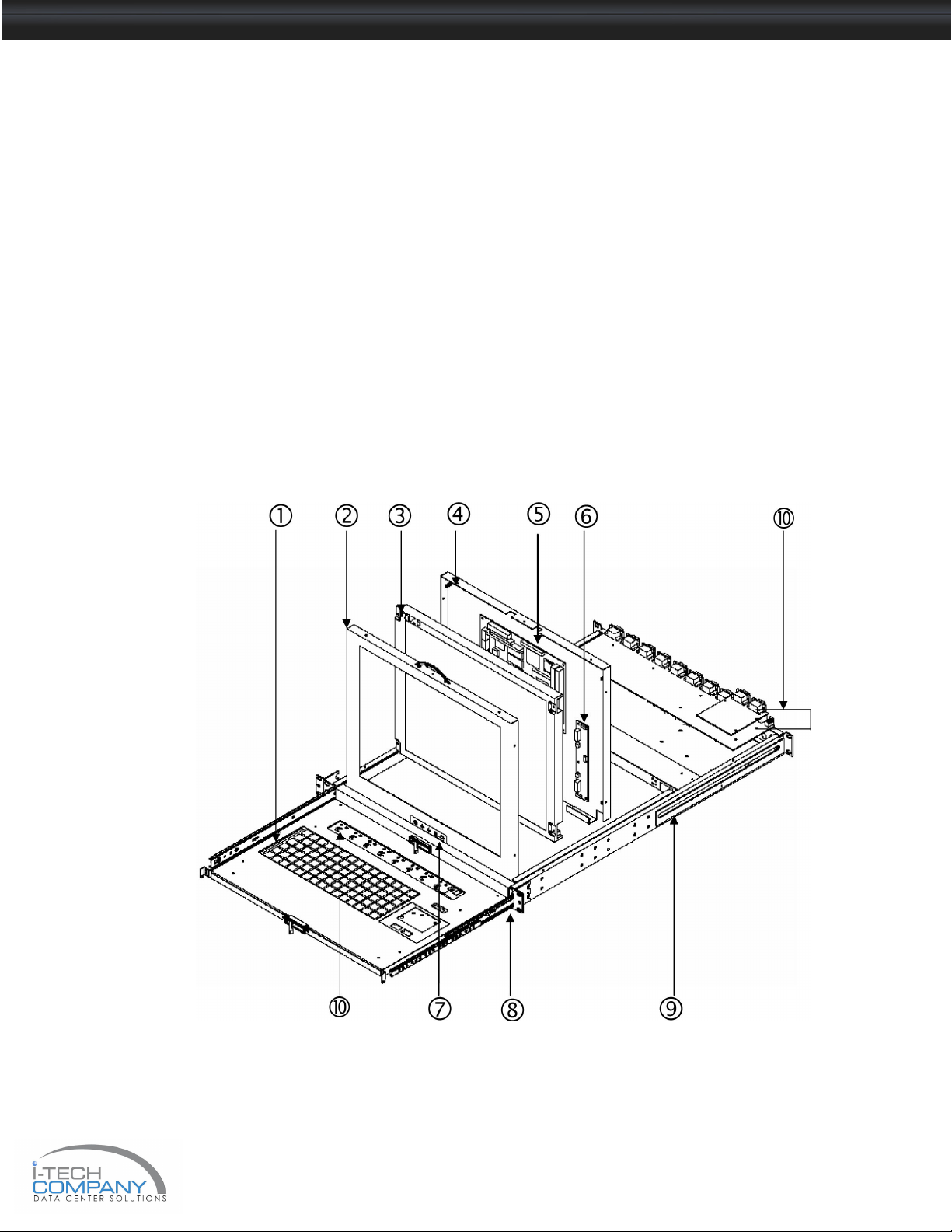

8. Structure Diagra

1. PS/2 keyboard

2. Alu iniu front panel

3. Class A active atrix TFT LCD panel

4. Rear etal case

5. Analog to digital signal converter board

6. LCD inverter

7. LCD e brane

8. Ball bearing telescopic slides with stopper

9. Adjustable ounting bracket

10. Optional KVM e brane & KVM switch board

ii-Tech Co pany LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechK M.com • WEB: www.iTechK M.com

NVP1015 / NVP1017 User Manual

9. Di ensions Diagra

NVP1015 1U 15” LCD Keyboard Drawer

ii-Tech Co pany LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechK M.com • WEB: www.iTechK M.com

NVP1015 / NVP1017 User Manual

9. Di ensions Diagra

NVP1017 1U 17” LCD Keyboard Drawer

ii-Tech Co pany LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechK M.com • WEB: www.iTechK M.com

NVP1015 / NVP1017 User Manual

10. LCD OSD Menu Operation

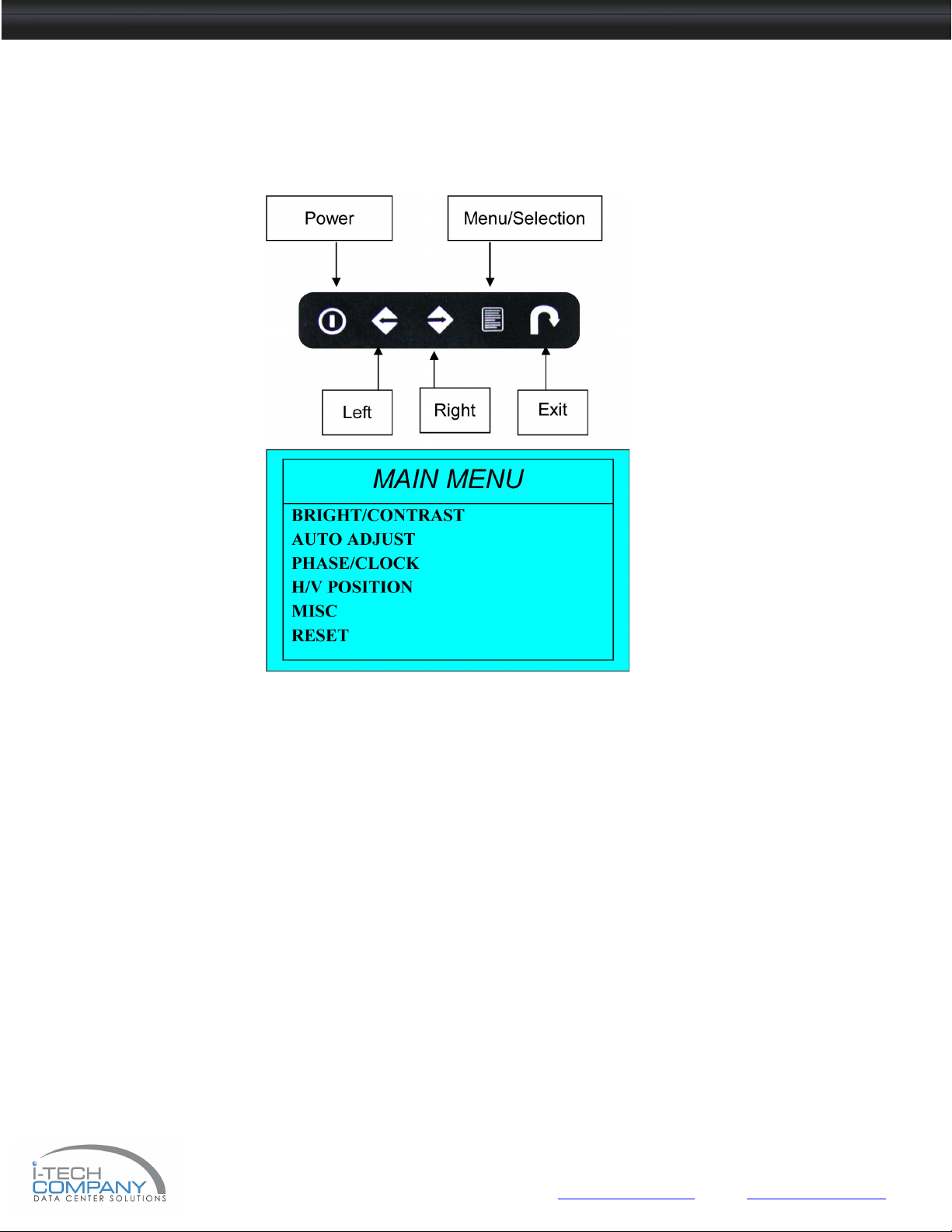

LCD Me brane diagra

Main Menu

Bright / Contrast

• To enter into the Bright, Black level & Contrast sub-menu

Auto Adjust

• To perform automatic optimisations of all functions

• An “ Adjusting” message is displayed during the process

Phase / Clock

• To enter into the phase & clock sub menu

H/V Position

• To enter into the H/ Position sub-menu

MISC

• To enter into the MISC sub-menu

Reset

• Reset to the default factory settings
