Advanced Probe Appliance

For 10/100/1000 Networks

Obtain Total Network Intelligence with Fully Conﬁgured, Turn-Key Appliances

As corporate networks continue to grow to support multiple departments, locations, business functions and remote users, robust remote monitoring solutions

become crucial. Remote probes have changed the way IT departments are structured. Today, with a console and remote probes, an IT manager can proactively

monitor, troubleshoot and respond to any network problem from any location. Network Instruments’probes oﬀer complete insight and visibility into every part of

an organization’s business-critical IT infrastructure. Choose from a variety of pre-conﬁgured 1U rack mount systems for an easy, cost-eﬀective way to monitor any

part of the network.

Use the Advanced Probe Appliance for real-time monitoring and troubleshooting:

 •Captureanddecodepacketsforin-depthanalysis

 •Collectlong-termtrendingstatisticsforproactivedecisionmaking

 •RunTriggersandAlarmsforinstantalertsonprobe-collecteddata

 •Monitortheentirenetworkfromasingleuserinterface—onlyoneconsoleneededtoviewmultipleprobes

 •Reduceexpensesbyeliminatingtravelandresolvingmultiple,remotenetworkissuesfromonelocation

 •Reducetrainingbyusingonesolutiontomonitoralltopologiesandnetworkcongurations

 •WorkswithObserver®,ExpertObserver,orObserverSuiteconsoles

Advanced

Probe Appliance

Observer Console

Local Network

Remote Network

Switch

LAN

Advanced

Probe Appliance

WAN

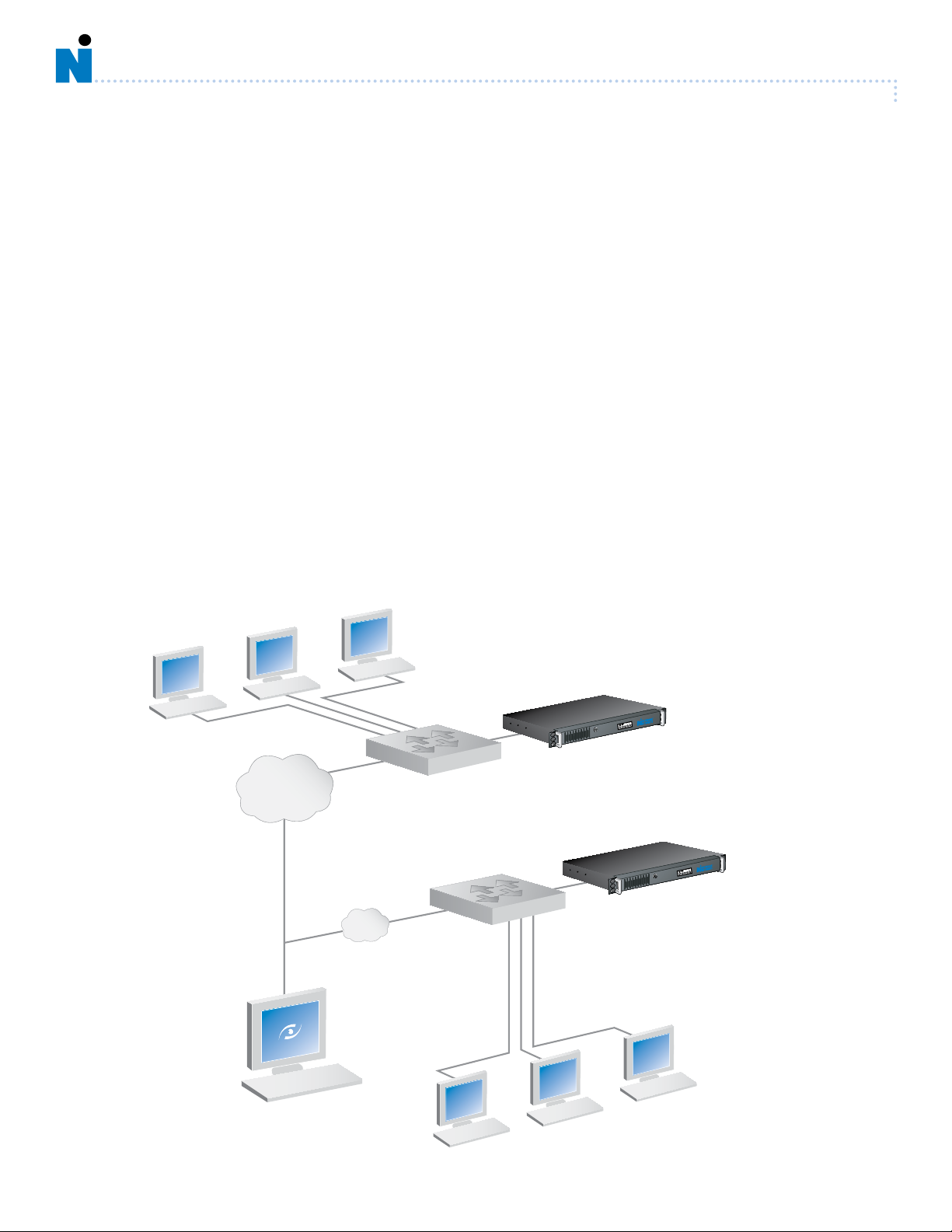

Install the Advanced Probe

Appliance on any switch on your

local or remote network. Connect

a single Observer console to the

probe via TCP/IP to monitor and

troubleshoot all traﬃc.

Whether your network stretches across

the building or across the globe, Network

Instruments’ probe appliances have it covered.

© 2007 Network Instruments, LLC. All rights reserved. Network Instruments, Observer, NI-DNA, and all associated logos are trademarks or registered trademarks of Network Instruments, LLC. All other trademarks, registered or unregistered, are sole property of their respective owners.

About Network Instruments

Network Instruments provides in-depth network intelligence and continuous network availability through innovative analysis solutions. Enterprise network professionals depend on Network

Instruments’Observer product line for unparalleled network visibility to eﬃciently solve network problems and manage deployments. By combining a powerful management console with

high-performance analysis appliances, Observer simpliﬁes problem resolution and optimizes network and application performance. The company continues to lead the industry in ROI with its

advanced Distributed Network Analysis (NI-DNA™) architecture, which successfully integrates comprehensive analysis functionality across heterogeneous networks through a single monitoring

interface. Network Instruments is headquartered in Minneapolis with sales oﬃces worldwide and distributors in over 50 countries. For more information about the company, products,

technology, NI-DNA, becoming a partner, and NI University please visit www.networkinstruments.com.

Solution Bundles

Contact a Network Instruments representative or dealer to ask about product bundles that cover all of your network management needs.

Corporate Headquarters

Network Instruments, LLC • 10701 Red Circle Drive • Minnetonka, MN 55343 • USA

toll free (800) 526-7919 • telephone (952) 358-3800 • fax (952) 358-3801

www.networkinstruments.com

European Headquarters

Network Instruments • 7 Old Yard • Rectory Lane • Brasted, Westerham • Kent TN16 1JP • United Kingdom

telephone + 44 (0) 1959 569880 • fax + 44 (0) 1959 569881

www.networkinstruments.co.uk

Software Options

The Advanced Probe Appliance can be conﬁgured with one of the

following software options:

Advanced Single Probe

 •Packetcaptureanddecode

 •Networkstatistics

 •Real-timedatacollection

 •Long-termtrendingandreporting

 •Fullpasswordprotectionofdataandredirection

 •Automaticupdatesofremoteprobes

The Advanced Single Probe reports to any Observer, Expert Observer, or

Observer Suite console.

Advanced Multi-Probe

TheAdvancedMulti-ProbeoersallthefeaturesoftheAdvancedSingleProbe

plus additional advantages for remote monitoring:

 •Initiateupto64sessionsforamulti-facetedviewofdataow

 •MultipleObserverconsolescanviewthesameprobeatthesametime

for greater problem solving abilities

 •3DESencryptionoptionfordatatransfer

 •Setuniquelevelsofprobeaccessforaddedsecurity

The Advanced Multi-Probe reports to any Expert Observer or

Observer Suite console.

Advanced Expert Probe

TheAdvancedExpertProbeoersallthefeaturesoftheAdvancedMulti-Probe

plus additional advantages for faster troubleshooting:

 •Performreal-timeExpertAnalysislocallyattheprobe–noneedtotransfer

captured data back to the console

 •Viewremotepacketdecodesinrealtimefromanyconsole

 •CollectNetFlowandsFlow®data

 •Turnanyprobeintoalocalconsoleforonsiteanalysisandadministration

The Advanced Expert Probe reports to any Expert Observer or

Observer Suite console.

Hardware Options

The Advanced Probe Appliance is available in four hardware conﬁgurations:

Single-Port Copper

Equippedwithasingle10/100/1000copperinterface

Single-Port Fiber

Equippedwithasinglegigabitberinterface

Dual-Port Copper

Equippedwithtwo10/100/1000copperinterfaces

Dual-Port Fiber

Equippedwithtwogigabitberinterfaces

Technical Specications

Platform1Urackmount,Weight:18lbs,Depth:15in.(39cm)

System SpecsAcompletesystem,runningWindowsXP,Includesonecopper

orber10/100/1000Ethernetmonitoringport(ortwoportswiththedual-port

option).Includesoneout-of-bandEthernetmanagementport.

For additional technical speciﬁcations, please visit our web site at:

www.networkinstruments.com

License any Advanced Probe as an RMON probe:

•FulladherencetoRMON1/2,andHighCapacityRMON(HCRMON)standards

 •ReportstoanyRMONmanagementconsoleorcollectionfacility(ObserverSuite,

  OpenView,Concord,NetScout,IBM/Micromuse,BMCDashboardPatrol,etc.)

Observer Suite Main Console

APA-080307-V12-B2
