Network Technologies RACKMUX-V15 Bedienungsanleitung

RACKMUX-V15/17-N-PRIMUX

RACKMUX KVM DRAWER WITH PRIMUX®

KVM SWITCH VIA CAT5

Quick Start Guide

What's in the Box

•NTI RACKMUX-V15/17-N-PRIMUX

•Line cord, country specific

•Terminating Plug (for last Host Adapter in chain)

•CDROM w/ Owner's Manual and Quick Start Guide (pdf files)

•This Quick Start Guide

What's also needed (sold separately)

•NTI Host Adapter(s) HA-PS2 / HA-USB / HA-SUN (see chart on page 4)

•CAT5/5e/6 unshielded twisted-pair cable(s) terminated with RJ45 connectors wired straight thru (pin 1 to pin 1, etc.)

RACKMUX

Series

(Host Adapter sold separately)

NETWORK

TECHNOLOGIES

INCORPORATED

Tel:330-562-7070

Fax:330-562-1999

1275 Danner Dr

Aurora, OH 44202

www.networktechinc.com

NTI R

(Rear View)

CAT5 Cable

to User Station

Cable to CPU

Terminating

Plug (Supplied)

Hardware Setup

1. Disconnect power from the CPU.

Note: The Host Adapter must be connected to the CPU before power is connected to the CPU. Failure to do so may result in

damage to the Host Adapter.

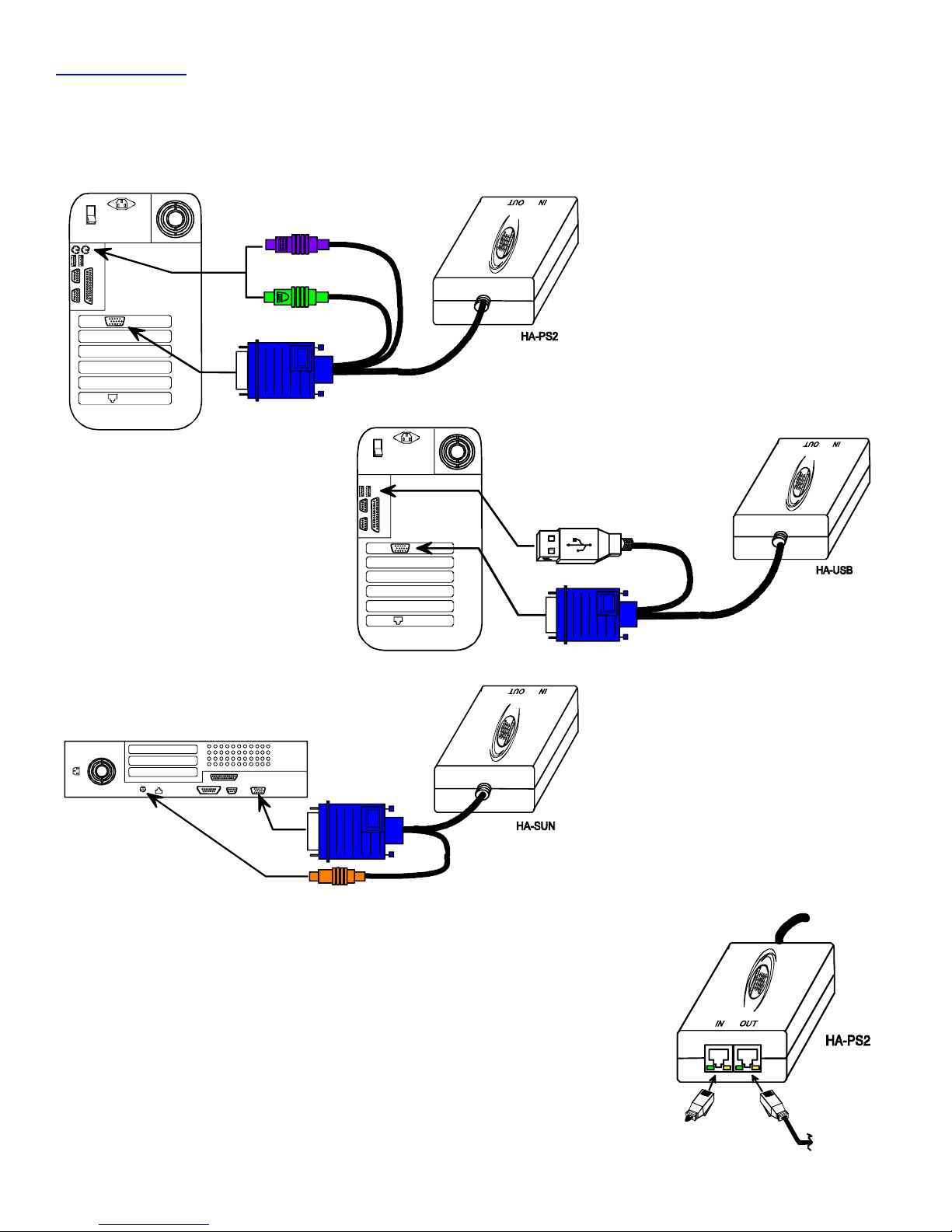

2. Plug the Host Adapter into the devices and video ports on the back of the CPU.

3. Connect a CAT5 cable from the "OUT" port on the Host Adapter to the "CAT5" port on the User

Station (the PRIMUX KVM switch at the rear of the RACKMUX).

4. Connect the Terminating Plug (supplied) to the "IN" port on the Host Adapter.

FYI: If more Host Adapters will be connected, follow the instructions that follow for

"Daisy-Chained Host Adapters".

(Front View)

Rear View of PS/2 CPU

purple-keyboard

green-mouse

video

(Front View)

Rear View of USB CPU

devices

video

Rear View of SUN CPU

(Front View)

devices

video

5. Connect the power cord to the User Station.

6. Press the switch to power-up the RACKMUX.

7. Plug in the power cord(s) and power-up the CPU(s).

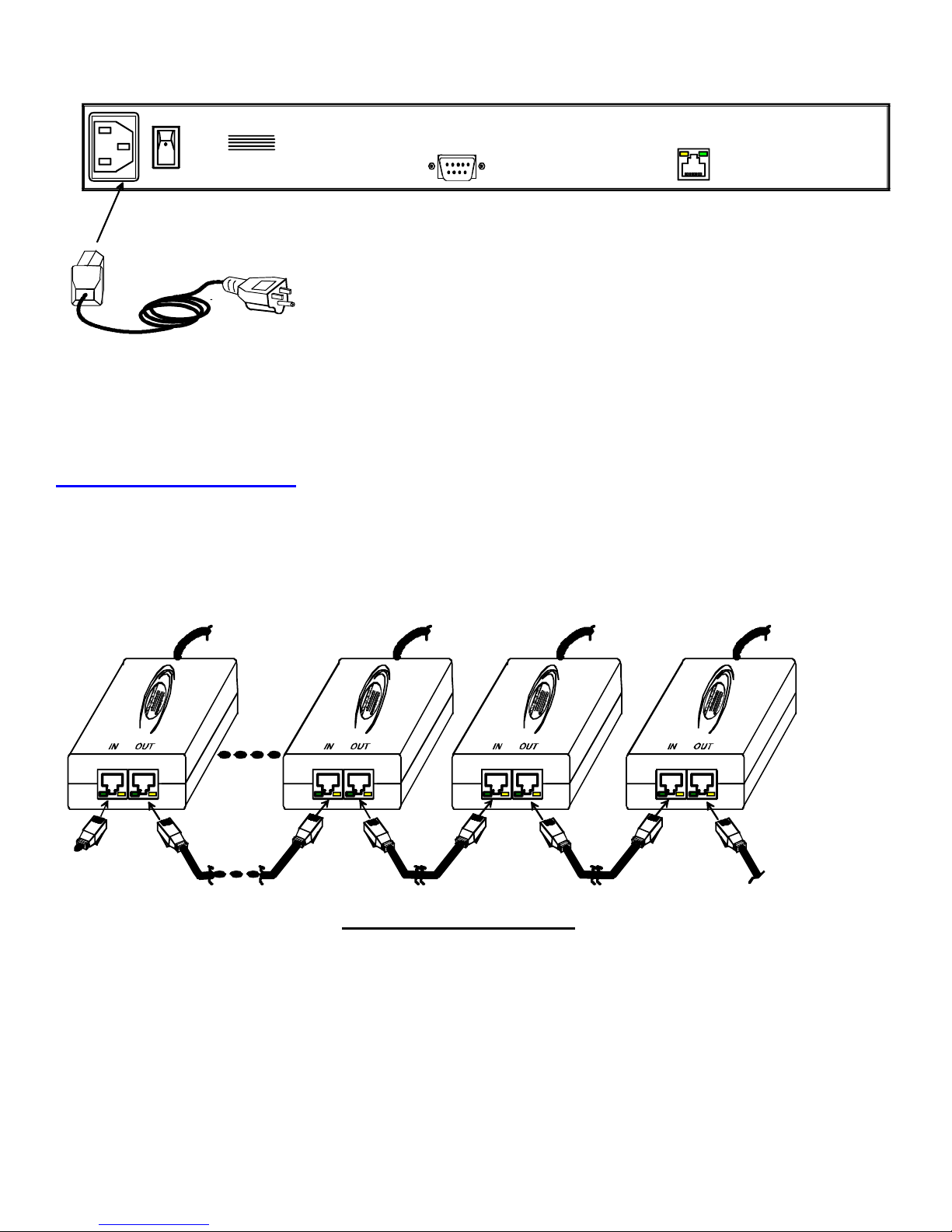

Daisy-Chained Host Adapters

Up to 64 CPUs can be connected in a daisy-chain to a create a segment of CPUs controlled by a single user from a User Station. (A

"segment" is a User Station connected to 1 or more Host Adapters) The first Host Adapter is connected to the User Station via the "OUT"

port. Additional Host Adapters in the segment will have CAT5 cable connected from their "OUT" port to another Host Adapter's "IN" port

to enable communications between the user and each CPU in the system (see the illustration on the next page). A Terminating Plug must

be installed in the "IN" port of the last Host Adapter in the segment.

CAT5 Cable

to User Station

Cable to CPU 1

Cable to CPU 2Cable to CPU 3Cable to CPU 64

CAT5 Cable

Terminating

Plug (Supplied)

Daisy-chained Host Adapters

IEC Powercord

REAR VIEW OF RACKMUX-V15-N-PRIMUX

NTI NETWORK

TECHNOLOGIES

INCORPORATED

Tel:330-562-7070

Fax:330-562-1999

1275 Danner Dr

Aurora, OH 44202

www.networktechinc.com

RS232 CAT5

Initial Startup

Upon startup, the Command Mode screen will be displayed, autologging you in as NEWUSER1 without administrative rights. No

password will be necessary. As NEWUSER1 you have full access to all Host Adapters and their connected CPUs.

To logout as a user, press <L> and the login screen will appear

If you logout and want to log back in as NEWUSER1, either ;

A) type <NEWUSER1> at the login prompt and press <Enter> twice

-or-

B) power-cycle the PRIMUX and be automatically logged-in as NEWUSER1

To login as the administrator, enter the following while holding down the <Shift> key:

administrator name = <ROOT> or <ADMINISTRATOR> (either can be used)

administrator password= <NTI>

Make a Connection

1. From Command Mode, press <G> + <xx> where xx is the index number of the desired Host Adapter/CPU to connect to.

Press <Enter> to select the Host Adapter.

Press <Enter> again to connect to the Host Adapter.

-or-

Using the mouse, move the selection bar to the desired Host Adapter listed in the OSD menu and click once to make a connection.

2. Press <X> or <Esc> on the keyboard to exit Command Mode and control the connected CPU.

Congratulations, you have successfully installed your RACKMUX-V15/17-N-PRIMUX.

Host Adapter Ordering Chart

NTI # Application

HA-PS2 PS/2 CPU

HA-SUN SUN CPU

HA-USB USB CPU (Win,Sun, or Mac)

To order CAT5 cables or Host Adapters, either visit our website at www.networktechinc.com or call us at 1-800-RGB-TECH (800-742-

8324) or 1-330-562-7070.

MAN104 Rev 9/2/2008
