NeuraLabel 600e Roll Unit

Installation and Quick Start Guide

1

2

What’s In The Box*

Reference

ARewinder Baseplate

BUnwinder Baseplate

CUnwinder

DRewinder

EFront Guide

FRear Guide

GTower Alignment Screw

HPan Head Screw

ICountersunk Screw

JAC Power Adapter

KWasher

3

*Note: You should receive a total of three boxes.

K

Washer x4

You Will Also Need

Philips Screw Driver600e Power Cable

NeuraLabel 600e CFA

(Continuous Feeder Attachment)

NeuraLabel 600e Printer

4

5 Foot (1.5M) Sturdy Table near Network and 3 Power Outlets

Before You Begin

If a NeuraLabel 600e Printer and CFA are already installed:

Power off the NeuraLabel 600e using the shutdown menu on the printer and turn the

power switch to off.

Unplug the power cable from the printer.

Unplug the CFA from the printer.

Unmount the CFA from the printer.

Caution! Installing the NeuraLabel 600e Roll Unit while the printer is powered on may

damage the printer and CFA.

Caution! Unplugging the CFA while the printer is powered on may damage the printer.

5

Baseplate Assembly

For this step, you will need parts A, B, E, F, H (x4), I (x4), and a Philips screw driver.

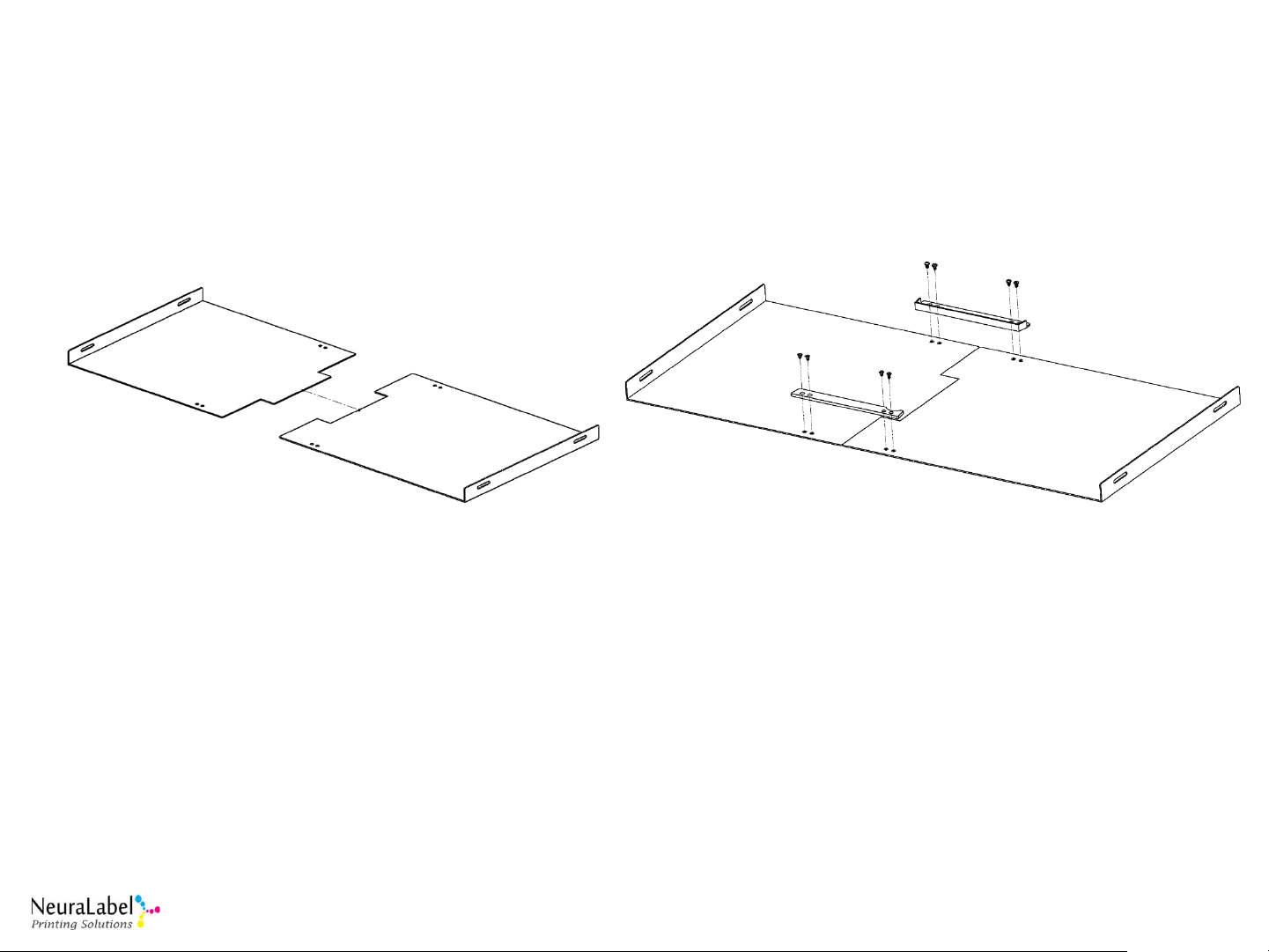

Figure 1 Figure 2

Align the Unwinder and Rewinder Baseplates on aflat stable surface, as shown in Figure 1.

Align the Front and Rear Guides with the screw holes on the baseplates, as shown in Figure 2.

Use the Countersunk Screws to secure the Front Guide and the Pan Head Screws to secure the

Rear Guide.

6

A

B

I

E

F

H

Rewinder

Unwinder

Unwinder and Rewinder Placement

Align Unwinder and Rewinder with baseplate and Tower Alignment Screws, as shown in

Figure 3.

Figure 3

For this step you will need parts C, D, G (x4) and K (x4).

7

C

DG

K

Printer Placement

For this step you will need a NeuraLabel 600e Printer.

Figure 4 Figure 5

Use two people to place the NeuraLabel 600ePrinter on the NeuraLabel 600eRoll Unit, as shown

in Figure 4. Figure 5shows the proper placement of the NeuraLabel 600eprinter.Note that the

assembled system requires about 60 inches of clearance.

Unwinder

Rewinder

8

CFA Installation

For this step you will need a NeuraLabel 600e CFA.

Figure 6

The NeuraLabel 600eCFA hooks onto the mounting hardware of the NeuraLabel 600eprinter.

The left hook on the NeuraLabel 600eCFA fits in between the alignment hooks on the mounting

hardware.Refer to Figure 6for detail.

9

Connect CFA to Printer

Figure 7

10

Caution! Ensure that the Printer power is OFF before plugging in your CFA.
