OPERATOR’S HANDBOOK
This handbook contains instructions for the GEVALIA Brewer.
Please read the handbook before using the machine.
Keep this fold out page open while reading the Operator’s Handbook.
OPERATOR’S HANDBOOK
Tank Overflow Tube
Program
Button
Reset Button
Brew Mechanism
ReleaseCatch(see
page 8 for detail)
Capsule Bin
Over-Temperature
Reset Button
Filling Funnel
Capsule Entry Flap
Spill Sensor
(Behind Capsule Bin)
Display
Capsule
Entry Slot
Cup Fill
Position
Door
Power Cord
Water Inlet
Fitting
Machine Layout
ExternalFeatures
Internal Features With Door Open
Tank Drain Tube
ELECTRICALPOWERSUPPLY
The machine operates from a 120 V 50-60 Hz
single phase A.C. power supply.
POWERRATING
The machine is rated at 1.3 kW for Canada and
either 1.3 kW or 1.6 kW for US only. Current
drawn is approximately 10.8 and 13.3 A
respectively.
WATER SUPPLY OPTIONS
PLUMBED
1) Flush water line prior to brewer installation.
Connect to a cold water line.
2) Water pressure should be at least 20 psi. For
less than 25' run, use 1/4" copper tubing and
connectto1/2"orlargerwaterline.Forlonger
runs, use 3/8" copper tubing and connect to
1/2" or larger water line and provide an
adaptor fitting for connection to the brewer.
3) Ifinstalledwith asaddle valve theport should
have a minimum of 1/8" port hole for up to
25' run and 5/16" port hole for over 25' run.
4) Connect water line to plumbing fitting
extending from the rear of the brewer.
MANUALFILL
Jug Fill - the machine may be filled manually
by opening the front cover to expose the filling
funnel. The tank has an average working
capacity of 30 cups between refills.
CAPSULEBINCAPACITY
The capsule bin will hold up to thirty capsules.
Capacity can be increased by mounting the
machine on a base cabinet with built in trash
bin.
WEIGHT
Filledwithwater: 53 lbs / 24kg.
Empty: 40 lbs / 18kg.
CAUTION:Thismachineshould not be
used with artificially softened water.

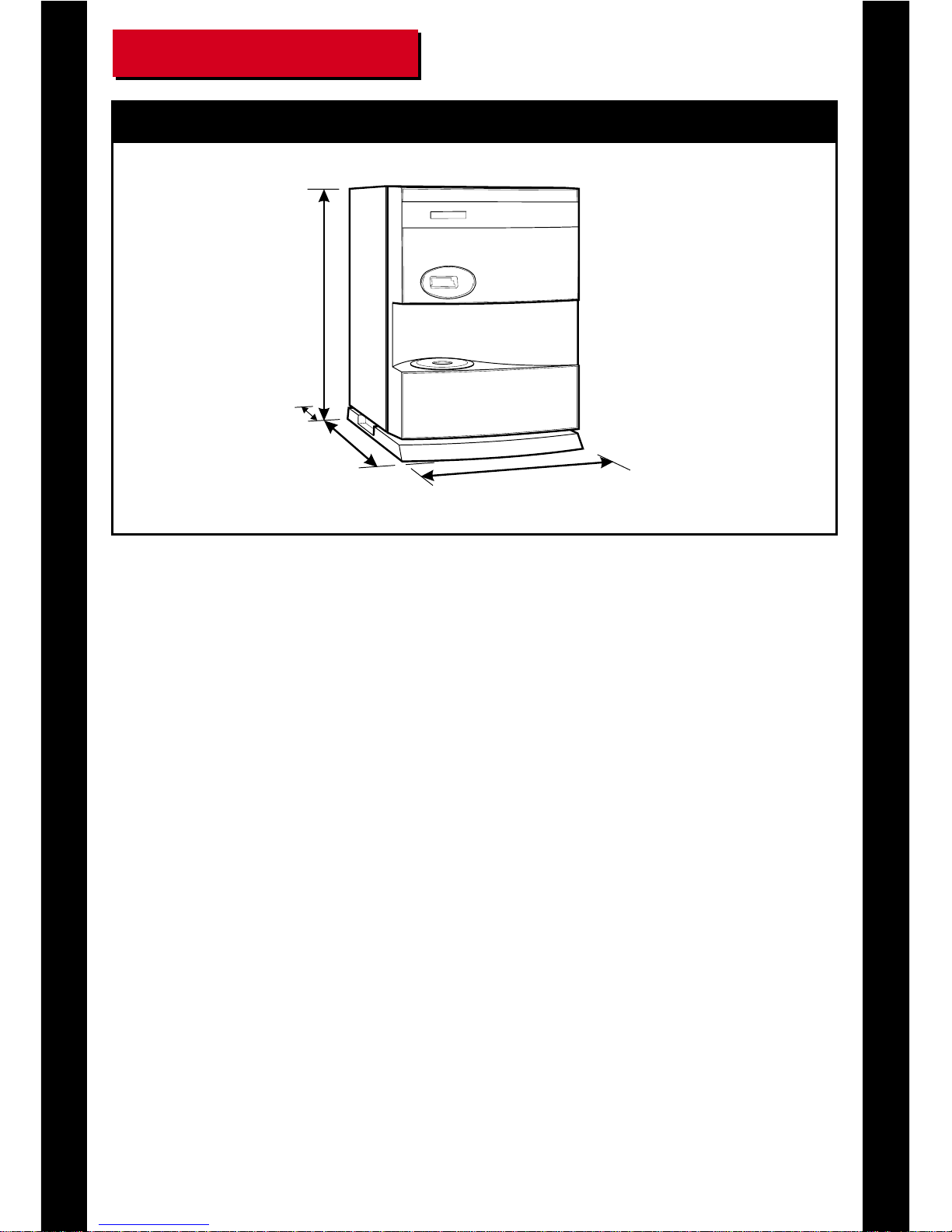

18.3in/ 465mm
16.9in/ 430mm
1.9in/ 50mm
13.8in/ 350mm
Dimensions
Technical Details
OPERATOR’S HANDBOOK
Do Not Print
This
Page
Do Not Print
This
Page
OPERATOR’S HANDBOOK
Machine Layout Inside Front Cover
Technical Details Inside Front Cover
Important Safeguards 3
Setting Up 4
How to Get a Drink 6
Daily Maintenance 7
Weekly Maintenance 8
Adjusting Drinks Volume 10
Drinks Counter 10
What To Do If Things Go Wrong 11
Display Messages 12
Customer Service 16
Contents
1
OPERATOR’S HANDBOOK
2
PartNo. 792440/1
OPERATOR’S HANDBOOK
When using your Brewer, always follow these basic safety precautions:
1. Read all instructions before using the machine, and ensure that anyone who will
be involved with the cleaning or refilling of the machine also reads the
instructions.
2. This machine may contain up to 1-1/3 gallons of very hot water (up to 205° F).
Therefore, supervision should always be available when the machine is being
used near young children, the aged, or the infirm.
3. The machine should be situated on a strong horizontal surface, at a convenient
height, in a position where it is not likely to be knocked off.
4. The Power Cord should never trail from the machine, and should always be kept
away from hot surfaces and sharp edges.
5. Do not operate the machine if any part is damaged, e.g. Power Cord, until it has
been checked by a qualified Technical Service Representative.
6. Allow the machine to cool before handling or moving.
7. Never immerse the machine in water, or any other liquid, and never clean with a
water jet.
8. If the machine should accidentally freeze up, call a Technical Service
Representative to check it before switching on.
ALWAYSDISCONNECTTHEMACHINEFROMTHEELECTRICALPOWER
SUPPLY BEFORE CLEANING AND SERVICING.
Important Safeguards
3
OPERATOR’S HANDBOOK
Ensure water connection is made and
water is turned on.
Press and hold the Program button, and at
the same time, plug the power cord into
the wall socket.
Machine will display
or
Release Program button and press Reset
button to scroll through options (which
alternate between Plumbed and Manual)
until the display reads
PressandreleaseProgrambuttontoreturn
to normal operation. Water will fill into
machine until display reads
After a delay of approximately 15-20
minutes,the display will show 'Ready' and
the machine can be used.
Setting Up
Plumbed In Fill Option
4
OPERATOR’S HANDBOOK
PressandholdProgrambuttonand, at the
same time, plug the power cord into the
wall socket.
Release Program button and press Reset
button to scroll through options (which
alternate between Plumbed and Manual)
until the display reads
(i.e. filled by hand into the fill funnel)
Press and release the Program button to
return to normal operation.
When display shows
Pour water into funnel, as shown, until
water is level with the 'full' mark on the
side of the fill funnel.
Display will then show
or
After a delay of approximately 15-20
minutes,thedisplaywill show'Ready'and
the machine can be used.
Machine will display
ManualFillOption
5
