Newland EM3080-W Kurzanleitung zur Einrichtung
SCANNING MADE SIMPLE
EM3080-W
OEM scan engine
integration guide
Disclaimer
© 2018 Fujian Newland Auto-ID Tech. Co., Ltd. All rights reserved.
Please read through the manual carefully before using the product and operate it according to the manual. It is
advised that you should keep this manual for future reference.
Do not disassemble the device or remove the seal label from the device, doing so will void the product
warranty provided by Fujian Newland Auto-ID Tech. Co., Ltd.
All pictures in this manual are for reference only and actual product may differ. Regarding to the product
modification and update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any
software or hardware to improve reliability, function, or design at any time without notice. The information
contained herein is subject to change without prior notice.
The products depicted in this manual may include software copyrighted by Fujian Newland Auto-ID Tech. Co.,
Ltd or third party. The user, corporation or individual, shall not duplicate, in whole or in part, distribute, modify,
decompile, disassemble, decode, reverse engineer, rent, transfer or sublicense such software without prior
written consent from the copyright holders.
This manual is copyrighted. No part of this publication may be reproduced, distributed or used in any form
without written permission from Newland.
Fujian NewlandAuto-ID Tech. Co., Ltd. reserves the right to make final interpretation of the statement above.
Fujian Newland Auto-ID Tech. Co., Ltd.
3F, BuildingA, No.1, Rujiang West Rd., Mawei, Fuzhou, Fujian, China 350015
http://www.newlandaidc.com
Revision History
Version
Description
Date
V1.0.0
Initial release.
July 3, 2018
Table of Contents
Chapter 1 Introduction.......................................................................................................................................1
Overview ..........................................................................................................................................................1
Illumination.......................................................................................................................................................1
Chapter 2 Installation.........................................................................................................................................2
General Requirements.....................................................................................................................................2
ESD..............................................................................................................................................................2
Dust and Dirt................................................................................................................................................2
Ambient Environment...................................................................................................................................2
Thermal Considerations...............................................................................................................................2
Installation Orientation.................................................................................................................................3
Optics ...............................................................................................................................................................3
Window Placement......................................................................................................................................3
Window Material and Color..........................................................................................................................4
Scratch Resistance and Coating.................................................................................................................4
Window Size ................................................................................................................................................4
Ambient Light...............................................................................................................................................5
Eye Safety....................................................................................................................................................5
Mounting...........................................................................................................................................................6
Front View (unit: mm)...................................................................................................................................6
Left View (unit: mm).....................................................................................................................................6
Bottom View (unit: mm)................................................................................................................................7
Chapter 3 Electrical Specifications..................................................................................................................8
Power Supply...................................................................................................................................................8
Ripple Noise.................................................................................................................................................8
DC Characteristics...........................................................................................................................................8
Operating Voltage........................................................................................................................................8
Operating Current........................................................................................................................................9
Timing Sequence.............................................................................................................................................9
Chapter 4 Interfaces.........................................................................................................................................10
Host Interface Connector...............................................................................................................................10
Dimensions of the Host Interface Connector (unit: mm)...........................................................................11
FFC Cable (unit: mm) ................................................................................................................................11
Communication Interfaces .............................................................................................................................12
Control Interfaces...........................................................................................................................................13
Trigger........................................................................................................................................................13
Beeper........................................................................................................................................................14
Chapter 5 Development Tools ........................................................................................................................15
EVK ................................................................................................................................................................15
QuickSet/uExpress.........................................................................................................................................15
1
Chapter 1 Introduction
Overview
TM
Armed with the Newland patented image recognition system-on-chip, the EM3080-W OEM scan
engines boast superb performance on reading printed barcodes as well as electronic barcodes, ultra-low
power consumption, miniature size and easy-to-integrate design.
Ultra-low power, ultra-compact scan engine that is optimized for quick and easy integration.
Support all mainstream 1D and 2D barcodes.
Convenient configuration through scanning barcodes.
Outstanding near-field reading and wide viewing angle TM
Illumination
The EM3080-W has a white LED for supplementary lighting. The illumination can be programmed On or
Off.
2
Chapter 2 Installation
General Requirements
ESD
ESD protection has been taken into account when designing the EM3080-W and the engine is shipped in
ESD safe packaging. Always exercise care when handling the engine outside its package. Be sure
grounding wrist straps and properly grounded work areas are used.
Dust and Dirt
The EM3080-W must be sufficiently enclosed to prevent dust particles from gathering on the imager, lens
and circuit board. Dust and other external contaminants will eventually degrade the engine’s performance.
Ambient Environment
The following environmental requirements should be met to ensure good performance of the EM3080-W:
Operating Temperature
-20℃to 60℃
Storage Temperature
-40℃to 70℃
Humidity
5% ~ 95% (non-condensing)
Thermal Considerations
Electronic components in the EM3080-W will generate heat during the course of their operation. Operating
the EM3080-W in continuous mode for an extended period may cause temperatures to rise on CIS and
decoder chip. Overheating can degrade image quality and affect scanning performance. When the engine
is used in high temperature environments, appropriate precautions should be taken in the integration
design.
3
Installation Orientation

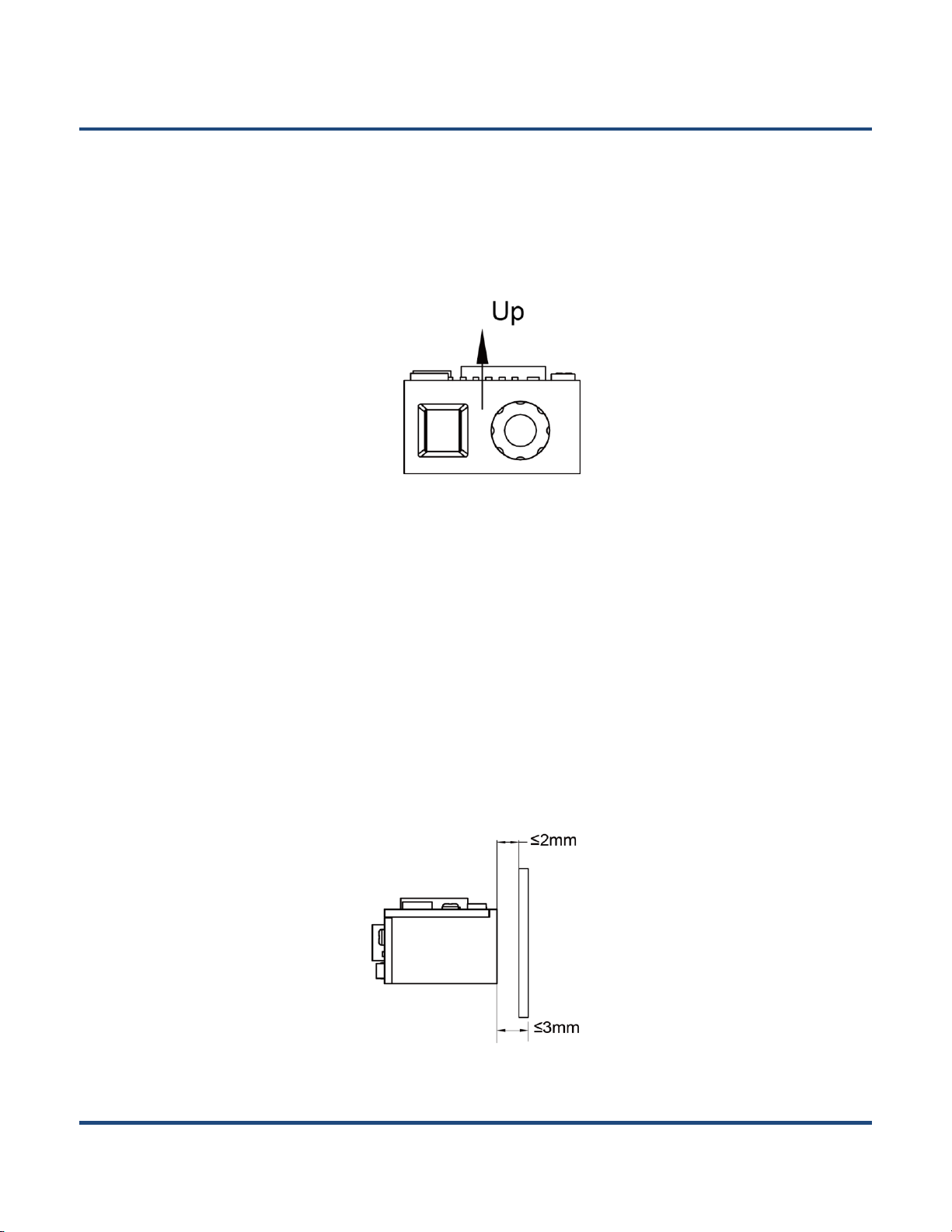

The figure below illustrates a front view of the EM3080-W after installation, with the engine’s decoder
board on the top, and illumination and lens on the front. The EM3080-W installed in this manner allows its
lens to be seen from the outside.
Optics
Window Placement
The window should be positioned properly to let the illumination beam pass through as much as possible
and no reflections back into the engine (reflections can degrade the reading performance).
The window should be mounted close to the front of the engine (parallel). The maximum distance is
measured from the front of the engine housing to the farthest surface of the window. In order to reach
better reading performance, the distance from the front of the engine housing to the furthest surface of the
window should not exceed 3mm and the distance from the front of the engine housing to the nearest
surface of the window should not exceed 2mm.
If the window is required to be in a tilted position, the above distance requirements should be met and tilt
angle should ensure no reflections back into the lens.
4
Window Material and Color
CIS’s responsiveness (mainly to wavelengths of white light）should be taken into consideration when
choosing window material and color, in order to achieve the possible highest spectral transmission, lowest
haze level and homogeneous refractive index. It is suggested to use PMMA or optical glass with spectral
transmittance over 90% and haze less than 1%. Whether to use an anti-reflection coating or not depends
on the material and application needs.
Scratch Resistance and Coating
Scratch on the window can greatly reduce engine performance. It is suggested to use abrasion resistant
window material or coating.
Window Size
The window must not block the field of view and should be sized to accommodate the illumination
envelope shown below.
Horizontal:
