Nex-tech QV3500 Bedienungsanleitung

Instruction Manual

QV3500

Vehicle DVR /

Monitor + Camera Kit

INTRODUCTION:

This monitoring/surveillance system is ideal for a towed caravan, motor home or

large boat. It could even be adapted to a beach house, barn, or workshop.

All that is required is a +12V supply.

The monitor is conﬁgured to accept 4 x cameras. Additional weatherproof cameras

are sold separately, or you can ﬁt a dashboard forward facing dome camera which

can also be mounted.

Product Features 2

Key Function 2

Cable and Connector Deﬁnition 3-4

Remote Controller 4

Menu Function 5-10

Product Speciﬁcation 10

CONTENTS:

PRODUCT FEATURES:

KEY FUNCTION:

1. Support AHD 1080P/960H/720P/CVBS multiple video formats mixed

input.

2. Support AHD/CVBS video signal with diﬀerent system, PAL/NTSC mixed

input(automatically).

3. Brightness, contrast, saturation, chroma, sharpness, up/down/left/right

rotation function can be independently set for each input video signal.

4. Support parking delay video recording (24H parking monitoring function).

5. Maximum support 256GB memory card.

6. Independent 4 channel display function, automatically switch display

when turning or reversing.

MENU: on split interface, press shortly to turn on/oﬀ OSD menu (same as “OK”

key on the remote controller), press and hold for 5s to lock the key on the front

panel, press and hold for 5s again to recover the function.

CH1: enter into CH 1 or move to the left side (same as left arrow on the remote

controller).

CH2: enter into CH2 or move to the right side (same as right arrow on the

remote controller).

POWER: press and hold to power on and power oﬀ the monitor, and press

shortly to open and close the display screen (same as POWER key on the

remote controller).

CH3: enter into CH3 or mover down or -1 when setup the parameter (same as

down arrow on the remote controller).

CH4: enter into CH4 or move up or +1 when setup the parameter (same as up

arrow on the remote controller).

MODE: on split interface, press shortly to change to diﬀerent multiple images

display circularly (same as MODE key on the remote controller), on menu

interface, press shortly to conﬁrm (same as OK key on the remote controller).

CABLE AND CONNECTOR DEFINITION:

CH1\CH2\CH3\CH4 4PIN connector: 4CH video input interface.

BAT yellow line: 12V-24V power supply (Connect to the positive pole).

ACC red wire: 12V-24V power supply (Connect to the key ignition circuit).

GND black wire: negative pole (Connect to the negative pole).

Forward wire (CH1) brown wire: trigger CH1 single image to full screen.

Reversing wire (CH2) green wire: trigger CH2 single image to full screen.

Turning lamp wire (CH3) blue wire: trigger CH3 single image to full screen.

Turning lamp wire (CH4) gray wire: trigger CH4 single image to full screen.

Tips: BAT yellow wire and ACC red wire cannot be screwed together to

connect to the ACC line to take power. After power oﬀ and power on again,

the recording time will not be saved. Other functions are normal. Please take

power according to the usage requirements!

CABLE AND CONNECTOR DEFINITION:

REMOTE CONTROLLER:

The power cord is recommended to be connected directly to the positive and

negative terminals of the vehicle battery, or after the battery is connected to

the fuse box, connect the positive and negative poles of the power supply. It is

not recommended to connect to the metal conductor in the car as the ground

wire, otherwise, a negative pulse will be generated to interfere with the normal

operation of the monitor.

4PIN connector deﬁnition (support 1 CH audio input, optional function)

1. Startup/shutoﬀ monitor

2. Return to the default screen/to the

previous step

3. Switch multi-screen display mode

circularly

4. CH1 single image full screen display

5. CH2 single image full screen display

6. CH3 single image full screen display

7. CH4 single image full screen display

8. Up

9. Down

10. Left

11. Right

12. Menu + conﬁrmation

1. Search according date: display the stored video ﬁles:

last three days, last week, last two weeks, last month, all

2. Playback: display the recording ﬁles on the monitor (support fast forward,

fast reverse, pause, etc).

3. Prev: switch to display the previous page of video ﬁles.

4. Next page: switch to display the next page of video ﬁles.

5. Lock: lock the selected video ﬁle and protect it from being automatically

deleted and overwritten by the equipment.

6. Unlock: unlock the locked video ﬁles.

7. Backup: copy and store the selected video ﬁles to an external disk, which

can be plugged into a computer to play directly.

Playback

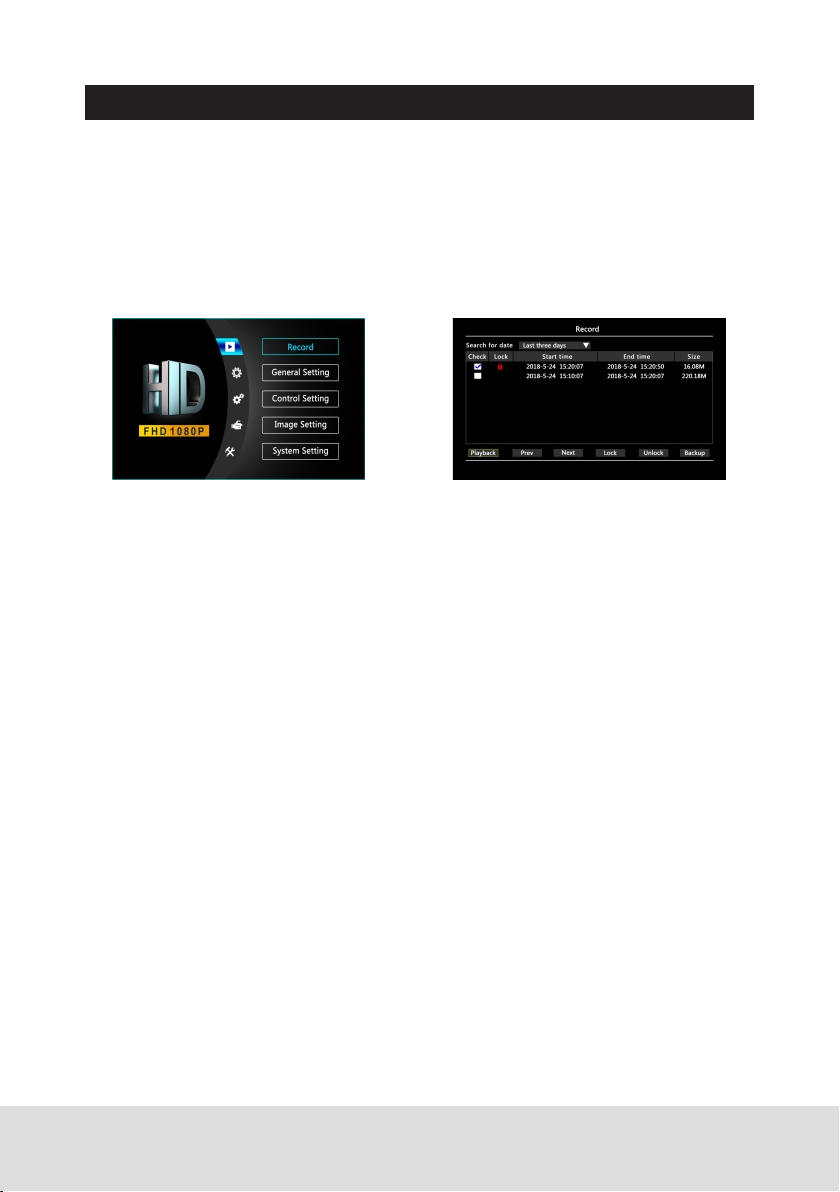

MENU FUNCTION:

Press “OK” key on the remote controller or press the “MENU” button on the

screen to enter into the menu interface; use the arrow keys on the remote

controller or the “Left” and “Right” buttons on the panel to move the check box,

then press the “MENU” key on the remote controller or short press the “MENU”

button to conﬁrm the selection and enter into the next sub-menu.

Press the remote controller arrow key or panel key to move the selection box,

then press the remote controller “OK” key or press the “MENU” key to conﬁrm.

1. System time: modify the system time and date.

2. Date format: change the display format of year, month and day.

3. Output format: PAL system or NTSC system.

4. Language: Chinese and English menus(support customized other

languages).

5. Time show: turn on and oﬀ the time display.

6. VGA resolution-output resolution adjustment:

(800x600 / 1024x768 / 1280x720 / 1920x1080).

7. Video quality: normal/standard/high deﬁnition/ultra high deﬁnition.

8. Plate number: add license plate number or driver’s name on the

recording video.

Basic setting

MENU FUNCTION:

Press arrow keys of the remote controller or the panel keys to move

the selection box, then press “OK” key of the remote controller or press

“MENU” key shortly to conﬁrm the option and enter the current setting.

After completing the setting, press the “OK” key or the “MENU” key to

exit the setting state, and select “OK” to save and exit.

Video resolution 10Mins

Storage 8G 32G 64G 128G 256G

Normal 110M 12 hours 48 hours 96 hours 192 hours 384 hours

Standard 220M 6 hours 24 hours 48 hours 96 hours 192 hours

HD 330M 4 hours 16 hours 32 hours 64 hours 128 hours

Super HD 440M 3 hours 12 hours 24 hours 48 hours 96 hours

Video

Resolution

10min

Storage

8G 32G 64G 128G 256G

Normal 110MB 12 hours 48 hours 96 hours 192 hours 384 hours

Standard 220MB 6 hours 24 hours 48 hours 96 hours 192 hours

HD 330MB 4 hours 16 hours 32 hours 64 hours 128 hours

Super HD 440MB 3 hours 12 hours 24 hours 48 hours 96 hours

2. Delayed switching: choosing the trigger delay time.

3. Display priority: choosing the channel to display as a priority when

trigger.

4. Blue background:

Disable: black background when no signal

Enable: blue background when no signal

5. Auto sequence: time for CH1,CH2,CH3,CH4 automatically switching.

6. Border colour: choosing the frame colour for the images.

7. Record for park: 24 hour delay recording function

(Please do not turn on all the time to avoid the battery loss).

8. Audio recording: Camera

9. Speaker: Audio 1

10. Speaker volume: choosing the speaker volume.

11. Channel title: CH1,CH2,CH3,CH4.

1. Video Output:

Control setting

MENU FUNCTION:

A. Always output: the display screen always outputs the display picture

after starting up.

B. Trigger output: the display screen does not display pictures all the

time after starting up, and display images after turning or triggered.

C. Intelligent output: the display screen displays the picture after

startup, and automatically closes the picture after 15 seconds if

no operation.

6 7

1. Video output:

A. Always output: the display screen always outputs the display

picture after starting up.

B. Trigger output: the display screen does not display pictures all the

time after starting up, and display images after turning or triggered.

C. Intelligent output: the display screen displays the pictures after

starting up, and automatically closes the picture after 15 seconds

without operation.

2. Delayed switching: choosing the trigger delay time

3. Display priority: choosing the channel to display as a priority

when trigger.

4. Blue background:

Disable: black background when no signal

Enable: blue background when no signal

5. Auto sequence: time for CH1,CH2,CH3,CH4 automatically

switching.

6. Border color: choosing the frame color for the images.

7. Record for park: 24 hour delay recording function(Please do not

turn on all the time to avoid the battery loss).

8. Audio recording: camera

9. Speaker: audio 1

10. Speaker volume: choosing the speaker volume

11. Channel title: CH1,CH2,CH3,CH4.

Control setting

Video resolution 10Mins

Storage 8G 32G 64G 128G 256G

Normal 110M 12 hours 48 hours 96 hours 192 hours 384 hours

Standard 220M 6 hours 24 hours 48 hours 96 hours 192 hours

HD 330M 4 hours 16 hours 32 hours 64 hours 128 hours

Super HD 440M 3 hours 12 hours 24 hours 48 hours 96 hours

General setting

Press arrow keys of the remote controller or the panel keys to move

the selection box, then press “OK” key of the remote controller or press

“MENU” key shortly to confirm the option and enter the current setting.

After completing the setting, press the “OK” key or the “MENU” key to

exit the setting state, and select “OK” to save and exit.

1. System time: modify the system time and date.

2. Date format: change the display format of year, month and day.

3. Output format: PAL system or NTSC system.

4. Language: Chinese and English menus(support customized other

languages).

5. Time show: turn on and off the time display.

6. Resolution-output resolution adjustment(800*600/1024*768/

1280*720/1920*1080).

7. Quality: normal/standard/high definition/ultra high definition.

8. Plate number: add license plate number or driver's name on the

recording video.

Video

MENU FUNCTION:

1. Guide line (current setting will be automatically saved after pressing return

key to exit.)

2. Screen margin (the current setting will be automatically saved after

pressing return key to exit).

Adjust the position and length of assist line for each channel

independently. Colour: None (i.e. close assist line); Select “X”, press

the panel key or the arrow on the remove controller to move and

adjust the distance and position of assist line (Same for “Y” and “W”).

Press the panel key or remote control arrow to adjust the margins around the

output video are compressed inwards, which is suitable for full screen display

on various display screens.

MENU FUNCTION:

3. Colour (the current setting will be automatically saved after pressing return

key to exit.

4. Mirror (the current setting will be automatically saved after pressing return

key to exit).

5. Image adjust (the current setting will be automatically saved after

pressing return key to exit).

Press the panel key or remote controller arrow to adjust the chroma,

brightness, sharpness, contrast and saturation of each channel independently.

Press the panel key or remote controller arrow to adjust the image of

each channel. Mirror, Flip, 90 degree rotation, 270 degree rotation optional.

Cut each channel picture independently and adjust the display range of each

channel image.

Andere Handbücher für QV3500

Inhaltsverzeichnis

Andere Nex-tech Sicherheitssystem Handbücher

Nex-tech

Nex-tech LA5178 Bedienungsanleitung

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
