Nexta Tech PLANO-V10/4 Bedienungsanleitung
Universal control unit for single colour constant voltage LEDs 12-24Vdc, selectable software for outputs number.
Power supply 12-24Vdc, Max 5A /output (max 10A total).
Integrated 433.92 MHz radio receiver.
note: voice control compatibility
is only available where 4
synchronised outputs are set
PLANO-V10/4
INDEX
1 - PRODUCT FEATURES
1.1 - TECHNICAL DATA page 3
2 - CONNECTION DIAGRAMS
2.1 - SINGLE-COLOR CONNECTION DIAGRAM
2.2 - CONNECTING TWO LINES OF SINGLE-COLOUR STRIP LIGHTS
2.3 - CONNECTING THREE LINES OF SINGLE-COLOUR STRIP LIGHTS
2.4 - CONNECTING FOUR LINES OF SINGLE-COLOUR STRIP LIGHTS
page 4
page 5
page 6
page 7
3 - LED TYPE SETTING
3.1 - TYPES OF SELECTABLE LEDs
3.2 - PROCEDURE FOR LED TYPE SETTING
page 8
page 9
4 - USE OF THE CONTROL UNIT
4.1 - TYPICAL INSTALLATION
4.2 - USE VIA WIRE
4.3 - USE VIA RADIO
page 10
page 11
page 11
5 - CONTROL BY RADIOTRANSMITTERS
5.1 - RADIOTRANSMITTER SETTING
5.2 - DELETION OF RADIOTRANSMITTERS
page 12
page 13
6 - ADVANCED PROGRAMS
6.1 - BUTTON FUNCTION OF THE “WIRELESS BUS” RADIOTRANSMITTER TYPE
6.2 - LOAD STATE WHEN THE CONTROL UNIT IS SWITCHED ON
6.3 - TIMED ON SETTING
6.4 - WIRED INPUT SETTING
6.5 - FACTORY SETTINGS, RESET CONTROL UNIT
page 14
page 16
page 17
page 18
page 19
2
1 - PRODUCT FEATURES
1.1 TECHNICAL DATA
Connectors
cover
Button 1 Hidden key
Button 2
Led
Power supply (Input) 12 - 24 Vdc
LED type (Output) Constant tension
single color LED
Max power load (Output) 5A per output,
max 10 A total (4 outputs)
N° of programmable transmitters 30
RF receiver frequency 433.920MHz
Protection rating IP20
Working temperature -20° +55°
Box dimensions 80 X 80 h16 mm
3
80
80 16
2 - CONNECTION DIAGRAMS
This control unit can manage 1, 2, 3 or 4 lines of single-colour LED strip lights. By default, operation is set to
two single-colour strip lights. If a different strip type is used, follow the paragraph 3 procedure.
RECOMMENDATIONS
• Installation must be carried out only by professional technicians in accordance with the applicable electrical and
safety regulations.
• All connections shall be operated without electrical voltage.
• Use proper cables.
• Don’t cut the antenna
• Provide in the power line twith an appropriate disconnection device
• Dispose of waste materials in full compliance with local law.
• Do not exceed the specied load limits and use correctly protected power supplies.
2.1 SINGLE-COLOR CONNECTION DIAGRAM
The control unit is set by default to manage two lines of single-colour strip lights.
To change the setting, follow the procedure in paragraph 3.
Power supply
12/24Vdc
Single-color
LED
WARNING:
• Connect up to 5A per output and max total 10A
• The outputs are synchronized
Button
USE VIA WIRE
SHORT PRESS:
On-Off for all lights
LONG PRESS:
Up/down dimmer for all lights
4
-+
(1) (2) (9) (10)
-+
(3) (4) - --
(5) (6) +
(7) (8)
OUT 1
+ OUT 1-2
+ OUT 3-4
OUT 2
OUT 3
OUT 4
C
P
2.2 CONNECTING TWO LINES OF SINGLE-COLOUR STRIP LIGHTS
By default, operation is set to two single-colour strip lights.
Power supply
12/24Vdc
LED line
1
LED line
2
WARNING:
• Connect up to 5A per output and max total 10A
• The operation of outputs 1 and 2 (terminals 4 and 5) is synchronised.
• The operation of outputs 3 and 4 (terminals 6 and 7) is synchronised.
Button
USE VIA WIRE
SHORT PRESS: On-Off for all lights
LONG PRESS: Up/down dimmer for all lights
5
-+
(1) (2) (9) (10)
-+
(3) (4) - --
(5) (6) +
(7) (8)
OUT 1
+ OUT 1-2
+ OUT 3-4
OUT 2
OUT 3
OUT 4
C
P
USE VIA WIRE
SHORT PRESS: On-Off for all lights
LONG PRESS: Up/down dimmer for all lights
Power supply
12/24Vdc
3 lines of single-colour
LEDs individuellement
Push button
WARNING:
• Connect up to 5A per output and max total 10A
• The outputs operate separately.
2.3 CONNECTING THREE LINES OF SINGLE-COLOUR STRIP LIGHTS
The control unit is set by default to manage two lines of single-colour strip lights.
To change the setting, follow the procedure in paragraph 3.
6
-+
(1) (2) (9) (10)
-+
(3) (4) --
(5) (6) +
(8)
OUT 1
+ OUT 1-2
+ OUT 3
OUT 2
OUT 3
C
P
USE VIA WIRE
SHORT PRESS: On-Off for all lights
LONG PRESS: Up/down dimmer for all lights
Power supply
12/24Vdc
4 lines of single-colour
LEDs managed separately
Push button
WARNING:
• Connect up to 5A per output and max total 10A
• The outputs operate separately.
2.4 CONNECTING FOUR LINES OF SINGLE-COLOUR STRIP LIGHTS
The control unit is set by default to manage two lines of single-colour strip lights.
To change the setting, follow the procedure in paragraph 3.
7
-+
(1) (2) (9) (10)
-+
(3) (4) --
(5) (6) -
(7) +
(8)
OUT 1
+ OUT 1-2
+ OUT 3-4
OUT 2
OUT 3
OUT 4
C
P
3 - LOAD TYPE SETTING
Default: One line of single-colour LEDs.
This procedure allows you to change the type of the connected LED.
WARNING:
- The procedure of connection with the OneSmart APP (see paragraph 6) must be repeated each time the load type is
changed.
- The wired button always controls all LED lines in synchronised mode.
3.1 SELECTABLE LED TYPES
1. ONE LINE OF SINGLE-COLOUR LEDS
- The control unit is set to manage 4 lines of single-colour LED strip lights in synchronised mode
2. TWO LINES OF SINGLE-COLOUR LEDS
- La centrale viene impostata per gestire 2 linee di strip led: OUT 1 e 2 in parallelo e OUT3 e 4 in parallelo
3. THREE LINES OF SINGLE-COLOUR LEDS
- The control unit is set to manage 3 lines of LED strip lights: OUT 1, 2 and 3 singularly or in groups
4. FOUR LINES OF SINGLE-COLOUR LEDS
- The control unit is set to manage 4 lines of LED strip lights: OUT 1, 2, 3 and 4 singularly or in groups
ATTENTION : en fonction de la conguration du type de charge, un dimensionnement différent de l’alimentateur peut être
nécessaire
8
3.2 - PROCEDURE FOR SETTING THE LED TYPE
PROCEDURE
STEP 1
Press and hold buttons 1 and 2 simultaneously
(approximately 2 seconds) until the LED becomes
green.
STEP 2
Make a short press of button 1 on the receiver and count the
number of LED Flashes.
NUMBER OF
FLASHES
NUMBER OF LINES MANAGED
SEPARATELY
DESCRIPTION
1 1 4 single-colour LED strip lights in synchronised
mode.
2 2 2 lines of single-colour LED
3 3 3 lines of single-colour LED
4 4 4 lines of single-colour LED
STEP 3
Press the button P1 during the during the Flash that
corresponds to the function desired to end the count.
The yellow LED on the board blinks a number of times
corresponding to the set function
WARNING: if no setting is conrmed during step 3, the control unit mantains the load type previously set.
ACTION: Long press of buttons 1 and 2 LED: green
ACTION: Short press button 1 LED: yellow blinking
ACTION: Short press button 1
LED: Count the nuber of Flashes
9
4 - USE OF THE CONTROL UNIT
4.1 TYPICAL INSTALLATION
The system can be controlled by a wired push button, radio commands, smartphone App OneSmart or voice commands.
The installation can operate with only radio controls or application only.
Instead, to use voice commands, at least the App conguration must be completed.
NEXTA CONTROL UNIT
RADIOTRANSMITTER
CONFIGURATION
See paragraph 5
10
Inhaltsverzeichnis
Andere Nexta Tech Steuereinheit Handbücher
Nexta Tech
Nexta Tech MCX-M500 Bedienungsanleitung
Nexta Tech
Nexta Tech PRG-M24 Bedienungsanleitung
Nexta Tech

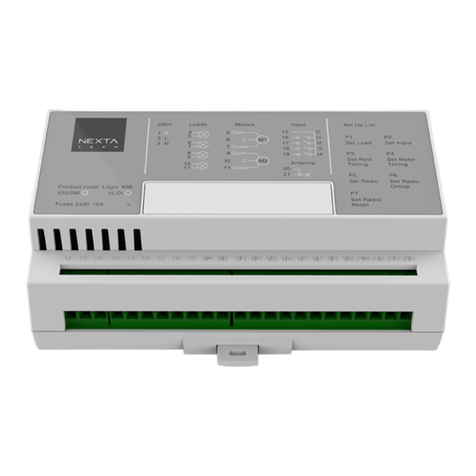

Nexta Tech LOGIC-400-ONE Bedienungsanleitung
