INSTALLER MANUAL

Accumulator tank

AHP S/ AHPS S/ AHPH S

41 Important information

4Safety information

5General

72 Delivery and handling

7Transport

7Assembly

7Supplied components

8Removing the covers

93 Accumulator tank design

114 Pipe connections

11General

12System diagram

13Dimensions and pipe connections

15Installation alternative

175 Electrical installation

17Sensors

186 Commissioning and adjusting

18Filling and venting

197 Service

19Service actions

208 Technical data

20Diagram

21Dimensions and setting-out coordinates

23Technical specifications

23Energy labelling

24Item register

27Contact information

3Table of ContentsAHP S/ AHPS S/ AHPH S

Table of Contents

Safety information

This manual describes installation and service proced-

ures for implementation by specialists.

The manual must be left with the customer.

This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given super-

vision or instruction concerning use of the

appliance in a safe way and understand

the hazards involved. Children shall not

play with the appliance. Cleaning and user

maintenance shall not be made by children

without supervision.

Rights to make any design or technical

modifications are reserved.

©NIBE 2019.

SYMBOLS

NOTE

This symbol indicates danger to person or ma-

chine .

Caution

This symbol indicates important information

about what you should consider when installing

or servicing the installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

MARKING

The CE mark is obligatory for most products sold in

the EU, regardless of where they are made.

AHP S/ AHPS S/ AHPH SChapter 1 | Important information4

1 Important information

General

AHP S/ AHPS S/ AHPH S is designed and manufactured

according to good technical practice1in order to ensure

safe usage.

1Pressure Equipment Directive 2014/68/EU Article 4 point 3.

SERIAL NUMBER

The serial number can be found at the bottom right of

the front cover.

Caution

Always give the product's serial number when

reporting a fault.

RECOVERY

Leave the disposal of the packaging to the in-

staller who installed the product or to special

waste stations.

Do not dispose of used products with normal

household waste. It must be disposed of at a

special waste station or dealer who provides this type

of service.

Improper disposal of the product by the user results in

administrative penalties in accordance with current le-

gislation.

5Chapter 1 | Important informationAHP S/ AHPS S/ AHPH S

INSPECTION OF THE INSTALLATION

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must

be carried out by a suitably qualified person.

DateSignatureNotesDescription

✔

Heat pump (page 16)

Shut off valves

Expansion vessel

Safety valve

Hot water (page 15)

Shut off valves

Mixing valve

Safety valve

Cold water (page 15)

Shut off valves

Non-return valve

Electricity (page 17)

Sensors

AHP S/ AHPS S/ AHPH SChapter 1 | Important information6

Transport

AHP S/ AHPS S/ AHPH S should be transported and

stored vertically in a dry place. However, the

AHP S/ AHPS S/ AHPH S may be carefully laid on its

back when being moved into a building.

Assembly

• The accumulator tank may only be installed vertically.

• The area where the AHP S/ AHPS S/ AHPH S is loc-

ated must be frost-proof and equipped with a floor

drain.

• Position AHP S/ AHPS S/ AHPH S on a firm base that

can take the weight, preferably on a concrete floor or

foundation. Use the accumulator tank's adjustable

feet to obtain a horizontal and stable set-up.

30 - 50 mm

15 - 40 mm

20-55 mm

Supplied components

AHPS S300

2x straight connection Ø

22xG1

3x plug Ø 22

1x straight connection Ø

22xG¾

LOCATION

The kit of supplied items is placed on top of the product.

7Chapter 2 | Delivery and handlingAHP S/ AHPS S/ AHPH S

2 Delivery and handling

Removing the covers

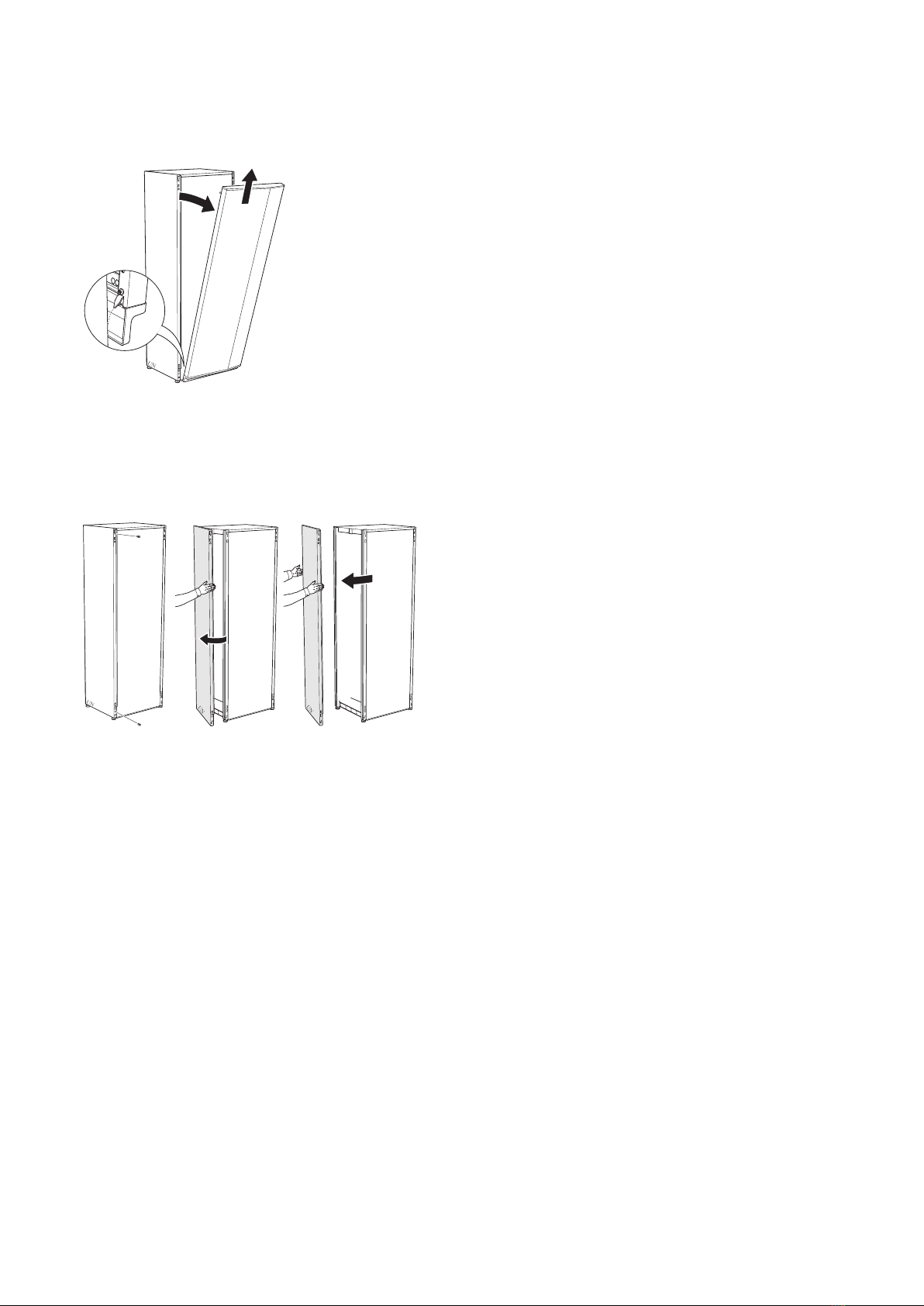

FRONT COVER

1. Disconnect the front cover at the top edge and pull

it straight out.

2. Lift the front cover upwards.

SIDE COVERS

The side covers can be removed to facilitate the install-

ation.

1. Remove the screws from the upper and lower

edges.

2. Twist the cover slightly outward.

3. Move the hatch backwards and slightly to the side.

4. Pull the cover to one side.

5. Pull the hatch forwards.

AHP S/ AHPS S/ AHPH SChapter 2 | Delivery and handling8

AHPS300 AHPSS300

LEK

XL8 XL4 XL3 XL9 XL5

UA1

FR1

UA2

PF1

XL8 XL4 XL3 XL9

UA1

Sv PDB

UA2

Givarkabeldragning

Denna bild används för ?

PZ3

XL3XL4XL8 XL8XL13 XL14XL45 XL46 XL9XL45

UA2

UA1

PZ1

XL19

UA2

UA3

UA1

PZ1

XL19QM1

BT6

9Chapter 3 | Accumulator tank designAHP S/ AHPS S/ AHPH S

3 Accumulator tank design

AHPHS300

UA2

UA1

XL3XL4XL9XL46XL8PZ1

XL19

BT6

Pipe connections

Connection, cold waterXL3

Connection, hot waterXL4

Docking connection, supply line (from heat pump*)XL8

Docking connection, return line (to heat pump*)XL9

Connection, supply line (from solar heating system)XL13

Connection, return line (to solar heating system)XL14

Docking connection, return line high temperature

(to external heat source)

XL19

Docking connection, level 1XL45

Docking connection, level 2XL46

HVAC components

Drain valve, heating mediumQM1

Submerged tube for hot water sensor (BT7) (display)UA1

Submerged tube for hot water sensor (BT6) (control)UA2

Submerged tube for solar sensor (control)UA3

Electrical components

Hot water sensor (control)BT6

Miscellaneous

Rating platePZ1

Serial number platePZ3

Adjustable feetUL

*or another external heat source

Designations in component locations according to

standard IEC 81346-1 and 81346-2.

AHP S/ AHPS S/ AHPH SChapter 3 | Accumulator tank design10
