Nibe F1155 Series Bedienungsanleitung
User manual
LEK

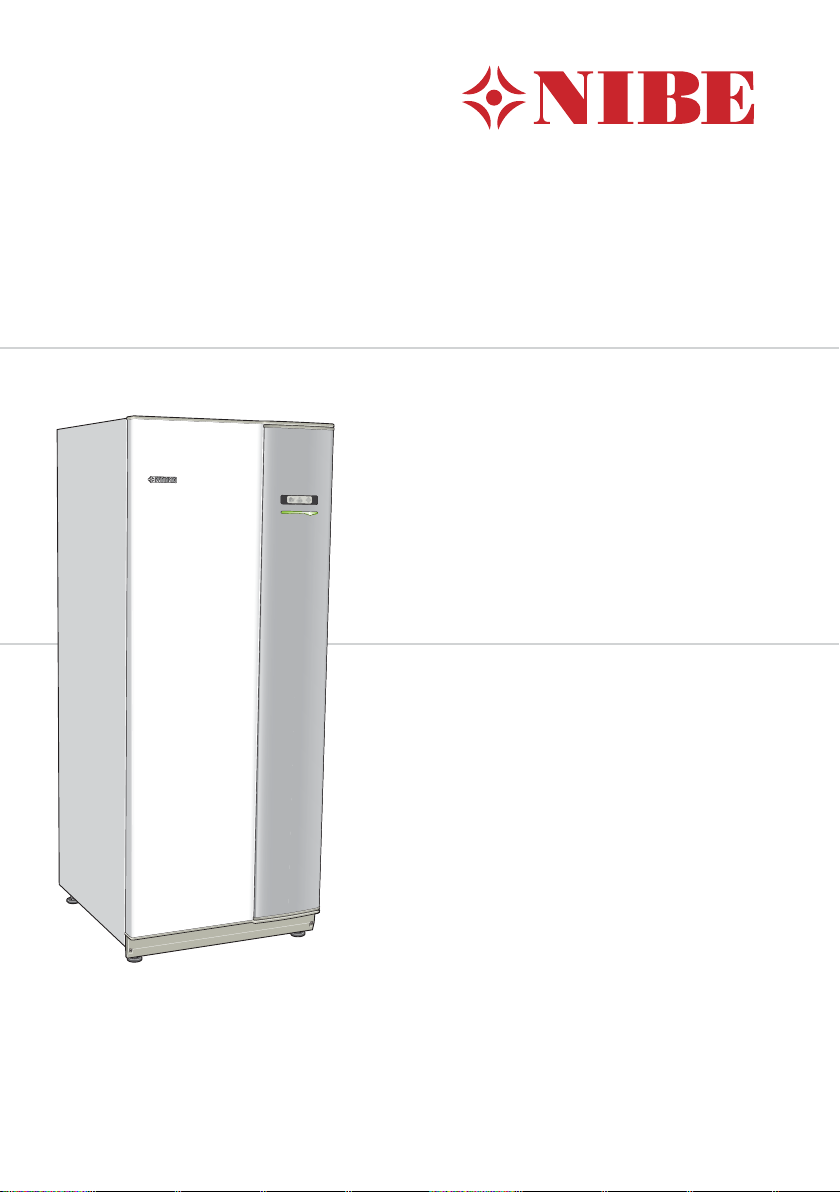

NIBE™ F1155
Ground source heat pump
UHB GB 1335-1
231564
4XLFN JXLGH
1DYLJDWLRQ
2N EXWWRQ FRQILUPVHOHFW
%DFN EXWWRQ EDFNXQGRH[LW
&RQWURO NQRE PRYHLQFUHDVHUHGXFH
A detailed explanation of the button functions can be found on page
11.
How to scroll through menus and make different settings is described
on page 15.
6HW WKH LQGRRU FOLPDWH
;
The mode for setting the indoor temperature is reached, when in the
start mode in the main menu, by pressing the OK button twice. Read
more about the settings on page 24.
,QFUHDVH KRW ZDWHU YROXPH
;
;
To temporarily increase the amount of hot water (if a hot water heater
is installed to your F1155), first turn the control knob to mark menu 2
(water droplet) and then press the OK button twice. Read more about
the settings on page 44.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some measures
that can be taken before you need to contact your installer. See page
68 for instructions.
Table of Contents
1 Important information 2
Installation data 2
Safety information 3
Serial number 4
Contact information 5
F1155 – An excellent choice 7
2 The heat pump – the heart of the house 8
Heat pump function 9
Contact with F1155 10
Maintenance of F1155 20
3 F1155 – at your service 24
Set the indoor climate 24
Set the hot water capacity 44
Get information 49
Adjust the heat pump 53
4 Disturbances in comfort 67
Manage alarm 67
Troubleshooting 68
Only additional heat 71
5 Technical data 72
6 Glossary 73
Item register 78
1NIBE™ F1155Table of Contents |
1Important information
Installation data
F1155Product
Serial number
Installation date
Installer
Type of brine -
Mixing ratio/freezing point
Active drilling depth/collector
length
Accessories
✔
SetDefault
settings
NameNo.
0heating curve (off-
set)
1.9.1
7heating curve (curve
slope)
1.9.1
Serial number must always be given
Certification that the installation is carried out according to instructions
in NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE™ F1155Chapter 1 | Important information2
Safety information
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Rights to make any design or technical modifications
are reserved.
©NIBE 2013.
Symbols
NOTE
This symbol indicates danger to machine or person.
Caution
This symbol indicates important information about what you should ob-
serve when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Marking
The CE marking means that NIBE ensures that the product meets all regu-
lations that are placed on it based on relevant EU directives. The CE mark
is obligatory for most products sold in the EU, regardless where they are
made.
3NIBE™ F1155Chapter 1 | Important information
Serial number
The serial number can be found at the bottom right of the front cover and
in the info menu (menu 3.1).
6HULDO QXPEHU
Caution
Always give the product's serial number (14 digits) when reporting a fault.
NIBE™ F1155Chapter 1 | Important information4
Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at
www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad
Jizerou
CZ
www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7,
6920 Videbæk
DK
dvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
AIT France, 10 rue des Moines, 67000 HaguenauFR
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way,
Chesterfield S41 9QG
GB
www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 2, NL-4797 ZG WILLEMSTAD (NB)NL
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk,
0516 Oslo
NO
ergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: 085 662 84 90 Fax: 085 662 84 14 E-mail: sekretariat@biawar.com.pl
www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
5NIBE™ F1155Chapter 1 | Important information
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu
for more information.
NIBE™ F1155Chapter 1 | Important information6
F1155 – An excellent choice
F1155 is part of a new generation of heat pumps, which have been intro-
duced to supply your home with inexpensive and environmentally friendly
heating and/or cooling. Heat production is safe and economical with in-
tegrated immersion heater, circulation pumps and control system.
The heat pump can be connected to an optional low temperature heat
distribution system. e.g. radiators, convectors or under floor heating. It is
also prepared for connection to several different products and accessories,
e.g. hot water heater, ventilation recovery, pool, free cooling and climate
systems with different temperatures.
An immersion heater of 7 kW can be connected automatically if anything
unforeseen should occur or as reserve operation (then 6 kW).
F1155 is equipped with a control computer for good comfort, good eco-
nomy and safe operation. Clear information about status, operation time
and all temperatures in the heat pump are shown on the large and easy
to read display. This means, for example, that external unit thermometers
are not necessary.
Excellent properties for F1155:
႑Inverter controlled compressor
The heat pump has an inverter controlled compressor that automatically
adapts itself optimally and economically to your house and supplies your
installation with renewable energy.
႑Scheduling the indoor comfort and hot water
Heating and hot water as well as cooling and ventilation in some cases,
can be scheduled for each day of the week or for longer periods (vaca-
tion).
႑Display with user instructions
The heat pump has a large display with easy-to-understand menus that
facilitate setting a comfortable climate.
႑Simple troubleshooting
In the event of a fault, the heat pump display shows what happened
and the actions to be taken.
7NIBE™ F1155Chapter 1 | Important information
2The heat pump – the heart of
the house
Värmekälla
Förångare
Kondensor 100 °C
0 °C-3 °C
-2 °C
50 °C40 °C
Expansionsventil Kompressor
A
D
F
H
B
C
E
G
+HDWLQJ PHGLXP
%ULQH
5HIULJHUDQW
(YDSRUDWRU
&RQGHQVHU
([SDQVLRQ YDOYH &RPSUHVVRU
+HDW VRXUFH
The temperatures are only examples and may vary between different installations and
time of year.
NIBE™ F1155Chapter 2 | The heat pump – the heart of the house8
