Night Stick XPP-5422G Bedienungsanleitung
Professional
Intrinsically Safe
Penlights, Flashlights,
Dual-Lights & Headlamps
2014

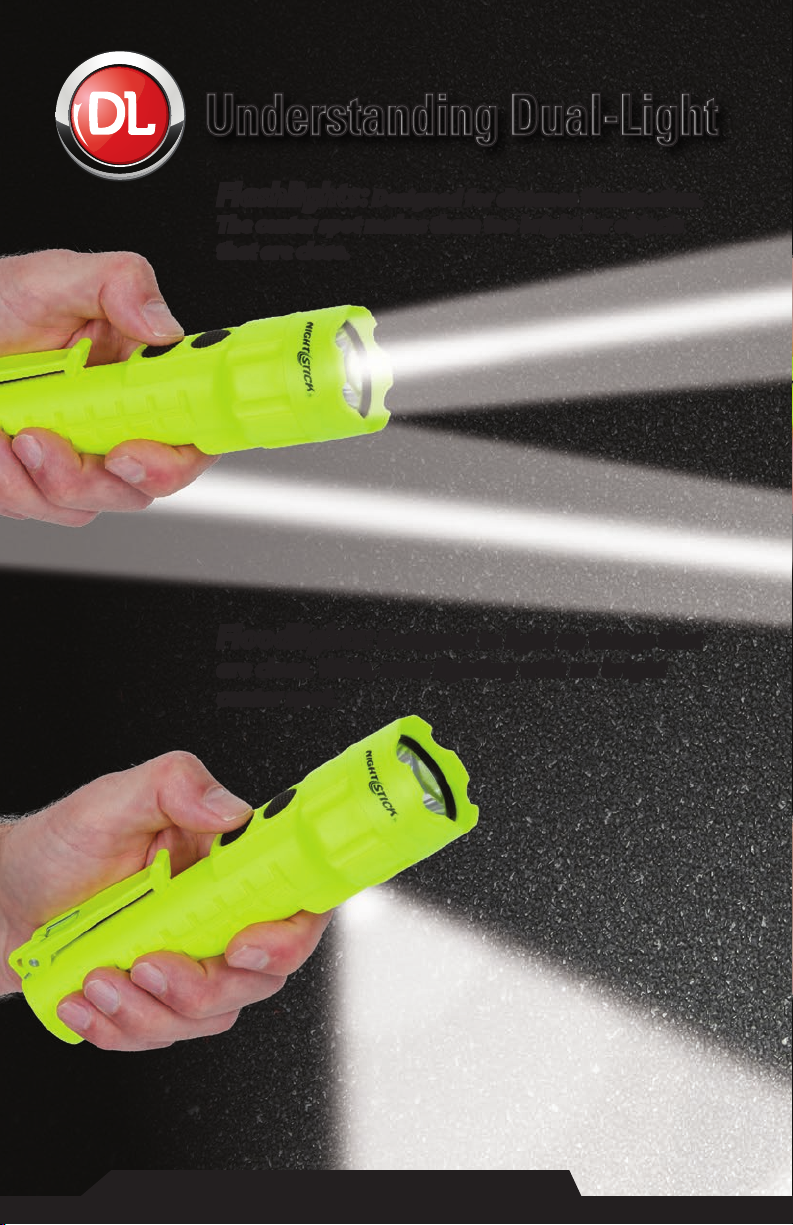

Understanding Dual-LightUnderstanding Dual-Light
Flashlights:
Designed for distance illumination.
The center spot makes them too bright for objects
that are close.
Floodlights:
Designed to light up things that
are close. Wide, even lighting with no bright
center spot.
2GET MORE INFO AT: mynightstick.com • 800-233-2155
Dual-Light:
Combines a ashlight and a oodlight
into the same light. Two lighting tools in one.
Completely transforming the way
hand-held lights are used.
3
GET MORE INFO AT: mynightstick.com • 800-233-2155
4GET MORE INFO AT: mynightstick.com • 800-233-2155
Polymer Dual-Lights
XPP-5422B
XPP-5422G XPP-5422B
P
R
O
O
F
W
A
T
E
R
These non-rechargeable dual-lights are cETLus, ATEX, IECEx and MSHA listed Intrinsically Safe Permissible for use
in both above and below ground hazardous locations where explosive gases and dusts may be present. They
each use a CREE® LED rated at 120 lumens that works in conjunction with a high-eciency deep parabolic
reector to create a usable ashlight beam rated at 170 meters. A 120 lumens unfocused oodlight is integrated
into the housing which is perfect for close-up illumination. Additionally both the ashlight and the oodlight
can be turned on at the same time for maximum versatility. The dual body switches provide momentary or
constant-on functionality for the ashlight and on/o functionality for the oodlight. Power comes from 3 AA
batteries (not included).
INTRINSICALLY SAFE
Floodlight
120
120
Floodlight
Lumens
Flashlight
Lumens
XPP-5422G
Floodlight
Flashlight
Dual-Light
5
GET MORE INFO AT: mynightstick.com • 800-233-2155
Flashlight – oodlight – dual-light
CREE® LED technology – 50,000 + hours LED life
Momentary or constant-on ashlight
Sharp focused ashlight beam for distance illumination
Unfocused wide-beam oodlight for close-up illumination
Dual-light (ashlight & oodlight at same time) for maximum versatility
Engineered polymer housing
Non-slip grip with dual body switches
Waterproof
Impact & chemical resistant
Built-in pocket/belt clip
Includes removable lanyard
Requires 3 AA batteries (not included)
Available in black & green
Limited Lifetime Warranty*
Lumens: ashlight-120, oodlight-120, dual-light-240
Run-time: ashlight-17.5 hrs, oodlight-17.5 hrs, dual-light-4.5 hrs
Beam distance: 170 meters
Water rating: IP-X7 waterproof
Drop rating: 2 meters
Length: 7in, head diameter: 1.8in, handle diameter: 1.5 x 1.1in, weight: 6.9oz
Patent 7,738,229
FEATURES
SPECIFICATIONS
SAFETY RATING
High-eciency deep
parabolic reector
Wide-beam
oodlight
Built in
pocket/belt clip
Dual body switches
Model UPC 0 17398
XPP-5422G 80093 8
XPP-5422B 80094 5
120
17.5h
2m
1m
170m
7250cd
FL1 FLASHLIGHT
6GET MORE INFO AT: mynightstick.com • 800-233-2155
Polymer Flashlights
XPP-5420B
XPP-5420G XPP-5420B
P
R
O
O
F
W
A
T
E
R
These non-rechargeable ashlights are cETLus, ATEX, IECEx and MSHA listed Intrinsically Safe Permissible for
use in both above and below ground hazardous locations where explosive gases and dusts may be present.
They each use a CREE® LED rated at 140 lumens that works in conjunction with a high-eciency deep
parabolic reector to create a usable ashlight beam rated at 180 meters. The single body switch provides
momentary or constant-on functionality. Power comes from 3 AA batteries (not included).
INTRINSICALLY SAFE
140
Lumens
XPP-5420G
Flashlight
7
GET MORE INFO AT: mynightstick.com • 800-233-2155
CREE® LED technology – 50,000 + hours LED life
Momentary or constant-on ashlight
Sharp focused ashlight beam for distance illumination
Engineered polymer housing
Non-slip grip
Single body switch
Waterproof
Impact & chemical resistant
Built-in pocket/belt clip
Includes removable lanyard
Requires 3 AA batteries (not included)
Available in black & green
Limited Lifetime Warranty*
Lumens: 140
Run-time: 14 hrs
Beam distance: 180 meters
Water rating: IP-X7 waterproof
Drop rating: 2 meters
Length: 7in, head diameter: 1.8in, handle diameter: 1.5 x 1.1in, weight: 7.3oz
Patent 7,738,229
FEATURES
SPECIFICATIONS
SAFETY RATING
Model UPC 0 17398
XPP-5420G 80091 4
XPP-5420B 80092 1
140
14.0h
2m
1m
180m
7500cd
High-eciency
deep parabolic
reector
Single body
switch
Built in
pocket/belt clip
8GET MORE INFO AT: mynightstick.com • 800-233-2155
Polymer Penlight
XPP-5410G
80298 7
Model UPC 0 17398
XPP-5410G
Flashlight
CREE® LED technology – 50,000 + hours LED life
Momentary or constant-on ashlight
Sharp focused beam for distance illumination
Engineered polymer housing
Single tail switch
Waterproof
Impact & chemical resistant
Built-in pocket/belt clip
Powered by 2 AAA batteries included
Limited Lifetime Warranty*
Lumens: 30
Run-time: 18 hrs
Beam distance: 40 meters
Water rating: IP-X7 waterproof
Drop rating: 2 meters
Length: 5.8in, head diameter: 0.9in, handle
diameter: 0.7in, weight: 1.9oz
XPP-5410G
FEATURES
SPECIFICATIONS
SAFETY RATING
XPP-5410G High-efciency
deep parabolic
reector
Push-button
tail-cap switch
30
Lumens
Patent 7,738,229
This non-rechargeable penlights is cETLus, ATEX and IECEx listed Intrinsically Safe for use in both above and below
ground hazardous locations where explosive gases and dusts may be present. It is ultra-compact and super slim
with a powerful light output designed to illuminate very tight spaces. The tail-cap switch provides momentary or
constant-on functionality. Power comes from 2 AAA premium batteries (included).
INTRINSICALLY SAFE
P
R
O
O
F
W
A
T
E
R
30
18h
2m
1m
40m
107cd
9
GET MORE INFO AT: mynightstick.com • 800-233-2155
Polymer Penlight
Model UPC 0 17398
80299 4
XPP-5412G
Flashlight
CREE® LED technology – 50,000 + hours LED life
Momentary or constant-on ashlight
Sharp focused beam for distance illumination
Engineered polymer housing
Single tail switch
Waterproof
Impact & chemical resistant
Built-in pocket/belt clip
Powered by 3 AAAA batteries included
Limited Lifetime Warranty*
Lumens: 50
Run-time: 13.75 hrs
Beam distance: 50 meters
Water rating: IP-X7 waterproof
Drop rating: 2 meters
Length: 6.8in, head diameter: 0.6in, handle
diameter: 0.5in, weight: 1.5oz
XPP-5412G
FEATURES
SPECIFICATIONS
SAFETY RATING
XPP-5412G
XPP-5412G High-efciency
deep parabolic
reector
Push-button
tail-cap switch
50
Lumens
Patent 7,738,229
This non-rechargeable penlight is cETLus, ATEX and IECEx listed Intrinsically Safe for use in both above and below
ground hazardous locations where explosive gases and dusts may be present. It is ultra-compact and super slim with a
powerful light output designed to illuminate very tight spaces. The tail-cap switch provides momentary or constant-on
functionality. Power comes from 3 AAAA premium batteries (included).
INTRINSICALLY SAFE
P
R
O
O
F
W
A
T
E
R
50
13.75h
2m
1m
50m
161cd
10 GET MORE INFO AT: mynightstick.com • 800-233-2155
Dual-Function Headlamp
XPP-5450G
Model UPC 0 17398
XPP-5450G 80300 7
High / Low
High 1615cd
Low 1076cd
High 13.5h
Low 22.75h
60 /40
2m
1m
High 80m
Low 65m
CREE® LED technology – 50,000 + hours LED life
High-brightness spotlight, low-brightness spotlight
Focused spotlight beam for distance illumination
Engineered polymer housing
Single switch located on top of light
Adjustable ratchet tilt head
Non-slip elastic head strap
Heavy-duty rubber strap for hard hat applications
Waterproof, impact & chemical resistant
Powered by 3 premium AAA alkaline batteries (included)
Limited Lifetime Warranty*
Lumens: high spotlight-60, low spotlight-40
Run-time: high spotlight-13.5 hrs, low spotlight-22.75 hrs
Beam distance: 80 meters
Water rating: IP-X7
Drop rating: 2 meters
Width: 2.4in, height: 1.9in, depth: 1.8in, weight: 3.5oz
XPP-5450G
FEATURES
SPECIFICATIONS
SAFETY RATING
Patent 7,738,229
This non-rechargeable dual-function headlamp is cETLus, ATEX and IECEx listed Intrinsically Safe for use in both
above and below ground hazardous locations where explosive gases and dusts may be present. This headlamp
features a multi-position tilt head design and includes an elastic head strap with a non-slip lining and a heavy-duty
rubber head strap for use on a hard hat. The top mounted switch provides user selectable high or low brightness
spotlight operation. Power comes from 3 AAA premium batteries (included).
INTRINSICALLY SAFE
P
R
O
O
F
W
A
T
E
R
Heavy-duty rubber
head strap
Spot High Spot Low
