Nikon Coolpix 880 Bedienungsanleitung

3/17/03 1 of 3

Quick Start Guide

Nikon Coolpix 880 Digital Still Camera

WARNING! Do not touch the lens on the front of the camera or the LCD screen on the

back. Doing so will damage them.

1. Before turning on the camera, make sure the lens cap is removed from the front of the

camera. Do this by squeezing the two tabs on the lens cap together and pulling it off

the camera.

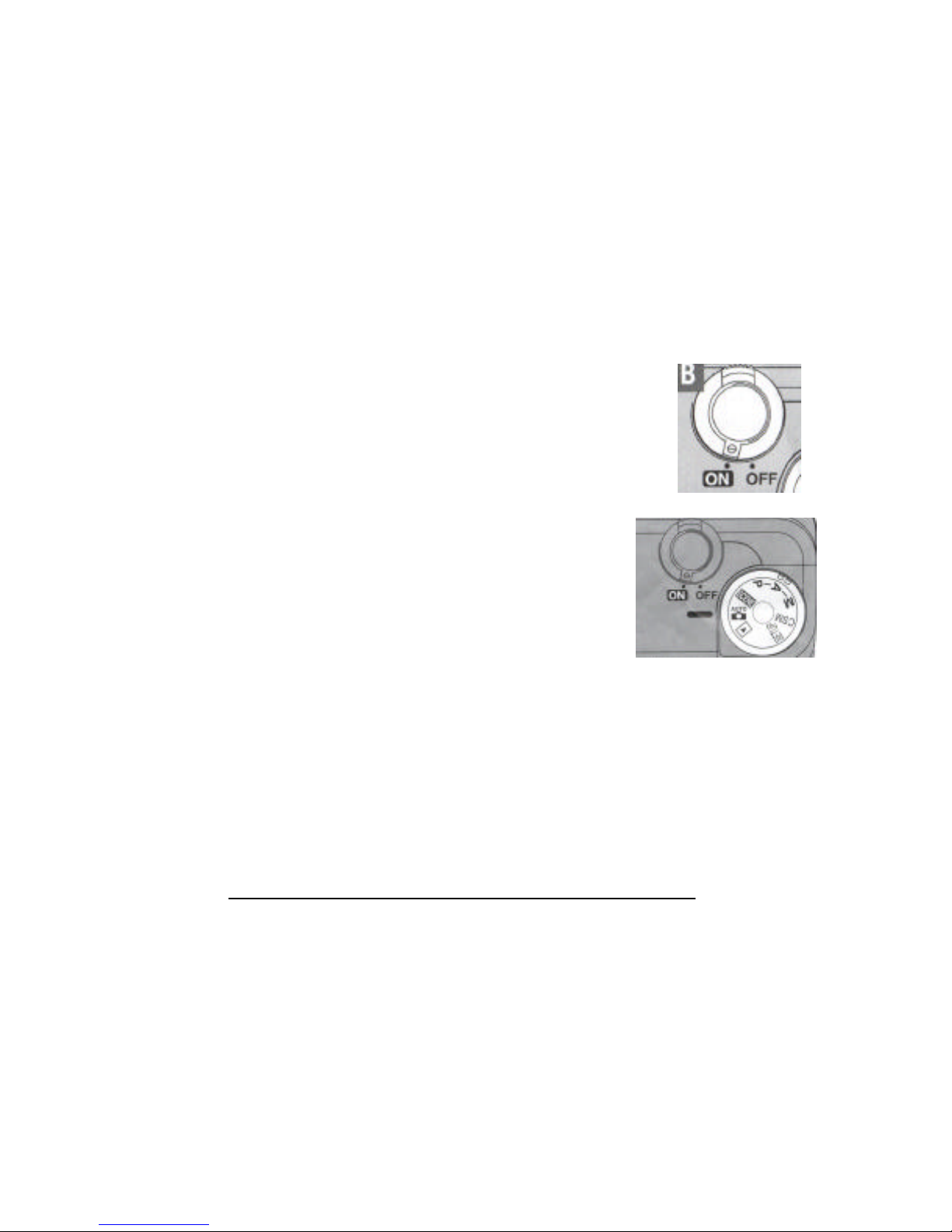

2. To turn on the camera, find the switch on the top of the camera

that is silver in the center and has two positions, on and off.

Rotate this switch to “on.”

3. To take a picture, rotate the dial on the top of the camera until the

word “auto” is next to the white bar on the top of the

camera.

4. From here on out, this handles just like a normal camera.

Line up your picture using the LCD screen on the back of

the camera or use the viewfinder. Press the silver button on

the top of the camera part way down to set the focus and

exposure. Press the button down completely to take the

picture.

5. When finished taking photos, remember to power off and put the lens cap back on the

camera lens.

6. Delete you photos: Go to the playback menu on the mode control. Then press the

menu button. Select the delete option. From here you can delete either individual

images, or all images.

Troubleshooting and Battery Charging

1. The camera won’t turn on.

The battery probably needs charging. Remove the battery and place it on the charger.

When the light on the charger stops flashing, the battery is completely charged.

2. The camera says there’s no more room on the memory card.

The memory card is full, you need to delete some of the photos. To do this you need to

power on the camera as if you were going to take a picture, but then turn the dial on the

top of the camera until the triangle picture is next to the white bar. Use the silver arrow

key to look through your photos. If there is a picture you want to throw away, click the

3/17/03 2 of 3

trash can button above the screen. In this menu you need to click the down arrow once,

then click the right arrow once. Continue deleting unwanted pictures to make room for

more pictures.

Additional Instructions

1. Working with the Battery

Make sure the camera is turned off

before inserting or removing the battery.

The camera uses a special lithium

battery, do NOT replace it with a

conventional battery. Please recharge

the battery before you return the camera.

2. Working with the memory stick.

Do not insert or remove the memory

card with the camera on. Under most

circumstances, you will have no need to

mess with the memory card.

3. Choosing an image size.

You can check or change the image size

by turning the mode dial to SETUP.

From the image size menu, select the

image size you wish to use.

4. Select AUTO mode.

Turn the mode dial to Auto. The auto

mode puts the camera into a simple

point-and-shoot camera. Focus and flash

are automatically set.

5. Check the FOCUS mode.

Be default, the camera adjusts the focus

automatically for subjects xxx ft to

infinity.

6. Take your picture.

This camera is digital. It uses no film so

there are no “processing” costs. Take as

many pictures as your wish in your quest

to get the “best” shot. The number of

pictures you may take depends on the

image quality you select earlier.

3/17/03 3 of 3

Getting your photos into the computer.

OS X Instructions

1. Make sure the camera is in the OFF mode.

2. Plug the wide end of the USB cable into the computer, then plug the round end

of the cable into the camera, being careful to insert it in the right direction.

3. Power on the camera using the switch on the top.

4. Open iPhoto and click the button at the bottom that says “import”. Then click

the import button. You have the option of deleting the images from the camera

as you upload the images. Congratulations, you’ve successfully transferred

your photos from the camera to the computer. In iPhoto, you my view, edit and

export your images.

5. When finished uploading the pictures from the camera, you may drag the white

disk icon representing the camera to the trash. (note: this the icon is located on

the desktop) You may now turn the camera off and then unplug it from the

computer.

OS 9

1. Make sure the camera is in the OFF mode.

2. Plug the wide end of the USB cable into the computer, then plug the round end

of the cable into the camera, being careful to insert it in the right direction.

3. Power on the camera using the switch on the top.

4. Wait a few moments and the camera should appear on the desktop as a camera

shaped icon titled “Nikon E880”

5. Inside this folder are all the pictures on the camera. From here you may copy

them to your own folder or open them with a program such as GraphicConverter

or Enhance.

6. When finished with the pictures on the camera, drag the Camera’s icon to the

trash. Turn the camera off and then you may unplug the camera from the

computer.
