Nikon

Coolpix 990

User Review

Posted 3/4/2000

(updated 10/18/2000)

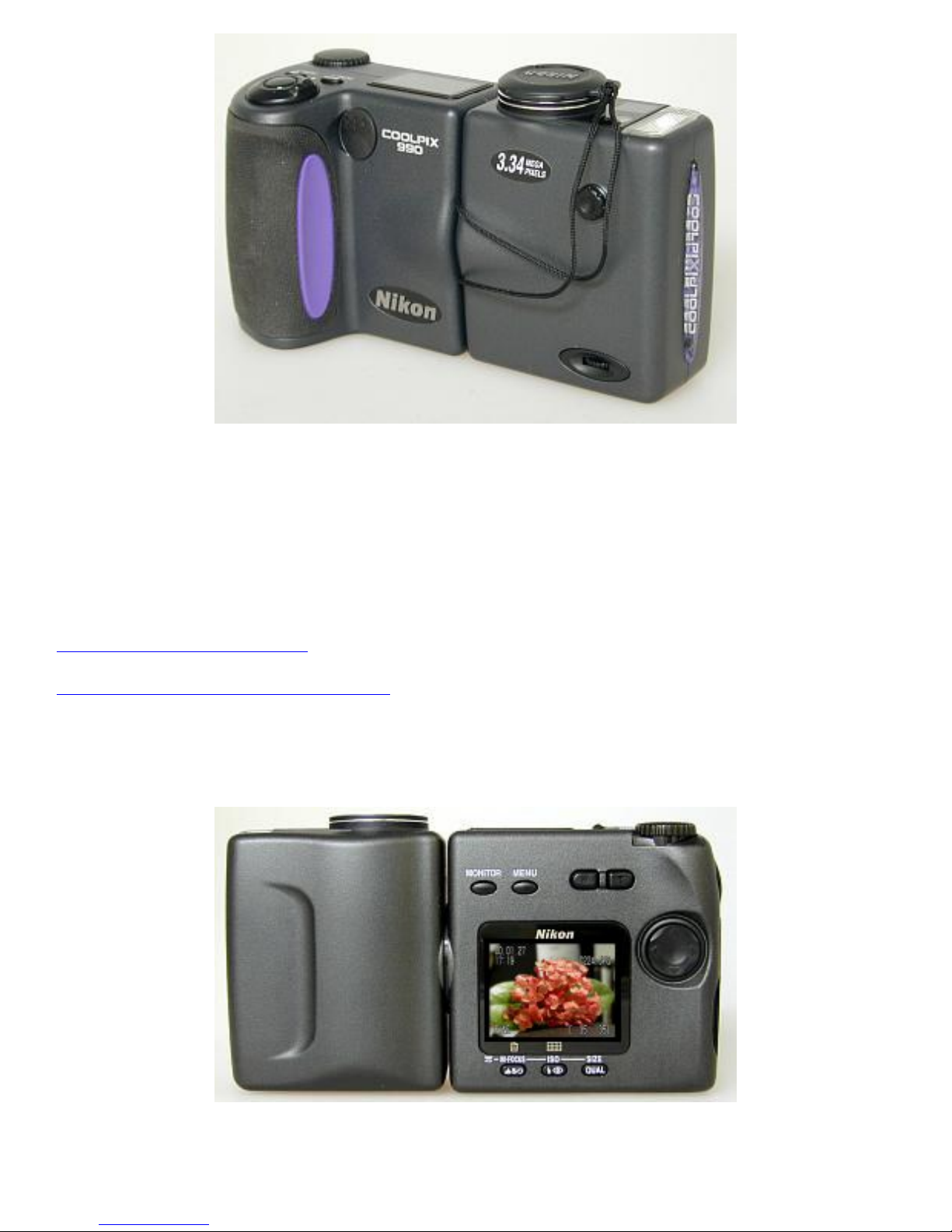

Click on the camera for 360-degree QTVR tour

The Nikon Coolpix 990 is the first of the new wave of 3.34-megapixel resolution digital

cameras. It retains the best features of the Coolpix 950 like the razor sharp Nikkor 3x

zoom lens, the closest macro capability of any digicam, the highly durable magnesium

alloy body and the unique swiveling lens design.

It now includes many of the user-requested improvements (CF card slot on side, USB

connectivity, improved battery life, better LCD) and adds powerful new features like

multizone autofocus, autoexposure bracketing, Flexible Program mode and a 7-blade

iris diaphragm for real depth of field control.

The 990's 3.34 megapixel CCD delivers a non-interpolated image resolution of 2048 x

1536 pixels with an uncompressed TIFF image file of just under 10MB in size.

Recording modes include still image capture at up to 2 frames per second in full

resolution, 320 x 240 QVGA at 30 frames per second and a new movie mode that

shoots 40 seconds of (silent) QVGA Motion-JPEG at 15 fps.

Nikon has finally answered the question of how to keep the lens cap with the camera.

They now include a "lens string" that slips around the joint between the two sections of

the camera.

Read the:

Nikon Coolpix 990 Manual

8-page Coolpix 990 sales brochure

The Coolpix 990 has an exclusive Multi-Area autofocus mode for quick composition

without interruption. It searches the 5 zones for closest subject or sharpest subject. It is

a direct descendant of Nikon pro film and D1 digital SLR cameras.

The 990 also features a 50-step manual focus, Nikon’s 256 element Matrix metering

and new 256 element Matrix white balance system to insure the best possible exposure

and color balance in every shot.

New is a 7-blade iris diaphragm for true depth of field control and versatile exposure

control with four exposure modes:

Programmed Automatic (with Flexible Program)1. Shutter Priority - (bulb, 8s, 4s, 2s, 1s, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250,

1/500, 1/750, 1/1000)

Aperture Priority - (in wideangle: F2.5, 2.8, 3.1, 3.5, 3.9, 4.4, 4.9, 5.5, 6.2 and 7.0 -

in telephoto F4.0, 4.4, 5.0, 5.6, 6.3, 7.0, 7.9, 8.9, 9.9 and 11)

Full Manual control of both shutter and aperture.4.

In the "P"rogrammed automatic mode there are more options available via the Flexible

Program mode. By rotating the command dial the "P" changes to a "P*" and each click

brings up a different combination of shutter speed and aperture values that yield the

same exposure.

Exposure compensation and Auto Bracketing capabilities are also included.

The 990 has a high-speed USB interface which makes downloading those large image

files to a PC or Mac very fast. This is a dual I/O port supporting both USB and serial

RS-232 connections. Nikon does not supply a serial port cable and the NikonView

software is not capable of controlling the camera other than image downloads. The 990

now has user-selectable video output (NTSC or PAL). This eliminates the need to build

two different camera models but the 990 will come in two different color schemes. The

North American cameras will be charcoal grey with a purple colored finger grip (as

shown here), the European models will be the black and red scheme used on the

Coolpix 950's.

Another thing that can be connected to the Coolpix 990 (or the 880) USB port is the new

MC-EU1 wired remote control. The MC-EU1 allows you to trip the shutter and operate

the zoom lens in A-Rec or M-rec modes. In Playback mode it lets you scroll forward or

backwards through the stored images.

An even more powerful record mode operation is available for time-lapse recording.

There are two modes: Interval Mode A begins when you push the release button and

repeats at the programmed intervals. Interval Mode B is the same but the camera

begins automatically after a preset amount of time has elapsed.

The remote's shutter button is like the one on the camera and has a half-press position

to set focus and exposure and trips the shutter when fully depressed. The LCD panel on

the MC-EU1 shows the settings for the interval modes and also displays the camera

modes (A-Rec, M-Rec, Play) and "Busy" while writing to the CF card. There is a builtin

illuminator that can be turned on so you can see the LCD display in the dark.

For more info on the MC-EU1 remote cord, click here to see the user manual in PDF

format, it's rather large so be patient.

Note: The Nikon 990 requires firmware v1.1 or greater to use the MC-EU1. Most 990's

shipped with v1.0

The 990's CompactFlash card slot is located on the side, making it easy to change

cards without removing it from a tripod. Nikon is supplying a 16MB 8x high performance

Lexar CF card.

This is a CompactFlash Type I slot, it is not Microdrive compatible.

Nikon has bundled one of Lexar Media's new and fast 8x speed, 16MB USB-enabled

JumpSHOT CompactFlash cards. Included is a mail-in coupon for the JumpSHOT USB

cable for $9.99 (50% discount) if you'd like to have an untethered way of downloading

your images.

Click here to

Continue on to

Lenses & Options

Coolpix 990 Specifications

CCD 1/1.8-in. high-density CCD; total number of pixels: 3.34 million

Image size 2,048 x 1,536 pixels

XGA-size (1,024 x 768)

VGA-size (640 x 480)

3:2 (2,048 x 1,360) selectable

Lens 3x Zoom-Nikkor; f = 8-24mm (equivalent to 38-115mm) F2.5-4 with macro; 9 elements in

8 groups; all glass

Autofocus Contrast-detect TTL AF; 4,896-step autofocus control including macro range

5-area Multi AF or Spot AF selectable

Focus modes 1) Continuous AF mode (when using LCD monitor)

2) Single AF mode (when not using LCD monitor and/or selectable from shooting menu)

3) Manual [50 steps from 2cm (0.8 in.) to infinity with Peaking indication]

Shooting distance 30cm (11.8 in.) to infinity

2cm (0.8 in.) to infinity in Macro mode

Optical viewfinder Real-image zoom viewfinder

magnification: 0.4~1.1x

frame coverage: approx. 85%

diopter adjustment: -2~+1 DP

LCD monitor 1.8-in., 110,000-dot, low-temp. polysilicon TFT LCD

brightness/hue adjustment

frame coverage: approx. 97% (through/freeze image)

Auto OFF mode 30 sec.; can be set manually (1/5/30 min.)

Image Storage uncompressed TIFF or compressed JPEG

Media CompactFlash (CF) Card Type I

Shooting modes Fully automatic ([A]-REC) mode

Custom ([M]-REC) mode (three combinations of mode settings can be memorized)

Shooting menu

1) White balance

2) Exposure metering

3) Continuous

4) Best-Shot Selector (BSS)

5) Converters

6) Tone compensation (Auto/Normal/More Contrast/Less

Contrast/Lighten/Darken/Monochrome)

7) Image Sharpening

8) Digital zoom (stepless, up to 4x)

Capture modes

1) Single

2) Continuous

3) Multi-Shot 16 (16 frames in 1/16 size)

4) VGA Sequence

5) Ultra High-speed Continuous (approx. 30 fps for 80 QVGA-size images)

6) Movie (40 sec. for QVGA-size images at 15 fps)

Exposure metering

4-mode TTL metering:

1) 256-segment Matrix

2) Center-Weighted

3) Spot and

4) Spot AF Area

Shutter Mechanical and charge-coupled electronic shutter

8 to 1/1,000 sec.

Aperture 7-blade iris diaphragm

3 EV range in 1/3 EV steps

Exposure control

1) Programmed Auto with Flexible Program

2) Shutter-Priority Auto (with Sensitivity control)

3) Aperture-Priority Auto

4) Manual; Exposure Compensation (±2 EV in 1/3 EV steps)

Auto Bracketing (5 steps within ±2/3 EV)

Exposure range EV -2~+15.5 (W), EV -0.8~+16.7 (T) (ISO 100 equivalent)

ISO Sensitivity 100, 200, 400 or Auto

White balance 1) Matrix Auto White Balance with TTL control

2) 5-mode Manual with 7-step fine tuning (Fine/Incandescent/Fluorescent/

Cloudy/Speedlight)

3) Preset

Self-timer 10 sec. or 3 sec. duration

Built-in Speedlight Guide number 9/30 (at ISO 100, m/ft.)

Flash control

Flash modes:

1) Auto Flash

2) Flash Cancel

3) Anytime Flash

4) Slow Sync

5) Red-Eye Reduction

External Speedlight Multi-flash sync terminal connects to external Nikon Speedlight SB-28/28DX/26/25/24/22

through the Multi-Flash Bracket Unit SK-E900; built-in Speedlight can be canceled when

using external Speedlight(s)

Playback menu

1) 1 frame

2) Thumbnail (4/9 segments)

3) Slide show

4) Zoom playback (stepless up to 3x)

Histogram indication & highlight point display

Peaking indication

Hide and protect attributes can be set to each image

Delete function Deletes all frames or selected frames

Interface USB interface; Serial interface (Windows: 115kbps, Macintosh: 230kbps)

Video output NTSC or PAL (selectable)

I/O terminal Power input

Video output

Digital output terminal (USB/Serial)

Sync terminal for external Speedlight

Bundled Software

NikonView Version 3, Altimira Group's Genuine Fractals 2.0 LE, Canto's Cumulus 5.0 LE

Image and Asset Management Software, iPIX's Immersive Imaging Software, and

QuickTime Video Version 4. Great Photo! image correction software for Mac and PC to

be added by June 2000. The Reference CD-ROM includes Adobe Acrobat Reader 4.0,

Instructions for Using Nikon View Version 3, and Nikon's "Guide to Digital Photography"

(Online Camera Manual for the CoolPix 990).

Power requirements 4 x 1.5V alkaline "AA"-size batteries; 1.5V FR6 lithium or 1.2V Ni-MH “AA"-size batteries

can also be used; AC adapter (optional)

Battery life Approx. 1.5 hrs. when using LCD monitor and four 1.5V alkaline "AA"-size batteries at

normal temperature (20(C/68(F)

Dimensions

(W x H x D) Approx. 5.9 x 3.1 x 1.5 in. (2.5 in. at grip)

Weight

(without battery) Approx. 370g (13.1 oz.)
