Nikon D5200 Bedienungsanleitung

Please read the safety instructions before using the

device. Read this Quick Setup Guide for the correct setup

and installation.

Technical data of the equipment and general safety:

Mains connection

Voltage: 100VAC to 240VAC 50/60 Hz

Eletrical Safety: CE conformity

Climatic conditions

ONLY use in dry rooms!

Temperature: 0 to max. 40 °C

Operating humidity: 0% bis 80 % r.F, non-condensing

Operating altitude: 0 to 2000m above sea level

Additional Safety Information:

oPlace the appliance on a flat, stable, and vibration-free surface such as a desk. Choose a dry,

well-ventilated area out of direct sunlight. Do not place the device on a carpet to protect it

from dust.

oDO NOT place objects on the device .

oDO NOT slide in any objects through the slots of the device

They may touch dangerous current carrying parts or cause a short circuit and resulting in a

fire or electric shock.

If objects made of metal, water or other liquids get into the unit, unplug the power cord

immediately.

INSTALLATION MANUAL rev. 1.1

Vizoo xTex

oDO NOT use flammable substances, spray, or organic solvent / liquids containing alcohol or

ammonia to clean the inside or outside of the device. Otherwise fire or electric shock can

occur. Turn off the device when it is not in use for more than an hour. Unplug the power

cord when not using the unit for more than one day.

oDO NOT use the device if the power cord is damaged to avoid electric shock or fire.

oDO NOT connect the camera (neither DC nor USB) when the xTex device is switched on. This

can cause serious damage to the xTex device.

oWhen you are leaving the office or not using the xTex device for several hours always switch

the device off using the main power switch.

Repair, Product liability and Warranty Service:

Do not attempt to repair this product yourself, as opening or removing covers may expose

you to dangerous current-carrying parts and other risks and may void your warranty.

For repair service please contact the support: support@vizoo3d.com

Do not use the unit in a humid environment or near water sources, such as hand basins etc.

Avoid the use of this device during a thunderstorm.

Declaration of Conformity (Europe only):

We, Vizoo GmbH

Johann-Karg-Str. 30, 85540 Haar, Deutschland

declare, that this product is in compliance with the essential requirements of the directives

2006/95/EG and 2004/108/EG.

The declaration of conformity can be found on our website:

http://vizoo3d.com/xtex/EC-Declaration-of-Conformity.pdf

1. Unpack the equipment and check the package

contents

Make sure that the device is always moved or lifted by two people. Reset the unit carefully

and be careful to not pinch your fingers.

For packaging plastic bags and other packaging elements made of plastic were used. Keep

them out of reach from babies and children to prevent suffocation.

Housing

Camera (Nikon D5200, Nikon

D800, Nikon D810 or Nikon

D850)

Lens (model might differ

from image)

Camera Manual (Nikon,

possibly no paper copy

available)

Download link:

https://customers.vizoo3d.com/manual_d5200_en

https://customers.vizoo3d.com/manual_d800_en

https://customers.vizoo3d.com/manual_d810_en

https://customers.vizoo3d.com/manual_d850_en

Camera Mount

Power cable (Inlet

connector)

USB Connector cable to PC

Camera Power Adapter

(Nikon EP-5A or Nikon EP-5B,

can be pre-installed)

Camera Screw (with or

without seal)

Fixing Screw (for Camera

Mount)

Calibration chart (model

might differ from image)

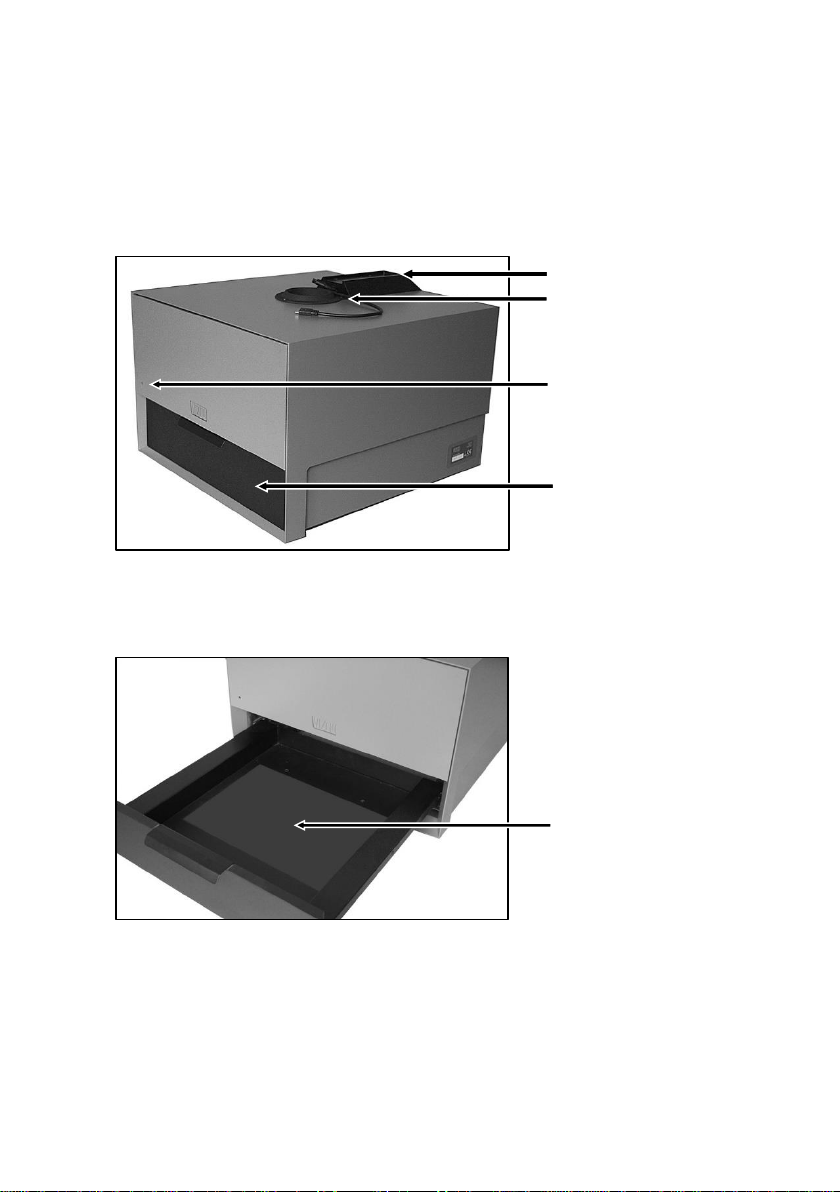

2. Device Overview

Power indication light

Pullout

Capturing surface

Camera mount guide

Pullout (open)

Device housing

Lens bracket

Power supply

(camera)

USB port (camera)

USB port (PC)

Main Power switch

(on/off)

Mains connection

Electronics

3. Installation of the Camera mount

•First, set the camera mount into the guide on top of the housing. Make sure that the

shorter side of the bracket is in the guide.

•Then turn the fixing screw into the thread of the guide. Tighten the screw slightly so

that the camera position can still be moved in the guide.

•Then set the camera screw into the hole provided on the longer side of the camera

mount.

4. Mounting the Camera

Please carefully read the safety instructions and the instructions on how to attach the lens in

the camera's manual before you start with the installation.

•Assemble the lens to the camera as described in the camera's manual.

•In case it has not already been installed: Insert the power connector into the camera

as described in the User Guide of the power connector.

•Insert the camera to the opening of the lens bracket with the lens facing down and

the rear display facing up.

For this and the following steps make sure to always keep at least one hand on the camera

lens. Make sure that the camera is sitting on the lens bracket with its full weight and is

covering the opening completely.

•Slide the camera mount close to the bottom of the camera.

•Now move the camera screw in the slot of the camera mount to the height of the

camera's tripod socket (see camera manual).

•Tighten the camera screw.

•As last step tighten the fixing screw, so that the camera mount can no longer be

moved.

5. Connecting the device

DO NOT connect the camera (neither DC nor USB) when the xTex device is switched

on. This can cause serious damage to the xTex device.

•Connect the camera USB cable.

Nikon D5200 only:

(In case the cable is not already installed)

Connect the plug of the USB cable with the female connector of the USB extension

cable.

In case the cable is not already installed:

Connect one end of the USB cable with the USB port of the camera and the other end

with the USB port of the device.

•Connect the camera power cable.

Connect one end to the plug of the power connector and insert the special connector

to the jack of the device’s camera power supply.

The special connector has 4 pins and a groove at the bottom. Insert the plug fully into

the socket first, and then turn the knurled bezel clockwise.

•Connect the USB connector cable to the PC.

Connect the end of the cable to the jack on the unit and the other end to the PC.

Connect the power cord (Inlet plug) to the power connector of the device.

The device must be connected to a grounded, easily accessible AC outlet. Do not handle the

power plug with wet hands to prevent electric shock.
