PLASMA PROOF IR REPEATER KIT
IR-KIT
For Receiving and Routing
Infrared Commands from Any
Remote Control to Concealed
Audio/Video Equipment
INSTALLATION & USER GUIDE
IR-KIT
PLASMA PROOF IR REPEATER KIT
TABLE OF CONTENTS
Features............................................................................................................................1
Product Overview...........................................................................................................2
Package Contents ..........................................................................................................4
Preparing for Installation..............................................................................................4
Installation.......................................................................................................................5
Operation..........................................................................................................................8
Troubleshooting ..............................................................................................................9
Specifications...............................................................................................................11
Warranty.........................................................................................................................13
1
FEATURES
IR-CB2
nProvides two IR Receiver
inputs and five IR Emitter
outputs
nSelectable high/low emitter
outputs for use with IR-E1HO
high output emitter or single
and dual emitters
nLED power indicator
n12V DC status input jack and
LED indicator
Installation friendly design:
nSnap and Lock Connector
secures wire in place without
the use of a screwdriver
n3.5mm emitter output jacks
nWings allow for either vertical
of horizontal mounting
nIncludes in-line UL listed
regulated power supply
IR-SMR Surface Mount IR Receiver
nPlasma-proof design
nRejects interference from flat
panel displays, CFL lighting or
indirect sunlight
nWorks with practically all
remotes
nExtended receiving range
nGreen talkback LED indicates
when A/V system is on
nBlue talkback LED confirms
reception of IR signals
Installation friendly design:
n10' of connecting wire included
nReliable adhesive backing
IR-E1 Infrared Emitter
nInfrared pass through housing
nMiniature size and shape
Installation friendly design:
n10' of cable with 3.5mm plug
nReliable adhesive backing
nIncludes IR Blocking Cover

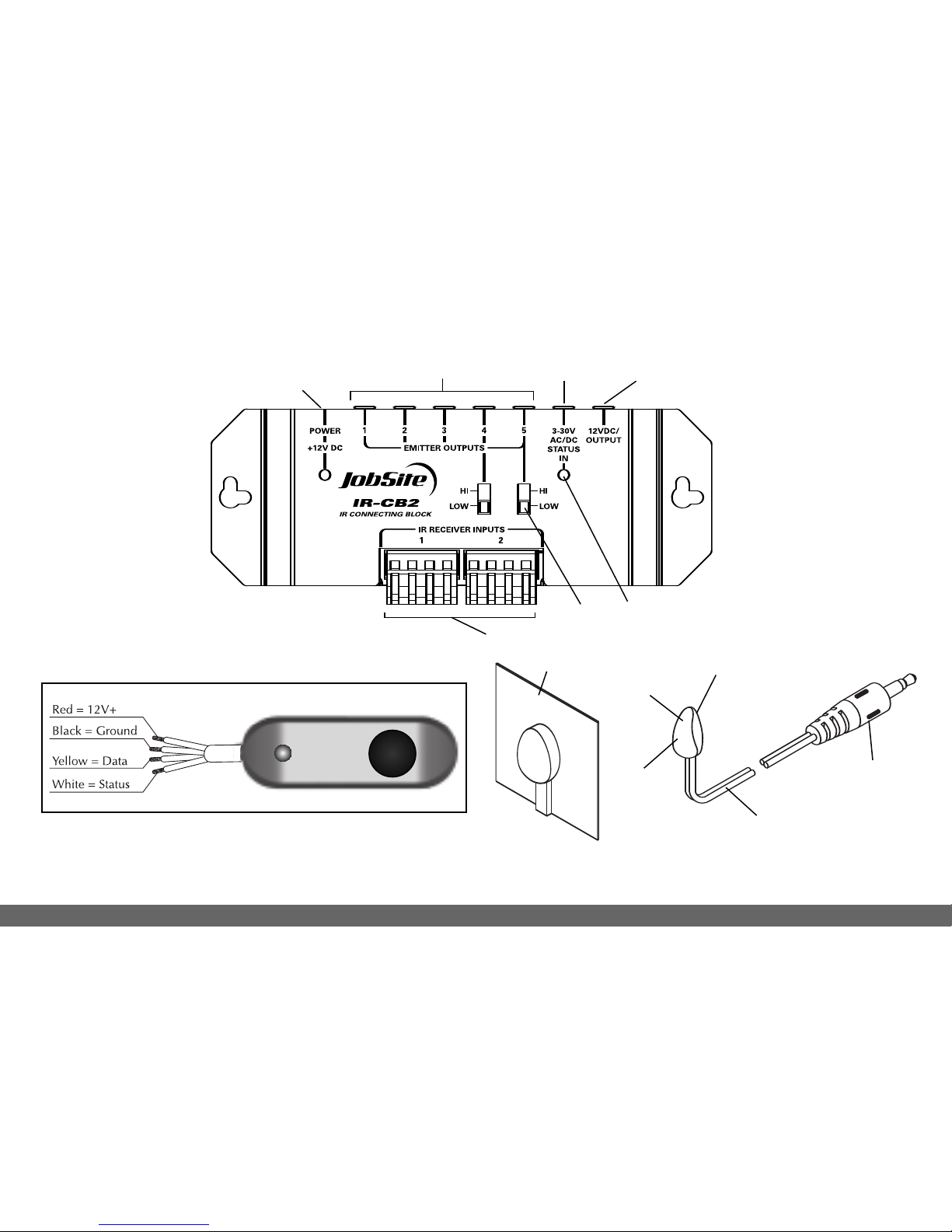

PRODUCT OVERVIEW
2
13
7
4
2
65
IR-CB2
IR-SMR
IR Blocking
Cover
Infrared
Transparent
Housing 10 feet of 2-conductor
24-gauge connecting wire
3.5mm mono
mini-plug
Self-adhesive tape
IR-E1
Infrared
LED
1. 12V DC Jack – Provides 12Volt DC power to
IR-CB2 via a regulated power supply.
2. IR Emitter Outputs – 3.5mm jacks provide output for
either single or dual low-level flashers.
3. 3-30V AC/DC Status – 3.5mm jack provides
system status to sensors/keypads via a 12V power
supply attached to a switched outlet on the system
receiver or a 12V trigger output.
4. 12V Output – When 12V DC is detected at the
status jack (#3) the 12V output jack will output
12V/200mA DC. This is useful for triggering external
devices and system automation.
5. Status/IR Confirmation LED – This LED performs
two functions: (1) it provides a visible indication of
system status via a green LED and (2) confirms the
reception of IR data via a blinking blue LED.
6. Emitter Hi/Low switch – Setting these switches to
the appropriate position allows you to connect
either a high-output flooding emitter (IR-E1HO)
or low-output emitter. There is one Hi/Low switch
for emitter port four and one Hi/Low switch for
emitter port five.
7. Sensor Inputs – Removable quick connect sensor
plug for connection of IR sensors to the system.
3
4
PACKAGE CONTENTS
nIR-CB2 x 1
nSnap and Lock Connectors x 2
nIn-line power supply x 1
nSelf-adhesive rubber feet x 4
nIR-SMR Receiver x 1
nAdhesive-backed strip for mounting x 1
nIR-E1 Emitters x 5
nIR Blocking Covers x 5
nExtra emitter adhesive strips x 10
PREPARING FOR INSTALLATION
The IR Receiver cables, emitter cables and the 12V
DC power supply cable must all reach the proposed
location of the IR-CB2 Connecting Block. Mark the
cables with wire labels, describing where the cables
originate from, rather than where they will terminate.
Locate a local un-switched AC outlet to be used to
power the IR-CB2 power supply.
Tools Required
n1/8" Slotted screwdriver
nWire labels
nWire stripper
5
INSTALLATION
1. Select an appropriate location for the IR-CB2.
2. Run all the necessary wiring to the IR-CB2. Label
the wires for future reference.
3. Plug the supplied 12V DC power supply into the
un-switched AC outlet.
4. Plug the 12V DC power supply connector into the
IR-CB2 socket marked POWER.
5. After verifying that the AC outlet works, unplug the
power supply connector.
6. Determine the mounting location for the IR-SMR.
7. Make sure the mounting surface is clean.
8. Remove the protective coating from the self-
adhesive tape and attach the IR-SMR to the
mounting surface.
9. Run the IR-SMR cable. Label the cable for future
reference.
10. Locate the IR Connecting Block Snap and
Lock Connectors and remove them if they are
plugged in.
11. Use a small flathead screwdriver or your thumb to
raise the locking
tabs, exposing the
holes on the
connectors.
12. Insert each wire into
the appropriate hole
and snap down the locking tabs. Figure 1
13. Insert the smooth side of the connector plug into
the smooth side of the IR Connecting Block socket.
14. Connect the IR-E1 Emitters to the emitter outputs.
15. Plug the 12V DC power supply connector into the
IR-CB2 socket marked POWER.

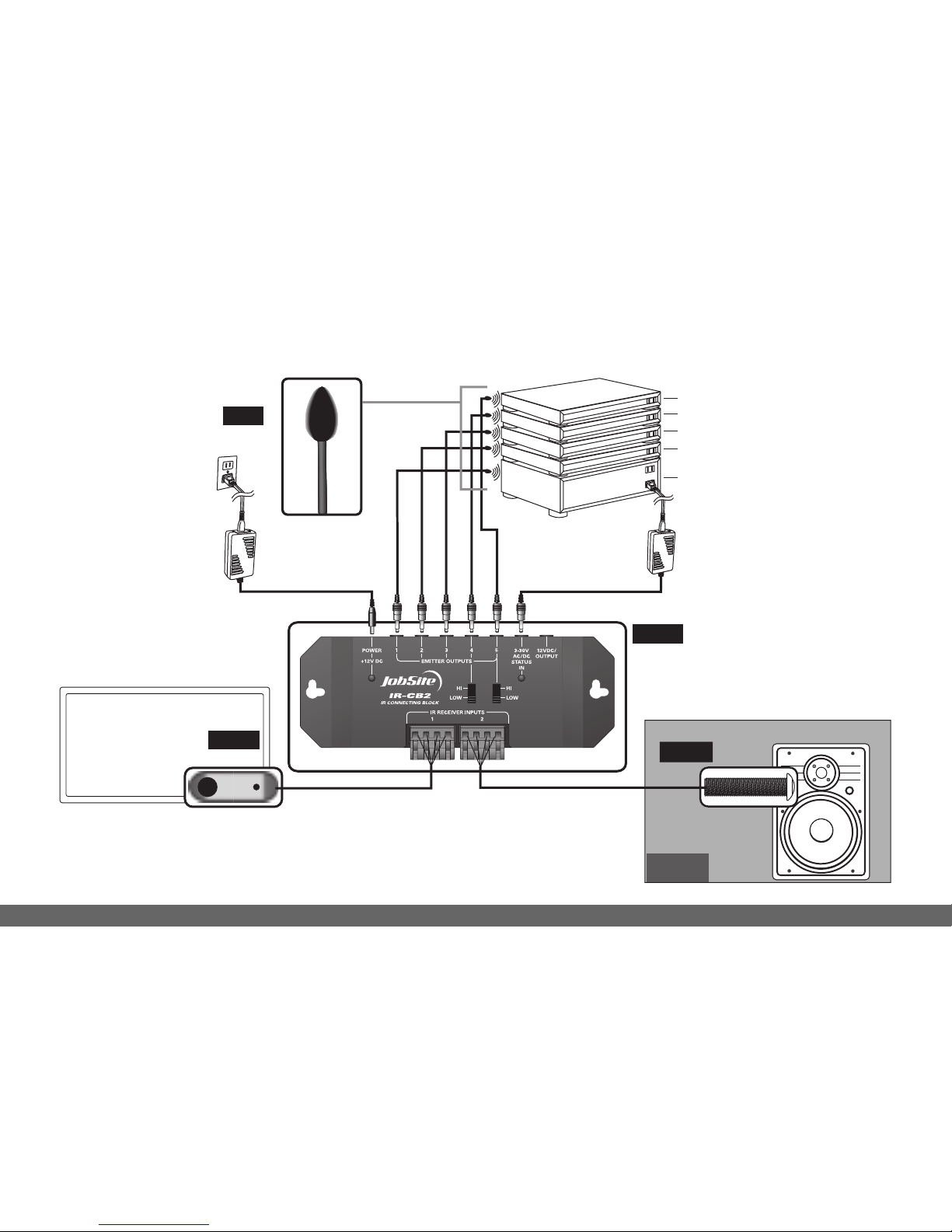

See installation diagram (page 6).
(White) (Yellow) (Black)
(Red)
Figure 1
JobSite
IR-E1
Emitters
IR-SMR
Receiver
Home
Theater
Plasma Display
12V DC Power
Supply
(Not Supplied)
plugged into the
Switched Outlet
Home Theater
Receiver
Satellite Receiver
Cable TV Receiver
DVD Player
CD/Audio Player
Zone 2
In-Wall
Speaker
Optional
IR-FMR Receiver
IR-CB2
INSTALLATION DIAGRAM
6
7
Power Status
You can send a Power Status signal to IR-SMR
receiver by connecting a 12V DC power supply from
the switched AC power outlet of the preamp/receiver
to the status input jack of your IR-CB2. Any 12V DC
power supply with a minimum of 100mA current
capacity can be used.
Hi/LowEmitter Output Switches
Emitter Output positions 4 and 5 have Hi/Low output
options. Set these switches to the appropriate
position depending on what
JobSite Emitter you intend to
use. When you are using an
IR-E1 or IR- E2 Emitter,set the
switch in the LOW position. If
you are using a JobSite
IR-E1HO Emitter,set the
switch in the HI position.
Note: Using an IR-E1 or IR-E2 Emitter with the
Emitter Output Switch set to the HI position, can
damage the emitter.
12-Volt Trigger Output
The JobSite IR-CB2 provides a 12V
DC output that can be triggered
one of two ways:
1. The presence of status voltage
on the 12V DC status input jack.
2. Discrete infrared On and Off
commands.
This output can be used to trigger any device that
requires 12V DC to be activated.
Note: Status voltage takes priority over IR command.
Figure 2
3-30V
AC/DC
STATUS
IN
Figure 3
8
OPERATION
Test your IR Repeater system by following three
principal guidelines:
1. All components can be operated: Test all of your
remote controls for all of your equipment.
2. Operation is consistent: A good test is to
repeatedly step from Pause to Play with your VCR,
CD, DVD, or Tape player remote control. Operation
should be identical to standing in front of the
component with the remote control pointed
directly at the receiver window.
3. Maximum range between the remote control and
the JobSite IR Receiver is similar to the maximum
range between the remote control and the A/V
component’s IR Receiver: Typically a remote
control with two batteries will have a 15 to 20 foot
range and a remote with four batteries will have a
20 to 30 foot range.
Additional IR Receivers
The IR-Kit includes one surface mount receiver. The
included IR-CB2 Connecting Block will accommodate
asecond IR Receiver. JobSite makes a variety of
receivers for virtually any application. See your
JobSite dealer for more information.
