Quickstart Guide
nLight UNITOUCH
Mounting Instructions
Detaching the faceplate, from the
backplate, will require an
appropriately sized tool, or flat
screwdriver, that can fit in release tab.
Using the appropriately sized tool, press in the release tabs of each sides
of the device until to the backplate is noticeably released.
Pull out the backplate, from the
bottom, away from faceplate.
Device should be separated into two pieces, backplate and faceplate. The
backplate should be used to mount onto wall gang box.
Pull all wires out of the wall and run
them through central hole of the
backplate. Screw the backplate onto
the wall.
Plug the wire(s) into the connector(s), the gently push the excess wiring
back into the wall. Reattach the front plate and ensure that it clips tightly
to place. Tighten the security screw, if applicable.
1
2
3
4
5
6
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com © 2019 Acuity Brands Lighting, Inc. All rights reserved. Rev. 11/10/2020
Quickstart Guide
nLight UNITOUCH
Out-of-Box Switch Control
Users can immediately gain access to controlling lights through navigating the “Control Lights” button. From this mode, default
scenes are available in the Scenes dashboard and individual channels can be controlled through the Lights dashboard.
Initial Configuration
Tap the “Begin Setup” button to begin device
configuration.
Create the Administrator PIN.
Configure the Bluetooth PIN for wireless control through the myPersonify app.
3
1
2
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com © 2019 Acuity Brands Lighting, Inc. All rights reserved. Rev. 11/10/2020

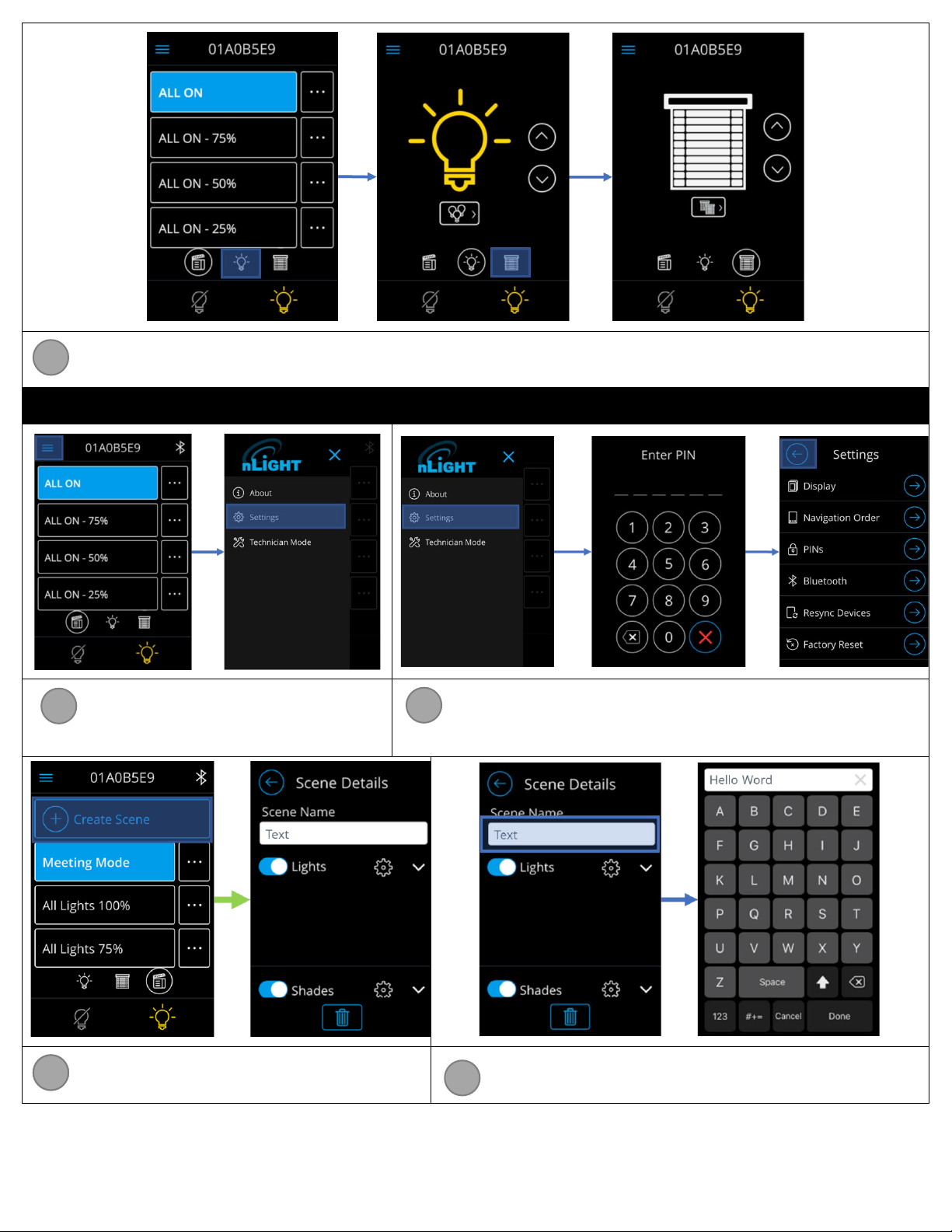

Create Navigate across the available dashboards - Scene, Light and Shade. The Shade dashboard is not visible out-of-the-
box and can be enabled through the “Navigation Order” page in Settings
Creating A Scene
Administrator privilege is required to
create a scene. Login must be done
through the hamburger menu.
To login, one must select to either enter the “Settings” or the
“Technician Mode” screen. Upon completion of login, return to
the Scene dashboard.
Tap the “Create Scene” to initiate the scene
creation process.
Enter the name of the new scene.
4
1
2
33
4
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com © 2019 Acuity Brands Lighting, Inc. All rights reserved. Rev. 11/10/2020
Configure the Lights and Shade channels to be controlled by the scene through the gear button next to each category.
Configuring a CCT channel
Navigate to the hamburger menu. Enter “Technician Mode” through providing the administrator PIN.
Then select the “Channels” button.
Navigate to the channel list screen and select the channel to be configured. Assign the type to be CCT, followed by
entering the CCT temperature range (Minimum and maximum CCT).
5
1
2
3
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com © 2019 Acuity Brands Lighting, Inc. All rights reserved. Rev. 11/10/2020
Assign devices to track, and broadcast to, the channel. Followed by ensuring the that the channel has been enabled in
the channel list screen. If the channel is not enabled it will not appear in any of main dashboards, therefore will not be
controllable, nor selectable with configuring a scene.
4
