NOCRY NCS-10NM Bedienungsanleitung
Cordless Screwdriver
Instruction Manual
We've tried to make this manual useful, simple, and understandable.
Please read it carefully, and keep it safe for future reference.
WHAT'S INSIDE THIS MANUAL
GENERAL POWER TOOL SAFETY WARNINGS 2
W ork area safety 2
E lectrical safety 2
P ersonal safety 3
P ower tool use and care 4
S ervice 5
SAFETY WARNINGS FOR ELECTRIC SCREWDRIVER 6
D escription of symbols 6
P roper use 7
TECHNICAL DATA 7
B efore starting the equipment 8
SCREWDRIVER IMAGES 9
P art list 9
OPERATION 10
Charging the battery 10
Change of direction switch 11
ON/OFF switch 11
LED lamp 12
Torque setting 12
Changing the tool 12
Screwdriving 12
CLEANING AND MAINTENANCE 13
Cleaning 13
Maintenance 13
Disposal and recycling 13
WARRANTY 14
HOW TO CONTACT NOCRY 1 5
1
GENERAL POWER TOOL SAFETY WARNINGS
READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS
Failure to follow the warnings and instructions may result in electric shock, fire
and/or serious injury. Before use, be sure everyone operating this tool reads and
understands all safety instructions and other information in this manual.
Review frequently prior to use and when instructing others.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (with a
power cable) power tool, and to battery operated tools (without a power cable).
WORK AREA SAFETY
- KEEP WORK AREA CLEAN AND WELL ILLUMINATED. Untidy or unlit work areas
can result in accidents.
- CONSIDER WORKING ENVIRONMENT. Do not operate power tools in explosive
atmospheres, such as in the presence of flammable liquids, gases, or dust. Power
tools create sparks which may ignite the dust or fumes.
- KEEP CHILDREN AND BYSTANDERS AWAY while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
- GUARD AGAINST ELECTRIC SHOCK. Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
2
- AVOID BODY CONTACT with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
- DO NOT EXPOSE TO RAIN AND WET CONDITIONS. Water entering a power tool
will increase the risk of electric shock.
- DON’T ABUSE CORD. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges, and moving parts.
Damaged or entangled cords increase the risk of electric shock.
- USE EXTENSION CORD WHEN OUTSIDE. When operating a power tool outdoors,
use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
- USE RESIDUAL CURRENT DEVICE IF DAMP CONDITIONS ARE UNAVOIDABLE. If
operating a power tool in a damp location is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
PERSONAL SAFETY
- STAY ALERT. Watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol, or medication. A moment of inattention while operating power tools
may result in serious personal injury.
- USE SAFETY GLASSES AND OTHER SAFETY EQUIPMENT. Protective equipment
such as safety glasses, gloves, dust-masks, non-skid safety shoes, hard hats,
and/or hearing protection used for appropriate conditions will reduce personal
injuries.
- PREVENT UNINTENTIONAL STARTING. Ensure the switch is in the off-position
before connecting to the power source and/or battery pack, picking up, or carrying
the tool. Carrying power tools with your finger on the switch or connecting the
appliance to the mains when it is switched on, can lead to accidents.
- REMOVE ANY ADJUSTING KEY OR WRENCH before turning the power tool on. A
wrench or a key left attached to a rotating part of a power tool may result in
personal injury.
3
- DO NOT OVERREACH. Keep proper footing and balance at all times to keep
control in unexpected circumstances. Taking unnecessary risks may cause injury or
harm.
- DRESS PROPERLY. Do not wear loose clothing or jewelry. Keep your hair, clothing
and gloves away from hot and moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
- DUST SAFETY. If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use of dust
collection systems can reduce dust-related hazards.
POWER TOOL USE AND CARE
- DON’T FORCE THE TOOL. Do not overload the power tool. Use the correct power
tool for your application in the manner it was designed. The correct power tool will
do a better and safer job for which it was designed than for those which it wasn’t.
- DO NOT USE A MALFUNCTIONING TOOL. Do not use the power tool if the switch
does not turn it on and/or off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
- DISCONNECT TOOLS. Disconnect the plug from the power source and/or the
battery pack from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
- STORE IDLE POWER TOOLS out of the reach of children and do not allow persons
unfamiliar with the power tool, or these instructions, to operate the power tool.
Power tools are dangerous in the hands of untrained users.
- MAINTAIN POWER TOOLS. Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
- KEEP YOUR CUTTING TOOLS SHARP AND CLEAN. Carefully maintained cutting
tools with sharp cutting edges will jam less and are easier to control.
- CORRECT USE OF ACCESSORIES AND ATTACHMENTS. Use the power tool,
accessories, and attachments in accordance with these instructions, taking into
4
account the working conditions, and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous
situation. Note: Refer to WORK EXAMPLES section of this manual for further
details.
- ONLY CHARGE THE BATTERIES WITH CHARGERS THAT ARE RECOMMENDED BY
THE MANUFACTURER. A charger that is designed for a certain type of battery may
pose a fire risk if it is used with other types of battery.
- USE THE CORRECT BATTERIES IN THE ELECTRIC TOOL. The use of other
batteries may result in injuries and a risk of fire.
- KEEP UNUSED BATTERIES AWAY from paper clips, coins, keys, nails, screws, and
any other metallic objects that could cause a short circuit between the contacts. A
short circuit between the battery contacts may cause burns or a fire.
- IN CASE OF INCORRECT USE, FLUID MAY ESCAPE FROM THE BATTERY. Avoid
contact with it. If you touch it by accident, rinse the affected area with water. If you
get the fluid in your eyes, also seek medical attention. Leaking battery fluid can
cause skin irritation or burns.
SERVICE
- Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
- Hold the equipment by the insulated handles when carrying out work during
which the screw or the plug-in tool could strike concealed power cables. Contact
with a live cable may also make the metal parts of the equipment live and cause an
electric shock.
5
SAFETY WARNINGS FOR ELECTRIC
SCREWDRIVER
DESCRIPTION OF SYMBOLS
Pay attention to all the signs and symbols shown in these instructions and on your
tool. Make a note of these signs and symbols. If you interpret the signs and
symbols correctly, your work with the machine will be safer and better.
6
PROPER USE
The cordless screwdriver is designed for tightening and undoing screws.
The machine is to be used only for its prescribed purpose. Any other use is deemed
to be a case of misuse. The user/ operator and not the manufacturer will be liable
for any damage or injuries caused as a result of this.
Please note that our equipment has not been designed for use in commercial,
trade or industrial applications. Our warranty will be voided if the machine is used
in commercial, trade or industrial businesses or for equivalent purposes.
TECHNICAL DATA
Model
NoCry NCS-10NM Cordless Screwdriver
Idling speed
0-230rpm
Bit chuck diameter
1/4in
Torque settings
5+1
Maximum torque
6N.m (soft)
10N.m (hard)
Rotation direction
clockwise & counter-clockwise
Motor power supply
rechargeable 7.2V D.C./1.3Ah Lithium Ion battery
Battery charge voltage
9.5V D.C.
Battery charge current
500Ma
Battery charger supply
100-240V / 50-60Hz
Charging time
3 hours
7
Weight
1.27lb
Protection class
回/II
L
PA
sound pressure
level*
67 dB (A)
K
PA
uncertainty*
3 dB
L
WA
sound power level*
78 dB (A)
K
WA
uncertainty*
3 dB
a
h
vibration emission
value**
2.39ft/s
2
K uncertainty**
4.92ft/s
2
* The sound and vibration values have been determined in accordance with
EN60745. The vibration value changes according to the area of application of the
screwdriver, and may exceed the specified value in exceptional circumstances.
** These values describe screwing without hamme actions, and sound and have
been determined in accordance with EN60745. The vibration value changes
according to the area of application of the screwdriver, and may exceed the
specified value in exceptional circumstances.
BEFORE STARTING THE EQUIPMENT
Be sure to read the following information before you use your cordless screwdriver
for the first time:
1. Charge the battery pack with the charger supplied.
2. Only ever use screwdriver bits which are suitable for the purpose and in
faultless condition.
3. Always check for concealed electric cables, and gas and water pipes when
drilling and screwing in walls.
8

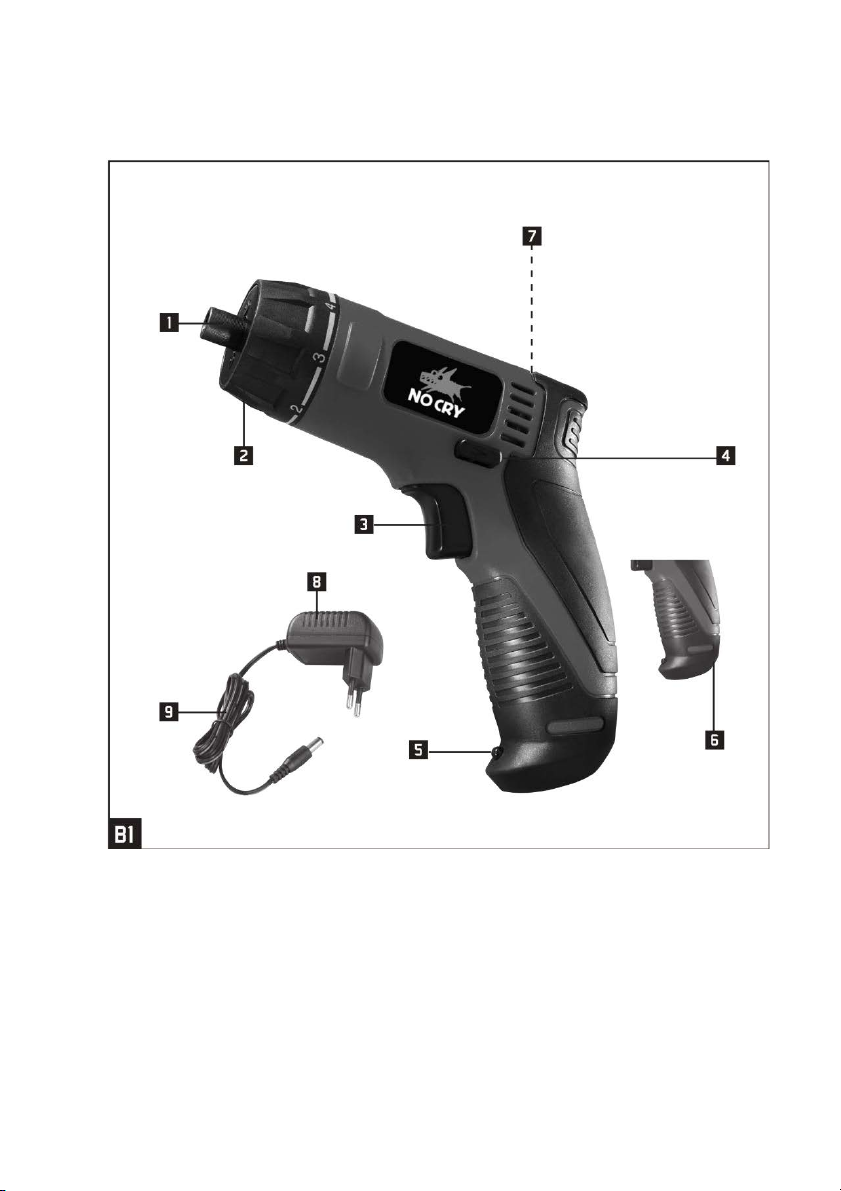

SCREWDRIVER IMAGES
PART LIST
1. Bit Chuck 2. Torque selector 3. ON/OFF switch 4. Clockwise/Counter-clockwise
selector switch 5. Lamp 6. Charging socket 7. Battery capacity indicator 8. Battery
charger 9. Charging cable
9
