Noctua NH-U12P SE2 Bedienungsanleitung

NH-U12P SE2 | Installation Manual INTEL

Removing the mainboard

Step 1:

In case you want to use the cooler on an assembled system,

you first have to remove the mainboard from the case in order

to be able to install the supplied backplate.

Caution: On LGA1366 and LGA1156/1155, the supplied back-

plate will install over the mainboard’s stock backplate, so the

mainboard’s stock backplate must not be taken off.

Required mounting parts:

First put the four bolts into the holes appropriate for your

mainboard’s CPU socket.

Setting up the backplate

Step 2:

Thank you very much for choosing a Noctua cooler.

This manual will guide you through the installation process

of the SecuFirmtm 2 mounting system step by step.

Prior to installing the cooler, please consult the

compatibility list on our website and verify that the cooler

is fully compatible with your motherboard. Should you

encounter any difficulties, please check the FAQs on our

website and don’t hesitate to contact our support team at

[email protected]. Noctua cannot be held responsible for

any damage or losses caused by compatibility issues.

Multilingual versions of this manual are available

on our website: www.noctua.at

Caution: Please verify that all four bolts are put into the

appropriate holes fully pushed in.

Step 4:

Installing the mounting bars

First put the plastic spacers onto the bolts, then add the

mounting bars.

Noctua NH-U12P SE2

Installation Manual

4x plastic spacers 4x thumbscrews

1x 3-in-1 Intel backplate

4 bolts for backplate 2x fastening brackets

4x short screws 2x mounting bars For use on LGA1366 and LGA1156/1155 mainboards, please

remove the rubber inlay. Make sure that the rubber inlay is

in place for LGA775.

LGA1366 & LGA1156/1155 LGA775

Caution: On LGA1156/1155, please make sure that the two

cuts in the supplied backplate align with the screws of the

mainboard’s stock backplate.

Caution: Choose the alignment of the mounting bars according

to the desired final orientation of the cooler:

Orientation A

Step 3:

Attaching the backplate

Place the backplate on the rear side of the mainboard so that

the bolts stick through the mounting holes.

Caution: Make sure that the curved sides of the mounting bars

are pointing outwards.

Orientation B

LGA775 rubber inlay

LGA1366 (80mm)

LGA1156/1155 (75mm)

LGA775 (72mm)

NH-U12P SE2 | Installation Manual INTEL

For all enquiries concerning your Noctua cooler, both your

retailer and the international Noctua support team at

[email protected] are at your service.

Please also consult the FAQ section on our website

www.noctua.at.

Support & FAQs

Caution: Tighten the screws until they stop.

Caution: Make sure to use the correct holes on the mounting bars.

Fix the mounting bars using the 4 thumb screws.

Step 5:

Attaching the fastening brackets to the heatsink

Tightly screw the fastening brackets to the base of the heatsink

using the 4 short screws.

Caution: Make sure to install the fastening brackets in the

correct position:

Connect the fan(s) to the mainboard, power supply or fan con-

troller. Use the supplied y-split cable to connect both fans to

one fan header. Depending on your CPU and the temperature

inside the case, you may interconnect the supplied Low-Noise

Adapter (L.N.A.) or Ultra-Low-Noise Adapter (U.L.N.A.) in

order to further reduce the fan’s operating noise.

Caution: Please use one adaptor per fan when running two

fans with adaptors. Never use one adaptor for two fans by

putting it before the y-split cable.

Caution: When using the (U.)L.N.A., check the temperature

of your CPU using appropriate software (e.g. the respective

applications of your mainboard manufacturer), in order to

evade automatic throttling of the CPU due to the increased

temperature. If the cooling performance is insufficient, please

increase case ventilation or remove the (U.)L.N.A.

Low-Noise Adapter (L.N.A.)

1100 RPM, 16.9 dB(A)

Ultra-Low-Noise Adapter (U.L.N.A.)

900 RPM, 12.6 dB(A)

Black Blue

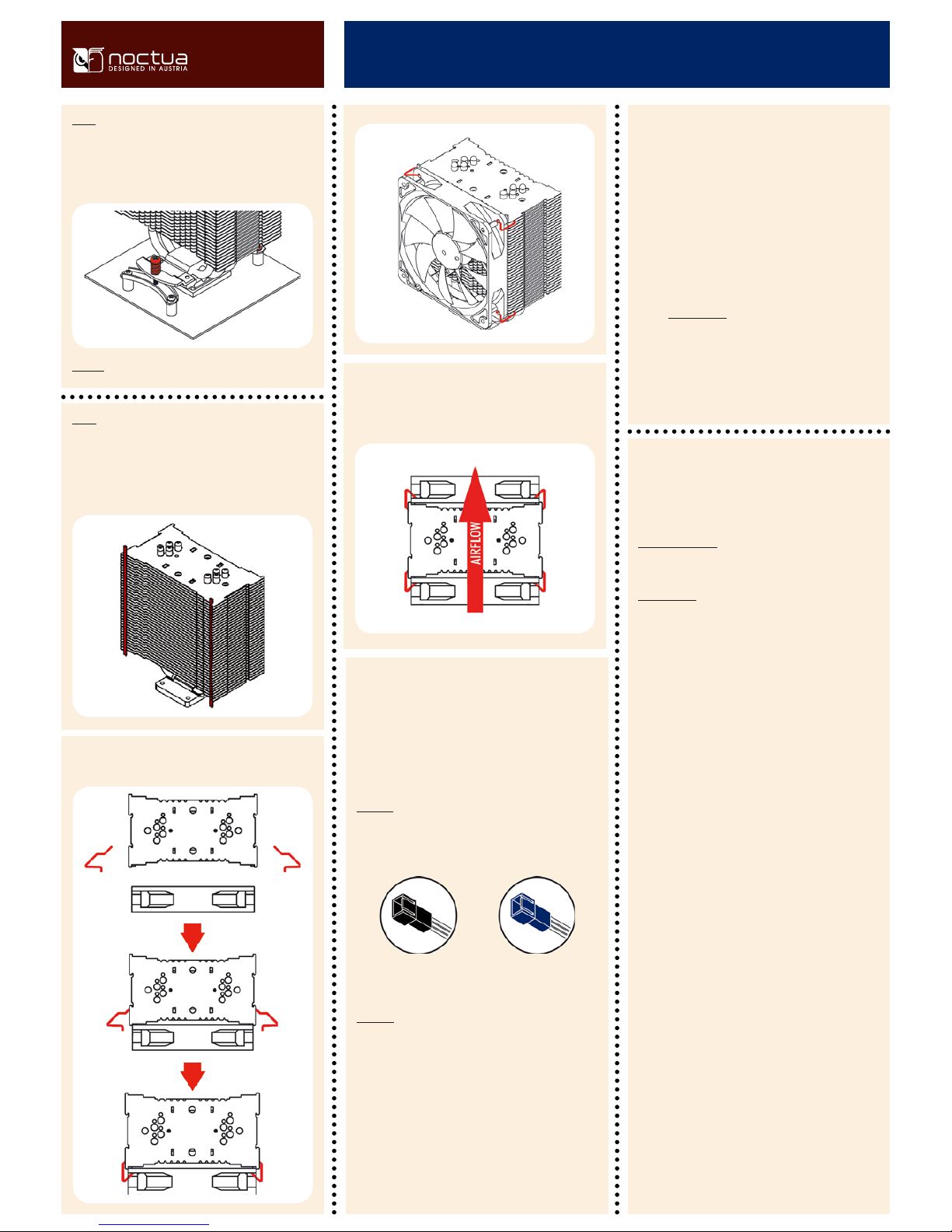

Attaching the fan

Step 8:

First stick the 2 anti-vibration strips onto the cooling fins in

order to dampen minor vibrations emitted by the fan.

Then attach the fan to the heatsink using the 2 steel clips,

placing it so that it blows onto the heatsink.

Add the second NF-P12 fan sucking air off the rear side of the

heatsink for extra performance (average gains 1-3°C). Please

make sure that both fans are aligned in the same direction.

Step 6:

Applying thermal paste

If there are residual traces of thermal paste or thermal pads

on your CPU, please clean them off first. Then press a small

drop (4-5mm diameter) of NT-H1 onto the centre of the

heat-spreader.

Caution: Applying too much thermal paste will lower the heat

conductivity and cooling performance!

Step 7:

Fastening the heatsink to the CPU

Caution: Please take off the protection cover at the bottom side

of the heatsink first!

Put the heatsink onto the CPU and screw it to the screw threads

of the mounting bars.

Caution: Tighten the screws until they stop.

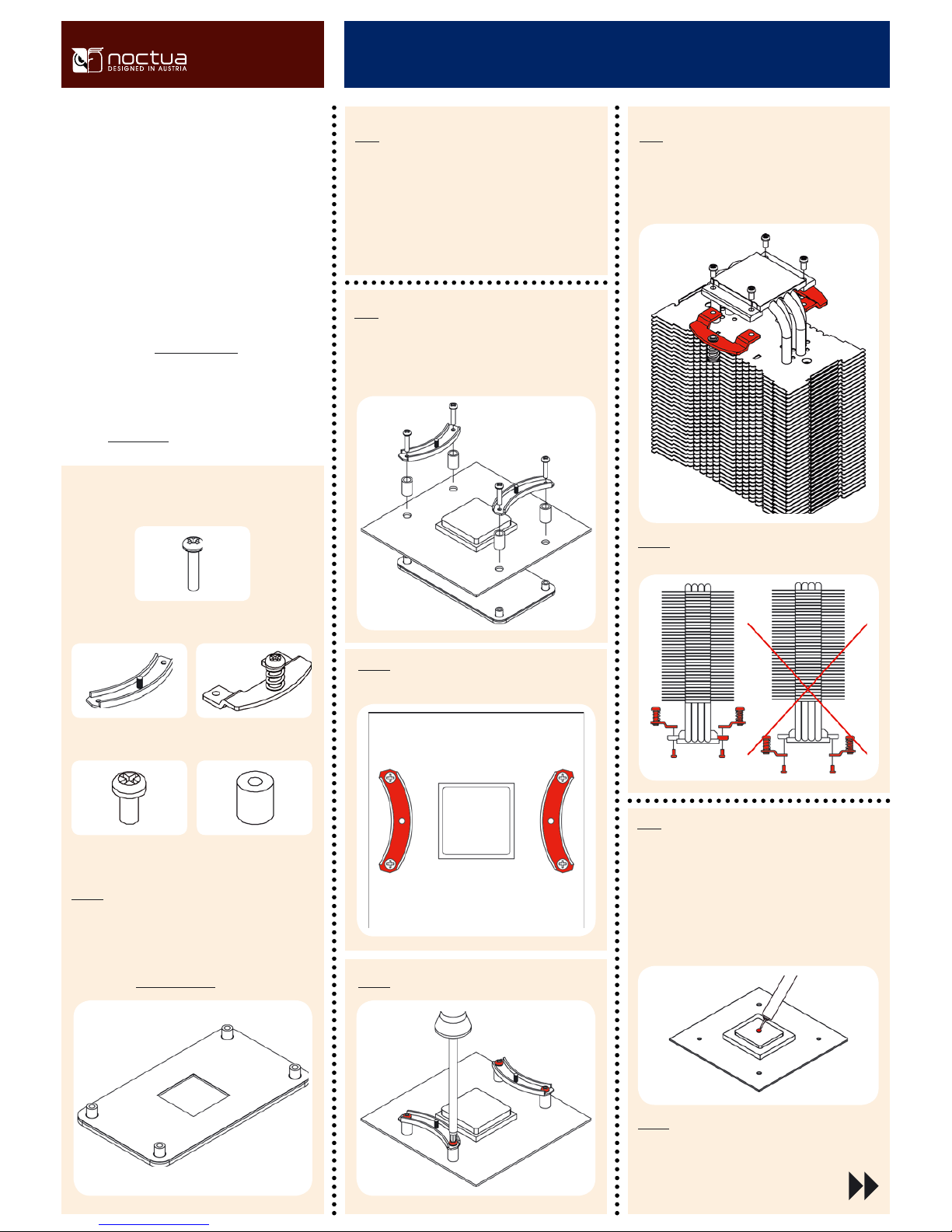

NH-U12P SE2 | Installation Manual AMD

Required mounting parts:

First put the plastic spacers onto the screw threads, then fix

the mounting bars using the 4 long screws.

Attaching the mounting bars

Step 2:

Thank you very much for choosing a Noctua cooler. This

manual will guide you through the installation process of

the SecuFirmtm 2 mounting system step by step.

Prior to installing the cooler, please consult the compat-

ibility list on our website and verify that the cooler is fully

compatible with your motherboard.

Should you encounter any difficulties, please check the

FAQs on our website and don’t hesitate to contact our

support team at [email protected]. Noctua cannot

be held responsible for any damage or losses caused by

compatibility issues.

Multilingual versions of this manual are available on our

website: www.noctua.at

Caution: Make sure that the curved sides of the mounting

bars are pointing inwards.

Noctua NH-U12P SE2

Installation Manual

Caution: Tighten the screws until they stop.

2x mounting bars

4x long screws

4x plastic spacers

Caution: The SecuFirmtm 2 mounting system requires a back-

plate, which is preinstalled on most AM2/AM2+/AM3 main-

boards.

If your mainboard doesn’t have a backplate, please contact our

support team at [email protected].

Step 4:

Applying thermal paste

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off first.

Then press a small drop (4-5mm diameter) of NT-H1 onto the

centre of the heat-spreader.

Caution: Applying too much thermal paste will lower the heat

conductivity and cooling performance!

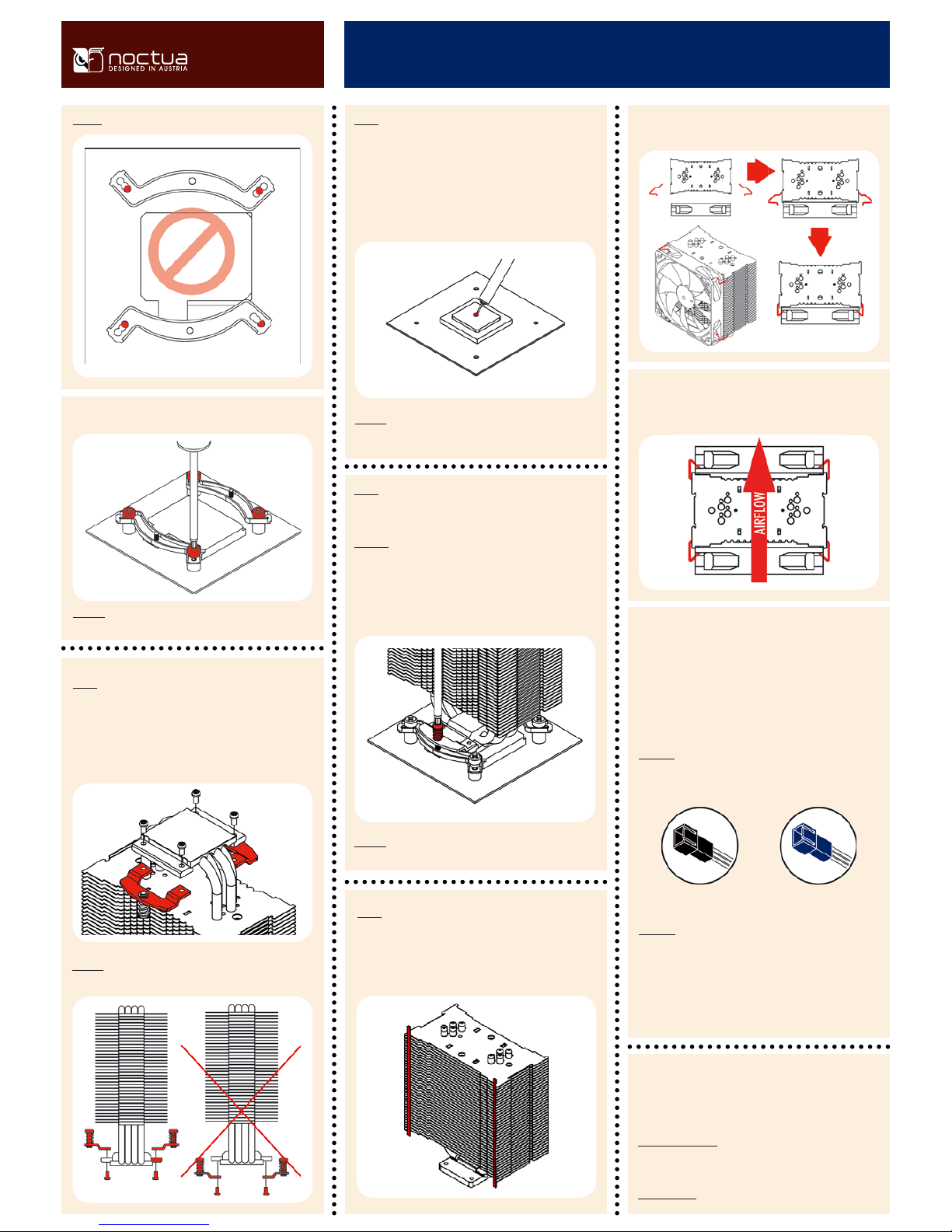

Removing the retention module

Step 1:

If your mainboard uses a retention module for CPU cooler

installation, please remove it first. The SecuFirmtm 2 mounting

system will install directly to your mainboard’s stock backplate

on the rear side of the socket.

2x fastening brackets

4x short screws

Step 3:

Attaching the fastening brackets to the heatsink

Tightly screw the fastening brackets to the base of the heatsink

using the 4 short screws.

Caution: Make sure to install the fastening brackets in the

correct position:

NH-U12P SE2 | Installation Manual AMD

Then attach the fan to the heatsink using the 2 steel clips,

placing it so that it blows onto the heatsink.

Connect the fan(s) to the mainboard, power supply or fan con-

troller. Use the supplied y-split cable to connect both fans to

one fan header. Depending on your CPU and the temperature

inside the case, you may interconnect the supplied Low-Noise

Adapter (L.N.A.) or Ultra-Low-Noise Adapter (U.L.N.A.) in

order to further reduce the fan’s operating noise:

Caution: Please use one adaptor per fan when running two

fans with adaptors. Never use one adaptor for two fans by

putting it before the y-split cable.

Caution: When using the (U.)L.N.A., check the temperature

of your CPU using appropriate software (e.g. the respective

applications of your mainboard manufacturer), in order to

evade automatic throttling of the CPU due to the increased

temperature. If the cooling performance is insufficient, please

increase case ventilation or remove the (U.)L.N.A.

Low-Noise Adapter (L.N.A.)

1100 RPM, 16.9 dB(A)

Ultra-Low-Noise Adapter (U.L.N.A.)

900 RPM, 12.6 dB(A)

Black Blue

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of dependability

and convenience by offering a warranty period of 72 months

and direct, fast and straightforward RMA service.

In case of warranty, you can either request RMA at your retailer

or use our Direct RMA Service. For further information, please

consult www.noctua.at. In order to process your RMA enquiry,

we need a proof of purchase, so please don’t forget to keep

your invoice!

Please also note that any modifications to the cooler, fan or

mounting parts will void your warranty.

Warranty

For all enquiries concerning your Noctua cooler, both your

retailer and the international Noctua support team at

[email protected] are at your service.

Please also consult the FAQ section on our website

www.noctua.at.

Support & FAQs

Add the second NF-P12 fan sucking air off the rear side of the

heatsink for extra performance (average gains 1-3°C). Please

make sure that both fans are aligned in the same direction.

Attaching the fan

Step 6:

First stick the 2 anti-vibration strips onto the cooling fins in

order to dampen minor vibrations emitted by the fan.

Step 5:

Fastening the heatsink to the CPU

Put the heatsink onto the CPU and screw it to the screw threads

of the mounting bars.

Caution: Tighten the screws until they stop.
