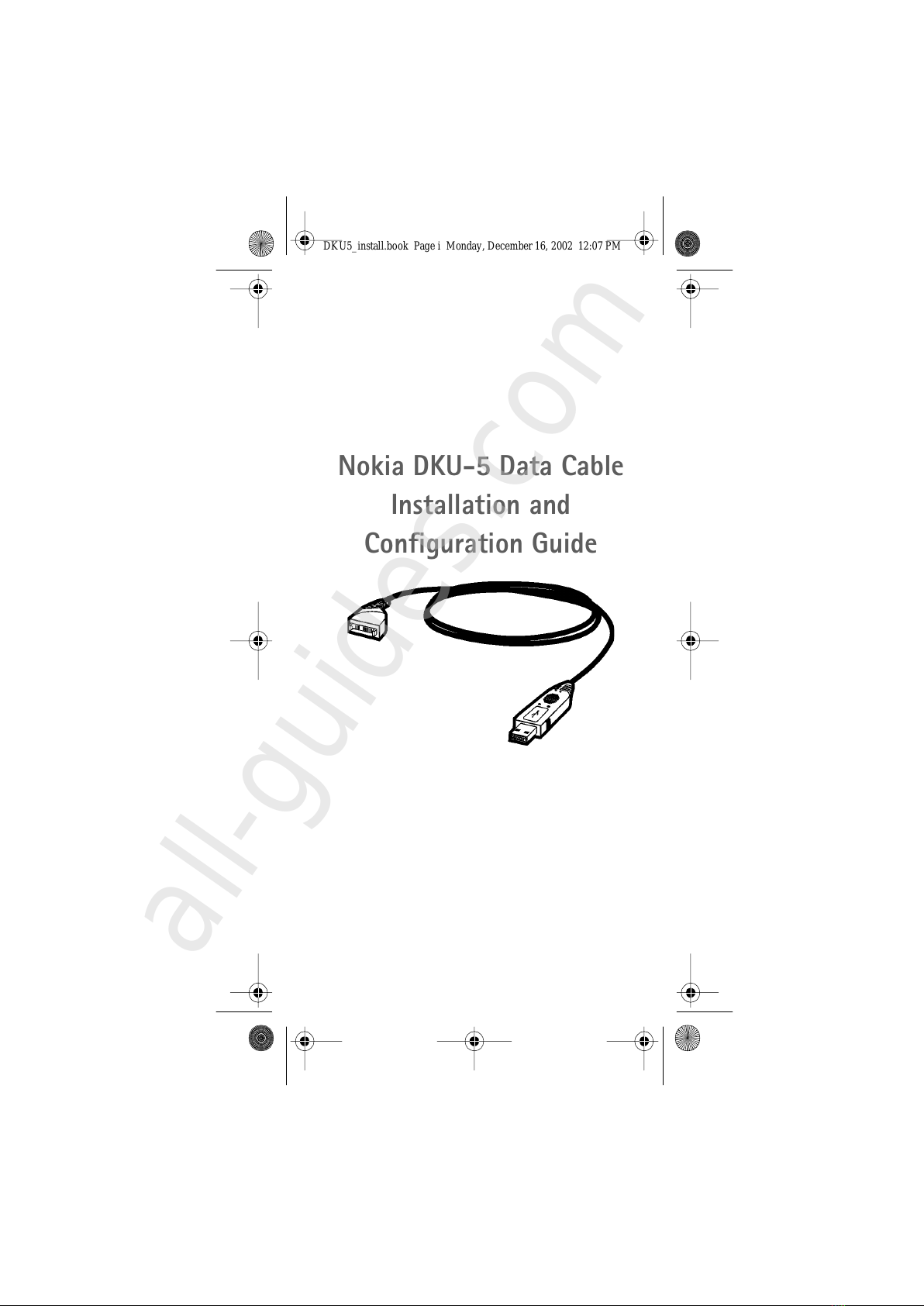

Nokia DKU-5 Bedienerhandbuch

Nokia DKU-5 Data Cable

Installation and

Configuration Guide

DKU5_install.book Page i Monday, December 16, 2002 12:07 PM

All manuals and user guides at all-guides.com

all-guides.com

DKU-5 Data Cable Installation and Configuration Guide

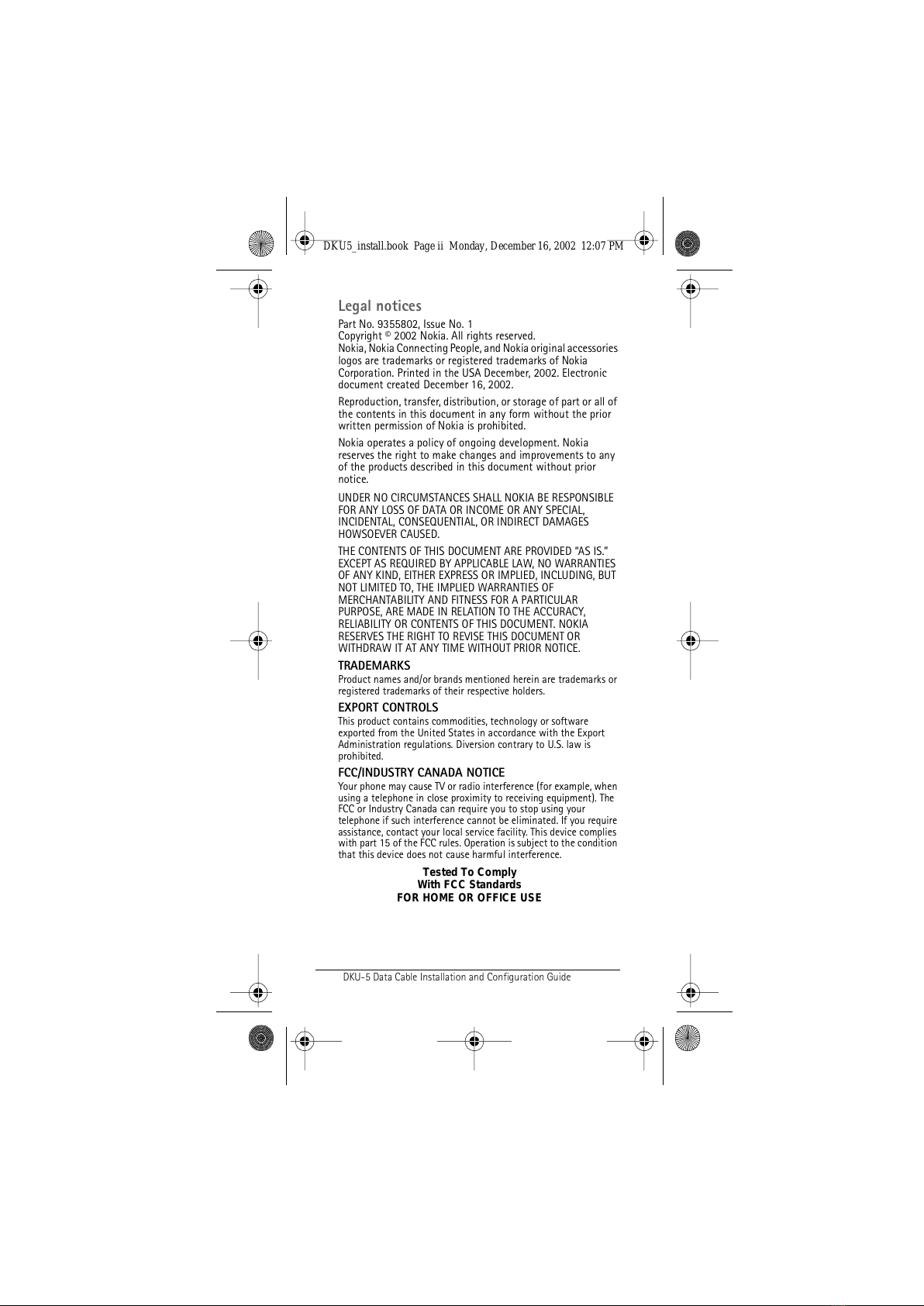

Legal notices

Part No. 9355802, Issue No. 1

Nokia, Nokia Connecting People, and Nokia original accessories

logos are trademarks or registered trademarks of Nokia

Corporation. Printed in the USA December, 2002. Electronic

document created December 16, 2002.

Reproduction, transfer, distribution, or storage of part or all of

the contents in this document in any form without the prior

written permission of Nokia is prohibited.

Nokia operates a policy of ongoing development. Nokia

reserves the right to make changes and improvements to any

of the products described in this document without prior

notice.

UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE

FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL,

INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES

HOWSOEVER CAUSED.

THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.”

EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES

OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,

RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA

RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR

WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.

TRADEMARKS

Product names and/or brands mentioned herein are trademarks or

registered trademarks of their respective holders.

EXPORT CONTROLS

This product contains commodities, technology or software

exported from the United States in accordance with the Export

Administration regulations. Diversion contrary to U.S. law is

prohibited.

FCC/INDUSTRY CANADA NOTICE

Your phone may cause TV or radio interference (for example, when

using a telephone in close proximity to receiving equipment). The

FCC or Industry Canada can require you to stop using your

telephone if such interference cannot be eliminated. If you require

assistance, contact your local service facility. This device complies

with part 15 of the FCC rules. Operation is subject to the condition

that this device does not cause harmful interference.

Tested To Comply

With FCC Standards

FORHOMEOROFFICEUSE

DKU5_install.book Page ii Monday, December 16, 2002 12:07 PM

All manuals and user guides at all-guides.com

Table of Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents of the sales package . . . . . . . . . . . . . . . . . . . . .1

Install software first . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Use your DKU-5 connection . . . . . . . . . . . . . . . . . . . . . .2

Locate additional information . . . . . . . . . . . . . . . . . . . . . 3

2 Software/hardware installation . . . . . . . . . . . . . . . . 4

Install the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Install the hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Confirm installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Connect your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Contact Nokia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

DKU5_install.book Page iii Monday, December 16, 2002 12:07 PM

All manuals and user guides at all-guides.com

iv DKU-5 Data Cable Installation and Configuration Guide

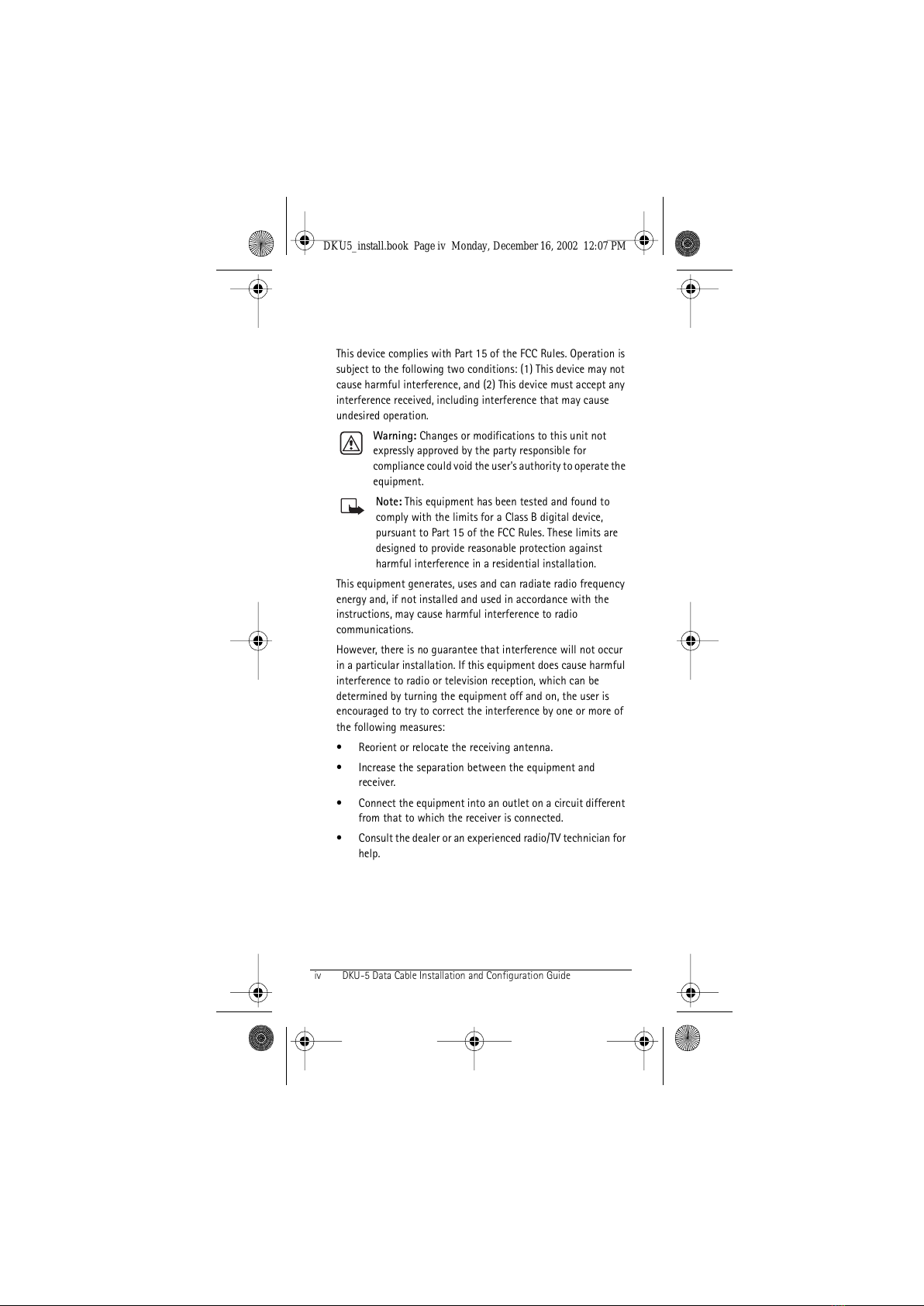

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) This device must accept any

interference received, including interference that may cause

undesired operation.

Warning: Changes or modifications to this unit not

expressly approved by the party responsible for

compliance could void the user's authority to operate the

equipment.

Note: This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

DKU5_install.book Page iv Monday, December 16, 2002 12:07 PM

All manuals and user guides at all-guides.com

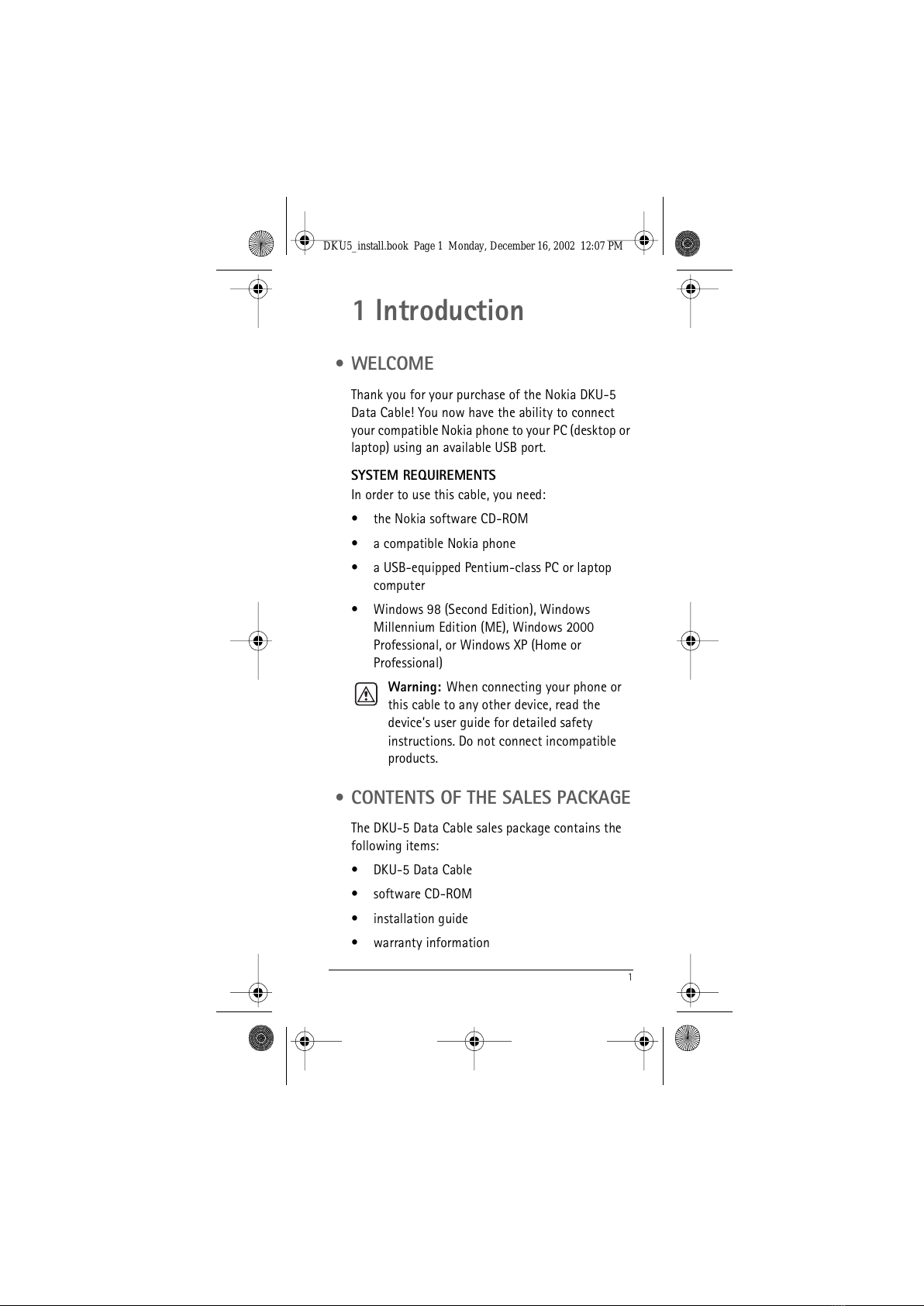

1 Introduction

• WELCOME

Thank you for your purchase of the Nokia DKU-5

Data Cable! You now have the ability to connect

your compatible Nokia phone to your PC (desktop or

laptop) using an available USB port.

SYSTEM REQUIREMENTS

In order to use this cable, you need:

• the Nokia software CD-ROM

• a compatible Nokia phone

• a USB-equipped Pentium-class PC or laptop

computer

• Windows 98 (Second Edition), Windows

Millennium Edition (ME), Windows 2000

Professional, or Windows XP (Home or

Professional)

Warning: When connecting your phone or

this cable to any other device, read the

device’s user guide for detailed safety

instructions. Do not connect incompatible

products.

• CONTENTS OF THE SALES PACKAGE

The DKU-5 Data Cable sales package contains the

following items:

•DKU-5DataCable

•softwareCD-ROM

• installation guide

• warranty information

DKU5_install.book Page 1 Monday, December 16, 2002 12:07 PM

All manuals and user guides at all-guides.com

2 DKU-5 Data Cable Installation and Configuration Guide

• INSTALL SOFTWARE FIRST

Important: The data cable software must be

installed before

you connect the cable for the

first time. Only after the software has been

installed can Windows successfully install

and configure the cable.

The DKU-5 Data Cable requires software drivers in

order to communicate with your PC and phone

properly.

Please follow the instructions in this guide for

proper installation of the software and cable.

• USE YOUR DKU-5 CONNECTION

Once the cable has been installed and configured by

Windows, the following options are available:

USE NOKIA PC SUITE

Nokia PC Suite allows you to manage your phone’s

settings, create new ringing tones or graphics, and

synchronize your phone’s data with some of the

most popular PIM (Personal Information

Management) applications.

PC Suite and all related modem software is provided

to you free of charge and can be downloaded from

the PC software downloads section of:

http://www.nokia.com/us (US)

http://www.nokia.ca (Canada)

USE YOUR PHONE AS A WIRELESS MODEM

Your phone can function as a wireless modem for

use with your PC or laptop computer, depending on

the types of digital data/fax services supported by

your phone and wireless service provider.

DKU5_install.book Page 2 Monday, December 16, 2002 12:07 PM

All manuals and user guides at all-guides.com

all-guides.com

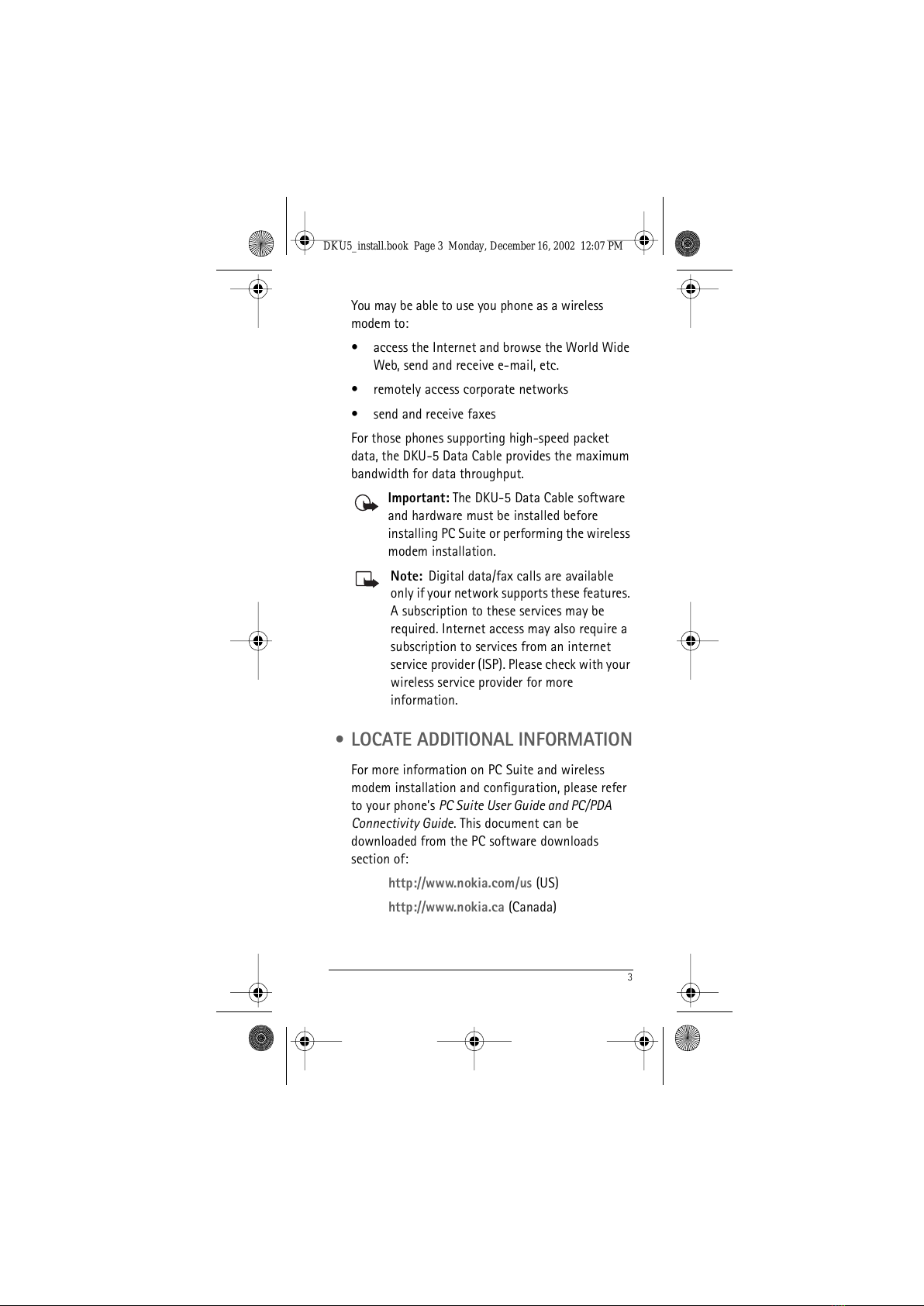

You may be able to use you phone as a wireless

modem to:

• access the Internet and browse the World Wide

Web, send and receive e-mail, etc.

• remotely access corporate networks

• send and receive faxes

For those phones supporting high-speed packet

data, the DKU-5 Data Cable provides the maximum

bandwidth for data throughput.

Important: The DKU-5 Data Cable software

and hardware must be installed before

installing PC Suite or performing the wireless

modem installation.

Note: Digital data/fax calls are available

only if your network supports these features.

A subscription to these services may be

required. Internet access may also require a

subscription to services from an internet

service provider (ISP). Please check with your

wireless service provider for more

information.

• LOCATE ADDITIONAL INFORMATION

For more information on PC Suite and wireless

modem installation and configuration, please refer

to your phone’s PC Suite User Guide and PC/PDA

Connectivity Guide. This document can be

downloaded from the PC software downloads

section of:

http://www.nokia.com/us (US)

http://www.nokia.ca (Canada)

DKU5_install.book Page 3 Monday, December 16, 2002 12:07 PM

All manuals and user guides at all-guides.com

4 DKU-5 Data Cable Installation and Configuration Guide

2 Software/hardware

installation

Before you can use the DKU-5 Data Cable (also

known as Nokia Connectivity Cable DKU-5), you

must install the necessary software and drivers for

use by Windows Plug and Play.

The Nokia software installation program loads the

correct device drivers and software. These files are

used by Windows to configure your system

automatically the first time you connect the cable.

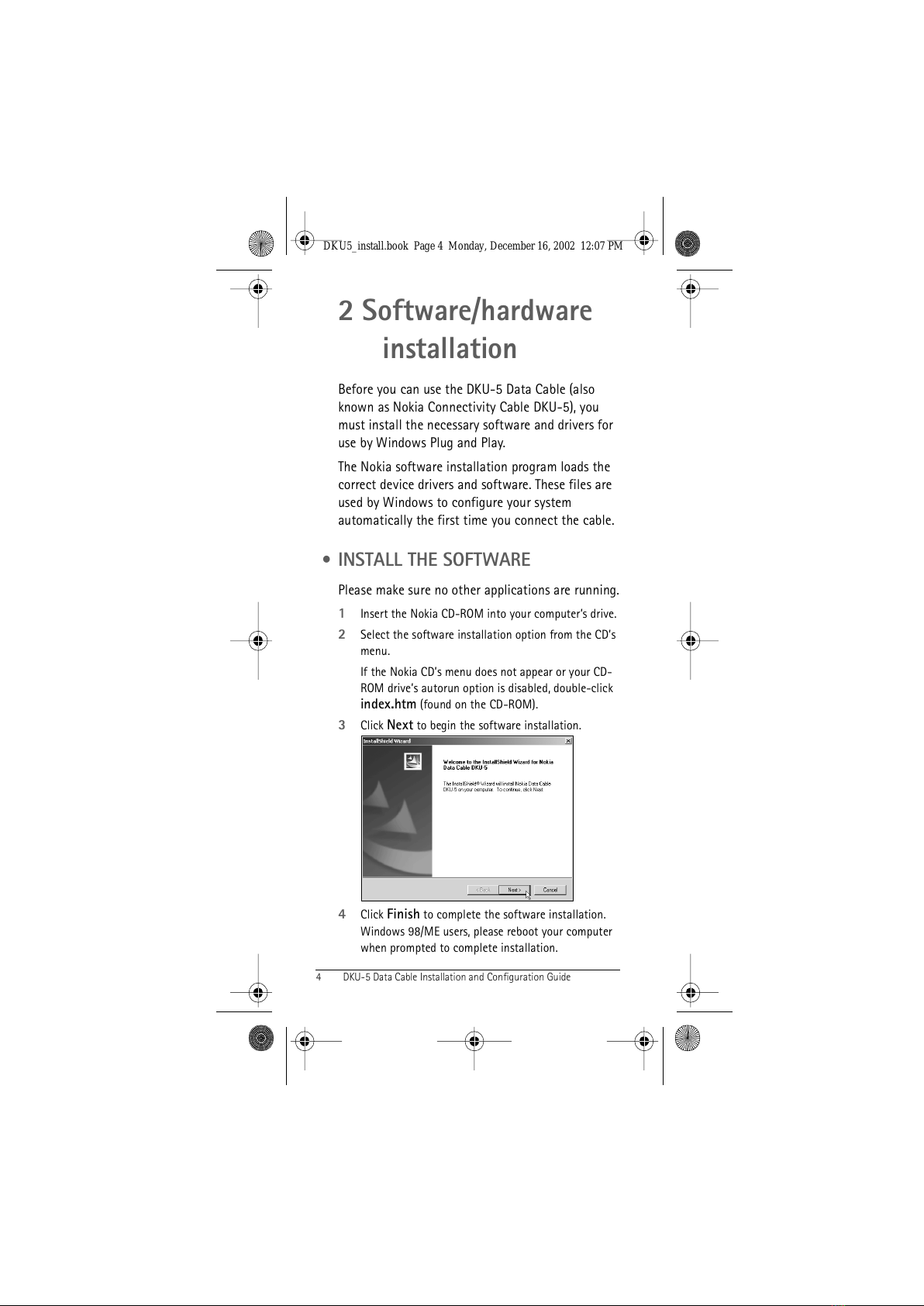

• INSTALL THE SOFTWARE

Please make sure no other applications are running.

1Insert the Nokia CD-ROM into your computer’s drive.

2Select the software installation option from the CD’s

menu.

If the Nokia CD’s menu does not appear or your CD-

ROM drive’s autorun option is disabled, double-click

index.htm (found on the CD-ROM).

3Click Next to begin the software installation.

4Click Finish to complete the software installation.

Windows 98/ME users, please reboot your computer

when prompted to complete installation.

DKU5_install.book Page 4 Monday, December 16, 2002 12:07 PM

All manuals and user guides at all-guides.com

• INSTALL THE HARDWARE

After you have performed the software installation

as described earlier, please connect only the DKU-5

Data Cable to your PC’s available USB port.

Windows automatically detects the data cable when

you connect it for the first time. Windows installs

the cable and also configures a virtual

communications port for use by the data cable.

FOR WINDOWS 98/ME USERS

Windows 98 and ME locates the drivers and

software that you previously installed and

completes the hardware installation automatically.

FOR WINDOWS 2000 USERS

Windows 2000 automatically locates the drivers and

software that you previously installed. During the

installation process, the Digital Signature Not

Found message may be displayed.

Please click Yes if this dialog box is displayed to

complete the hardware installation.

FOR WINDOWS XP USERS

When the cable is detected, Windows XP activates

the Found New Hardware Wizard to assist you with

the installation of both the cable adapter and the

virtual COM port.

Complete the installation wizards for both devices,

clicking Continue Anyway if the Windows logo error

message is displayed.

DKU5_install.book Page 5 Monday, December 16, 2002 12:07 PM

All manuals and user guides at all-guides.com

6 DKU-5 Data Cable Installation and Configuration Guide

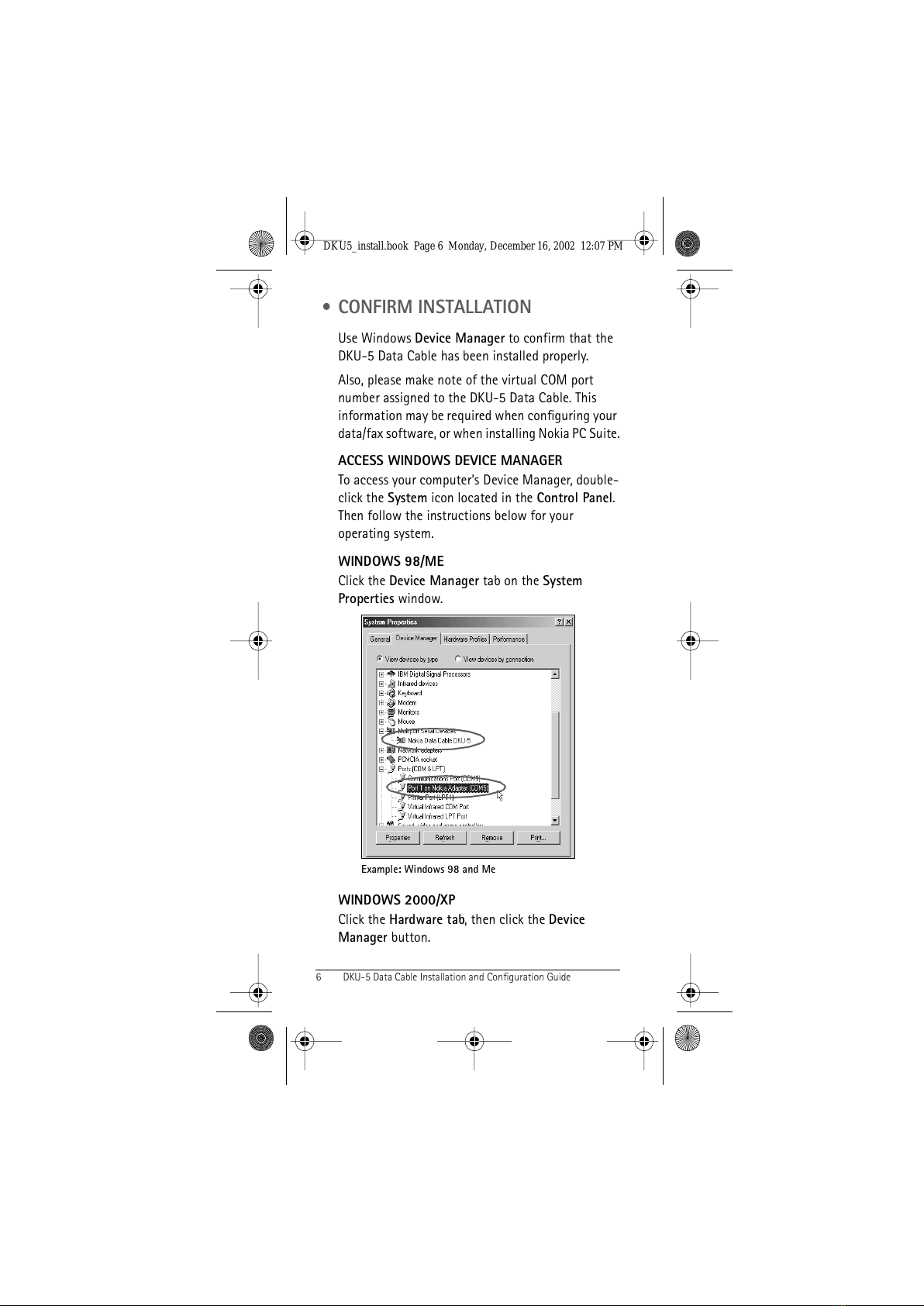

• CONFIRM INSTALLATION

Use Windows Device Manager to confirm that the

DKU-5 Data Cable has been installed properly.

Also, please make note of the virtual COM port

number assigned to the DKU-5 Data Cable. This

information may be required when configuring your

data/fax software, or when installing Nokia PC Suite.

ACCESS WINDOWS DEVICE MANAGER

To access your computer’s Device Manager, double-

click the System icon located in the Control Panel.

Then follow the instructions below for your

operating system.

WINDOWS 98/ME

Click the Device Manager tab on the System

Properties window.

WINDOWS 2000/XP

Click the Hardware tab, then click the Device

Manager button.

Example: Windows 98 and Me

DKU5_install.book Page 6 Monday, December 16, 2002 12:07 PM

All manuals and user guides at all-guides.com

Andere Handbücher für DKU-5

Inhaltsverzeichnis

Andere Nokia Kabel und Steckverbinder Handbücher

Nokia

Nokia CA-126 Bedienungsanleitung

Beliebte Kabel und Steckverbinder Handbücher anderer Marken

Philips

Philips SWA6310 Bedienungsanleitung

StarTech.com

StarTech.com CRJ4550PK Bedienungsanleitung

Nohau

Nohau EMUL-IP2K-PC Bedienungsanleitung

Foxun

Foxun SX-SP144E-HD4K2K Bedienungsanleitung

Philips

Philips SWA3305W Bedienungsanleitung

opticis

opticis Stretch DVIM1-1P0x Bedienungsanleitung

Volkswagen

Volkswagen VAS 6558A Bedienungsanleitung

NEXIBO

NEXIBO N-13 Bedienungsanleitung

CYP

CYP PU-1H3HBTL Bedienungsanleitung

Allen-Bradley

Allen-Bradley 1784-u2dhp Bedienungsanleitung

Global Caché

Global Caché Flex Link Blaster Bedienungsanleitung

Hauppauge

Hauppauge USB-Live2 Bedienungsanleitung

Fenix

Fenix MPSV 15 Bedienungsanleitung

BEGA

BEGA 71 085 Bedienungsanleitung

Tesla

Tesla HPWC Bedienungsanleitung

GAMERON

GAMERON LUXURY TV CABLE Bedienungsanleitung

molex

molex Milli-Grid Dual row 87568 Series Bedienungsanleitung

Burndy

Burndy Continental Industries thermOweld CRE-7 Bedienungsanleitung
