Nokia 515 RM-953 Bedienungsanleitung

Check the repair

policy before

performing any

mechanical repair

on Service Level

1&2!

Service Manual for L1 and L2

Nokia 515 Dual SIM

(RM-952)

Nokia 515

(RM-953)

Key features



2,4" display (320 x 240) with COrning Gorilla glass



5 Mpix camera with LED flash



Nokia Slam support



MicroSD card support up to 32 GB



Micro-USB connector

Version 1.0

Exploded view Disassembly steps Assembly hints

Solder components Service devices Product controls and interfaces

Service concept

More More More

Service Manual Level 1 and 2

Nokia 515 RM-953

Nokia 515 Dual SIM RM-952

Version 1.0

Exploded view

A-COVER

I0001

UI SHIELDING

I0005

LIGHT SWAP PWB

I0009

LED FLASH

I0019

CAMERA LENS

I0018

EARPIECE ADHESIVE

I0008

EARPIECE

I0007

CAMERA

I0014

DISPLAY

I0004

KEYMAT

I0002

DOME SHEET

I0006

SIM2 CONNECTOR

I0022

IHF SPEAKER

I0016

ANTENNA MODULE

I0015

B-COVER

I0021

RF SHIELDING LID

I0011

TYPE LABEL

I0013

FM/BT SHIELDING LID

I0012

BB SHIELDING LID

I0010

IHF SPEAKER GASKET

I0017

SCREW TORX+

SIZE 4 M1.4 X 3.8

I0003

SCREW TORX+

SIZE 4 M1.4 x 0.75-4.5

I0020

DUAL SIM VARIANT RM-952 ONLY!

LIGHT SWAP PACKAGE

(I0009 - I0013)

D-COVER ASSEMBLY

(I0015 - I0019)

UI SHIELDING ASSEMBLY

(I0005 - I0008)

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Service Manual Level 1 and 2

Nokia 515 RM-953

Nokia 515 Dual SIM RM-952

Version 1.0

Disassembly steps

1) For disassembling you need the Nokia Standard toolkit version 2. You will also need the camera

removal tool SS-276 and the SIM door key.

2) Protect the A-COVER with protective film.

3) Push the SIM door key to the shown hole in the bottom end of the device to release the B-COVER.

4) Use the SRT-6 to release the bottom end of the B-COVER completely.

5) Lift up the bottom end of the B-COVER and remove it.

6) Lift up the BATTERY from the shown place and remove it.

7) Unscrew the two shown Torx+ size 4 screws in the order shown.

8) Start to relase the A-COVER by opening the shown clip on the bottom end of the device with the SRT-

9) Open the five clips on the left side of the device holding the A-COVER with the SRT-6.

10) Release also the five clips on the right side of the device with the SRT-6. The A-COVER can then be

separated.

11) Protect the DISPLAY with protective film.

12) Protect also the other side of the A-COVER window with the protective film.

13) Push in the two shown clips holding the KEYMAT with the SS-93. Then carefully push the KEYMAT to

the direction shown and remove it.

14) Unscrew the four shown Torx+ size 4 screws in the order shown.

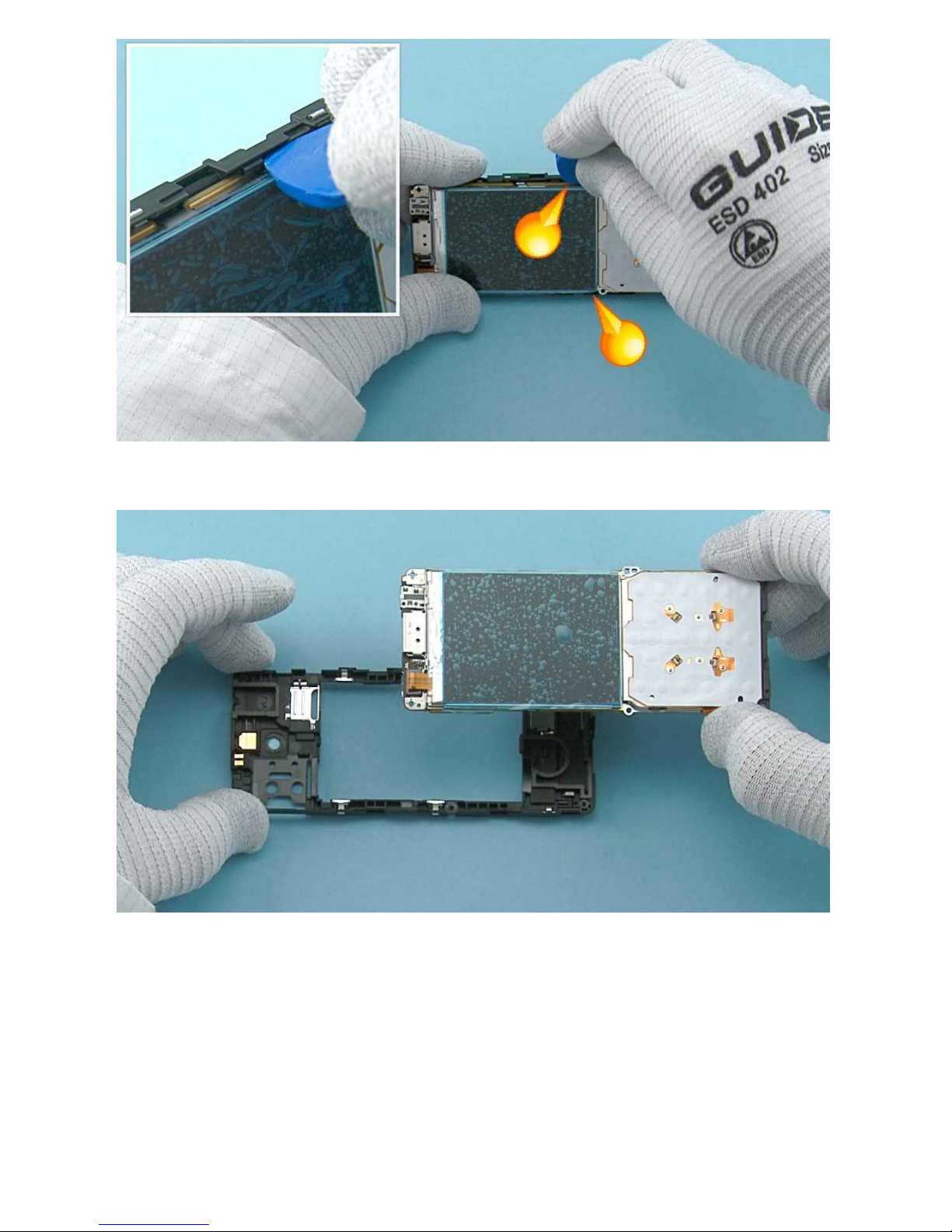

15) Open the two shown clips holding the D-COVER with the SRT-6.

16) The D-COVER can now be separated.
