1NookBox Installation Guide IR Universal Remote Control UPIC-5ZBS

Infrared Universal Remote Control

(UPIC-5ZBS)

Installation Guide

2NookBox Installation Guide IR Universal Remote Control UPIC-5ZBS

UPIC5-ZBS is a ZigBee Infrared Remote Control. It is designed to operate your home applian-

ces by transmitting IR signal. The IR Remote Control is capable of learning IR signal transmit-

ted from the appliance’s remote control. After learning the signal, you can remotely control

the IR Remote Control via ZigBee network to send signal to appliance without using the remo-

te control manually and support Over-the-Air (OTA) rmware update capability.

The IR Remote Control utilizes ZigBee technology for wireless signal transmission. ZigBee is

a wireless communication protocol that is reliable and has low power consumption and high

transmission eciency. Based on the IEEE802.15.4 standard, ZigBee allows a large amount of

devices to be included in a network and coordinated for data exchange and signal transmissi-

on.

The IR Remote Control serves as an end device in the ZigBee network. It can be included in

the ZigBee network to transmit signal upon activation, but cannot permit any other ZigBee

device to join the network through the device itself.

Infrared Universal Remote Control

(UPIC-5ZBS)

3NookBox Installation Guide IR Universal Remote Control UPIC-5ZBS

Parts Identication

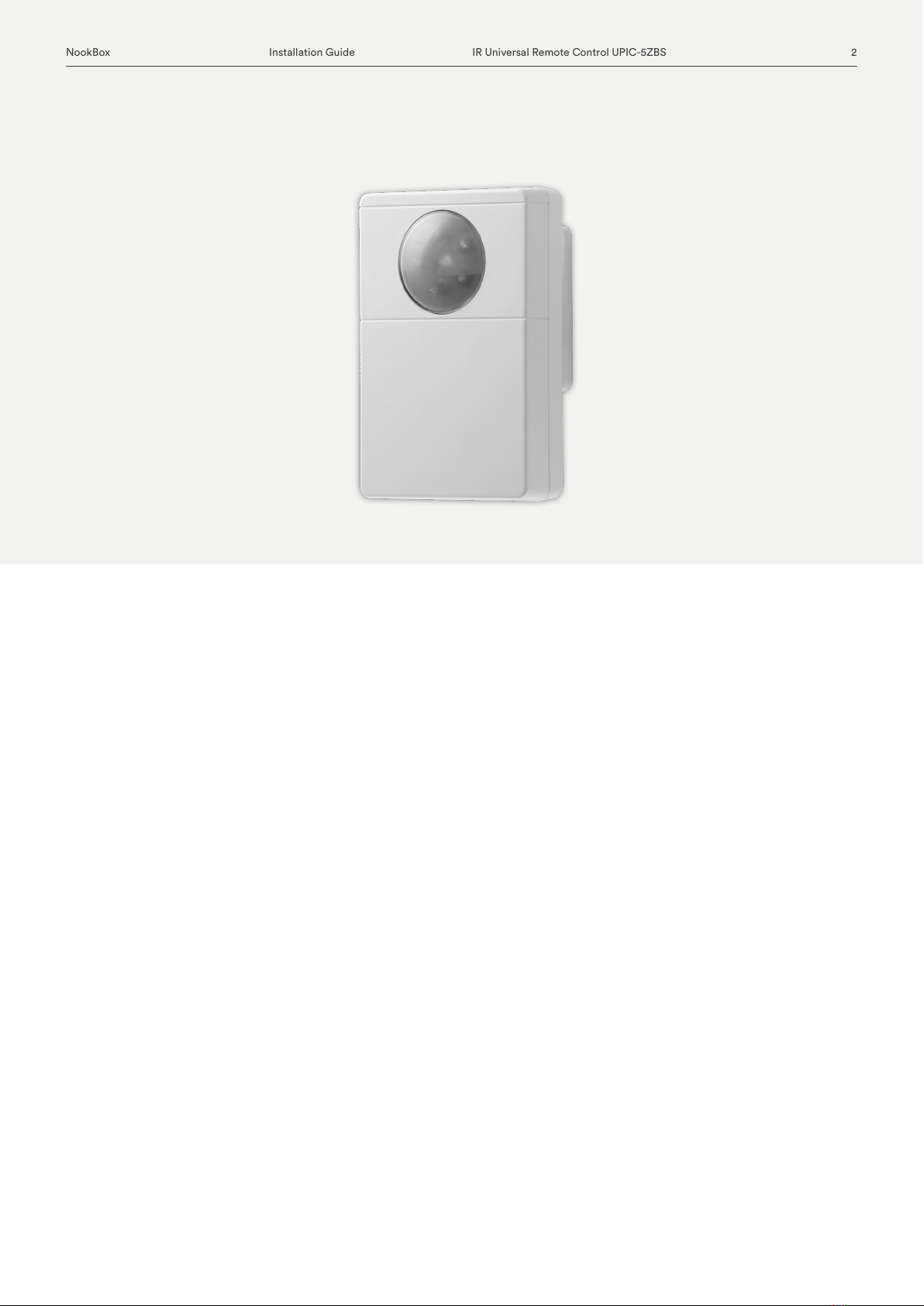

1. IR Eye

Transmits IR signal to appliances

2. ZigBee Button

3. IR Button

4. ZigBee LED

Flashes twice –IR Remote Control successfully joins ZigBee network

Flashes every 20 minutes – IR Remote Control has lost connection to its current ZigBee network.

5. IR Indicator LED

Slow Flash –IR Remote Control under IR learning mode.

Quick Flash–IR Remote Control receives IR signal under learning mode or is transmitting IR signal

Flash every half second – IR data cleared

O – IR Remote Control is storing received IR signal under learning mode.

– IR Remote Control is in idle mode.

6. IR Signal Receiver

7. Low IR Transmission Power Jumper (JP1)

Jumper ON –IR Transmission power set to Low. (Factory Default)

Jumper OFF – Deselected.

8. High IR Transmission Power Jumper (JP2)

Jumper ON –IR Transmission power set to High.

Jumper OFF – Deselected.

IMPORTANT NOTE: JP1 and JP2 jumper CANNOT be set to ON at the same time

9. Dip Switch Set 1

10. Dip Switch Set 2

11. Battery Compartment

12. Wall Mounting Rotational Bracket (Optional)

4NookBox Installation Guide IR Universal Remote Control UPIC-5ZBS

Features

Battery and Low Battery Detection

The IR Remote Control uses two 1.5V Lithium batteries as its power source. It features Low Battery Detection function. When low battery

voltage is detected, the IR Remote Control will transmit Low Battery signal to the coordinator in ZigBee network.

Supervision

The IR Remote Control will transmit a supervision signal to report its condition regularly according to user setting. The factory default interval

is 30 minutes. The user can also press the ZigBee Button once to transmit a supervision signal manually.

ZigBee Network Setup

ZigBee Device Guideline

The IR Remote Control is a wireless communication protocol that is reliable and has low power consumption and high transmission eciency.

Based on the IEEE802.15.4 standard, ZigBee allows a large amount of devices to be included in a network and coordinated for data exchange

and signal transmission.

Due to the fundamental structure of ZigBee network, ZigBee device will actively seek and join network after powering on. Since performing a

task in connecting network may consume some power, it is required to follow the instructions to avoid draining battery of a ZigBee device.

- Ensure the ZigBee network router/coordinator is powered on before inserting battery into ZigBee device.

- Ensure the ZigBee network router/coordinator is powered on and in range while ZigBee device is in use.

-Do not remove a ZigBee device from the ZigBee network router or coordinator without removing the battery from a ZigBee device.

Joining the ZigBee Network

As a ZigBee device, the IR Remote Control needs to join a ZigBee network to receive command from ZigBee network coordinator to transmit

IR signal. Please follow the steps bellow to join the IR Remote Control into the ZigBee network.

1. Insert batteries to power on the IR Remote Control.

2. Press and hold the ZigBee button for 10 seconds, then release it to join the network. Please make sure the permit-join feature on the

router or coordinator of your ZigBee network is enabled.

3. After joining the ZigBee network, the IR Remote Control will be registered in the security system in the network automatically. Please

check the security system control panel or CIE (Control and Indicating Equipment) to conrm if joining and registration is successful.

4. If the IR Remote Control successfully joins the ZigBee network, the ZigBee LED will ash twice to indicate.

5. After joining the ZigBee network, if the IR Remote Control loses connection to current ZigBee network, the ZigBee LED indicator will

ash every 20 minutes. Please check the ZigBee network condition and the IR Remote Control signal range to correct the situation.

Removing Device from ZigBee Network (Factory Reset)

To remove the device from current ZigBee network, the IR Remote Control must be put to Factory Reset to complete device removal. Factory

Reset function will clear the IR Remote Control of its stored setting information and prompt the device to search for new ZigBee network.

Before removing device, make sure the device is within current ZigBee network signal range

1. Delete the IR Remote Control from current control panel / CIE.

2. Press and hold the function button for 10 seconds, then release the button to reset device.

3. Upon reset, the IR Remote Control will clear current ZigBee network setting and transmit signal to ZigBee coordinator to remove

itself from current ZigBee network. It will then actively search for available ZigBee network again and join the network automatically.

OTA Firmware Upgrade

The device supports OTA rmware upgrade feature via ZigBee network, which can be initiated from the ZigBee network coordinator.

Follow steps below to perform OTA rmware upgrade.

1. You have to access your ZigBee Coordinator to perform the rmware upgrade on the air.

2. On the conguration webpage, select the device that you wish to upgrade and select the new ZigBee

rmware provided. Please refer to ZigBee Coordinator User Manual for detail.

3. Press OK to start upgrading process, please do not perform any other actions, or power down the panel.

4. The length of an upgrade will take approximately 20 to 30 minutes. Please note that the duration may

vary based on le size or distance between your accessory and coordinator.

5. Wait for rmware to complete update. When the progress reaches 100%, the Device will reset

automatically. You can also refresh the webpage again to ensure if the Device rmware is successfully

updated with the newest version displayed.

5NookBox Installation Guide IR Universal Remote Control UPIC-5ZBS

IR Signal Learning and Testing

In order to use the IR Remote Control to control your home appliance, , the IR Remote Control must rst learn in the IR signal sent from the

appliance’s remote control. Follow instruction below to complete the learning process. Please keep the IR Receiver away from direct lighting

or sunlight during learning process to avoid interference.

Learning

Step 1. Enter IR Learn Mode

1. Follow instruction in ZigBee Network Setup section to join IR Remote Control into your ZigBee network.

2. Make sure all switches on the DIP Switch Block are set to OFF position.

3. Press and hold the IR button for 10 seconds and release when IR LED begins to ash.

4. The IR LED will begin ashing slowly to indicate the IR Remote Control is now entering IR Learn Mode.

Step 2. Select Appliance Type

The IR transmitter can learn up to 5 sets of IR signal for 5 dierent appliances.

Before starting learning, select the appliance number with Dip Switch Set 1 before proceed to learning the signals. The IR signal learnt in will

be assigned to selected appliance number.

Select the appliance type according to following Dip Switch Set 1 table. For ease of recognition and operation from Climax ZigBee Control

Panel, each device type has been given a display name on the Control Panel interface, we suggest you to learn in IR signals according to appli-

ance types displayed.

“X” means the location of this switch has no eect on appliance selection.

Example:

a. To select Air Conditioner, slide Switch 1 to ON, and Switch 2-6 to OFF.

b. To select Television, slide Switch 2 to ON, and Switch 3-6 to OFF, ignore Switch 1 position.

Step 3. Learn IR Data

Each appliance type can learn up to 8 IR signals, selected with Dip Switch Set 2.

Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Appliance Type

ON OFF OFF OFF OFF OFF Type 1 (Air Conditioner)

X ON OFF OFF OFF OFF Type 2 (Television)

X X ON OFF OFF OFF Type 3 (Home Audio)

X X X X ON OFF Type 5 (Others)

Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Switch 7 Switch 8 IR Signal

ON OFF OFF OFF OFF OFF OFF OFF 1

X ON OFF OFF OFF OFF OFF OFF 2

X X ON OFF OFF OFF OFF OFF 3

X X X ON OFF OFF OFF OFF 4

X X X X ON OFF OFF OFF 5

X X X X X ON OFF OFF 6

X X X X X X ON OFF 7

6NookBox Installation Guide IR Universal Remote Control UPIC-5ZBS

Example:

a. To select IR Signal 1, slide Switch 1 to ON, and Switch 2-8 to OFF.

b. To select IR Signal 2, slide Switch 2 to ON, and Switch 3-8 to OFF, ignore Switch 1 position.

1. Select the IR Signal desired by adjusting dip switch. We suggest to be begin from IR Signal 1 by sliding Switch 1 to ON position to

select IR Signal 1.

2. Point your appliance’s IR remote control at opposite direction of the IR receiver to prevent the IR Receiver from receiving unwanted IR

signal.

3. Adjust the IR remote control to the setting you desired, then point the remote control at the IR Receiver, then press remote control

button to transmit the IR Signal

Example:

a. For air conditioner remote control, if you set the remote control to “Cool Mode, 18°C, Fan Speed Auto” and turn o the remote con

trol, then point the remote control at IR Receiver and press “ON.”

The IR Receiver will learn in “Cool Mode, 18°C, Fan Speed Auto” signal for the air conditioner

b. For television remote control, if you point the remote control at IR receiver and press ON/O.

The IR Receiver will learn in ON/OFF signal for the television.

4. If the signal is received successfully, the IR LED will ash quickly, then turn o to indicating that IR Remote Control is storing IR Signal

data, then ash slowly again. If you accidently sent the wrong IR signal, point the remote control away to adjust setting, the point it at

the IR Receiver to retransmit signal again. The new IR signal will overwrite the old one.

5. After nish learning, change dip switch setting to learn another IR Signal, the repeat procedure from 2 to 4. We suggest to proceed

from IR Signal 1 to 8 by sliding dip switch 1 to 8 to ON position one by one

6. Repeat the process to learn in maximum of 8 signals for each appliance type.

7. You can adjust your Dip Switch set 2 setting to select another appliance type.

Step 4. Exit IR Learn Mode

1. After nish learning all IR signals, press IR button once to exit learning mode, then slide all switches to OFF position.

Testing

After complete learning the IR signals, follow instruction below to test transmitting IR signals.

1. Do not enter IR Learn mode, adjust the Dip Switch setting accordingly to select the Appliance type and IR signal number as previous

ly learnt it.

2. Press the IR button once, the IR LED will ash quickly to indicate it is transmitting signal. If no signal is learnt in, the IR Remote Con

trol will not send any signal and IR LED will stay turned o.

3. Repeat procedure from 1 to 2 to test all learnt in IR signals.

4. After nish all settings, slide all switch to OFF position.

Clearing IR Data

To remove all IR signal learnt in for an appliance type, follow instruction below:

1. Remove batteries to power down IR Remote Control.

2. Select the appliance type you want to remove using Dip Switch set 1 according to following table:

Slide more than one switch to ON will select multiple appliance type.

Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Appliance Type

ON OFF OFF OFF OFF OFF Type 1 (Air Conditioner)

OFF ON OFF OFF OFF OFF Type 2 (Television)

OFF OFF OFF ON OFF OFF Type 3 (Home Audio)

OFF OFF OFF OFF ON OFF Type 5 (Others)

7NookBox Installation Guide IR Universal Remote Control UPIC-5ZBS

Example:

a. Slide Switch 1,2,3,4,5 to ON will select all 5 appliance types.

b. Slide Switch 1 and 3 to ON to select Air Conditioner and Home Audio.

3. Press and hold both IR and ZigBee buttons and insert batteries to power up IR transmitter, do not release

the buttons yet.

4. Keep holding both IR and ZigBee buttons until IR LED turns on, then release the buttons

5. The IR transmitter will clear stored IR signal for selected appliance types,

the IR LED will ash continuously.

6. Slide all switches to OFF position to return to normal operation. The IR LED will turn o.

Installation

The IR Remote Control is designed to be mounted on wall. It can be mounted by either directly screwing the back

cover onto the wall, or by installing the rotational bracket rst, then install the main body on the bracket. Please

refer to the IR Signal Coverage & IR LED Selection section below for information on IR signal transmission before

selecting the IR Remote Control’s mounting location.

Mounting the IR Remote Control

The IR Remote Control is designed to be mounted on wall. It can be mounted by either directly screwing the back

cover onto the wall, or by installing the rotational bracket rst, then install the main body on the bracket. The IR

Eye should be pointed to the home appliance you want to control when the IR Remote Control is installed.

NOTE: The Rotational Bracket is not included in standard shipping and is available upon request.

Direct Wall Mounting:

The back cover has 4 knockouts, where the plastic is thinner, for mounting purpose.

1. Open the cover and break through the 4 knockouts on the back cover.

2. Use the holes as template to drill holes in the wall, insert wall plugs if required.

3. Screw the back cover onto the wall.

4. Replace the front cover on the back cover.

Rotational Bracket mounting.

The Rotational Bracket has an adjustable head which can be attached to the IR Remote Control. After installing

the bracket on the wall, the user can adjust the angle of the head to change the direction IR Remote Controlis

facing.

1. The Rotational Bracket base has 2 mounting holes, Use the holes as template to drill holes in the wall,

insert wall plugs if required.

2. Screw the bracket onto the wall.

3. Hook the IR Remote Control onto the brackets using the holes on the back.

4. After completing installation, you can use a Philip screw driver to loosen the screw on top of the bracket,

then adjust the IR transmitter angle and tighten the screw to lock the bracket angle.

8NookBox Installation Guide IR Universal Remote Control UPIC-5ZBS

Operation

Control via ZigBee Control Panel

The IR Remote Control can be controlled via Climax ZigBee Control Panels remotely to transmit IR signal. Selec-

ting the appliance type and IR signal number from the Control Panel will control the IR Remote Control to send IR

signal accordingly.

Example:

a. Select “Air Conditioner Function 1” will control the IR Remote Control to send IR signal 1 learnt in Air Condi

tioner appliance type.

IR Signal Coverage & IR LED Selection

The IR Eye of the IR Remote Control includes 6 LEDs which are used to

transmit IR signals, with 1 central LED and 5 surrounding LEDs. The 5

surrounding LEDs are positioned at 45° angle to the PCB board.

LED Signal Coverage: Each LED transmits IR signal in cone

coverage in front of the LED. The LEDs can be selected to

transmit signal for each appliance type by using your Gateway.

Example:

a. If you select LED 1 for Air Conditioner, the IR Remote Control will transmit signal with LED 1 when it trans

mits an Air Conditioner appliance type IR Signal.

b. If you select LED 2 and LED 3 for Home Audio, the IR Remote Control will transmit signal with both LED 2

and LED 3 when it transmits a Home Audio appliance type IR Signal.

When installing the IR Remote Control, select the IR LED used via your Control Panel according to the IR Remote

Control mounting location to allow IR transmitter to send signal to all appliance in your home. Please refer to your

Climax Control Panel manual for more information on IR Remote Control setting and control.

Please refer to diagram below for IR signal coverage:

9NookBox Installation Guide IR Universal Remote Control UPIC-5ZBS

IR Transmission Power

Use the jumper switches (JP2 and JP3) to adjust the IR signal transmission power. Factory default is set to Low

transmission power(JP1 ON). Setting the jumper to JP2 will increase the IR signal transmission range.

10NookBox Installation Guide IR Universal Remote Control UPIC-5ZBS

Inhaltsverzeichnis

Andere NookBox Fernbedienung Handbücher

NookBox

NookBox 119046 Bedienungsanleitung

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

RCA

RCA RCU1300 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

GE 94901 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung
