Norcold 2117 Bedienungsanleitung

PART NO.6303673

NORCOLD 06/25/2008

PARTS LIST

MODELS

2117IM

2117IMD

2117IMBK

2117IMBKD

2117IMSS

2117IMSSD

2117IMWPM

2117 SERIES

2117 SERIES PARTS LIST - PAGE 2

DOOR - UPPER RH - 2117 SERIES

NO. PART # DESCRIPTION 2117

2117

IMD

2117

IMBK

2117

IMBKD

2117

IMSS

2117

IMSSD

2117

IMWPM

1 630245 DOOR LINER WITH HANDLE-UPPER/RH/PANEL X X

632803 DOOR INER WITH HANDLE-UPPER/RH/BLACK X X

630250 DOOR LINER WITH HANDLE-UPPER/RH/WRAP/SS X X

63035101 DOOR LINER WIT H HANDL E-UPPER/RH/WRAP/WPM X

2 627744 HINGE BUSHING-PANEL DOORS X X

3 627712 DOOR HANDLE HOUSING- UPPER RH/L OWER L H X X X X X X X

4 628017 DOOR HANDLE- UPPER RH/LOWER LH X X X X X X X

5627805SPRING-COMPRESSION XXXXXXX

6 628616 DOOR HANDLE LATCH PIN- UPPER RH/LOWER LH X X X X X X X

7628035BIN-DOORSHELF/SMALL XXXXXXX

8 627423 PANEL RETAINER-UPPER X X

9 627871 COV ER-HANDL E POCKET - UPPER RH X X X X X X X

NOTE: DOOR L INERS ASSEM BL IES ARE NOT SHIPPED WITH DOOR BINS.

2117 SERIES PARTS LIST - PAGE 3

DOOR - UPPER LH - 2117 SERIES

NO. PART # DESCRIPTION 2117

2117

IMD

2117

IMBK

2117

IMBKD

2117

IMSS

2117

IMSSD

2117

IMWPM

1 630244 DOOR LINER WITH HANDLE-UPPER/LH/PANEL X X

632804 DOOR LINER WITH HANDLE-UPPER/LH/BLACK X X

630249 DOOR LINER WITH HANDLE-UPPER/LH/WRAP/SS X X

63035001 DOOR LINER WIT H HANDL E-UPPER/L H/WRAP/WPM X

2 627744 HINGE BUSHING-PANEL DOORS X X

3628035BIN-DOORSHELF/SMALL XXXXXXX

4 627713 DOOR HANDLE HOUSING- UPPER LH/LOWER RH X X X X X X X

5 628018 DOOR HANDLE- UPPER L H/LOWER RH X X X X X X X

6627805SPRING-COMPRESSION XXXXXXX

7 628615 DOOR HANDLE LATCH PIN- UPPER LH/LOWER RH X X X X X X X

8 627423 PANEL RETAINER-UPPER X X

9627870COVER-HANDLEPOCKET-UPPERLH XXXXXXX

NOTE: DOOR LINERS ASSEM BL IES ARE NOT SHIPPED WIT H DOOR BINS.

2117 SERIES PARTS LIST - PAGE 4

DOOR - LOWER RH - 2117 SERIES

NO. PART # DESCRIPTION 2117

2117

IMD

2117

IMBK

2117

IMBKD

2117

IMSS

2117

IMSSD

2117

IMWPM

1 630247 DOOR LINER WITH HANDLE-LOWER/RH/PANEL X X

632805 DOOR LINER WITH HANDLE-LOWER/RH/BL ACK X X

630252 DOOR LINER WITH HANDLE-LOWER/RH/WRAP/SS X X

63035301 DOOR LINER WIT H HANDL E-L OWER/RH/WRAP/WPM X

2 627713 DOOR HANDLE HOUSING- UPPER LH/LOWER RH X X X X X X X

3 628018 DOOR HANDLE- UPPER L H/LOWER RH X X X X X X X

4627805SPRING-COMPRESSION XXXXXXX

5 628615 DOOR HANDLE LATCH PIN- UPPER LH/LOWER RH X X X X X X X

6 627424 PANEL RETAINER-LOWER X X

7628035BIN-DOORSHELF/SMALL XXXXXXX

8 628036 BIN-DOOR SHELF/GALLON X X X X X X X

9 627744 HINGE BUSHING-PANEL DOORS X X

NOTE: DOOR LINERS ASSEM BL IES ARE NOT SHIPPED WIT H DOOR BINS.

2117 SERIES PARTS LIST - PAGE 5

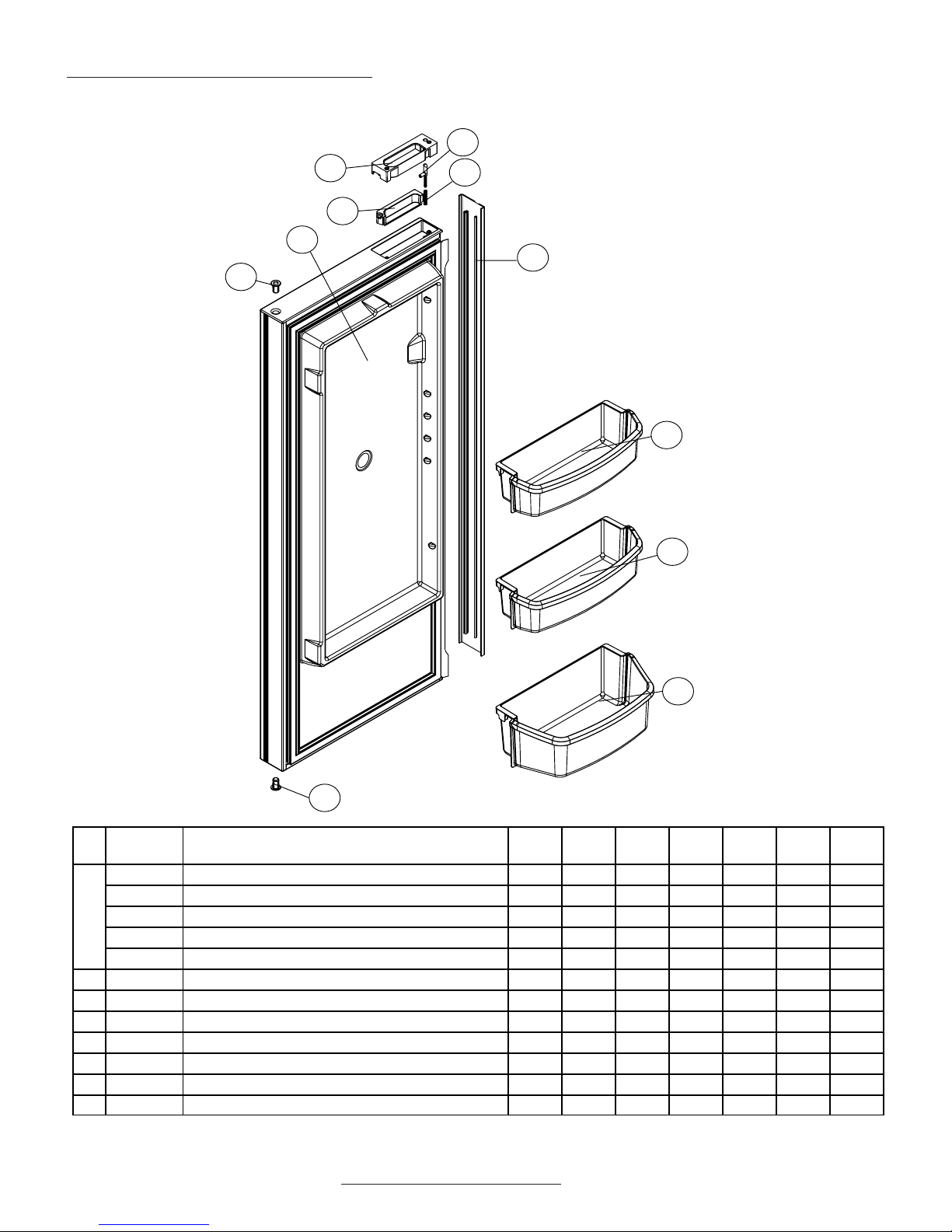

DOOR - LOWER LH - 2117 SERIES

NO. PART # DESCRIPTION 2117

2117

IMD

2117

IMBK

2117

IMBKD

2117

IMSS

2117

IMSSD

2117

IMWPM

1 630246 DOOR LINER WITH HANDLE-LOWER/LH/PANEL X

630248 DOOR LINER WITH HANDLE-LOWER/LH/PANEL/DISP X

632806 DOOR LINER WITH HANDL E-LOWER/L H/WRAP/BLACK X

632807 DOOR LINER WITH HANDL E-LOWER/L H/WRAP/DISP/BL K X

630251 DOOR LINER WITH HANDL E-LOWER/L H/WRAP/SS X

630253 DOOR LINER WITH HANDL E-LOWER/L H/WRAP/SS/DISP X

63035201 DOOR L INER WIT H HANDLE- LOWER/L H/WRAP/WPM X

2 627744 HINGE BUSHING- PANEL DOORS X X

3628036BIN-DOORSHELF/GALLON XXXXXXX

4628035BIN-DOORSHELF/SMALL XXXXXXX

5 627712 DOOR HANDLE HOUSING-UPPER RH/L OWER LH X X X X X X X

6628017DOORHANDLE-UPPERRH/LOWERLH XXXXXXX

7627805SPRING-COMPRESSION XXXXXXX

8 628 616 DOOR HA NDL E L A T C H PI N- UPPER RH/ L OWER L H X X X X X X X

9 631031 FLAPPER ASSY-2117 X X X X X X X

10 627424 PANEL RETAINER-LOWER X X

NOTE: DOOR L INERS ASSEM BL IES ARE NOT SHIPPED WITH DOOR BINS AND FLAPPER ASSEM BL Y.

2117 SERIES PARTS LIST - PAGE 6

CABINET ASSEMBLY- FRONT VIEW (INTERIOR PARTS) - 2117 SERIES

18 16

2117 SERIES PARTS LIST - PAGE 7

CABINET ASSEMBLY- FRONT VIEW (INTERIOR PARTS)- 2117 SERIES

NO. PART # DESCRIPTION

NON

DISPENSER

(IM)

WITH

DISPENSER

(IMD)

1 627866 CRISPER X X

2 627868 CRISPER LID-FLIP TOP X X

3 628829 VENT-CRISPER LID X X

4 628640 BIN-BEVERAGE CAN X X

5 628856 COVER-BEVERAGE BIN X X

6 628553 CRISPER COVER ASSY-GLASS SHELF X X

7 62947 3 SPA C ER- NYL ON/ CRISPER COV ER A SSY X X

8 628080 SHELF ASSY-GLASS/SHALLOW X X

9 628055 SHELF ASSY-GLASS/DEEP X X

NS 629478 WIRE-FOOD FENCE (PART OF 628080 & 628055) X X

NS 629477 SLIDER-FOOD FENCE (PART OF 628080 & 628055) X X

10 630210 SHROUD FOAM ASSY-FRESHFOOD FIN ASSY X X

11 628794 FIN ASSY-FRESH FOOD (WITH THERMOSTAT) X X

12 628647 THERMOSTAT-FIN ASSY/FRESH FOOD X X

13 630364 BLOWER HOUSING WITH FOAM-FRESH FOOD X X

14 628525 FAN-BLOWER/FRESH FOOD X X

NS 628780 V ENT- BL OWER HOUSING/FRESH FOOD ( NOT SHOWN) X X

NS 628799 BRACKET-FAN/FREEZER (NOT SHOWN) X X

15 628076 GUIDE BLOCK X X

16 630241 BRACKET-THERMISTOR MOUNTING/AIR X X

17 629491 THERMISTOR-ROD/AIR X X

18 620528 THERMISTOR-CONDENSER X X

19 629408 THERMISTOR-FREEZER X X

20 628786 SHELF ASSY-WIRE/FREEZER X X

21 628787 SHELF ASSY-WIRE/FREEZER/SHORT X X

22 629447 RETAINER-SHELF X X

23 61689122 CLIP-THERMISTER MOUNTING/FIN X X

24 628802 SHROUD ASSY-FREEZER/FINS X X

25 628650 FIN ASSY-FREEZER (WITH THERMOSTAT/HEATER/DRIP TRAY) X X

26 627873 THERMOSTAT-FIN ASSY/FREEZER X X

27 61656922 SHUT OFF ARM/IM X X

28 621266 ICE MAKER X X

29 61656822 COVER-FRONT/ICE MAKER X X

30 630219 DRIP TRAY-INSIDE/CABINET/FREEZER (SERIAL# 11323165 & ABOVE

)

NS 632699 KIT-SERVICE-HEATER TUBE (SERIAL# 11323164 & BELOW) X X

31 619007 BIN-ICE/CRISPER/CLEAR/WDL/SDL X X

32 628056 SHELF ASSY-WIRE/FREEZER X X

33 628506 SHELF SUPPORT-FREEZER-RH SIDE X X

34 628507 SHELF SUPPORT-FREEZER-CENTER X X

35 628788 SHELF SUPPORT-FREEZER/LH SIDE X X

36 623918 SWITCH-LIGHT X X

37 628503 SHELF SUPPORT-FRESH FOOD-LH SIDE X X

38 628504 SHELF SUPPORT-FRESH FOOD-CENTER X X

39 628505 SHELF SUPPORT-FRESH FOOD-RH SIDE X X

40 628839 SHELF SUPPORT-FRESH FOOD/CENTER/CRISPER AREA X X

41 61629722 LAMP BRACKET ASSY X X

42 632545 LAMP-DC LIGHT BULB X X

43 621827 COVER-LAMP BRACKET X X

44 628045 SHELF ASSY-GLASS/FULL X X

NS 628831 DRIP TRAY-INSIDE/CABINET/FRESH FOOD (NOT SHOWN) X X

NS 630649 HOUSING FOAM STRIP ASSY-FAN/FREEZER (NOT SHOWN) X X

NS 628508 FAN- DC/FREEZER (NOT SHOWN) X X

NS - NOT SHOWN

2117 SERIES PARTS LIST - PAGE 8

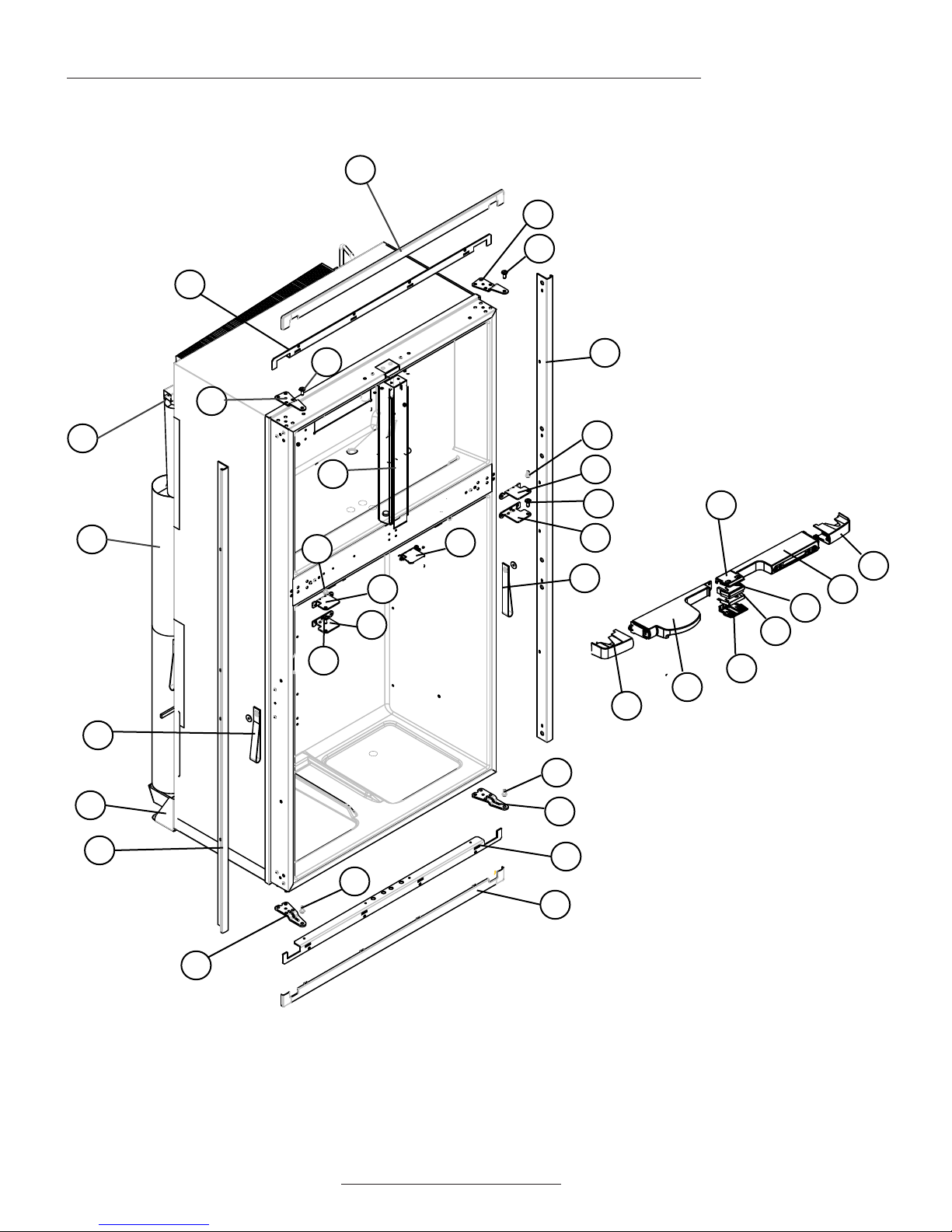

CABINET ASSEMBLY- FRONT VIEW (EXTERIOR PARTS) - 2117 SERIES

2117 SERIES PARTS LIST - PAGE 9

CABINET ASSEMBLY- FRONT VIEW (EXTERIOR PARTS) - 2117 SERIES

NO. PART # DESCRIPTION

NON

DISPENSER

(IM)

WITH

DISPENSER

(IMD)

1 627852 TRIM PIECE-TOP/BOTTOM/SET X X

2 630363 BRACKET FOAM ASSY-TOP/BOTTOM MOUNTING X X

3 627736 HINGE-UPPER X X

4 627778 HINGE PIN-UPPER X X

5 630362 TRIM PIECE FOAM TAPE ASSY-CABINET/SIDE X X

6 627777 HINGE PIN-LOWER X X

7 627739 HINGE-CENTER-UPPER RH/LOWER LH X X

8 627738 HINGE-CENTER-UPPER LH/LOWER RH X X

9 628818 STRAP ASSY-CABINET HANDLING X X

10 628579 COVER-HINGE-SNAP ON X X

11 628565 HOUSING-DISPENSER X

NS 628568 CONT ROL BOX-DUM M Y ( NOT SHOWN) X

12 628577 STRIKE PLATE X X

13 628576 COVER-STRIKE PLATE/BOTTOM X X

14 628575 COVER-STRIKE PLATE/TOP X X

15 628570 CONTROL ASSY-OPTICAL/2117 SERIES X X

16 627740 HINGE-BOTTOM X X

17 627849 BRACE-BACK X X

18 630746 NSC SYSTEM PACK-2117 SERIES X X

19 629099 CAP-HEAT DEFLECTOR X X

20 628047 DIVIDER ASSY-FREEZER-VERTICAL X X

21 628076 GUIDE BLOCK-FLAPPER/2117 X X

NS 627752 RAIL-BOTTOM SUPPORT (NOT SHOWN) X X

NS - NOT SHOWN

2117 SERIES PARTS LIST - PAGE 10

COOLING UNIT AREA - REAR VIEW - 2117 SERIES

NO. PART # DESCRIPTION

NON

DISPENSER

(IM)

WITH

DISPENSER

(IMD)

1 632304 NSC SYSTEM PACK-2117 SERIES (BACKER HEATER) X X

2 623442 FAN-EXTERNAL DC/HIGH VELOCITY X X

NS 628747 BRACKET-DC FAN X X

3 630775 HEATER-AC COOLING UNIT SERIAL# 11255149 & BELOW) X X

630813 HEATER-AC/BACKER (COOLING UNIT SERIAL# 11255150 & ABOVE) X X

NS 630776 WIRE-JUMPER/AC HEATER (BLUE OR BLACK HEATER LEAD) X X

NS 629479 WIRE-JUM PER/AC HEATER ( YELLOW WIRE) X X

4 630280 KIT-TEMPERATURE SWITCH CANISTER ASSEMBLY X X

5 618902 BASE-BURNER BOX X X

6 618910 COV ER A SSY- BURNER BOX X X

7 629490 DRIP CUP-REAR/CABINET X X

8 622391 DRAIN HOSE ASSY X X

9 629099 CAP-HEAT DEFLECTOR X X

10 628599 BAFFLE/WIRE ASSY-DIFFUSER X X

11 629484 BRACKET-SYSTEM TIE DOWN X X

NS - NOT SHOWN
