UPPER & LOWER SIDE

VENT INSTALLATION

FOR NORCOLD MODELS 900/9100/N600/N800

Read these important instructions carefully. Become thoroughly acquainted with the

content before installing vents and refrigerator.

IMPORTANT NOTE: Norcold’s

Venting and Installation

instructions must be followed.

These

Upper and Lower Side Vent Installation

instructionsareinadditiontoNorcold’s

Ventilation and Installation

instructionsthataccompanyeachrefrigerator. Followthe

Venting

and Installation

instructions wheninstalling therefrigerator. Installationmust conformwithlocal

codes,or in the absence oflocalcodes, with these standards:

In the United States:

- NationalFuel Gas Code, ANSI Z223.1.

- ManufacturedHome construction andSafety Standard, Title 24CFR,Part 32-80.

- StandardforRecreational Vehicles, ANSIA119.2latest edition.

In Canada:

- Current CGA B149.1 and CGA B149.2 installation code for Propane Appliances and Equip-

ment.

- CurrentCSA Z240.4.2 InstallationRequirementfor Propane AppliancesandEquipment in

RecreationalVehicles.

- CurrentCSA Z240.6.2/C22.2 No. 148 ElectricalRequirementfor Recreational Vehicles.

Wheninstalled, the refrigeratormustbe electrically groundedinaccord with localorstate codes,

theNational Electrical code, andANSI/NFPA70. InCanada, grounding isinaccord with the

Canadian Electrical Code C22.2.

LPGas supply pipingandfittings must complywithlocal, state, andnationalcodes governing type

andsize. These components should also complywiththe current NFPA 501C section 2.41,1990

andwith the currentCAN 1-6.10 Standard.

Important!

During storage of the refrigerator in the RV or the trailer, always disconnect the power

source.

Part No. 618698C (7-98)

Upper and Lower Side Vent Installation

Theseinstructions provide analternative method forinstallingNorcold 6 and8 cubic foot

refrigerators(see Table1). This method allowsfor using twolowervents. The second lowervent

servesas the upperexhaust vent, replacingtheroof vent. Use onlythose vents specifiedinthe

refrigeratorinstallation guide forside wall installation.

RefrigeratorModels

8 Cubic Foot Models

982F, 9182F, 982-FIM, N820F, N821F

N841F,N841-FIM

A=62”minimum

1. Installthe lowerintakevent flushwiththe refrigeratormountingsurface (seeFigure1, #1). this

locationprovides thenecessaryventilation fromoutsidethe vehicle.

2. Installthe upperexhaustvent (seeFigure 1,#2)directly abovethelower ventatthe A

dimension,(seeFigure 1 and Table 1) for the model beinginstalled. Positionthis vent directly

behindthe coolingunitcondenser toallowheat andexhaustfrom thecoolingunit toventto the

outside.

6 Cubic Foot Models

962F, 9162F, 962-FIM, N620F, N621F

N641F,N641-FIM

A=55”minimum

Side View Rear View

Figure 1

Table 1

Ventilation Fan Installation

To ensureefficientperformance,acontinuousair flow is required across therefrigerator’scooling

system. Athermostat controlled fanmustattach to therefrigerator’scoolingsystembefore

placingthe refrigerator in theenclosure. Thisfan assists air flowacrossthe cooling system. The

thermostatturns onthefan whenevertherefrigerator’s cabinettemperaturereaches 95°

Fahrenheit. Evenwith the fan, theairflow from the sideintakevent across the refrigerator’s

coolingsystem to the exhaustventmust be unobstructed.

Figure2showstheback of the refrigerator and the location of he 1st and 2nd absorber coils.

AlsoinFigure 2 are items installation andtheirapproximatelocations.

Figure 2

MountingPlates

Fan Installation

1. Positionmountingbracket A(See Tools and PartsList,#I)around the top ofthetwoabsorber

coils.Make sure the wider flangeofmounting bracket Ais to the bottom. Theflangesof

mountingbracketAface away fromtherefrigerator cabinet. See Figure 3.

2. Positionmountingbracket B (See Tools andPartsList,#J) around the front of the1stand2nd

absorber coils. See Figure 2. This bracket has a wiring label on it. Push mounting bracket B

andmounting bracketAtogether.

NOTE: Mountthe flange of bracket Boverthebottom flange ofbracketA. Insert two 1 1/4”

bracketscrews. See Figure 4. DO NOT fully tighten.

Figure 3

Figure 4

3. Slidemountingbrackets along the absorber coils. Leave a3”clearancebetween the right

edgeofthe brackets and the cooling unit’sreturntube. SeeFigure 5.

4. Tighten11/4”mountingbracket screws securing bracket to cooling system. See Figure 5.

5. Place 12 VDC fan on top of the mounting bracketB (label side up) and fan wires exiting to the

leftside (when viewedfromthe back).

Inserttwo 2” fanmountingscrews and tightentosecure fan tomountingbracket. See Figure 4.

Do not over tighten, causingplasticfanhousingto crack. Ensure fan wires do not contact

thesharpedges of the bracket or arepinchedinany way.

NOTE: Wheninstalling fan, leave remaining wiresinplastic bag to prevent themfrompinching.

Figure 5

Thermostat Installation

1. Viewingtherefrigeratorfrom the rear, mount thethermostatto the rightcondenserfin.

Removewires from theplasticbag. Untangle anywiresthat are connectedtothe thermostat

andthe fan. Align theholesof the thermostatwiththe left slotinthe condenser fin.SeeFigures

2 and 6.

IMPORTANT: Thethermostatis fragile, handle it withcare. Donot hit the plastic thermostat

withthe screwdriver orallow the screwdrivertoslip off thescrew and contacttheplastic.

NOTE: The41”red wire goes to the leftterminal. The60”red wire (and attached fuse holder)

goesto the rightterminal.

2. Inserta #8 x3/8” screw throughthebottom hole ofthe thermostat andintothe lowestpointof

theleft condenser finslot. Tightenthescrew 1 or2turns to holdthethermostat in place. See

Figure6.

3. Inserta #8 x3/8” screw throughthetop hole ofthe thermostat andintothe condenserfinslot.

See Figure 6.

4. Tightenthescrews to securethe thermostat tothecondenser fin.

IMPORTANT: Do not overtighten the screws.

Figure 6

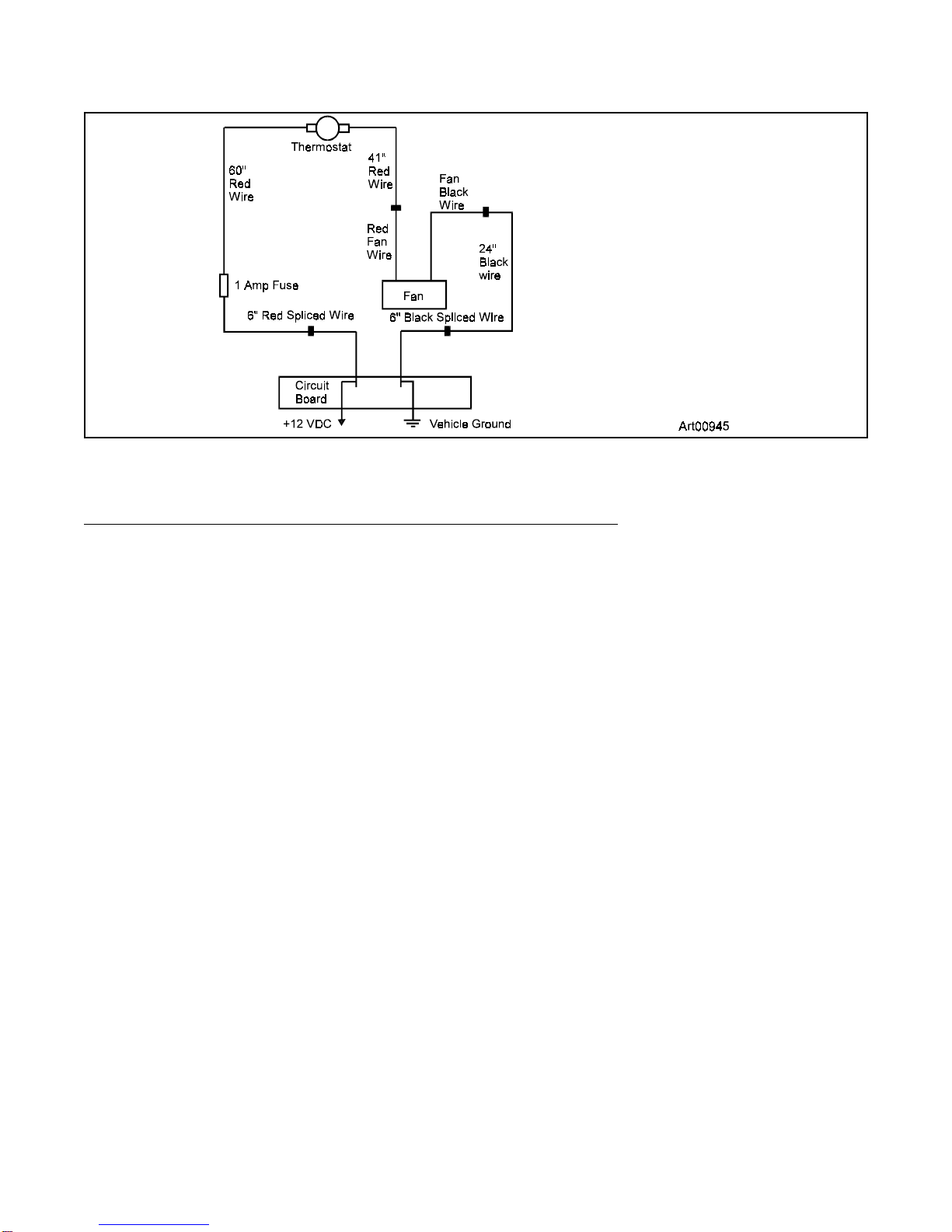

Wire Connections

Wiring:

Splice to Circuit Board (CB) (For 900, 9100, N600, N800 Models):

- Routethe6” red spliced wire and attached 60” red fused wirebetweenthefront and back

absorber coils (Figure 2).

- Connect the female end of the 6” red spliced wire to the +12 V CB (circuit board) terminal

(Figure7).

- Routethe6” black spliced wire and attached 24” black wire betweenthefrontand back

absorber coils (Figure 2).

- Connect the female end of the 6” black spliced wire to the 12 VCOM CB ground terminal

(Figure7).

- Secureall wires so they donotcontact hot surfaces or sharpedgeson the condenser fins or

absorber coils. Use cable ties and adhesive mounting plates (figure 2) as described below.

- Use a cable tie to secure the 41” red wire, the 6” red wire, and the 24” black wire to the

pressurerelief valve(Figure5).

900 / 9100 / N600 / N800 Series

Side Wall Venting Components Required

For Assembly Kit Part Number 619020

QTY PART NUMBER DESCRIPTION

1.......618698b............. InstallationInstructions

2. .....61633330............ #8x 3/8”Thermostat MountingScrews

2......61581122............ #6x 11/4”Bracket Mounting Screws

2........618951.............. #8 x2” FanMountingScrews

1........618978.............. 6”RedQuickConnectSpliceWire #18 Gauge 4/64” Thermoplastic

Insulation

1........619017.............. 6”Black Quick connect Splice Wire #18 Gauge 4/64” Thermoplastic

Insulation

2........618950.............. Tie RapMountingPlate Adhesive Backed

1........619018.............. Fan Wiring Diagram Label

1........618699.............. 60” Red #18 GaugeWire w/4/64” PVC Insulation,w/Quick Connect

Terminals, w/DC Fuse Holder

1........618700.............. 24”Black#18 Gauge Wire w/4/64”PVCInsulation, w/Quick Connect

Terminals

1........618701.............. 41”Red #18 Gauge Wirew/4/64”PVC Insulation, w/ QuickConnect

Terminals

1........618856.............. 12 VDC Fan (Brushless .30 Amps)

1........618093.............. 12 VDC Thermostat (130 On / 115 Off)

1........619016.............. Fan Support Mounting Bracket(B)

1........618857.............. Fan Support Mounting Bracket(A)

4......61417922............ Cable Ties

1........619023.............. Package Label

1........619286.............. Thermostat Warning Note

5. Pullthe wires straight downfromthe thermostat and placeamounting plate about 12”down

fromthe condenser sothewires do nottouchthe condenser orthevertical tubing. Secure the

wiresto the mounting platewitha tie wrap. Place themountingplate under the sumpandto

theleftof the fan (Figure 2). Fold theexcesswireas shown. Tie the folded wires to the

mountingplate under thesumpwith a cabletieto prevent thewiresfrom moving byairflow.

Thisalso prevents excess wirefromgetting caught between thesideof the refrigerator and

theenclosure. Makesure the wires arepulledin tight between thetiewrap locations and that

thetie wraps are firmlysecured.

Therefrigerator is nowready for installation.

IMPORTANT: Install the refrigerator according to Norcold’s installation instructions.
