ZERO TURN 49” MOUNTING KIT INSTRUCTIONS
DEVELOPED BY NORDIC PLOW™
ASSEMBLY
TIPS
SAFETY
Read and understand the plow instructions,
Warranty & FAQ and Tips before use.
Scan the QRC instructional videos on the rst
page or watch the videos on our website before
use: www.nordicplow.com
Always instruct other users before they use
the plow.
OPERATION
Risk of Injury:
• Never allow children to handle the plow.
• Never allow anyone to walk beside or sit on
the plow when in use.
ª Never operate the plow over 2 to 3 mph.
Keep a slow steady speed.
• If you hit an obstruction, immediately stop
the vehicle and reverse direction.
STEP 2-4: Use Spacer (Part #39) on 3” wide frame
units. Use bolt (Part #35) to attach the bracket when
possible, but we have included a longer bolt (Part #34)
if needed. This assembly must be tightened securely
to the frame before use.
STEP 5: Foot Pedal Bracket (Part #57) can be placed on
either side of the hitch as preferred by operator.
STEP 8: Using bolt (Part #31) and locknut (Part #22)
attach (Part #48) and (Part #50) to the 4th hole from the
top of (part #51).
STEP 9: Insert hitch (Part #55) into hitch receiver (Part
#56). Before attaching bolts to Boot Plate (Part #52),
measure the axle hole so it is 7” (178mm) above the
ground as shown in step 11.
STEP 10: Attach (Part #47) into the set of holes that
will line up with the same side the foot pedal is on as
determined in Step 5.
STEP 11: Slide spacers (Part #40 & 41) onto the axle
(Part #47) and in between the boot plates (Part #52) and
Spring Pivot Bracket (Part #10) as shown.
STEP 12: Adjust the foot pedal to the desired height
by raising and lowering (Part #51). The higher you raise
(Part #51), the more chain you will need and the higher
the plow blade will lift. Bottom image shows a method
to lock the blade in the up position while traveling.
1-888-662-7569 (PLOW)
771 W. North Avenue West Chicago, IL 60185
www.nordicplow.com
INSTRUCTIONS FAQS& TIPS
2

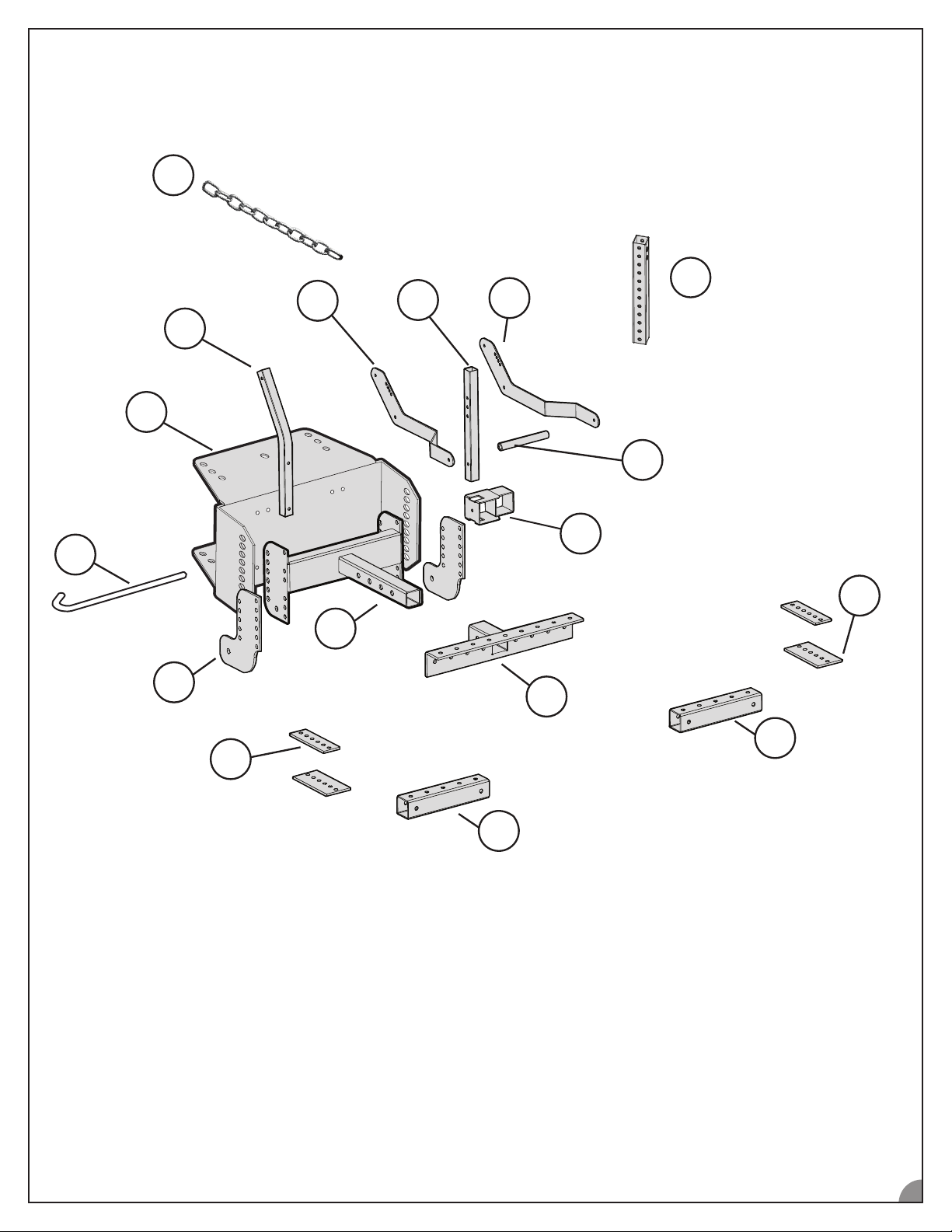

27671
x1
27665
x2
27683
x2
27670
x2
67803
x1
27663
x2
27663
x2
27966
x1
27673
x1
27666
x 1
27675
x1
67963
x 1
67965
x1
27672
x1
C-24900
x1
27674
x1
720116
x1
46
55
52
53
59
59
56
57
58
10
47
48 49 50
44
54
51
3
4
1”
2”
3”
4”
1”
2”
3”
4”
1/2”1/4” 3/8”
21
20
43088
x6
46978
x2
22
1509-90
x4
H-61205
x1
47189
x5
32
712-3083
x1
40
41
47398
x2
44
C-24900
x1
45
9565K14
x1
42
43
C-18769
X 1
WL4X175ORND-22
X 2
28
43343
x2
33
17W10041
x2
30
H-11206
x2
31
43001
x6
43070
x16
44072
x16
36
38 39
37
54776
x10
54883
x6
35
34
13RS150051
x4
56
59
59
X
35
38
37
54
53
39
39
54
53
39
39
34
38
37
37
39
39
34
38
1
2
3
5
55
43
43
28 43
55
38
37
34
39
57
22
30
51
39
20 22
30
49
22
51
30
4 5
6 7
6
45
36
19
20
43
44
20
20
33
31
22
22
31
32 20
48
20
22
31
50
22
58
51
31
44
9
52
52 37
37
52
38
38
36
36
8
9
7
10
8
30
20
21
47
10
40
46 41
28 46
46
28
7” (178mm)
11
9
42
42
12
10
