Novus NV-KBD30 Bedienungsanleitung

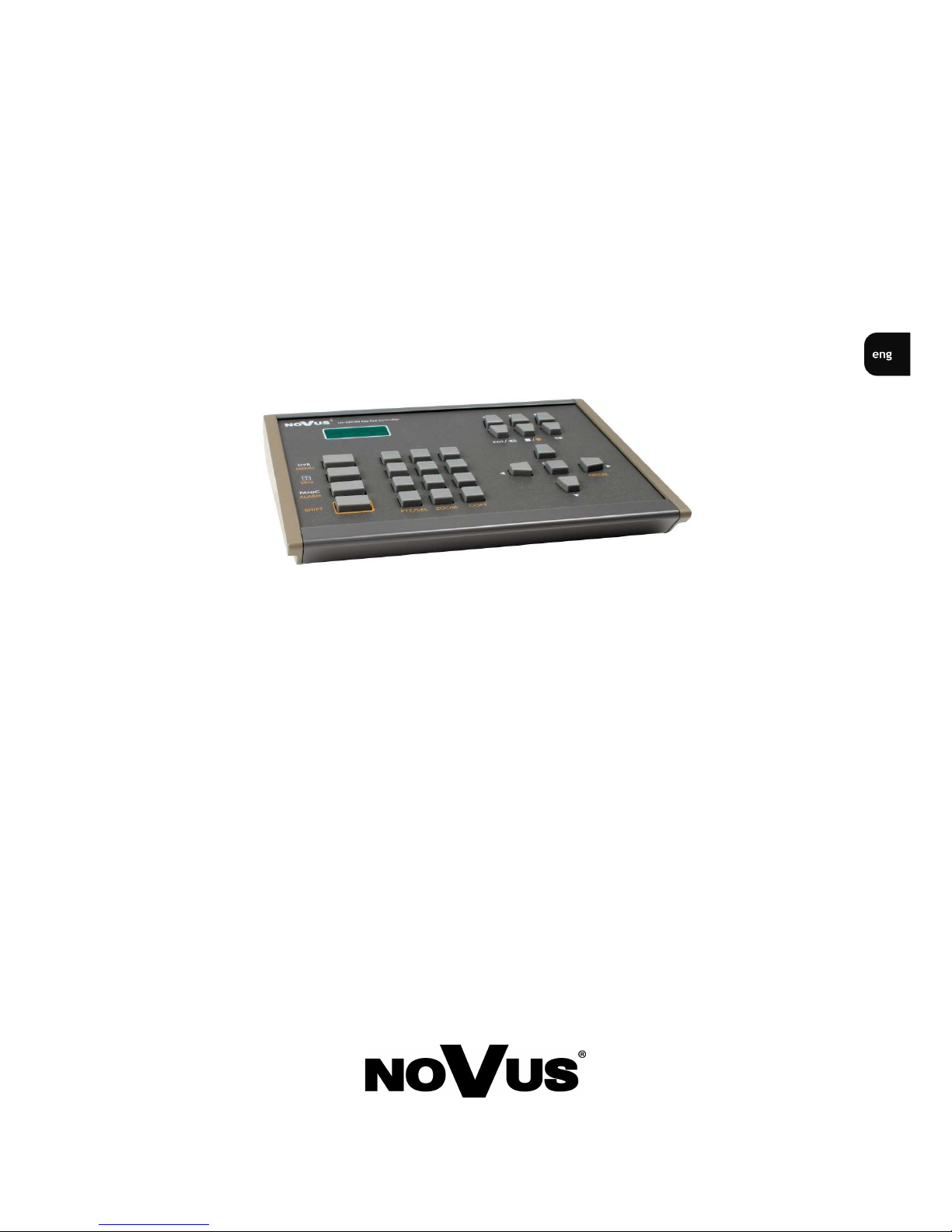

NV-KBD30

U s e r ’s m anual

NV-KBD30 ver. 2.0 - User’s manual

INFORMATION

EMC (2004/108/EC) and LVD (2006/95/EC ) Dire tives

CE Marking

Our products are manufactured to comply with requirements of following directives and national regulations

implementing the directives:

•

Electromagnetic compatibility EMC 200 /108/EC.

•

Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical equipment

designed for use with a voltage rating of between 50VAC and 1000VAC as well as 75VDC and 1500VDC.

WEEE Dire tive 2002/96/EC

Information for users who want to get rid of ele tri al and ele troni applian es

This product is marked according to the European Directive on Waste Electrical and Electronic

Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of

correctly, you will help to prevent potential negative consequences for the environment and

human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or the documents accompanying the product, indicates that this appliance

may not be treated as household waste. It shall be handed over to the applicable collection point for the

waste electrical and electronic equipment for recycling purpose. For more information about recycling

of this product, please contact your local authorities, your household waste disposal service or the shop

where you purchased the product.

RoHS Dire tive 2002/95/EC

Information on erning limitation of the use of dangerous substan es in the ele tri al

and ele troni applian es.

Out of concern for human health protection and friendly environment, we assure that our

products falling under RoHS Directive regulations, regarding the restriction of the use of hazardous

substances in electrical and electronic equipment, have been designed and manufactured in compliance

with the above mentioned regulation. Simultaneously, we claim that our products have been tested and

do not contain hazardous substances whose exceeding limits could have negative impact on human

health or natural environment.

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed

for self installation in households by individuals without technical knowledge.

The manufacturer is not responsible for defects and damages resulting from improper or inconsistent

with user’s manual installation of the device in the system.

NV-KBD30 ver. 2.0 - User’s manual

SAFETY REQUIREMENTS

1. Prior to undertaking any action please consult the following manual and read all the

safety and operating instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual

is necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a

direct influence on user’s safety as well as durability and reliability of the device;

. All actions conducted by the servicemen and users must be accomplished in accordance with the

user’s manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer

is forbidden;

7. Device should be supplied only from a power sources whose parameters are in accordance with

those specified by the producer in the keyboard’s technical datasheet. Therefore, it is forbidden to

supply the keyboard from a power sources with unknown parameters, unstable or not meeting

producer’s requirements;

8. Signal cables should be placed in a way excluding the possibility of damaging them by accident.

Special attention must be paid to cables getting from the keyboard and connecting the power supply;

9. Electric installation supplying the device should be designed to meet the specifications given by

the producer in such a way that overloading is impossible;

10. User cannot repair or upgrade the equipment himself. All maintenance actions and repairs should

be conducted only by qualified service personnel;

11. Unplug the keyboard from the power source immediately and contact the proper maintenance

department in case of:

♦ Damages to the power cord or to the plug itself;

♦ Liquids getting inside the device or exposure to strong mechanical shock;

♦ Device behaves in a way not described in the manual and all adjustments approved by the

manufacturer and possible to apply by user himself, seem not to have any effect;

♦ Keyboard is damaged;

♦ Atypical behaviour of the keyboard components may be seen (heard).

12. In necessity of repairs attention to using only original replacement parts (with their parameters

in accordance with those specified by the producer) should be paid. Non-licensed service and

non-genuine replacement parts may cause fire or electrocution;

13. After maintenance activities tests should be run to ensure proper operation of all the functional

components of the device.

Warning!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT PROVISIONED FOR THE GIVEN

PRODUCT IN ITS USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE

PRODUCT, OR THAT ARISES FROM THE NORMAL APPLICATION OF THE PRODUCT, ITS

MANUFACTURER MUST BE CONTACTED OR THE RESPONSIBILITY OF THE

MANUFACTURER FOR THE RESULTS OF SUCH AN ACTION SHALL BE EXCLUDED.

Information

Data included in the following user’s manual is up to date at the time of printing.

Novus Security Sp z o.o. holds exclusive rights to modify this manual. The producer reserves the

rights for device specification modification and change in the design without prior notice.

SAFETY REQUIREMENTS

NV-KBD30 ver. 2.0 - User’s manual

1. FOREWORD INFORMATION ............................................................................................ ..5

1.1 General characteristics ........................................................................................................ 5

1.2 Technical specification..................................................................................................... ...6

2. PACKAGE CONTENTS .......................................................................................................... 7

3. KEYBOARD OVERVIEW....................................................................................................... 8

3.1. Front panel description ...................................................................................................... 8

3.2. LED display overview ....................................................................................................... 8

3.3. Back panel description....................................................................................................... 9

4. CONNECTING DIGITAl RECORDERS AND KEYBOARD............................................ 10

.1 Connecting keyboards and NV-DVR101 DVRs............................................................ 11

.2. Connecting keyboards and NV-DVR1100 series DVRs.................................................. 16

.3. Connecting keyboards and NV-DVR1200 series DVRs.................................................. 21

. . Connecting keyboards and NV-DVR 500 and NV-DVR 600 series DVRs................... 26

.5. Connecting keyboards and NV-DVR5000 and NV-DVR5500 series DVRs................... 32

.6. Connecting keyboards and NV-DVR5100 series DVRs.................................................. 38

.7 Connecting keyboards and NV-DVR5800 DVRs............................................................

.8. Connecting keyboards and NDR-HA210 DVRs............................................................ 50

5. USING THE KEYBOARD ..................................................................................................... 56

5.1. Operating the keyboard ................................................................................................... 56

5.2. Keyboard configuration................................................................................................... 57

TABLE OF CONTENTS

NV-KBD30 ver. 2.0 - User’s manual

1. FOREWORD INFORMATION

The NV-KBD30 NOVUS keyboard is a product for professional use in security systems applications.

The keyboard is used to remotely control the following Novus digital recorders:

−

NV-DVR101

−

NV-DVR1108, NV-DVR1116, including (S) version

−

NV-DVR1208, NV-DVR1216

−

NV-DVR 508, NV-DVR 516 including (S) version

−

NV-DVR 608, NV-DVR 616

−

NV-DVR5009, NV-DVR5016

−

NV-DVR5108, NV-DVR5116 including (S) version

−

NV-DVR5508, NV-DVR5516 including (S) version

−

NV-DVR5816,

−

NDR-HA210 ,

Due to utilisation of RS- 85 standard KBD-30 keyboard may be up to 1200m away from the

controlled DVR.

1.1 General hara teristi s

−

Keyboard designed for remote control of NOVUS digital video recorderss.

−

Novus-D1, Novus-D2, Novus-D3, N-Control DVR control protocols implemented

−

27 multifunction keys

−

LED display: characters

−

Power supply: 9 VDC

FOREWORD INFORMATION

NV-KBD30 ver. 2.0 - User’s manual

TECHNICAL SPECIFICATION

1.2. Te hni al spe ifi ation

Equipment onne tion

NOVUS digital video recorders:

− NV-DVR101 ,

− 1100 (including (S) version),

− 1200,

− 500 (including (S) version),

− 600,

− 5000,

− 5100 (including (S) version),

− 5500 (including (S) version),

− 5800,

− NDR-HA210

(connection up to 9 devices possible)

DVR proto ols Novus-D1, Novus-D2, Novus-D3, N-Control

Keys 27, multifunctional

Display LED, characters

External ports RS- 85 DVR remote controlling port (RJ- 5 plug)

Power supply 9 VDC

Power onsumption 2,5 W

Operating temperature 5°C ~ 0°C

Dimensions (mm) 220 (W) x 56 (H) x 180 (L)

Weight 0,8 kg

NV-KBD30 ver. 2.0 - User’s manual

2. PACKAGE CONTENTS

Please unpack the device carefully.

After unpacking please ensure that package contains the following items.

If any of the listed equipment has been damaged during transport or if package is incomplete, the

contents of package should be packed back to the original box. Contact local NOVUS distributor for

further assistance.

WARNING !

If the devi e was brought in from an area with lower ambient temperature, please wait for the

devi e to rea h urrent ambient temperature. Please do not power on the devi e immediately

after bringing it from a older pla e. Water vapor ondensation may ause short- ir uits and

damage to the devi e as a result.

PACKAGE CONTENTS

1x RJ- 5 cable

1x user’s manual

1x NV-KBD30 keyboard

2x junction box

KBD30

i n s t r u k c j a o b s ł u g i

NV-KBD30 ver. 2.0 - User’s manual

KEYBOARD OVERVIEW

3. KEYBOARD OVERVIEW

3.1. Front panel

3.2. LED display overview

1. Keyboard operating modes :

- DVR controlling mode ; - keyboard configuration mode

2. DVR ID number

3. Numerical keys pressed by user.

LED display Numerical and function keys

1 2 3

NV-KBD30 ver. 2.0 - User’s manual

KEYBOARD OVERVIEW

3.3. Ba k panel des ription

Rear panel view.

RJ- 5 for connecting the DVR

Pin descrpition:

1 -

2 -

3 -

- RS- 85 (-)

5 - RS- 85 (+)

6 -

7 -

8 -

Power supply socket

Polarisation:

+ 9V DC in the middle pin

NV-KBD30 ver. 2.0 - User’s manual

CONNECTING DIGITAL RECORDERS AND KEYBOARD

4. CONNECTING DIGITAL RECORDERS AND KEYBOARD

To create a properly working system, please connect the keyboard with the DVR (or DVRs) and

configure both the keyboard and DVRs appropriately. Please use UTP cat.5 cable to connect the

devices. When needed, keyboard can be connected to UTP line using telephone mounting box and

included connector. Please doublecheck the assignment of particular wires in the RJ- 5 connector

using the ohmmeter.

WARNING: Daisy hain onne tion topology needs to be stri tly followed when using

aforementioned onne tion. One line (up to 1200m) with additional short taps (up to 1,5m) is

possible using this method. When using star topology please use a tive proto ol distributor, e.g.

NVPT-016DD.

The following pages contain schemes of connections between keyboard and various series of NOVUS

DVRs, with additional descriptions of keyboard and DVR settings.
