NTI XTENDEX USB3ONLY-2FOLC Series Bedienungsanleitung
MAN382 Rev Date 7/21/20
USB3ONLY-2FOLC9
USB 3.0 Device Extender via
Single-Mode Fiber
Installation and Operation Manual
XTENDEX®Series
Local Unit
(Transmitter)
R
emote Unit
(Receiver)
TRADEMARK
XTENDEX is a registered trademark of Network Technologies Inc in the U.S. and other countries.
COPYRIGHT
Copyright © 2020 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the
right to make changes in the product design without reservation and without notification to its users.
NTI USB 3.0 EXTENDER VIA DUPLEX SINGLE-MODE FIBER
1
INTRODUCTION
USB3ONLY-2FOLC9 USB 3.0 extender provides the ability to extend the distance of your USB 3.0 (5 Gbps) device up to 350
meters (1148 feet) over LC Duplex Single mode fiber optic cables. The Receiver unit also supports USB Type-C devices using a
conversion cable. It overcomes the copper USB cable length limitation without EMI concerns, making it ideal for sensitive
environments. This system is Plug-and-Play without having to install software or drivers offering a fast and easy solution for home,
campus or business applications.
Features
Extends a long distance USB 3.0 (5Gbps) connection up to 350 m (using single mode fiber).
Supports Type-C conversion cable at the Receiver unit.
Plug-and-play, no driver or software required.
Supports all USB 3.0 devices.
Compatible with Windows 7,8,8.1 and 10, MacOS 10.x (and above) and Linux.
Compatible with other NTI/VPI Products:
oUSB3-AA-xx-MM-K
oUSB3-AC-1M-K
oUSB3-AFAF
Not backwards compatible with USB 2.0/1.1.
MATERIALS
Materials supplied with this kit:
NTI XTENDEX Transmitter and Receiver
100-240VAC, 50 or 60Hz-5VDC/3A AC Adapter
Multi-Country Power Plug Connectors (EU, UK, AU and US)
USB 3 Type Micro B-to-USB 3 Type A Male 21 Inch (540mm) cable
URL slip with location of This manual
Materials Not supplied but REQUIRED:
Up to 350 meters (1148 feet) of LC Duplex Single mode Fiber Optic Cable
NTI USB 3.0 EXTENDER VIA DUPLEX SINGLE-MODE FIBER
2

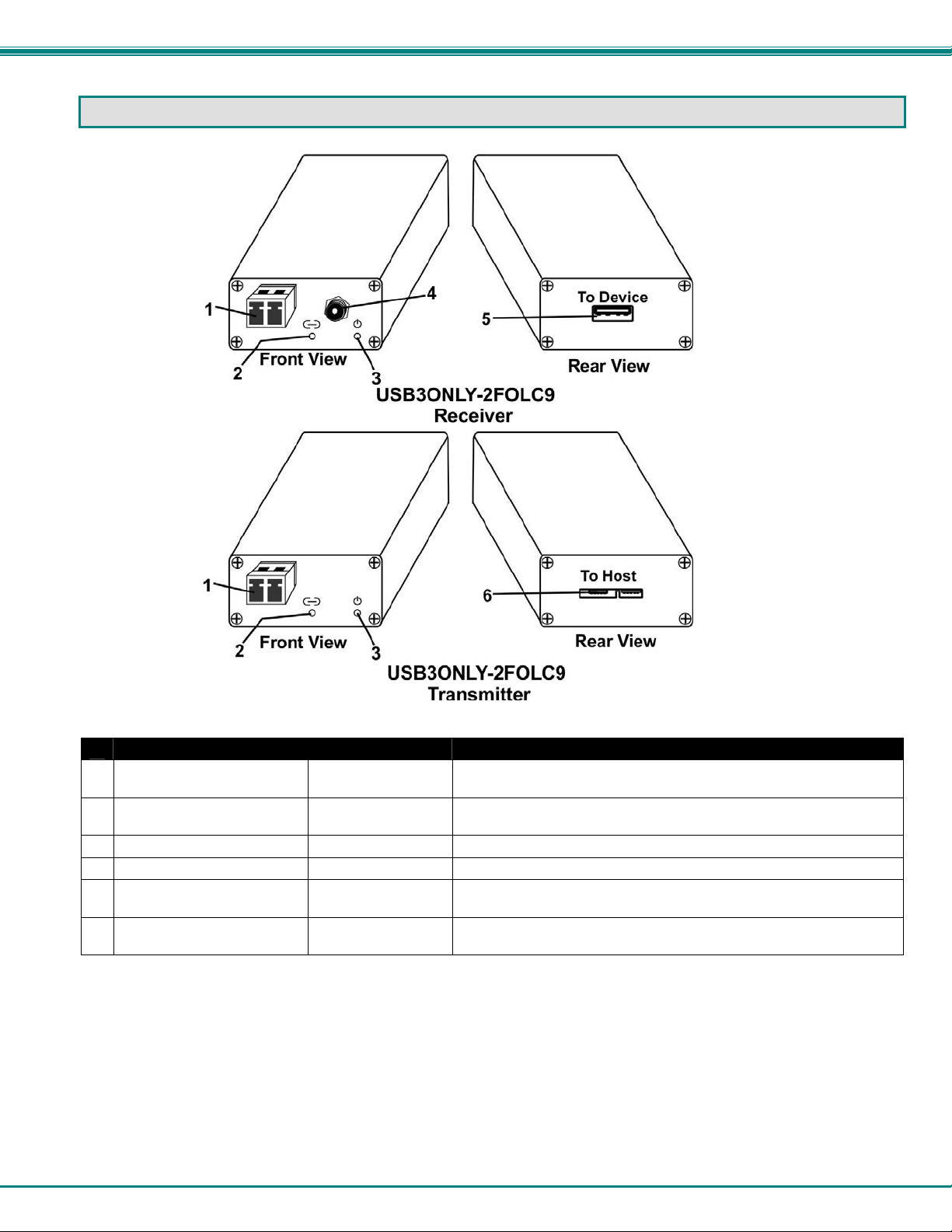

FEATURES AND FUNCTIONS
# LABEL CONNECTOR/LED DESCRIPTION
1 None Fiber Optic
Transceiver For connection of Type LC Duplex Single mode fiber cable to go
between the Transmitter and Receiver
2 Link symbol LED Indicate when connection between Transmitter and Receiver has
been established.
3 Power symbol LED Indicate when power has been applied
4 None Power Jack for connection of power supply
5 To Device USB 3.0 Type A
connector For connection of extended USB 3.0 device
6 To Host USB 3.0 Type Micro
B connector For connection of USB 3.0 cable to host
NTI USB 3.0 EXTENDER VIA DUPLEX SINGLE-MODE FIBER
3

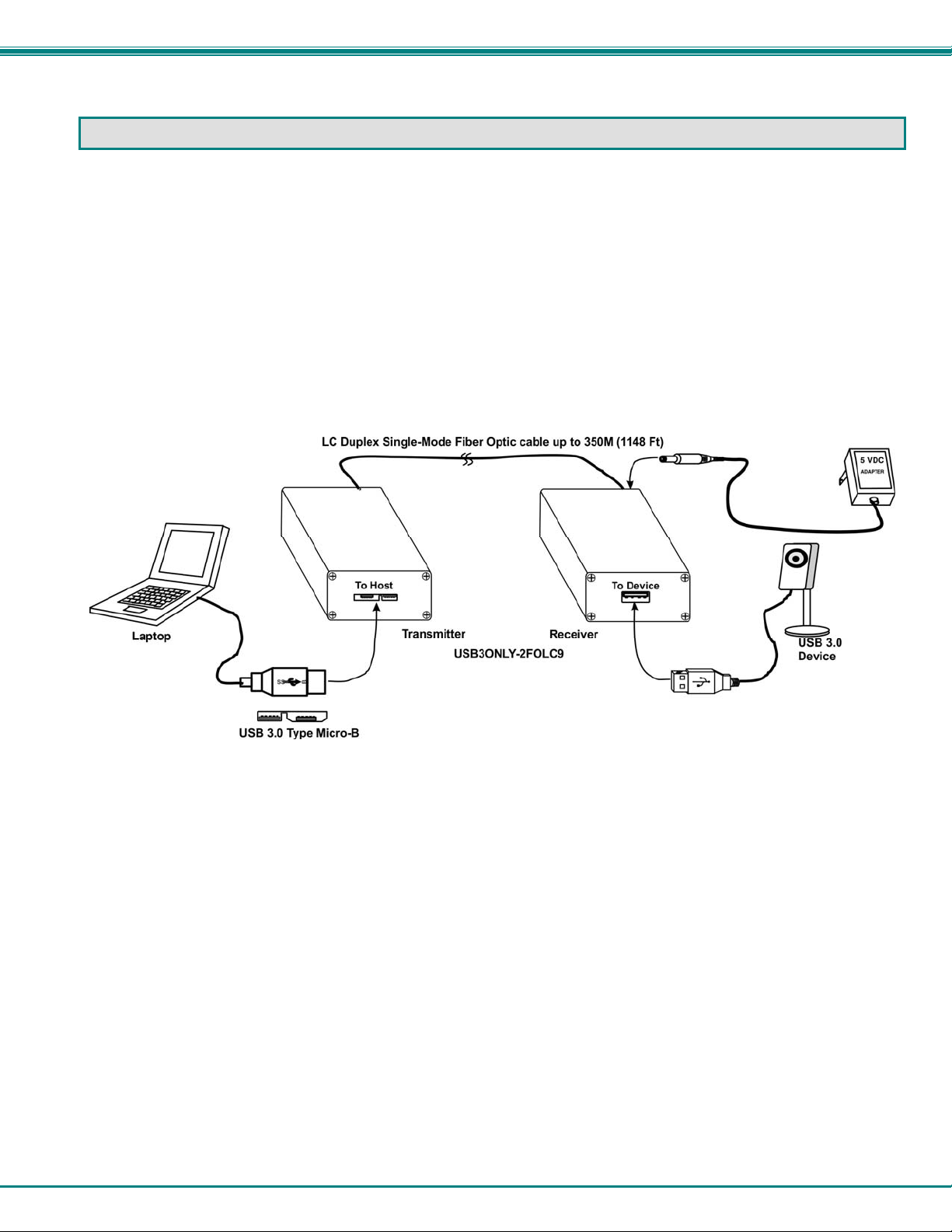

CONNECTIONS
1. Connect a LC Duplex Single-Mode Fiber cable up to 350 meters (1148 feet) long between the fiber connector on the
Transmitter and the fiber connector on the Receiver.
2. Connect the USB 3.0 device to the Receiver.
3. Connect the 5VDC AC adapter between a power source and the Receiver.
4. Connect the Host to the Transmitter with the USB 3.0 Type Micro B-to-USB Type A cable provided. The Transmitter will be
powered by the Host.
Once everything is connected, the power LED and the link LED should each illuminate.
NTI USB 3.0 EXTENDER VIA DUPLEX SINGLE-MODE FIBER
4
TECHNICAL SPECIFICATIONS
USB Version supported USB 3.0 and later
Input Port USB 3.0 Type Micro-B
Output Port USB 3.0 Type A
Speed SuperSpeed 5 Gbps
Supported OS Windows 7,8,8.1 and 10; MacOS 10.x and above; Linux
Extension Distance 1148 Feet (350 meters)
Fiber cable supported LC Duplex Single-Mode
Supported USB Devices USB 3.0 Flash Drive, USB 3.0 Type-C phone or tablet, etc.
Operating Temperatures 32 to 122˚F (0 to 50˚C)
Operating Humidity 20 ~ 80%
Power Supply 100-240VAC, 50 or 60Hz-5VDC/3A AC Adapter with Multi-country adapters (EU, UK, AU and US)
Size (In.) WxDxH 2.24 x 4.13 x 1.10 In. (Transmitter and Receiver)
Approvals CE, RoHS, FCC
Not backwards compatible with USB 2.0/1.1.
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com for
information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
MAN382 Rev. 7/22/20
