SPECIFICATION SHEET

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

70D 99042716D

Provides high ventilation and durable contruction

to meet the needs of professional-style home

cooking appliances.

Note: A complete installation requires several optional

components. (See back for system diagram.)

FEATURES

•Widths

- 30” to 48” in 6” increments

•Finishes

- Stainless Steel (type 430, 22 ga., #4 brush)

- Appliance colors in White, Black, and Biscuit (22 ga.

Galvanneal)

•Filters

 - Aluminumgreaseltersaredishwashersafe

 - Bafeltersavailable

•Lamps

- Halogen lamps (120V, 50W, PAR20)

  2for30”&36”widehood,3for42”&48”hoods

(Purchase separately)

 - Dualinfraredfoodwarminglamps(120V,IR175W,

PAR38) (Purchase separately)

- Warminglampscanbereplacedwith90Whalogen

 whitelamps(120V,90W,PAR38)

•Controls

 - Solid-State,innite-speedblowercontrolwithspeed

memory

 - Exclusive,HeatSentryTM-turnsblowerONtoHIGH

 speedwhenexcessheatisdetected

• RMPSeriesBacksplash(Optional)

 - 30”to48”widthsin6”increments

 - StainlessSteelconstruction-protectsbackwalland

 wipescleaneasily

 - Two,dual-positionfoodwarming/condimentstorage

shelves

• ModelRBFBafeFilters(Optional)

 - StainlessSteelconstructionforeasycleaning

SPECIFICATIONS

Volts Hz Amps (without blower)

120 60 4.2(42”&48”hoods)

  3.75(30”&36”hoods)

64000 SERIES

RANGE HOOD

Broan-NuTone LLC, 926WestStateStreet,Hartford,WI53027(1-800-637-1453)

Intended for

domestic

cooking only.

HL0070

RMP Series Backsplash

(Stainless Steel wall

covering with warming

shelves. Optional)

Model 418

10” round

adjustable elbow

(optional)

Model 412

transition

(31/4” x 10” to 7”)

Adapter and damper 31/4” x 10”

(supplied with P5 and P8 blowers)

Adapter and damper 31/4’’ x 14’’

(supplied with P8 blower)

Standard duct

(31/4” x 10”)

Duct

(31/4” x 14”)

Model P5

single-blower

(500 cfm)

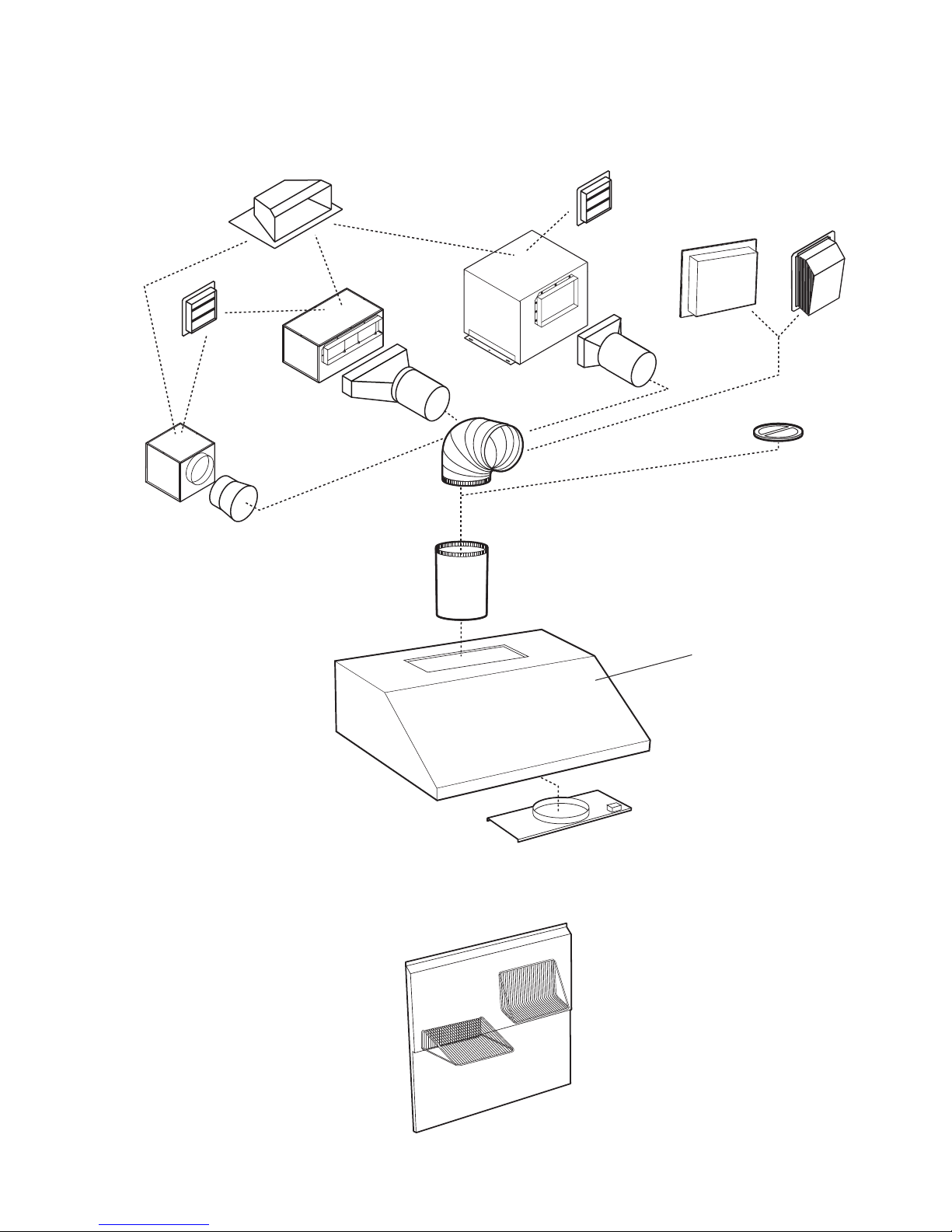

64000 SERIES HOOD

-64000 SERIES RANGE HOOD SYSTEM -

INTERIOR BLOWERS

Flow deviator

(vertical exhaust only)

(supplied with P5 and P8 blowers)

Model 647

(7” Rd wall cap)

Model 634 or 644

(roof cap)

Model 643

(8” Rd wall cap)

8” round

standard

duct

Model 407

(7” round -

2 ft. sections)

Model 413

transition

(31/4” x 10” to 8”)

Model 459 transition

(31/4” x 14” to 8”)

Model P8 dual-blower (900 cfm)

for use with 36’’ hoods or wider

NOTE: The dual blower P8 can be

installed either with 31/4’’ x 14’’ or

31/4’’ x 10’’ ducts. For optimal air

and quiet sound performance,

use 31/4’’ x 14’’ ducts.

Rough-in kit

(supplied with P5 and P8 blowers)

Model 415

7” round adjustable

elbow (optional)

HL0071

RMP Series Backsplash

(Stainless Steel wall

covering with warming

shelves. Optional)

64000 SERIES HOOD

-64000 SERIES RANGE HOOD SYSTEM -

IN-LINE AND EXTERIOR BLOWERS

332KR in-line and exterior blower

rough-in kit - Purchase separately.

Model 418

10” Rd

adjustable elbow

(optional)

Model HLB3 (280 cfm)

in-line blower

(includes one 8” to 10”

round transition)

Model 331H (600 cfm)

or 332H (900 cfm)

exterior blower

Model 335 (1200 cfm)

or 336 (1500 cfm)

exterior blower

Model 441

(10” Rd wall cap)

Model 437

(High capacity roof cap)

Model 441

(10” Rd wall cap)

Model 421

(10” Rd. vert.

in-line damper)

Recommended

for use with

exterior blowers

Model 410

(10” Rd duct -

2ft. sections)

Model HLB6 (600 cfm)

in-line blower

(includes two 4½” x 18½”

to 10’’ round transitions)

Model HLB9 (800 cfm)

or HLB11 (1100 cfm)

in-line blower

(includes two 8” x 12” to

10’’ round transitions)
