nVent CADDY
SMS8
Standard width
stud
Wider than standard
width stud
3b. Fold 1st
end up for
2-1/8" box
depth
4b. Fold 2nd
end up for
wider than
standard stud
5b. Position to wider
than standard stud
6. Install single
screw per side
(required)
nVent CADDY
SMS8
TSGB1624S
1. Separate
2. Assemble
3a. Fold ends up
for 2-1/8" box
depth
4a. Snap to stud
5a. Install single
screw per side
(required)
TECHNICAL SUPPORT:
www.nVent.com
CFS559_C
INSTRUCTION SHEET
1 OF 2
© 2017-2019 nVent All Rights Reserved
WARNING:
nVent products shall be installed and used only as indicated in nVent product instruction sheets and training materials. Instruction sheets are available at
1.
www.nVent.com
and from your nVent customer service representative.
nVent products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
2.
All instructions must be
completely
followed to ensure proper and safe installation and performance.
3.
Improper installation, misuse, misapplication or other failure to completely follow nVent's instructions and warnings may cause product malfunction, property
4.
damage, serious bodily injury and/or death, and void your warranty.
Products that are manufactured using spring steel components shall be used only in a non-corrosive indoor environment.
5.
All pipe supports, hangers, intermediate components and structural attachments must ONLY be used as described herein and are NEVER to be used for any
6.
other purpose.
NOTE: All load ratings are for static conditions and do not account for dynamic loading such as wind, water or seismic loads, unless otherwise noted.
The customer is responsible for:
a. Conformance to all governing codes.
b. The integrity of structures to which the products are attached, including their capability of safely accepting the loads imposed, as evaluated by a qualified
engineer.
c. Using appropriate industry standard hardware as noted above.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are
owned by nVent or its global affiliates. All other trademarks are the property of their respective owners. nVent reserves the
right to change specifications without prior notice.
Step 3
Step 4

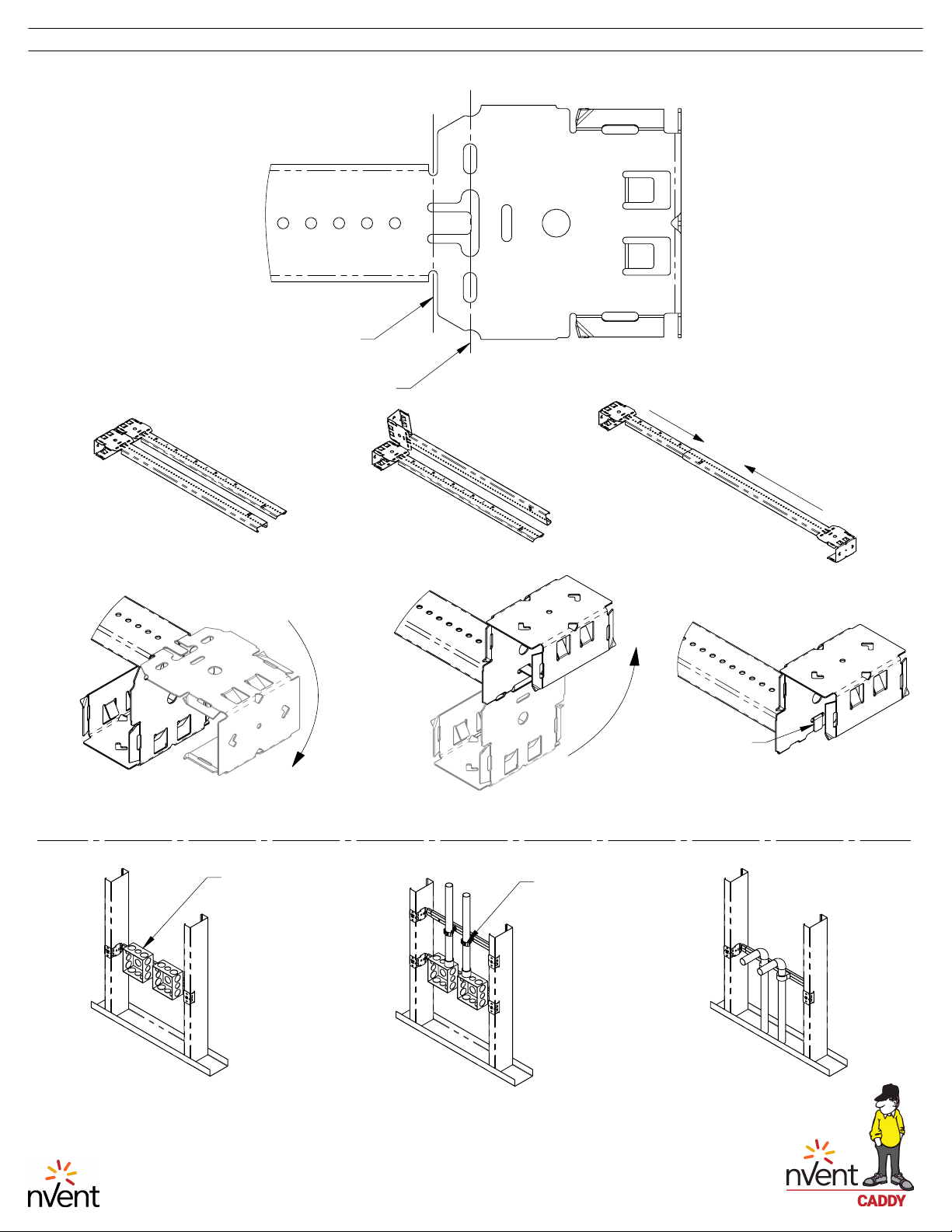

Bends for 1-1/2" deep box
Secure boxes with
nVent CADDY
SMS8 screws
Single/Multiple Box
nVent CADDY 812M
recommended
Conduit Support
Pipe Support
Retaining Tab
2. Assemble
1. Separate
TSGB1624S
5. Fold retaining
tab to secure
3. Fold snap-on
end back
4. Bend forward across 1-1/2"
bend line (see top image)
Example Applications
TECHNICAL SUPPORT:
www.nVent.com
CFS559_C
INSTRUCTION SHEET
2 OF 2
© 2017-2019 nVent All Rights Reserved
nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are
owned by nVent or its global affiliates. All other trademarks are the property of their respective owners. nVent reserves the
right to change specifications without prior notice.
