DEVKIT-S12G128

QUICK START GUIDE (QSG)

1EXTERNAL USE

Get to know the DEVKIT-S12G128

DEVKIT-S12G128

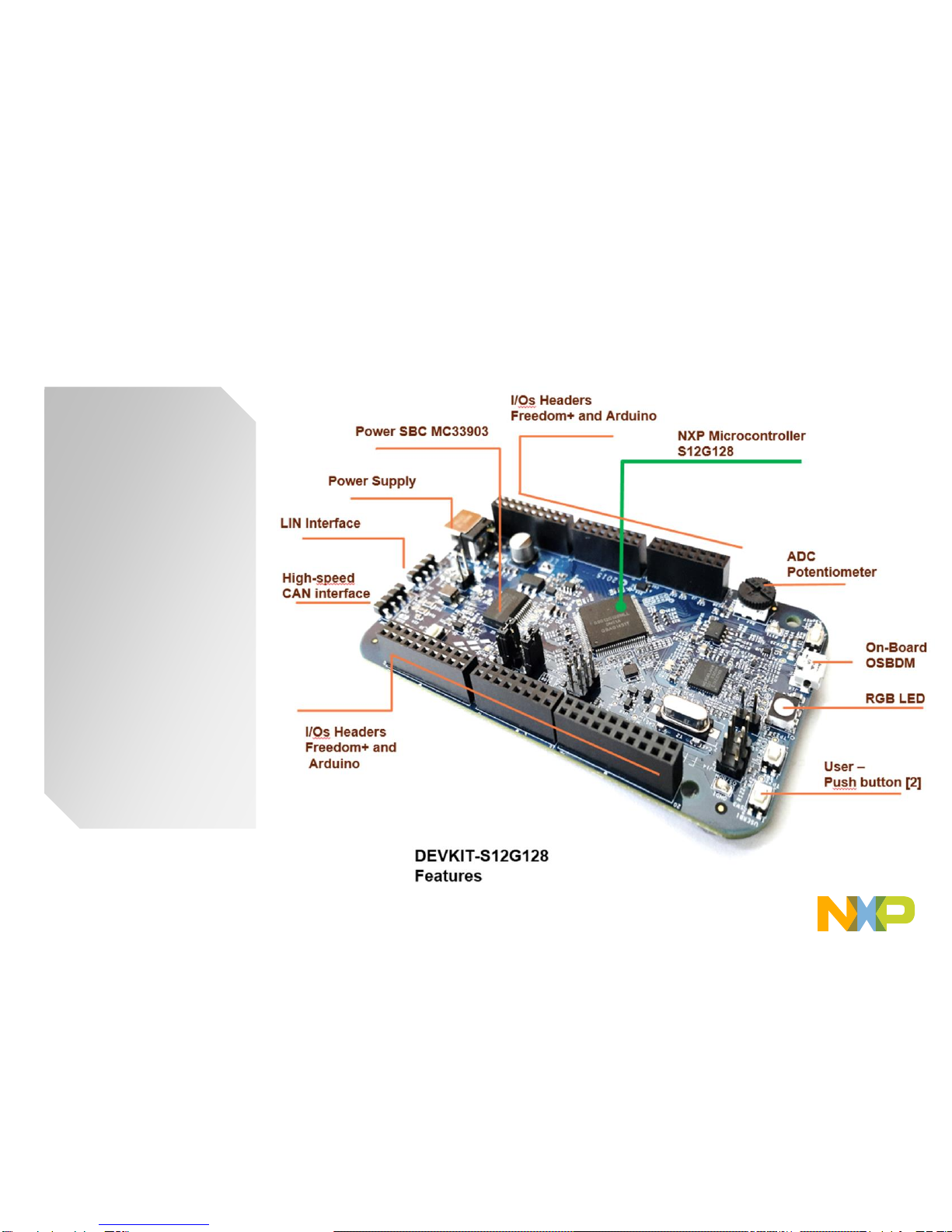

Features

The DEVKIT-S12G128

is an ultra-low-cost

development platform

for S12

Microcontrollers.

Features include easy

access to all MCU

I/O´s, a standard-

based form factor

compatible with the

Arduino™ pin layout,

providing a broad

range of expansion

board options, and an

USB serial port

interface for connection

to the IDE, the board

has option to be

powered via USB or an

external power supply.

2EXTERNAL USE

Power Supply and Communications

DESCRIPTION NAME PIN

CANH

CANL

VBAT

GND

DESCRIPTION

NAME

LIN

J12

VBAT

J12

GND

J12

DESCRIPTION

NAME

VBAT

GND

High-speed CAN interface

3EXTERNAL USE

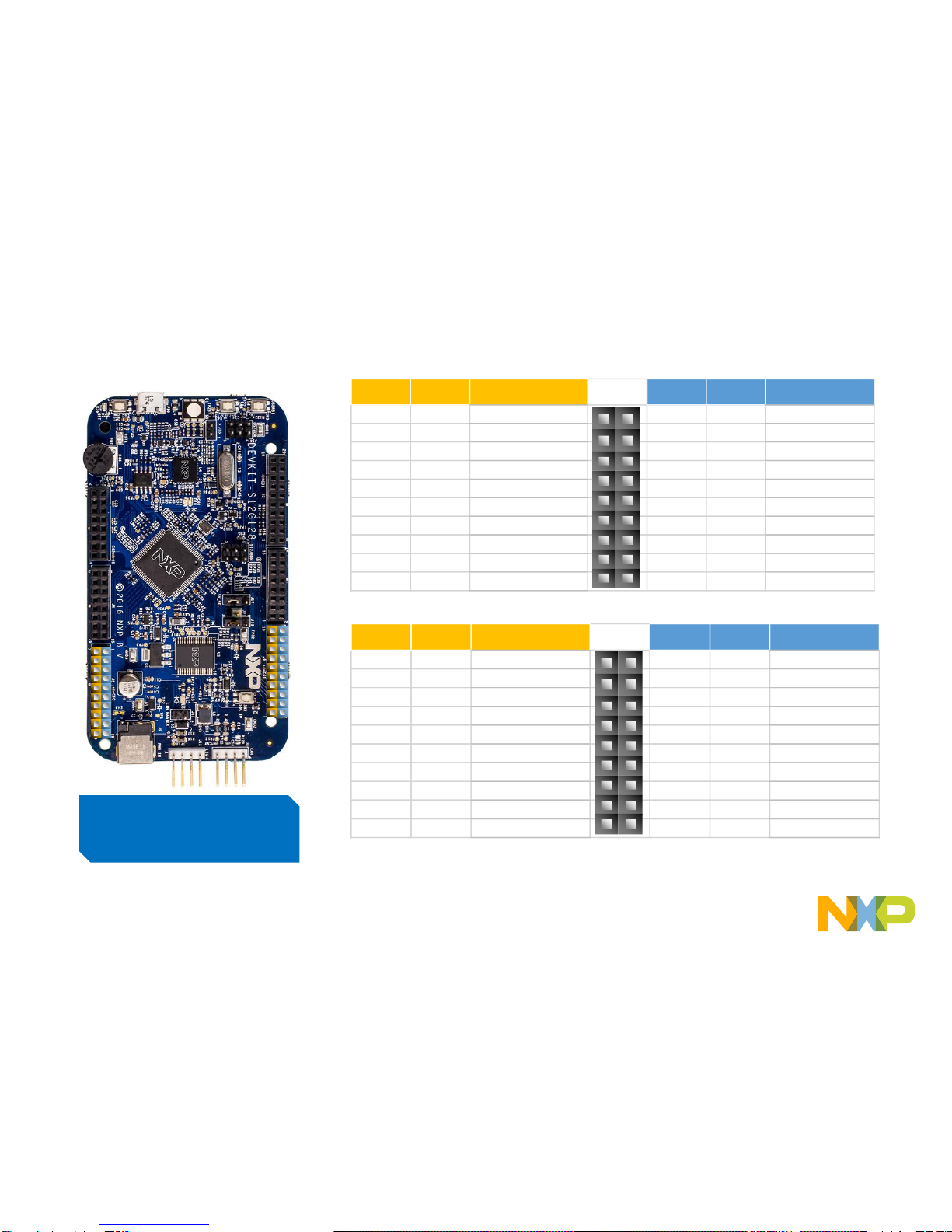

Input/Output Connectors

Arduino Compatibility

The internal rows of the I/O headers on

the DEVKIT-S12G128 are arranged to

fulfill Arduino™ shields compatibility .

PIN PORT FUNCTION J1 PIN PORT FUNCTION

J1-01 PS0

RXD0 J1-02 PA0 GPIO

J1-03 PS1

TXD0 J1-04 PA1 GPIO

J1-05 PP7

PWM7 J1-06 PA2 GPIO

J1-07 PP6

PWM6 J1-08 PA3 GPIO

J1-09 PP5

PWM5 J1-10 PA4 GPIO

J1-11 PP4

PWM4 J1-12 PA5 GPIO

J1-13 PP3

PWM3 J1-14 PA6 GPIO

J1-15 PP2

PWM2 J1-16 PA7 GPIO

PIN PORT FUNCTION J2 PIN PORT FUNCTION

J2-01 PP1

PWM1 J2-02 PT0 IOC

J2-03 PP0

PWM0 J2-04 PT1 IOC

J2-05 PP5/PJ7

PWM5 / SPI_SS2 J2-06 PT2 IOC

J2-07 PP2/PJ5

PWM2 / SPI_M0SI2 J2-08 PT3 IOC

J2-09 PJ4

SPI_MISO2 J2-10 PT4 IOC

J2-11 PJ6

SPI_SCK2 J2-12 PT5 IOC

J2-13 GND

GND J2-14 PB0 GPIO

J2-15 AREF

AREF J2-16 PB1 GPIO

J2-17 PB7

GPIO J2-18 PB2 GPIO

J2-19 PB6

GPIO J2-20 PB3 GPIO

4EXTERNAL USE

Input/Output Connectors

Arduino Compatibility

The internal rows of the I/O headers on

the DEVKIT-S12G128 are arranged to

fulfill Arduino™ shields compatibility .

PIN PORT FUNCTION J4 PIN PORT FUNCTION

J4-02 PD7

GPIO J4-01 PAD0 ADC0

J4-04 PD6

GPIO J4-03 PAD1 ADC1

J4-06 PD5

GPIO J4-05 PAD2 ADC2

J4-08 PD4

GPIO J4-07 PAD3 ADC3

J4-10 PD3

GPIO J4-09 PAD4 ADC4

J4-12 PD2

GPIO J4-11 PAD5 ADC5

J4-14 PD1

GPIO J4-13 PAD6 ADC6

J4-16 PD0

GPIO J4-15 PAD7 ADC7

PIN PORT FUNCTION J3 PIN PORT FUNCTION

J3-02 PE1

XTAL J3-01 VIN

J3-04 PE0

EXTAL J3-03 VDD

J3-06 PS6

SPI_SCK0 J3-05 RESET

J3-08 PS5

SPI_M0SI0 J3-07 P3V3

J3-10 PS4

SPI_MISO0 J3-09 P5V0

J3-12 PS7

SPI_SS0 J3-11 GND

J3-14 PB4

GPIO J3-13 GND

J3-16 PB5

GPIO J3-15 VIN

5EXTERNAL USE

Input/Output Connectors

Arduino Compatibility

The internal rows of the I/O headers on

the DEVKIT-S12G128 are arranged to

fulfill Arduino™ shields compatibility .

PIN PORT FUNCTION J5 PIN PORT FUNCTION

J5-02 PC0

GPIO J5-01 PAD8 ADC8

J5-04 PC1

GPIO J5-03 PAD9 ADC9

J5-06 PC2

GPIO J5-05 PAD10 ADC10

J5-08 PC3

GPIO J5-07 PAD11 ADC11

J5-10 VDD

VDD J5-09 PAD12 ADC12

J5-12 GND

GND J5-11 PAD13 ADC13

J5-14 PC4

GPIO J5-13 PAD14 ADC14

J5-16 PC5

GPIO J5-15 PAD15 ADC15

J5-18 PC6

GPIO J5-17 NC NC

J5-20 PC7

GPIO J5-19 SBC_SAFE

PIN PORT FUNCTION J6 PIN PORT FUNCTION

J6-19 NC

NC J6-20 NC NC

J6-17 NC

NC J6-18 NC NC

J6-15 PS3

TXD1 J6-16 NC NC

J6-13 PS2

RDX1 J6-14 NC NC

J6-11 PM3

LINTX J6-12 GND GND

J6-09 PM2

LINRX J6-10 VDD VDD

J6-07 NC

NC J6-08 PM0 CANRX

J6-05 NC

NC J6-06 PM1 CANTX

J6-03 PJ1

SPI_MOSI J6-04 PJ3 SPI_CS

J6-01 PJ2

SPI_SCK J6-02 PJ0 SPI_MISO

6EXTERNAL USE

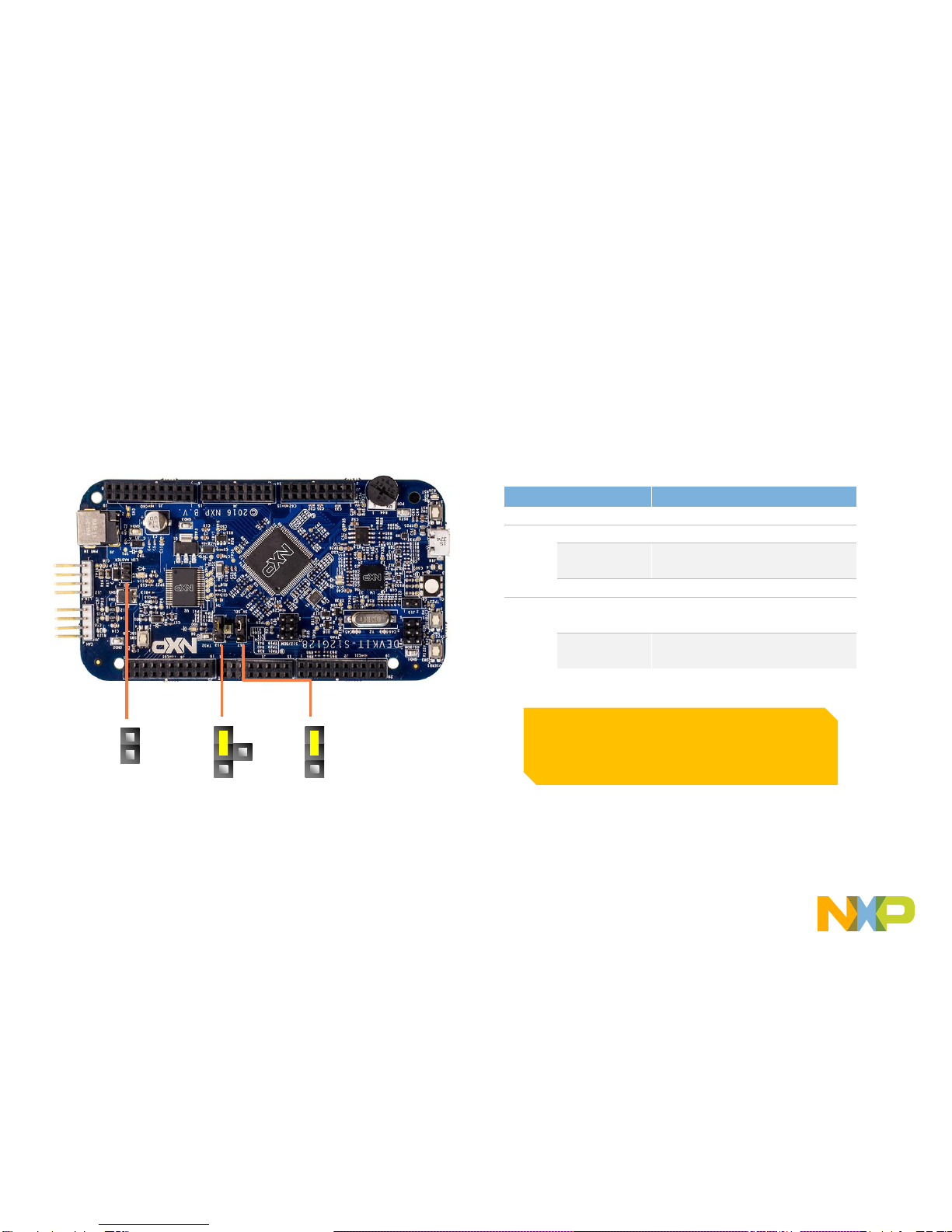

Default jumpers

REF POSITION DESCRIPTION

J11 OPEN

Enable

LIN Master mode

J13 1 - 2

VDD Power MCU linked

to 3.3V

2 –3

[DEFAULT]

VDD Power MCU linked

to 5.0V

2 - JP1

VDD

Power MCU linked to USB

J17 1 - 2

P5V0 reference is linked to

P5V_SWUSB

2 –3

[DEFAULT]

P5V0 reference is linked to

P5V_SBC

J11 J13 J17 CAUTION:

When powered from the USB bus, do not exceed the

500mA maximum allowable current drain. Damage to

the target board or host PC may result.

7EXTERNAL USE

Programming interface and User Peripherals

REFERENCE MCU

PORT DESCRIPTION

Potentiometer

R44

AN0

Rotary

Potentiometer

Push

Button

SW5

PWRSBC

SW2

RESET

SW3

PT6

SW4

PT7

LED

PWRSBC

GREEN LED power Indicator

RESET

RESET LED

indicator

RGB

PP3

User LED

PP4

User LED

PP6

User LED

Programming and

Debug Interface

J16

-board JTAG connection via

open source

OSBDM circuit using the

MC9S08JM60

microcontroller

Support for USB Multilink

Interface BDM

RGB LED [D9]

RESET [SW2]

Potentiometer [R44]

MICRO USB [J16]

User –Push Button

[SW3]

User –Push Button

[SW4]

SBC IO [SW5]

BDM [J7]

8EXTERNAL USE

Step-by-Step Installation Instructions

Install Software and Tools

Install CodeWarrior Development

Studio for S12 V5.1 or later. CodeWarrior Dev Tools for HCS12(X)

MCUs

Connect the USB Cable

Connect one end of the USB cable to the PC and the other end to

the mini-B connector on the DEVKIT-S12G128 board. Allow the PC

to automatically configure the USB drivers if needed.

Using the Example Project

The pre-loaded example project utilizes the RGB LED. Once the

board is plugged in you can see how the RGB LEDs change the

color.

Learn More About the S12G128

Read the release notes and documentation on the

nxp.com/S12G128.

•The Processor Expert graphical initialization software included in

your CodeWarrior installation will help reduce your time to

market

•CodeWarrior for S12 with examples

In this quick start guide,

you will learn how to set

up the DEVKIT-S12G128

board and run the default

exercise.

9EXTERNAL USE

CAUTIONARY NOTES

Electrostatic Discharge (ESD) prevention measures should be used when handling this

product. ESD damage is not a warranty repair item.

NXP does not assume any liability arising out of the application or use of any product or

circuit described herein; neither does it convey any license under patent rights or the rights

of others.

EMC Information on the DEVKIT-S12G128 board:

•This product as shipped from the factory with associated power supplies and cables, has been

verified to meet with requirements of CE and the FCC as a CLASS A product.

•This product is designed and intended for use as a development platform for hardware or software

in an educational or professional laboratory.

•Attaching additional wiring to this product or modifying the products operation from the factory

default as shipped may effect its performance.
