NXP Semiconductors EVK Bedienungsanleitung

Based on i.MX 8MQuad Application Processor

QuickStartGuide

Evaluation Kit

i.MX 8MQuad EVK CPU Board

NXP Confidential and Proprietary

Preliminary, Subject to Change

Quick Start Guide

USB Type-A

Connector

GET TO KNOW THE EVK BASED ON i.MX 8MQUAD APPLICATION

PROCESSOR

Infrared

Receiver

BOOT DEVICE switch

DC Jack for 12V

power input

Power Switch

3.5mm

Audio Jack

USB Type-C

Connector

SD card

Connector

1Gbps Ethernet

Connector

Debug port

Debug port LEDs

JTAG

Connector

BOOT MODE switch

MIPI-CSI2

Connector

RESET Button

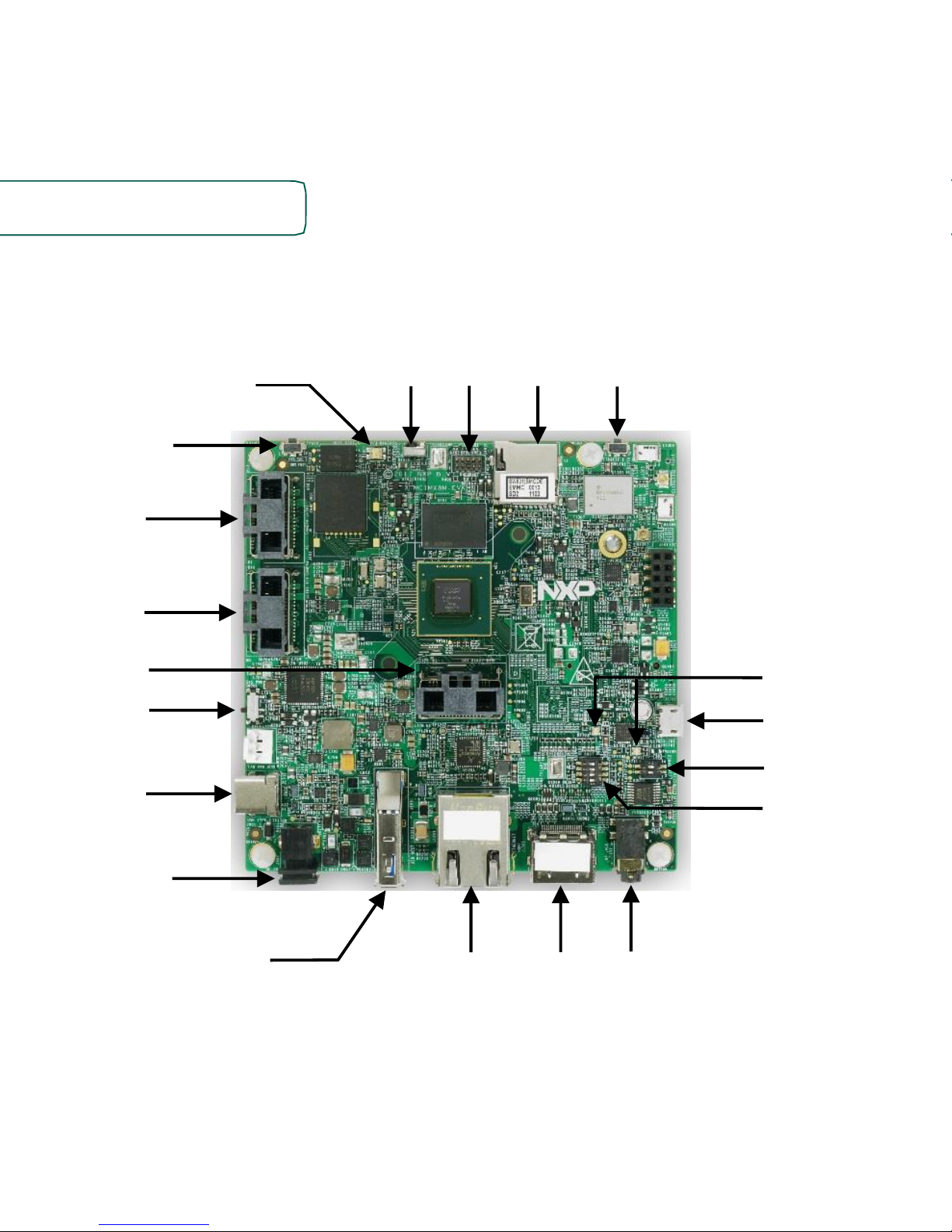

Figure 1: Main interfaces of i.MX 8MQ EVK CPU Board

HDMI

Connector

MIPI-CSI1

Connector

Power

Indication LED

ON/OFF

Button

MIPI-DSI

Connector

www.nxp.com

FPC Connector

used to connect

Audio Board

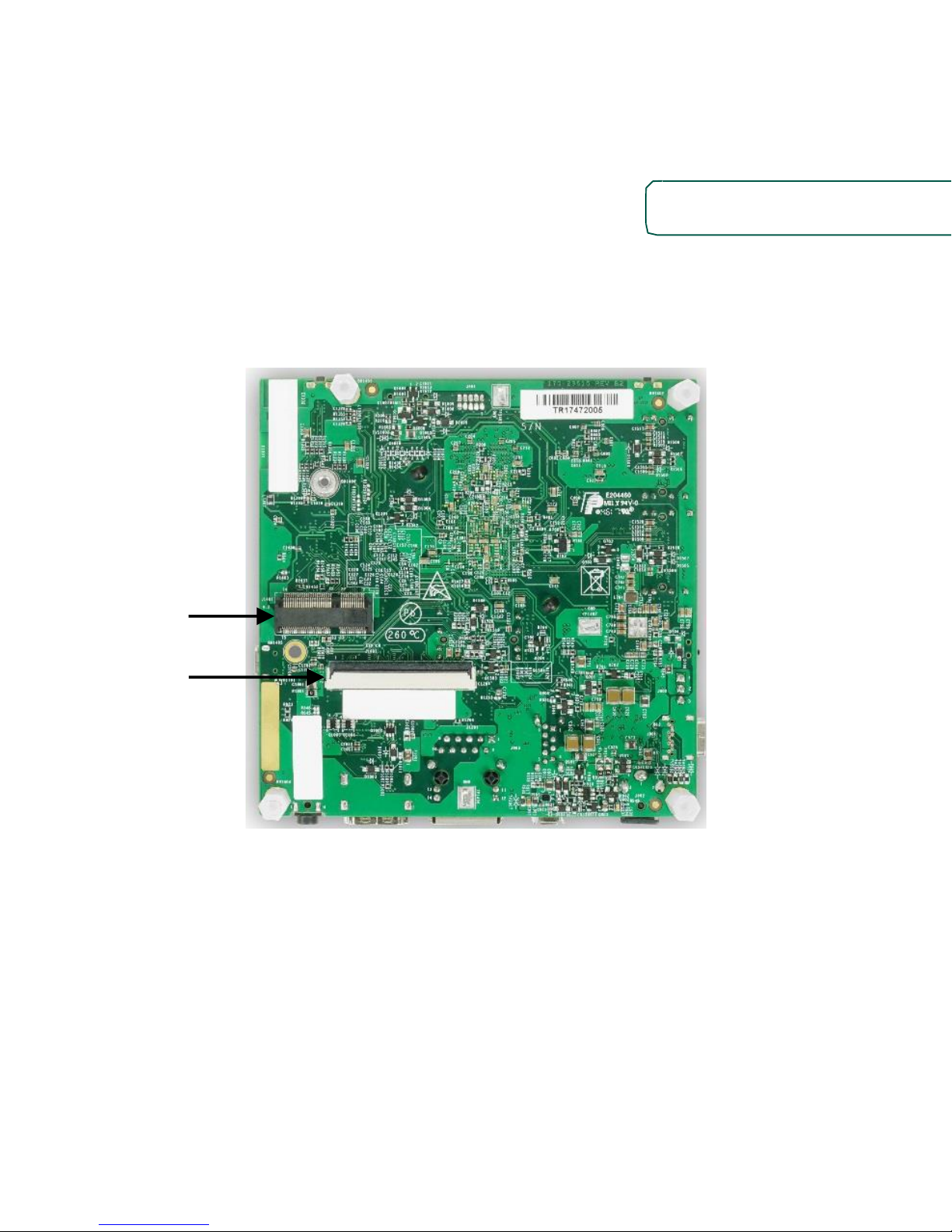

Figure 2 : Bottom View of i.MX 8MQ EVK CPU Board

NXP Confidential and Proprietary

Preliminary, Subject to Change

M.2 Connector

Quick Start Guide

ABOUT THE EVALUATION KIT BASED ON THE i.MX 8MQUAD

The Evaluation Kit (EVK) based on i.MX

8MQuad introduces developers to the

i.MX 8MQuad application processor. To

speed up development, hardware design

files, tools and board support packages

(BSPs) for Linux® , FreeRTOS™and

Android are available for the customers.

The i.MX 8MQuad EVK consists of a

CPU board and an audio board

(ordered separately).

The audio board is used to support

extended audio features.

NXP Confidential and Proprietary

Preliminary, Subject to Change

www.nxp.com

FEATURES

The following features are available with the EVK CPU board based on the

i.MX 8 MQuad applications processor:

•

i.MX8MQuad processor

with 5cores

(4×ARM® Cortex®-A53, and 1×Cortex-

M4)

•

3GB,32-bit LPDDR4 with 1.6 GHz clock

•

eMMC 5.0, 16GB

•

32MB Octal SPI NOR flash

•

Micro SD card connector

•

USB3.0 Type-C connector with PD

support

•

USB3.0 Type-A connector

•

HDMI2.0a Type-A connector

•

1Gbps Ethernet

•

mini-SAS MIPI-DSI connector

•

2x mini-SAS MIPI-CSI connectors for

camera

•

USB to serial convertor for debug

•

Infrared receiver

•

On-board MIMO 2x2 WiFi and BT4.1

•

LEDs for power indication and general-

purpose use

•

M.2connector for WiFi/BT (PCIe, USB,

UART, I2C and I2S)

•

3.5mm Audio Jack for amplified speakers

•

JTAG 10-Pin connector

NXP Confidential and Proprietary

Preliminary, Subject to Change

Quick Start Guide

GETTING STARTED

This section describes how to use the EVK and the required accessories to

develop

applications using the kit.

Unpacking

the Kit

The EVK is shipped with the items listed in Table 1. Ensure the items are

availableinthe

i.MX8MQuadEVK.

ITEM

DESCRIPTION

CPU board

CPU board with i.MX 8MQuad processor, memory and PMIC

Power supply

Output: DC 12V/5A, Plug: 1.65mm x 5.15mm

USB Type-C

Cable

Cable -Assembly, USB 3.0 Type-A Male, USB micro-B Male, Shielded,

USB micro-B

Cable

Cable -Assembly, USB 2.0 Type-A Male, USB Type-C Male, Shielded,

Documentation

Quick Start Guide

Table1:Contentsof thei.MX8MQuadEvaluationKit

NXP Confidential and Proprietary

Preliminary, Subject to Change

www.nxp.com

Prepare

Accessories

The following items in Table2 are required to run the i.MX 8MQuad EVK.

ITEM

DESCRIPTION

HDMI display

and cable

HDMI display and cable is required to run the HDMI

Mouse

Mouse with USB interface

Table 2: Necessary Equipment provided by customer

Quick Start Guide

Download

Software and

Tools

Download installation software and documentation at www.nxp.com/iMX8MQEVK

(address may need to be updated). The following documents are available on the

website:

ITEM

DESCRIPTION

Documentation

•Schematics, layout and Gerber files

•Quick Start Guide

Software

Development

Linux BSPs, Android BSPs

Demo Images

Copy of the latest Linux BSP images and Android images that are

available to program on to the eMMC

Table 3: Software and documentation available on NXP website

www.nxp.com

SETTING UP THE SYSTEM

Connect USB

Debug Cable

Connect the micro-B end of a USB

cable into debug port J1701. Connect

the other end of the cable to a PC acting

as a host terminal. 2 UART connections

will appear on the PC. The console print

will output on “Enhanced COM port”,

which can be found in “Device Manager”

of the PC.

Open the terminal window (i.e., Hyper

Terminal or Tera Term), choose the

COM port number that corresponds to

the “Enhanced COM port” and apply

the following configuration.

•

Baud rate: 115200

•

Data bits: 8

•

Stop bit: 1

•

Parity:None

•

Flow control: None

Connect HDMI Display

Connect an HDMI cable to the HDMI

connector Jack J1001. Connect the other

endofthecabletoaHDMIdisplaypanel.

Connect mouse

Connect the mouse to the USB host

connector J903.

Connect Power Supply

Connect the plug of the 12V power

supply to the DC power jack J902.

NXP Confidential and Proprietary

Preliminary, Subject to Change

Quick Start Guide

BOOT PROCESS FOR ANDROID IMAGE

Boot Process

•

Switch SW801 to OFF, OFF, ON, OFF (from 1-4 bit) to boot from the eMMC, as

shown in Figure 3. After the board images are loaded into the eMMC (The board

is shipped with Android image programmed in the eMMC. If you want to use Linux

image, see the Download BSP Images section on how to load the image) and the

boot switches are correctly configured, the system is ready to run.

•

Power ontheEVK board by sliding power switch SW701 to ON.

•

During the boot process, the Android logo will appear on the HDMI display.

•

TheAndroidUIcanbeseenafterthebootprocessisfinished.Youcanstartoperatingwith

themouse.

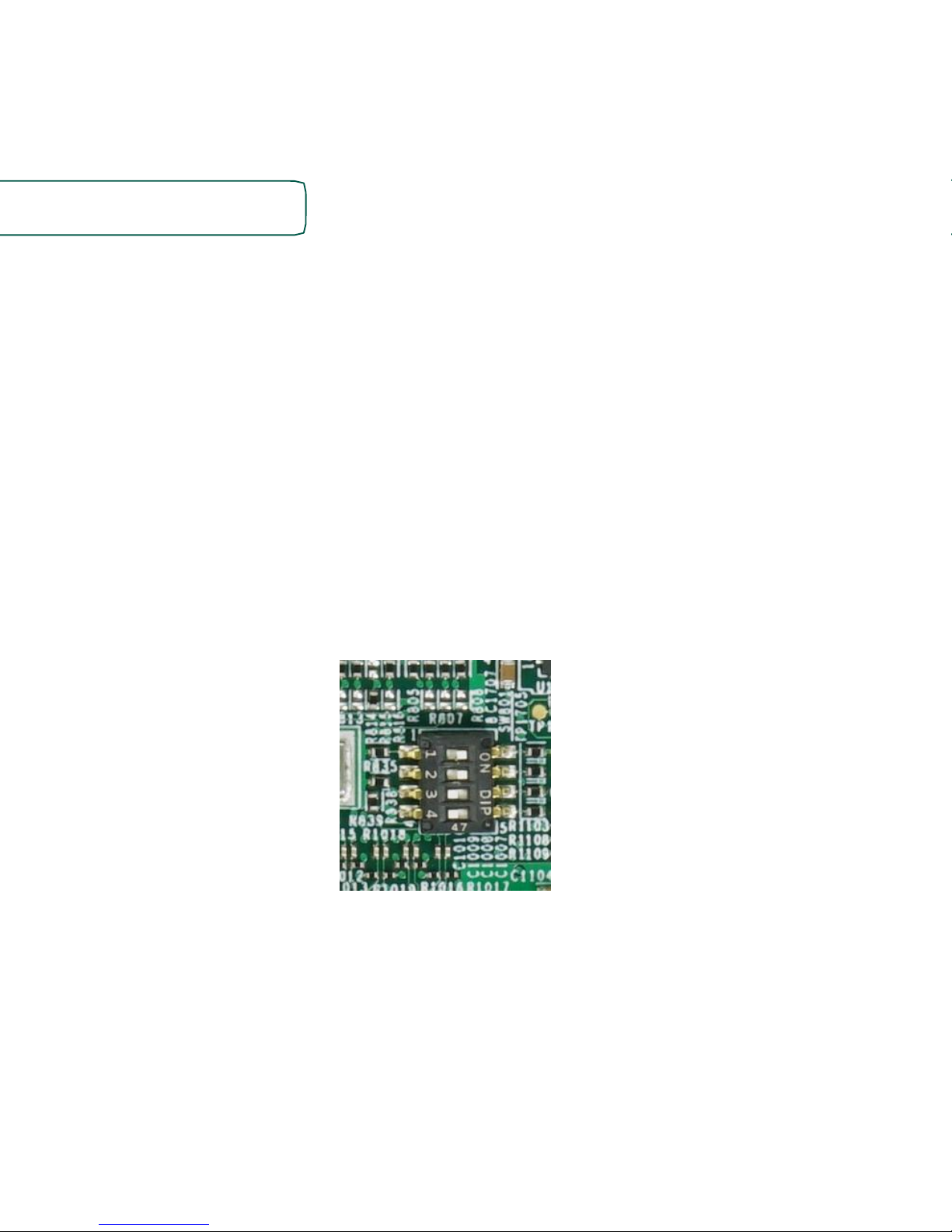

Figure 3 : BOOT DEVICE switch
