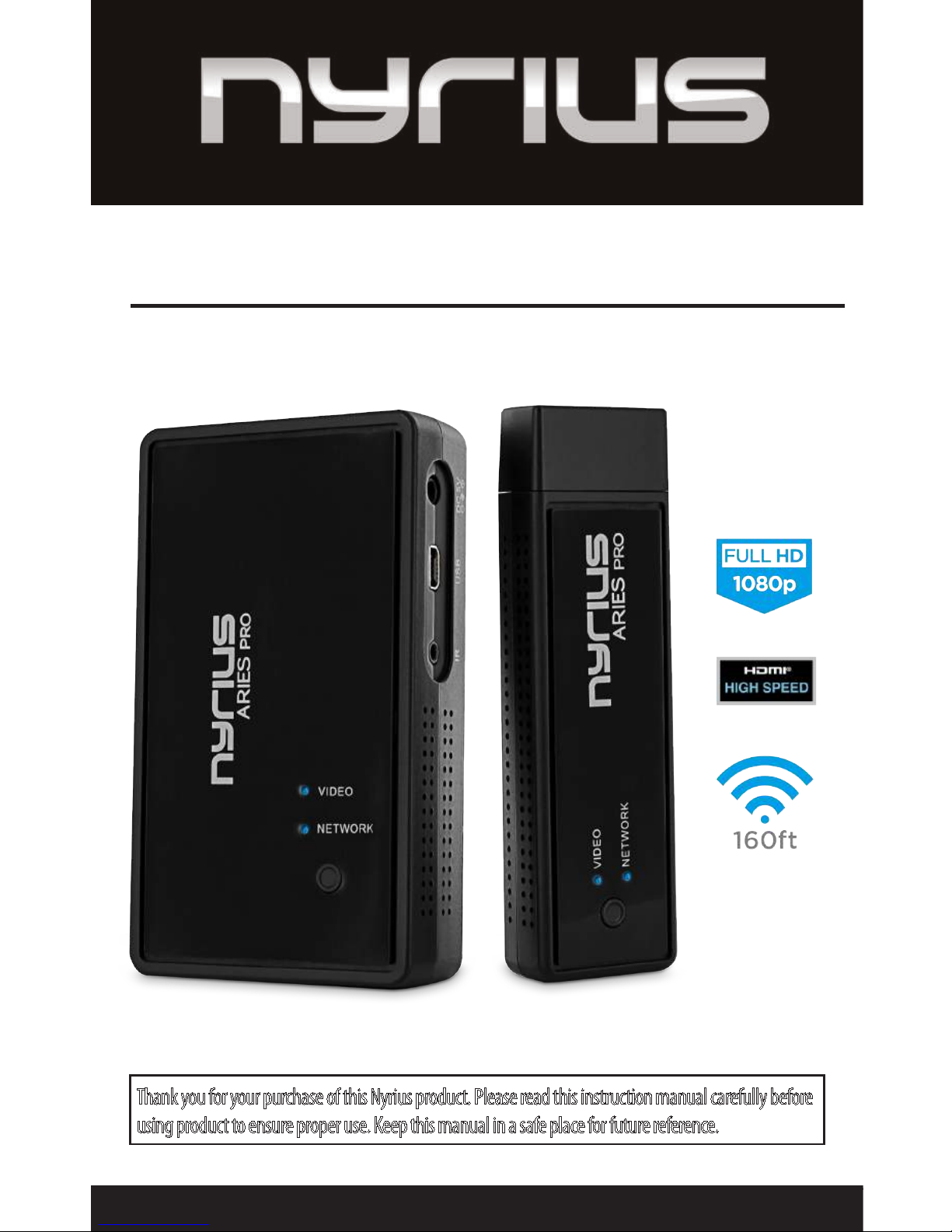

Nyrius ARIES NPCS550 Bedienungsanleitung

Thank you for your purchase of this Nyrius product. Please read this instruction manual carefully before

using product to ensure proper use. Keep this manual in a safe place for future reference.

USER GUIDE

ARIES™ Pro Wireless HD for Laptops

NPCS550 www.NYRIUS.com

- 2 -

• Digital Wireless HD Transmitter

• Digital Wireless HD Receiver

• Mounting Bracket for Receiver

• Velcro® STRIPS

• External IR Receiver

• Remote Control

• 100-240V AC Power Adapter

• 5 ft HDMI Cable

• Right Angle HDMI Adapter

• USB Power Cable

• Female USB Adapter

• Instruction Manual

• 1 Year Warranty

• Lifetime Customer Support

What’s Included ........................................................................................................................2

Buttons and Connections........................................................................................................3

Setup..........................................................................................................................................5

Setting up the Receiver...............................................................................................5

Connecting the Receiver .............................................................................................5

Connecting the Transmitter ........................................................................................6

Connecting Multiple Transmitters With One Receiver..................................................7

Renaming a Video Source ...........................................................................................7

Selecting a video source .............................................................................................9

Removing a video source ............................................................................................9

Standby Mode ..........................................................................................................10

Windows OS Audio setting to switch to HDMI output ...............................................10

Troubleshooting .....................................................................................................................12

Specications..........................................................................................................................13

FCC Statement.........................................................................................................................14

Safety Information ................................................................................................................15

NYRIUS Warranty....................................................................................................................17

TABLE OF CONTENTS

WHAT’S INCLUDED

Disclaimers

• HDMI is a registered trademark of HDMI Licensing LLC.

• Maximum transmission range is 160ft under clear line of sight. When transmitting through walls, oors or

ceilings the range will decrease depending on the environment.

• Bluetooth is a registered trademark of Bluetooth SIG Inc. Wi-Fi is a registered trademark of Wi-Fi Alliance.

• Dolby is a registered trademark of Dolby Laboratories Licensing Corporation.

• Playstation is a registered trademark of Sony Computer Entertainment Inc. Xbox is a registered trademark of

Microsoft Corporation.

• Nyrius®, the Nyrius® logo, ARIES™ and any other Nyrius® marks may be registered. All other trademarks are

property of their respective owners.

- 3 -

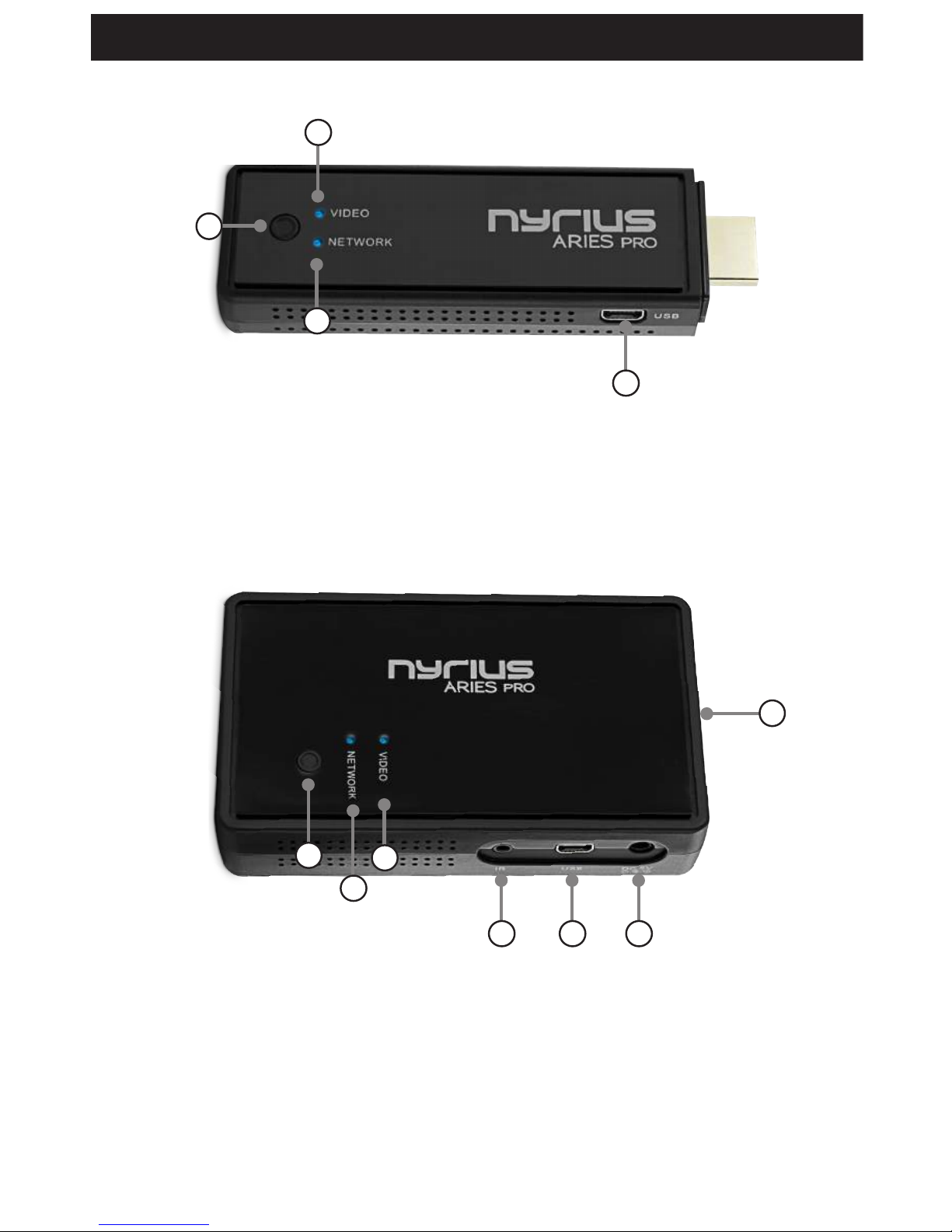

1. VIDEO LED - Indicates HDMI Connection

2. SYNC BUTTON - Synchronizes receiver

and transmitter

3. NETWORK LED - Indicates wireless

connection

4. USB INPUT - For USB Power Connection

BUTTONS AND CONNECTIONS

Transmitter

Receiver

5. SYNC BUTTON - Synchronizes receiver

and transmitter

6. VIDEO LED - Indicates HDMI connection

7. NETWORK LED - Indicates wireless

connection

8. HDMI OUTPUT - Connect your

HDMI device

9. IR EXTENDER INPUT - Detects

IR commands

10. USB INPUT - For HID features

11. 5V DC POWER INPUT - Connect to

power supply

910 11

- 4 -

BUTTONS AND CONNECTIONS

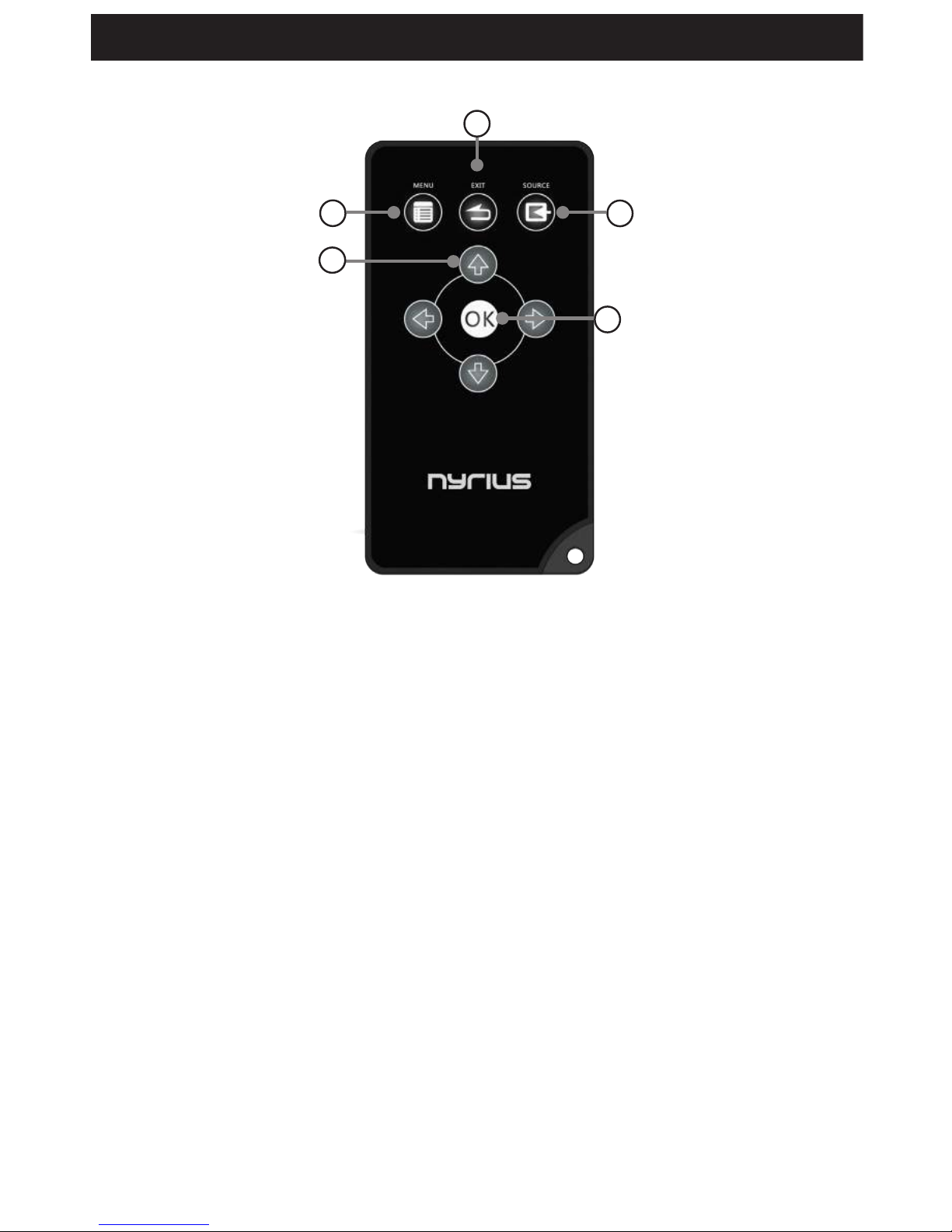

1. MENU – Enter the main menu

2. EXIT – Return to previous menu

3. SOURCE – Select video source

4. DIRECTIONAL KEYS – To Toggle UP/DOWN/LEFT/RIGHT in the menu screen

5. OK – Conrm your selection

Remote Control

- 5 -

SETUP

DC IN - Connect the 5V/2A power adapter ( spec: 3.5mm, DC 5V ) to this port.

HDMI OUT- Using the HDMI cable provided, connect the receiver to the HDMI Input of any HD

display device (HDTV, projector).

MINI USB INPUT PORT - HID Remote Control function is supported when it is connected to the

mini USB input port of a mouse or keyboard.

SYNC BUTTON - Press the Sync Button button for 5 seconds , the receiver will begin to connect.

SETTING UP THE RECEIVER

1. Install the mounting bracket to the bottom of the receiver by lining up the mounting

hole with the screw on the top of the mounting bracket. Rotate the screw on the mount

clockwise until until it is secure.

2. Set the receiver to the proper angle and tighten it into place by turning the knob on the

side of the mount clockwise until it is secure.

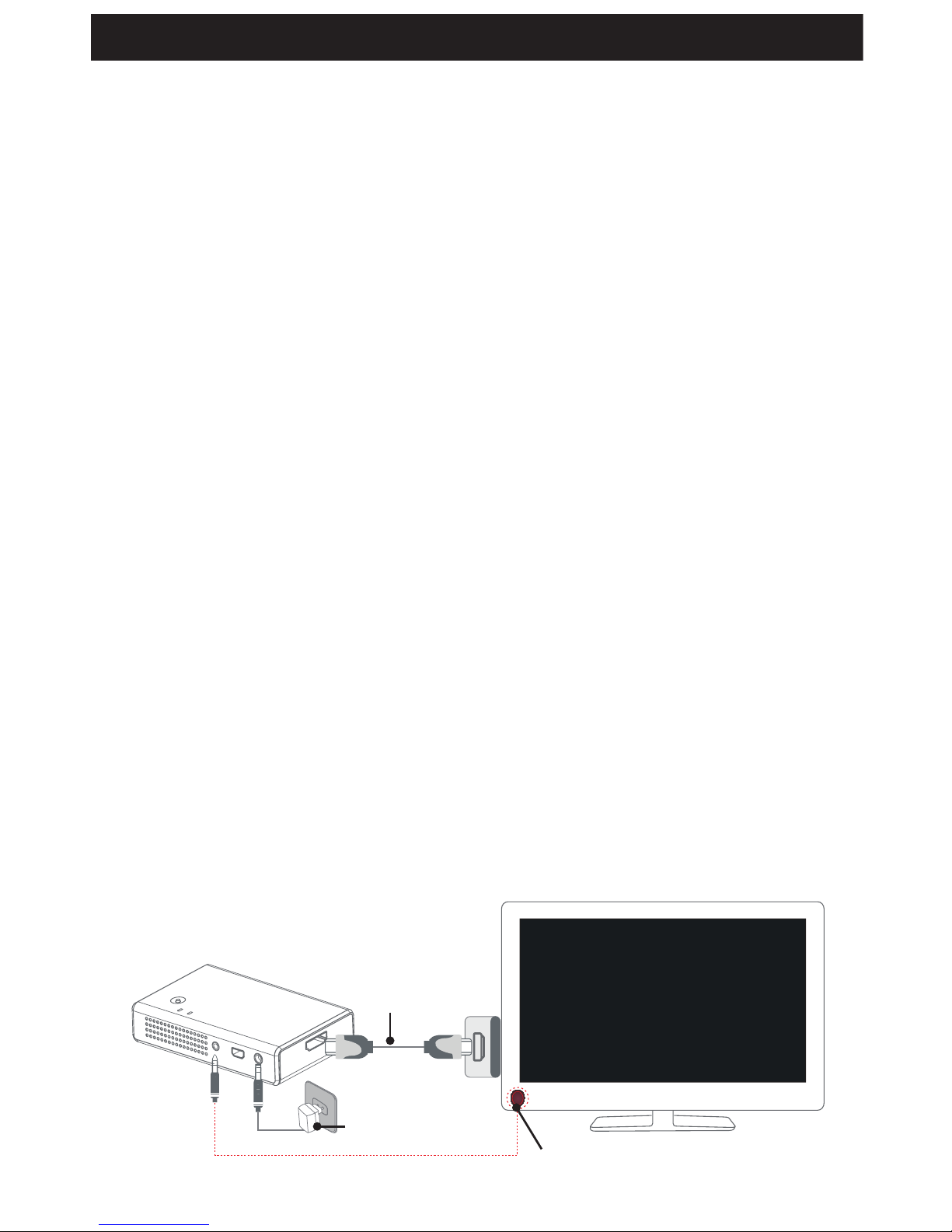

CONNECTING THE RECEIVER

1. Connect the receiver to the monitor using the HDMI cable, plug the IR Extender into the IR

input of receiver.

2. Wait for 5 to 10 seconds, the network and video indicators will light up, conrming that the

Basic Function video connection is successful.

HDMI IN

HDMI

TELEVISION

POWER SUPPLY

RECEIVER HDMI CABLE

IR RECEIVER

Network Status Indicator -

ON:The wireless network connection between

the transmitter and receiver successful.

FLASH SLOWLY:Transmitter is ready

to connect.

FLASH RAPIDLY:The device is

not connecting.

Video indicator -

ON:The video source connection is successful.

OFF : The video source has failed to connect.

IR Sensor - The remote control is aligned to

the IR Extender Input of receiver when using.

- 6 -

SETUP

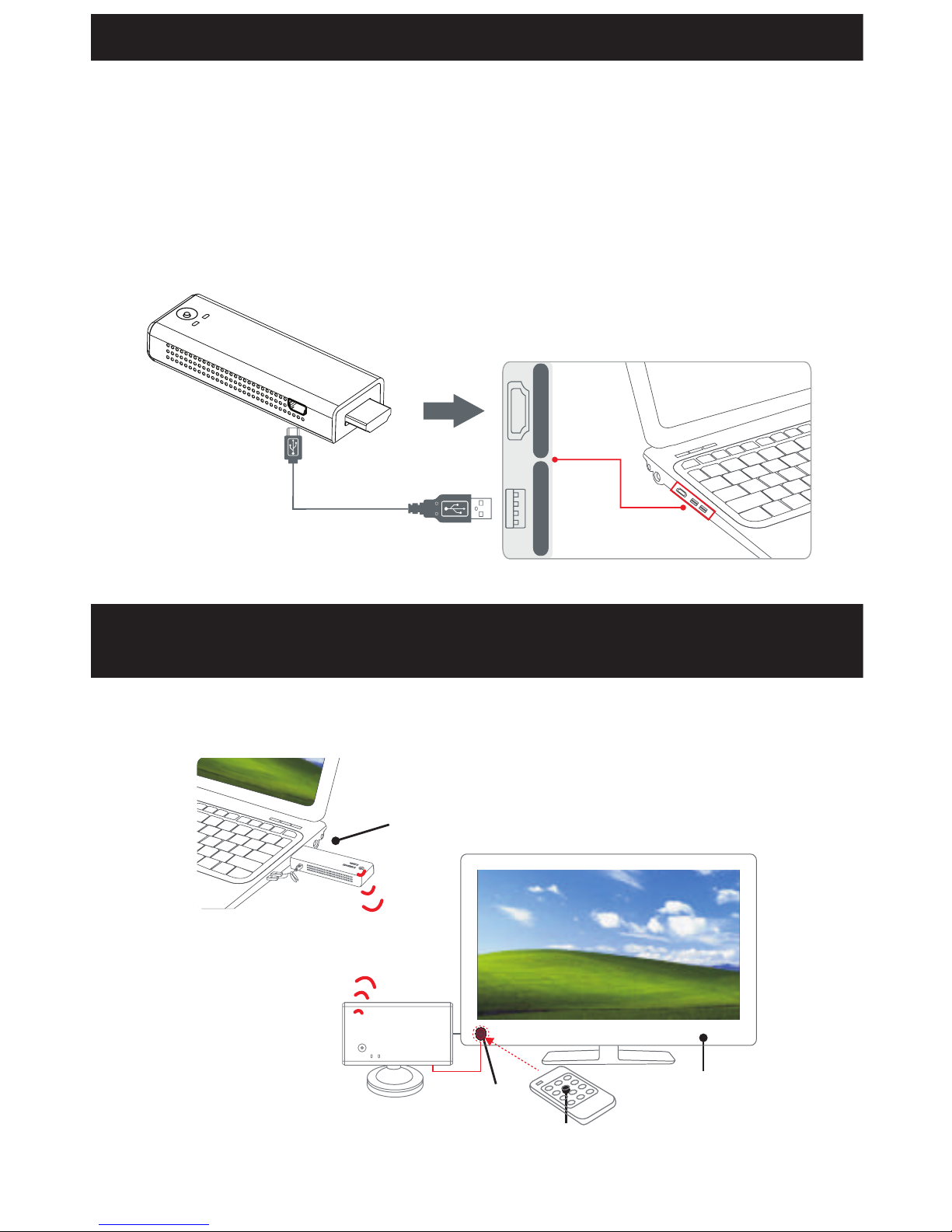

CONNECTING THE TRANSMITTER

1. Connect the Transmitter to the PC / Laptop using the USB cable and the HDMI Input.

2. Wait for 5 to 10 seconds, the network and video indicators will light up, conrming that

the Basic Function video connection is successful.The information on the screen will show

"Connected to NYRIUS..." and display the video source content from the PC/ Laptop.

HDMI USB

USB CABLE

The network indicator won’t light up unless connection is established with transmitter

TELEVISION

REMOTE CONTROL

IR RECEIVER

TRANSMITTER

NETWORK

VIDEO

VIDEONETWORK

8> ^^^

^6,XKW ^^^

4+:=581)544+):/4-

Connected to NYRIUS...

RECEIVER

- 7 -

Multicast function means that a receiver can be connected to many transmitters, (up to 8

transmitters) by using the remote control.

Connecting multiple transmitters with one receiver

1. Press the [MENU] key of the remote control to enter the MAIN MENU, press the directional

keys to select [Add new Video Source] to add a video source. Please be sure that the remote

control is pointing to the receiver’s IR sensor.

2. "Please Activate Registration On Transmitter Unit" will appear on the screen. Press the

SYNC BUTTON on the transmitter for 3~5 seconds to establish a connection.

3. Press the [OK] button to conrm adding the new video source.The new video source will be

connected after approximately 30 seconds.

4. To add more than one video source, please repeat steps 1-3.

Renaming a video source

When adding multiple transmitters, it is recommended to add each transmitter one at a time

and rename each one to avoid any confusion when selecting a video source.

1. Press the [MENU] button on the remote and select "Modify Video Source" from main menu.

TELEVISION

Setup

Add new video source

Remove video source

Modify video source

TELEVISION

Setup

Add new video source

Remove video source

Modify video source

SETUP

- 8 -

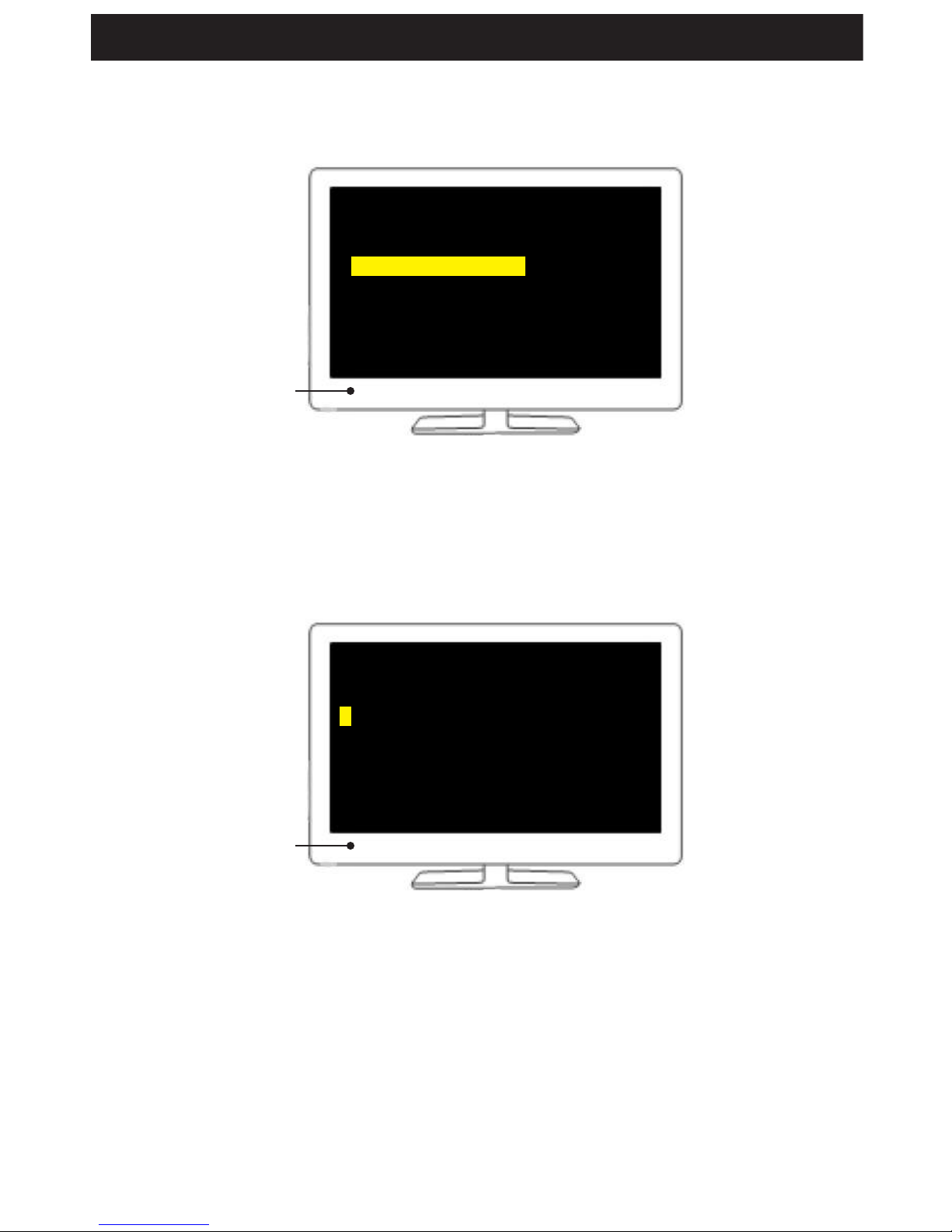

2. Select the video source to rename and press [OK] to conrm your selection.

3. Use [LEFT ][RIGHT ][UP][DOWN] direction keys to modify the name of the video source and

press [OK] when you are done.

TELEVISION

Choose Source to Rename

Sony

DVD

Stick

TELEVISION

Rename Video Source

Stick

SETUP

- 9 -

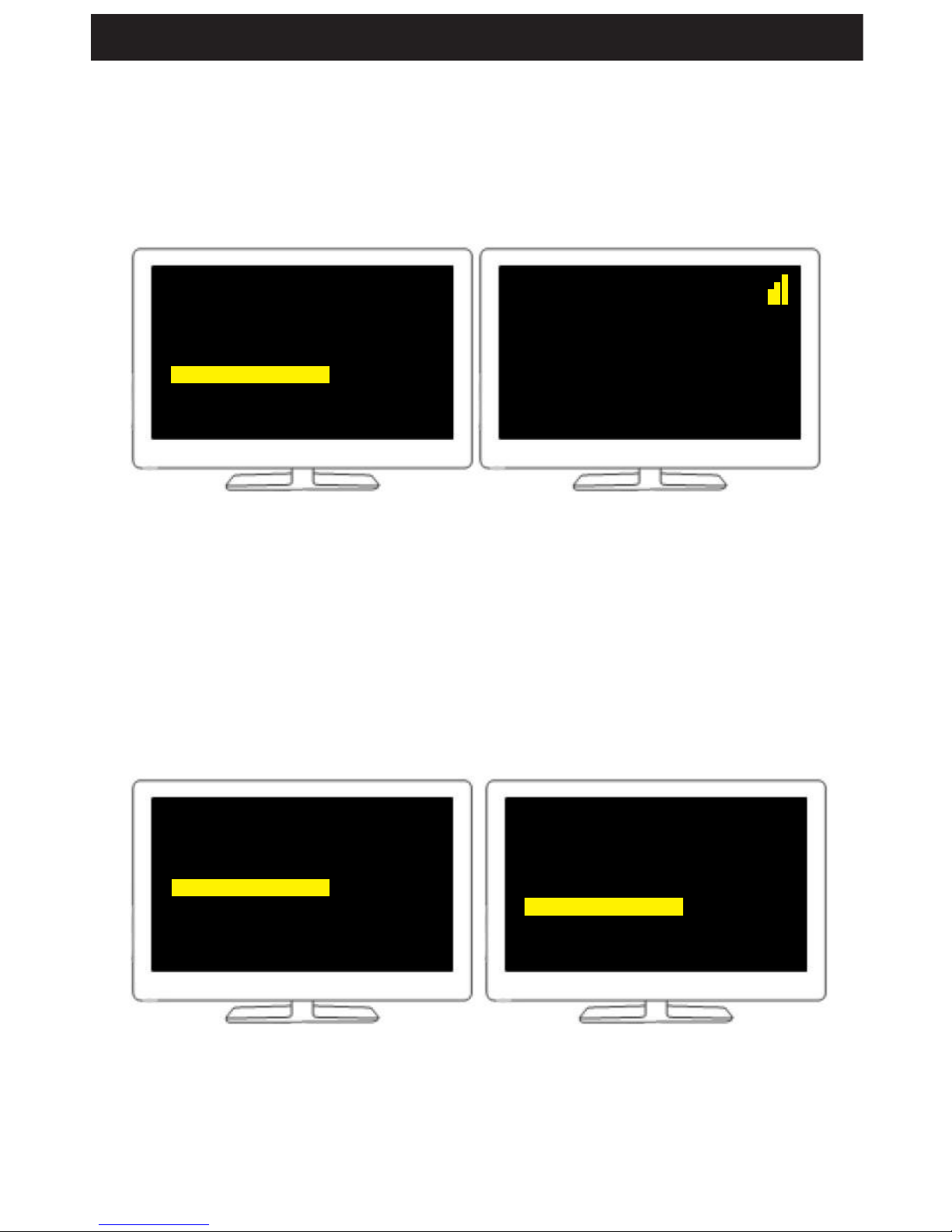

Selecting a video source

1. Press the [SOURCE] button on the remote to display the list of video sources to choose from.

2. Use the [UP] / [DOWN] directional keys to select a video source. Press [OK] to conrm

your selection.

Removing a video source

1. Press the [SOURCE] button on the remote to display the list of video sources to choose from.

2. Use the [UP] / [DOWN] directional keys to select [REMOVE VIDEO SOURCE] on the main menu.

3. Use the [UP] / [DOWN] directional keys to select a video source.

4. Press [OK] to delete.

Select Video Source

Stick

Sony

DVD

Connecting to DVD...

Setup

Add new video source

Modify video source

Remove video source

Select Video Source

Stick

Sony

DVD

SETUP

- 10 -

Standby Mode

1. When the receiver’s signal is disconnected from the transmitter, the system will go into

Standby Mode and the OSD will display "Wireless O".

2. Press [SOURCE] or [MENU] to return to the main menu.

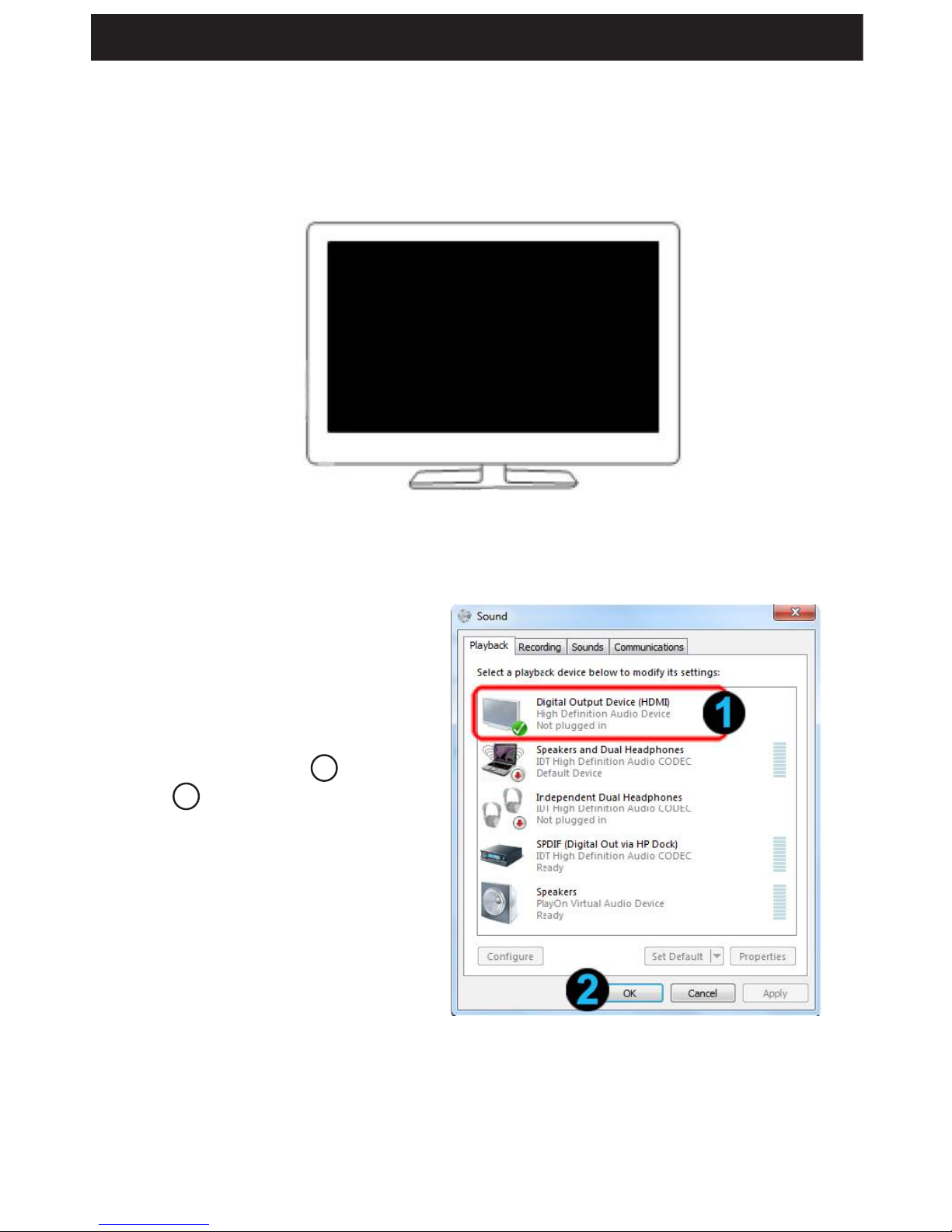

Changing Audio Output to TV

Windows OS Audio setting to switch to HDMI output:

Windows7 OS:

1. Go to START MENU in bottom left corner

of screen. Click Control Panel -->

Hardware and Sound --> Sound -->

Playback to open AUDIO SETTINGS.

2. Select HDMI OUTPUT 1and Press

OK 2.

WindowsXP OS:

1. Go to START MENU in bottom left corner of the screen. Click CONTROL PANEL to open

AUDIO setting.

2. Select HDMI OUTPUT and Press OK.

Wireless O

SETUP
