OAKWORKS Spa Masters Icon Bedienungsanleitung
USER MANUAL
www.oakworks.com · 717.235.6807
Icon
Talise
Maia
Legacy
Britta Palas
OAKWORKS®
Masters’ Collection Tables
© Copyright 2021
OAKWORKS®, Inc.
Printed in U.S.A.
All rights are reserved. No part
of this document may be
photocopied, reproduced or
translated to another language
without prior written consent
of OAKWORKS®, Inc.
OAKWORKS®is a registered
trademark of OAKWORKS®, Inc.
Notice
The information contained within
this document is subject to change
without notice and should not
be construed as a commitment by
OAKWORKS®, Inc.
OAKWORKS®, Inc. encourages
requests for technical specifica-
tions and the like documentation to
ensure accuracy. The appropriate
documentation is available upon
request.
OAKWORKS®, Inc. shall not be
liable for incidental or consequen-
tial damages in connection with or
arising out of the furnishing, per-
formance, or use of this document
and the program material which it
describes.
TABLE OF CONTENTS
Product Use Description.............................................................................................. 1
Important Safety Instructions
Symbol Identification ........................................................................................... 1
Important Safety Instructions............................................................................ 2-3
Installation
Grounding ........................................................................................................... 4
Product Description & Photo
4 Leg Tables
Icon - IC ...................................................................................................... 5
Legacy - LC................................................................................................. 6
Maia - MI..................................................................................................... 7
Control Operation - 4 Leg Tables ............................................................. 8-9
2 Column Tables
Talise - TA ................................................................................................ 10
Control Operation - Talise Tables......................................................... 11-12
Palas - PA................................................................................................. 13
Britta - BT ................................................................................................. 14
Control Operation - Britta & Palas Tables............................................. 15-16
Directions for Use
Moving the table................................................................................................ 17
Key Lock Use.................................................................................................... 17
Removing Top Pad............................................................................................ 18
Adjustable Breast Comfort (ABC) System Use (Option)..................................... 19
Integrated Fuzion Top (Option).......................................................................... 20
QuickLock Face Rest (Accessory Option)...........................................................21
Boiance Shelf Support (Accessory Option)........................................................ 22
Bluetooth Speaker (Accessory Option) .............................................................. 23
Cleaning & Disinfection
Recommended Cleaners/Disinfectants .............................................................. 24
Cleaning Procedure........................................................................................... 24
Inspections ................................................................................................................ 25
Warranty Information ................................................................................................. 25
Model Number & Serial Number
Product Label Location...................................................................................... 25
Table Dimensions................................................................................................. 26-27
Specifications
Product Specifications....................................................................................... 28
Environmental Conditions.................................................................................. 28
Electrical Specifications..................................................................................... 28
Product Disposal ....................................................................................................... 28
Contact Information ...................................................................................... back cover
PRODUCT USE DESCRIPTION / SYMBOL IDENTIFICATION
1
This symbol, when used in this manual and on product labels, represents a caution warning.
Be sure to read and comply with all precautions and warnings.
This symbol, when used in this manual and on product labels, warns against an electrical
shock hazard. Be sure to observe and comply with all warnings.
This symbol, when used in this manual or on product labels, indicates a Protective Earth
(Ground) Terminal.
This symbol, when used in this manual or on product labels, indicates the date of manufacture
of the device.
This symbol, when used in this manual or on product labels, indicates alternating
current (AC).
This symbol, when used in this manual or on product labels, indicates direct current (DC).
This symbol is used to indicate that the operator should consult the user manual.
This symbol indicates that when the end-user wishes to discard this product, it must be sent to
separate collection facilities for recovery and recycling.
UL 2 601-1
CSA C22.2 NO.601.1
IE C 60601-2 (2 001-09)
CUSUS
LL
II
SS
TT
EE
DD
R
UL 2 601-1
CSA C22.2 NO .601.1
IE C 60601-2 (2 001-09)
CUSUS
LL
II
SS
TT
EE
DD
R
~
----
PRODUCT USE DESCRIPTION
The product is a cord connected spa/massage table for commercial use. It is intended for indoor use.
Maximum weight capacity of 500 lbs.
The product is intended to be used by trained professionals in a controlled environment. A review
of the following Safety Instructions is important for the safety of the operator and client. Read all
instructions and understand this entire user manual before using the product. There are no known
contraindications to the use of this equipment.
The table should not be used in any other manner than that described within this manual. Use of any
unnecessary force or unauthorized procedures could result in injury to practitioner, client or equip-
ment.
SYMBOL IDENTIFICATION
2
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be followed, including the following:
DANGER
To reduce risk of electric shock:
1. Always unplug this furnishing from the electrical outlet before cleaning.
2. Connect this furnishing to a properly grounded outlet only. See Grounding Instructions in this manual.
Electrical Shock Hazard - The power supply/control module is located on the lift frame. No user serviceable parts
are inside. Refer servicing to qualified personnel. Unplug wall plug prior to contact with any cables connected to
the power supply.
WARNING
To reduce the risk of burns, fire, electric shock or injury to persons:
1. Unplug from outlet before adding or removing parts.
2. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use at
717.235.6807.
3. Keep the cord away from heated surfaces.
4. Never drop or insert any object into any opening.
5. Do not use outdoors.
6. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not
recommended by the manufacturer.
7. To disconnect, turn all controls to the off position, then remove plug from outlet.
8. Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with
a qualified electrician or service person if you are in doubt as to whether the product is properly grounded.
9. Do not modify the plug provided with the product - if it will not fit the outlet; have a proper outlet installed by
a qualified electrician.
WARNING
• Risk of Injury - 500 lbs. (227 kg.) maximum load.
• Risk of Injury - Do not operate this equipment unless properly trained.
• Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled per-
sons.
• This unit is For Commercial Use Only and to be operated only by trained personnel.
• Remove the power key when not in use and store out of reach of children.
• Lifting & Top motion electric motors are rated at 10% duty cycle max. (2 minutes on, 18 minutes off)
PINCH HAZARD
• Keep hands, feet and controls away from the table while making adjustments.
• Risk of Injury - Not to be used in locations where children or people with cognitive disabilities are antici-
pated to be present.
• Risk of Injury - Children should NEVER be near the table when in use.
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
• The use of accessories, transducers, and cables other than those specified by the manufacturer, may
result in increased emissions or decreased immunity of the table.
• The table should not be used adjacent to or stacked with other equipment. If adjacent or stacked use
is necessary, the table should be observed to verify normal operation in the configuration in which it
will be used.
• The table is designed to be a stand-alone table. This table must not be modified or incorporated into
any other equipment.
• Proper operation of this equipment is very important for the safety of the operator, client, and any
other individuals in the area of this equipment. Directions for use of this equipment are described in
this manual. The operator should read these sections carefully.
• Weight Limit: (client and accessories) 500 lbs. (227 kg.) Do not exceed.
• Adjustable Breast Comfort (ABC) System Weight Limit: 100 lbs. (45 kg.)
• Do not sit on the ABC System. Only use the ABC System as intended. Do not place foreign objects into
the ABC System. For safety of your client, use a cloth sheet between the ABC System and your client.
• Be certain that the table is completely lowered without any tilt being present prior to discharging an
ambulatory client. The client may lose balance and fall.
• When lowering the table, make sure there is nothing underneath the tabletop that can impede motion
(like stools, cabinets, accessory parts, cleaners, etc.) When using the table Height Up function, do not
place anything between the metal frame and the base structure. Damage can occur to the table.
• Do not sit on backrest or footrest sections.
• Before moving any of the tables, disconnect the power cord from the power outlet.
• The table weighs as much as 475 lbs. (216 kg.)
• Do not lift table by the tabletop pad. This can damage the removable pad. Use extreme caution when
lifting the table to move it. 4 people are required to move the table safely.
• Do not use the table to transport a client.
3
ENTRAPMENT
• Risk of Injury - The picture below indicate areas of entrapment that can occur when operating this equip-
ment. It is the responsibility of the operator to ensure that bystanders are not in or around these areas
during operation.
The tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is
rated for the table. (See Grounding below)
Arrange the power cord and control cords so that they will not create a tripping hazard.
Be sure access to the plug is not blocked for disconnecting the table from power.
GROUNDING FOR 120 VOLT PRODUCTS:
This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug
shown below. See Grounding Methods - US 120V Example. Make sure that the product is connected
to an outlet having the same configuration as the plug. No adapter should be used with this product.
GROUNDING FOR 230 VOLT PRODUCTS:
This product is rated for less than 15 amperes and is for use on a circuit having a nominal rating
of 230 volts and is factory-equipped with specific electric plug to permit connection to a proper
circuit. Make sure that the product is connected to an outlet having the same configuration as the
plug. No adapter should be used.
WARNING
1. Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service person if you are in doubt as to whether
the product is properly grounded.
2. Do not modify the plug provided with the product - if it will not fit the outlet; have a proper
outlet installed by a qualified electrician.
Correct Implementation Incorrect Implementation
Risk of Electric Shock - Connect this furnishing to a properly grounded outlet only.
DANGER
INSTALLATION
GROUNDING
Grounding Methods - US 120V Example
4
PRODUCT DESCRIPTION - 4 LEG TABLES
Icon - IC
STANDARD SPECIFICATIONS
3 Motions
1) Powered 25-35” (64-89 cm.) Height
(with 4” foam) Hand Control All powered motions and Memory Positions
2) Powered 0-80º Backrest Foot Control All powered motions
3) Powered 0-30º Thigh / 0-19º Footrest
Table Capacity 500 lbs. (227 kg.) (client and accessories) Padding 4” (10 cm.) or 6” (15 cm.) AeroLux Foam
OPTIONS / ACCESSORIES
Integrated Heated Top 120V or 230V External Outlets
2nd Hand Control (with Memory Positions) 2nd Foot Control
Bluetooth Speaker Boiance Shelf Support
ABC MODEL
For electrical specs, see Specifications section.
5

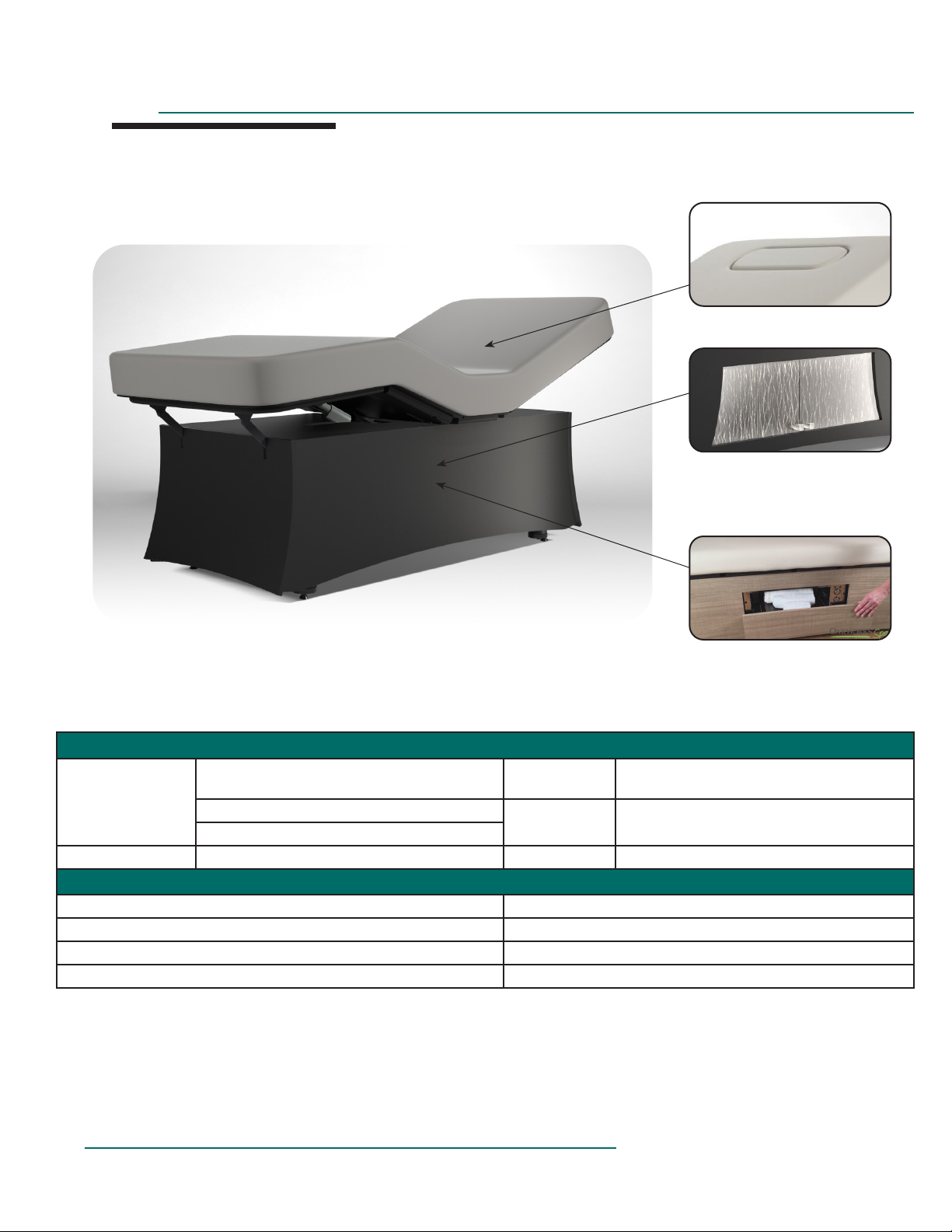

PRODUCT DESCRIPTION - 4 LEG TABLES
Legacy - LC
ABC MODEL
STANDARD SPECIFICATIONS
3 Motions
1) Powered 25-35” (64-89 cm.) Height
(with 4” foam) Hand Control All powered motions and Memory Positions
2) Powered 0-80º Backrest Foot Control All powered motions
3) Powered 0-30º Thigh / 0-19º Footrest
Table Capacity 500 lbs. (227 kg.) (client and accessories) Padding 4” (10 cm.) or 6” (15 cm.) AeroLux Foam
OPTIONS / ACCESSORIES
Integrated Heated Top 120V or 230V External Outlets
2nd Hand Control (with Memory Positions) 2nd Foot Control
Bluetooth Speaker Boiance Shelf Support
6
PRODUCT DESCRIPTION - 4 LEG TABLES
Maia - MI
WARMING DRAWER MODEL
ABC MODEL
STORAGE MODEL
Storage Door Opening: 24”W x 10”H
Storage Cabinet: 41”L x 24”D x 11”H
Storage Load Capacity: 75 lbs.
Warming Drawer: 19”D x 17”W x 3”H
Warming Drawer Capacity: 16L
STANDARD SPECIFICATIONS
3 Motions
1) Powered 25-35” (64-89 cm.) Height
(with 4” foam) Hand Control All powered motions and Memory Positions
2) Powered 0-80º Backrest Foot Control All powered motions
3) Powered 0-30º Thigh / 0-19º Footrest
Table Capacity 500 lbs. (227 kg.) (client and accessories) Padding 4” (10 cm.) or 6” (15 cm.) AeroLux Foam
OPTIONS / ACCESSORIES
Integrated Heated Top 120V or 230V External Outlets
2nd Hand Control (with Memory Positions) 2nd Foot Control
Bluetooth Speaker Boiance Shelf Support
Hot Towel Cabi
7
Dieses Handbuch passt für folgende Modelle
5
Inhaltsverzeichnis
Andere OAKWORKS Spa Spa-Zubehör Handbücher
