Oaxis InkCase N2 Bedienungsanleitung
User Manual
Parts and control
E-ink display
Reset
Previous
Power
Next
Micro USB port
(for charging)
Connection
As the below gure shown, align one side of the Galaxy
NoteII with one side of the Inkcase N2, then align the other
sides and press down until the Galaxy NoteII is seated
correctly.
InkCase N2 User Manual
Power On and O the InkCase N2
Charging the InkCase N2
You need to charge the device prior to use it for the rst
time or when battery power is low.
Charge the device using AC adapter with output 5V, 1A.
Charging through PC may not be able to fully charge the
device due to the low output charging current from PC
USB port.
Please turn the device to standby mode to shorten the
charging process.
It will take about 2 hours to fully charge the device in
standby mode (LCD o).
The battery status is displayed at the lower right corner.
The status is shown as below:
Low battery Charging Battery full
Press and hold the Power button for 3 seconds to turn on
InkCase i5.
It may take a few moments for the unit to turn on and load
the content.
If InkCase N2 does not be turn on, charging is required.
Press the [Power] button briey to enter into Standby/
Wake up mode, in standby mode, the icon will appear at
the bottom of the screen.
To turn o Inkcase N2, press and hold the Power button for
3 seconds again, then the icon will appear at the bottom
of the screen.
InkCase N2 User Manual
Connect Bluetooth Via InkCase Companion

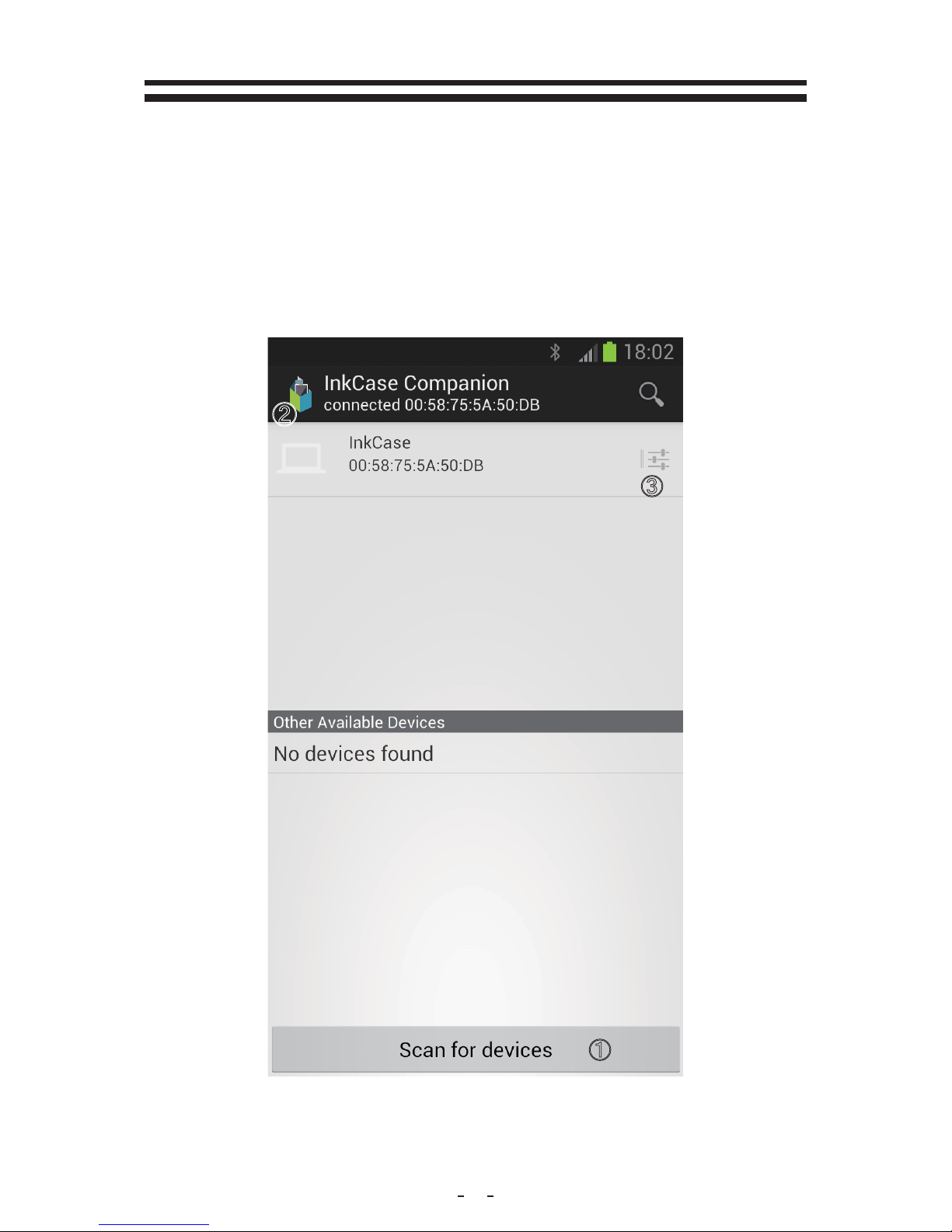

Tap to launch the InkCase Companion, tap Scan for devices
to display available device, tap to choose the InkCase N2
device to pair with the smart phone.
When successfully connected, the connection information
will be shown at the top screen.
①. Search for Bluetooth device.
②. InkCase is connected
③. Click here to change InkCase name
䐟
䐡
䐠
InkCase N2 User Manual
Getting started
Downloading InkCase Apps
The operations of Inkcase N2 is based on the Inkcase APPs.
Choose either of the following ways to download the
inkcase apps:
1. Download InkCase App from InkCase website:
www.inkcase.com/app
2. Scan the QR Code shown below:
When you have successfully downloaded the InkCase apps,
please install them into your smart phone.
InkCase N2 User Manual
How to use InkCase Photo
Using the photo list of InkCase Photo
On your smart phone, tap InkCase Photo icon to enter
into photo list, then follow the below steps to do
Upon turning on the unit and connecting bluetooth
successfully, choose one of the below ways to
transfer photos via InkCase Photo:
InkCase Photo is a picture
sharing app, you can share
your pictures to InkCase as
the second display of your
smart phone.
Epireader is an ebook
reading application, it
supports a variety of formats,
and the page mode is more
personalized.
InkCase N2 User Manual
InkCase Companion is more stability
for your smart phone to connect
InkCase on InkCase Companian via
bluetooth.

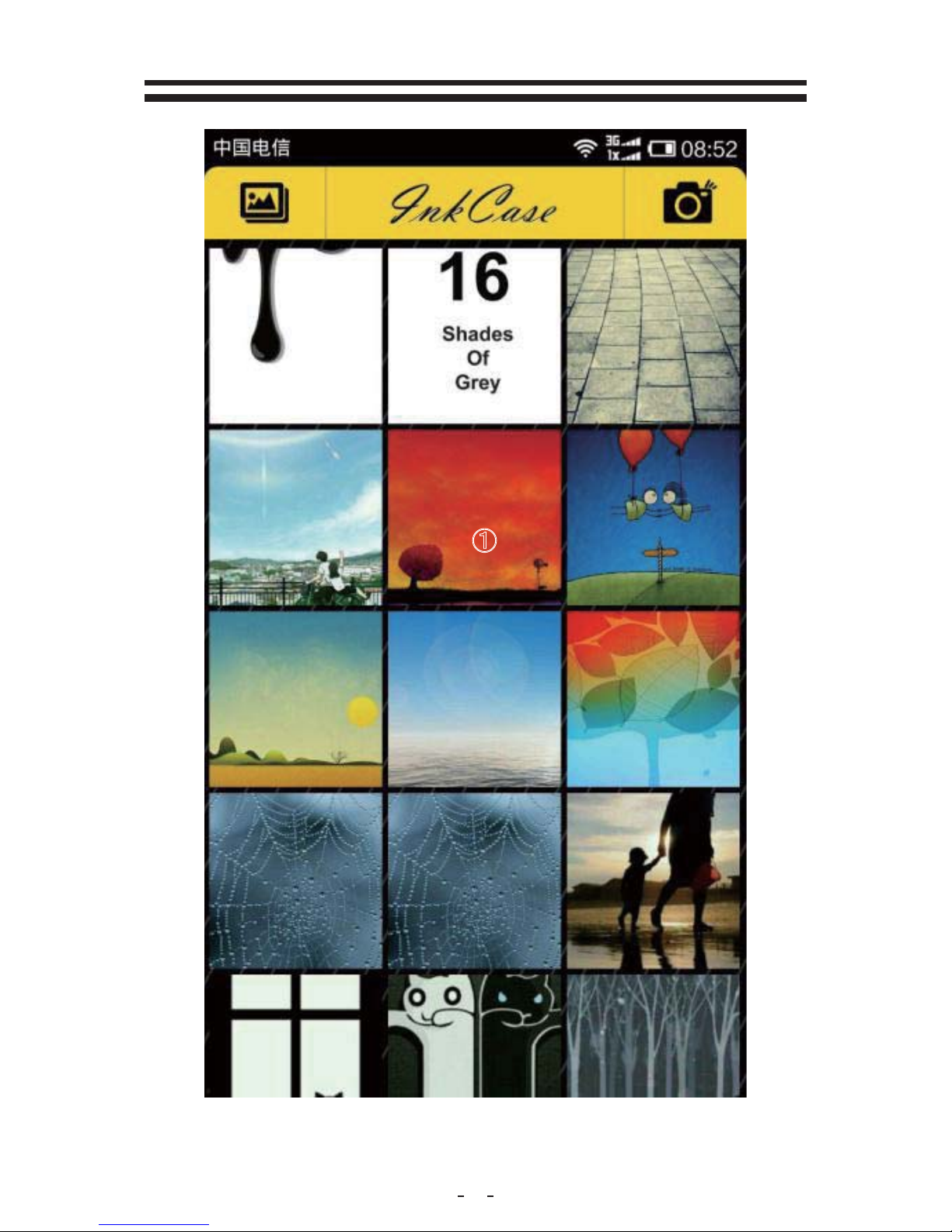

①. Tap InkCase Photo icon to enter into photo
list, tap a desired photo to be transferred.
䐟
InkCase N2 User Manual
②. Tap InkCase Photo icon to enter into photo
list, tap a desired photo to be transferred.
③. Flick left and right on the screen to go to
another
䐠
䐡
InkCase N2 User Manual
Using the camera to take photos
On your smart phone, tap InkCase Photo icon, then follow the
below steps to do.

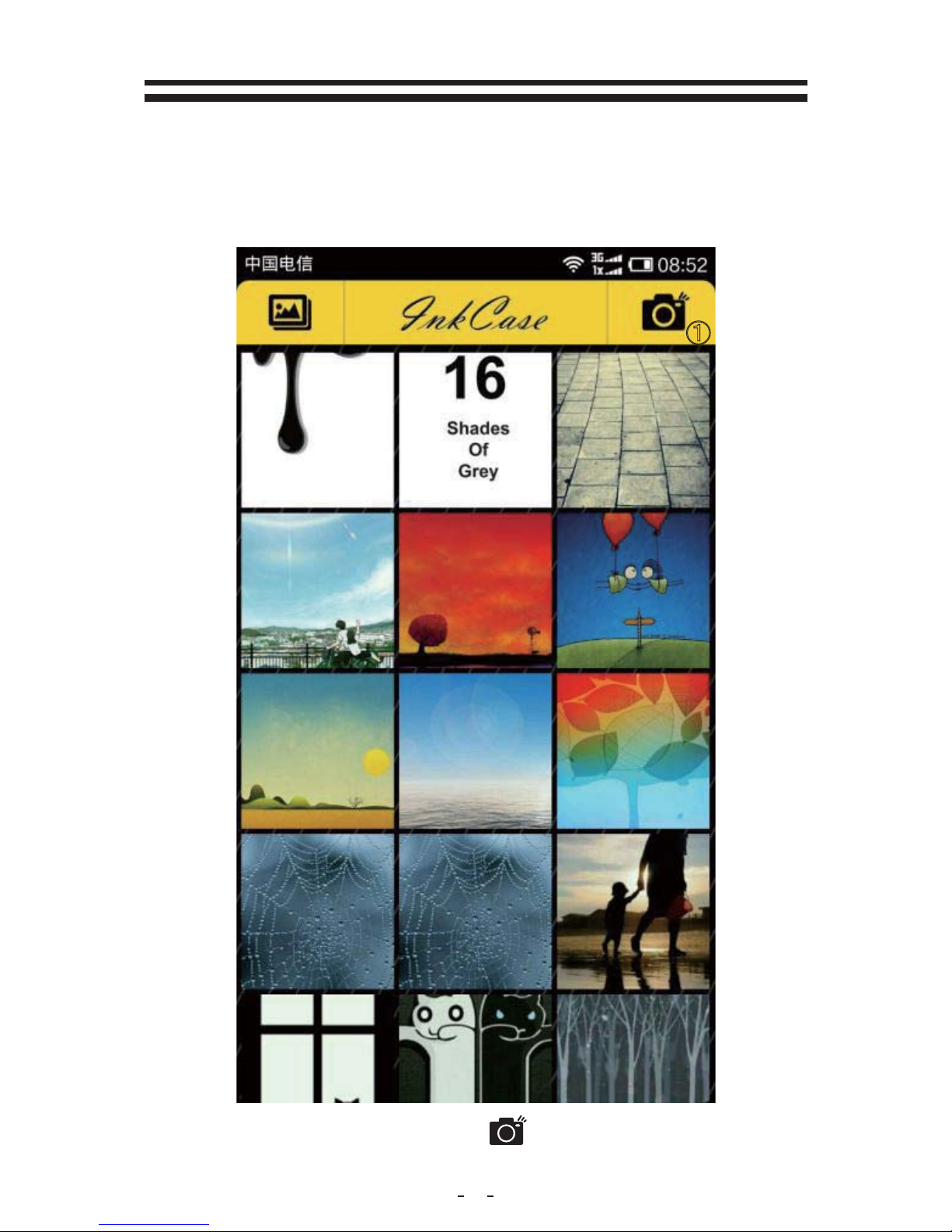

①. Tap Camera button at the top right of
the screen to start taking a photo.
䐟
InkCase N2 User Manual

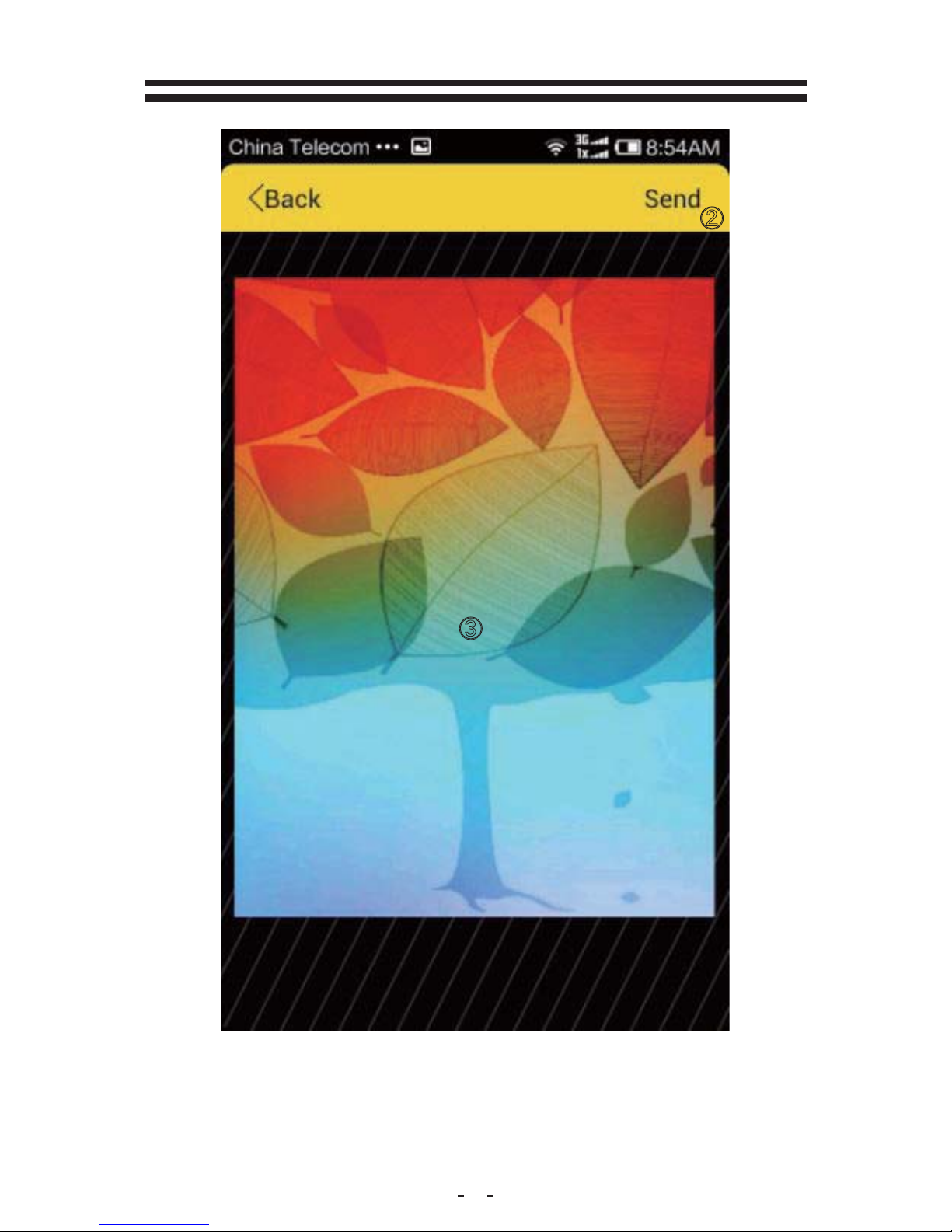

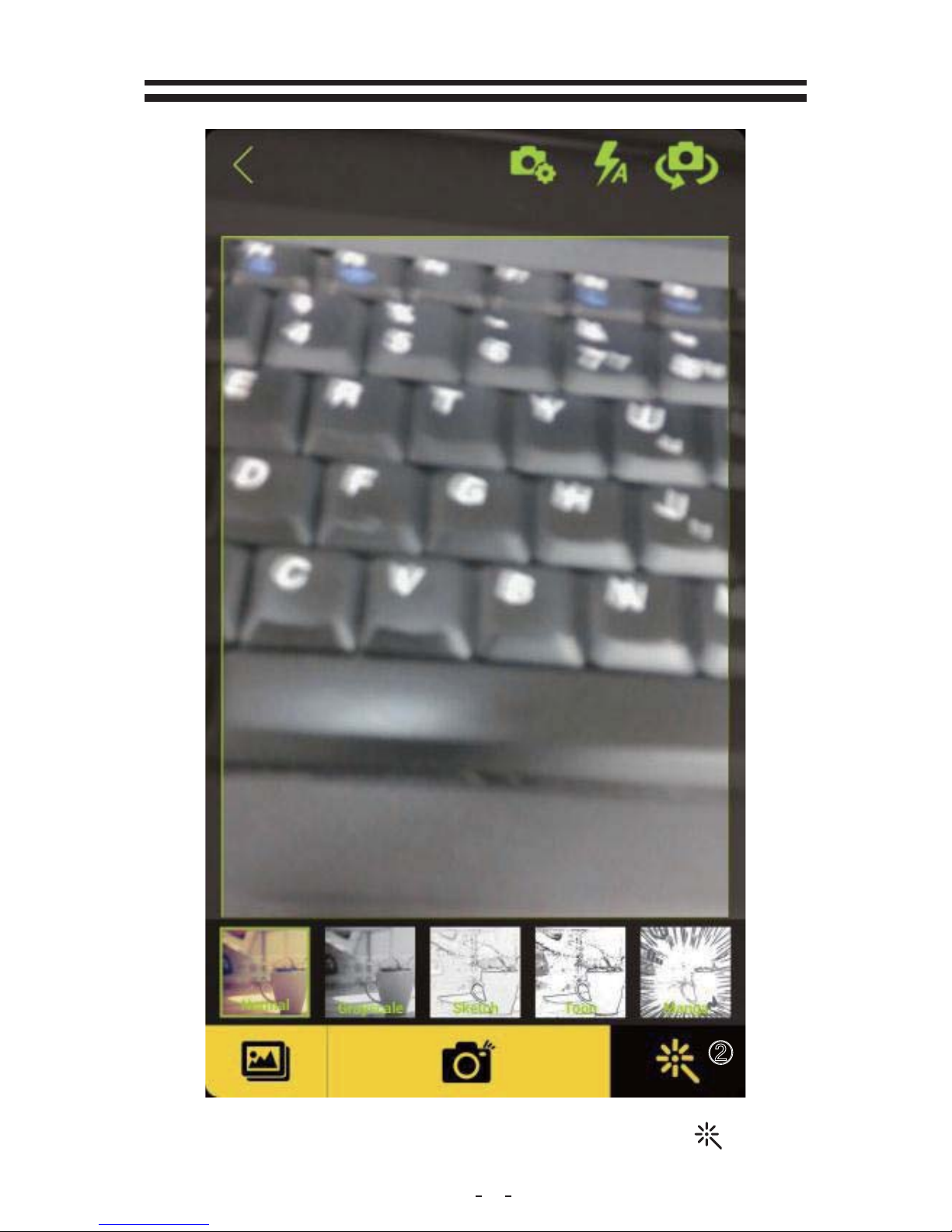

②. When you have taken a desired photo, tap to
edit the photo
䐠
