OBELUX Medium-Intensity 2000cd compact Series Bedienungsanleitung

Obelux Medium-Intensity 2000cd

compact series manual

Medium-intensity 2,000cd red aviation obstruction light

ICAO Medium-Intensity Type B/C

FAA L-864, L-885

NVG Compliant Infrared 850nm

Medium-Intensity 2000cd compact series manual

Page 2of 21

CONTENTS

1ABOUT THIS PRODUCT ........................................................................................................................................ 4

1.1 ICAO MODELS PRODUCT CODES................................................................................................................................. 4

1.2 FAA MODELS PRODUCT CODES ................................................................................................................................... 5

1.3 PRODUCT HIGHLIGHTS .............................................................................................................................................. 6

2SAFETY INSTRUCTIONS........................................................................................................................................ 9

2.1 GENERAL CONSIDERATIONS........................................................................................................................................ 9

2.2 ENVIRONMENTAL CONSIDERATIONS............................................................................................................................. 9

2.3 PERSONAL CONSIDERATIONS ...................................................................................................................................... 9

3INSTALLATION....................................................................................................................................................10

3.1 DEVICE INSTALLATION ............................................................................................................................................. 10

3.2 WIRING ............................................................................................................................................................... 10

3.2.1 Mains In/Out (AC versions) ....................................................................................................................... 11

3.2.2 DC In/Out (DC versions) ............................................................................................................................ 11

3.2.3 Modbus (RS-485) In/Out........................................................................................................................... 11

3.2.4 Alarm Relay Output................................................................................................................................... 11

3.2.5 Chaining Lights .......................................................................................................................................... 12

4OPERATION........................................................................................................................................................13

4.1 ICAO MODELS ...................................................................................................................................................... 14

4.1.1 ICAO Stand-alone mode (basic model) ..................................................................................................... 14

4.1.2 ICAO Stand-alone mode............................................................................................................................ 15

4.2 FAA MODELS ........................................................................................................................................................ 16

4.2.1 FAA Stand-alone mode (basic model)....................................................................................................... 16

4.2.2 FAA Stand-alone mode ............................................................................................................................. 17

4.3 MODBUS MODE .................................................................................................................................................... 17

4.4 TEST MODE........................................................................................................................................................... 18

4.5 MASTER LIGHT MODE ............................................................................................................................................. 19

4.6 HEATER OPERATION ............................................................................................................................................... 20

4.7 CAUSES FOR ALARM ............................................................................................................................................. 20

4.8 ON-BOARD LEDS................................................................................................................................................... 20

4.9 GPS OPERATION.................................................................................................................................................... 20

4.10 TROUBLESHOOTING................................................................................................................................................ 20

4.11 SPARE PARTS......................................................................................................................................................... 21

Medium-Intensity 2000cd compact series manual

Page 3of 21

Changelog

Version

Date

Description

Author

0.1

02.01.2020

Document created.

JSi

1.0

19.05.2020

Release

JSi

1.1

05.10.2020

Updated product codes, heater

JSi

Acronyms and Abbreviations

FAA

Federal Aviation Administration

FPM

Flashes Per Minute

GPS

Global Positioning System

ICAO

International Civil Aviation Organization

Infrared

LED

light emitting diode

Medium intensity

N/A

Not available

PCB

Printed Circuit Board

Medium-Intensity 2000cd compact series manual

Page 4of 21

1 ABOUT THIS PRODUCT

Obelux MI compact series LED obstruction lights provide 2,000cd color aviation red light and Night Vision

Goggle (NVG) compliant infrared (850 nm) light. Both Stand-alone and Modbus operation are supported. In

Stand-alone mode, no external controllers are required to run the light. In Modbus operation, the light is

controlled with an Obelux controller as a part of an aviation light system.

Features:

►Fault monitoring with dry contact alarm relay

►Photocell

►GPS synchronization

► Support for operating in cold climates

► Visibility sensor interface controlled luminous output levels (10%, 30%, and 100%)

► Hot start for radar-controlled systems

► Easy to chain (no need for junction box)

► Embedded Web Server

Optional Controllers:

► CP Series (Interfaces: Ethernet TCP/IP and RS-485/Modbus, AC or DC)

► CP-M1 Series (Interface: RS-485/Modbus, AC or DC)

1.1 ICAO models product codes

Order code

Output

ICAO

Operating

voltage

Nominal

voltage

GPS

Heater

(CCV)

Alarm

relay

RS-485

Modbus

MI-ICAO-AC-2KR-IR-B[-10]

2 000 /

200 cd

Type

B/C

100-240VAC

Yes

MI-ICAO-AC-2KR-IR-X [-10]

2 000 /

200 cd

Type

B/C

100-240VAC

Yes

MI-ICAO-DC-2KR-IR-B[-10]

2 000 /

200 cd

Type

B/C

10-60VDC

Yes

MI-ICAO-DC1224-2KR-IR-X[-10]

2 000 /

200 cd

Type

B/C

10-30VDC

12/24VDC

Yes

MI-ICAO-DC2448-2KR-IR-X[-10]

2 000 /

200 cd

Type

B/C

20-60VDC

48VDC

Yes

MI-ICAO-AC-2KR-IR-E1-B[-10]

2 000 /

200 cd

Type

B/C

100-240VAC

Yes

MI-ICAO-AC-2KR-IR-E1-X[-10]

2 000 /

200 cd

Type

B/C

100-240VAC

Yes

MI-ICAO-DC-2KR-IR-E1-B[-10]

2 000 /

200 cd

Type

B/C

10-60VDC

Yes

MI-ICAO-DC1224-2KR-IR-E1-X[-10]

2 000 /

200 cd

Type

B/C

10-30VDC

12/24VDC

Yes

MI-ICAO-DC2448-2KR-IR-E1-X[-10]

2 000 /

200 cd

Type

B/C

20-60VDC

48VDC

Yes

B[-10]: B = basic model X[-10]: IO = 4x Input and 4x Output (IO) Interface

10 = 10-year warranty EF = Ethernet Switch, 2x fiber SC multimode Female, 2x

copper RJ-45

E = 1x Ethernet copper RJ-45

10 = 10-year warranty

E1 = these product variants fulfil also the -1° and -10° vertical elevation angles maximum intensities

requirements

Available mounting set options:

MS-MI-H01 (mounting bracket as AISI304 acid-proof stainless steel, nuts and bolts A4 steel)

MS-MI-H02 (mounting bracket as AISI316 acid-proof stainless steel, nuts and bolts A4 steel)

MS-MI-V01 (mounting set as AISI316 acid-proof stainless steel, nuts and bolts A4 steel)

Medium-Intensity 2000cd compact series manual

Page 5of 21

1.2 FAA models product codes

Order code

Output

FAA

Operating

voltage

GPS

Photocell

Alarm

relay

RS-485 /

Modbus

MI-FAA-AC-2KR-IR-B[-10]

2,000cd

L-864,

L-885

100-

240VAC

Yes

MI-FAA-AC-2KR-IR-X[-10]

2,000cd

L-864,

L-885

100-

240VAC

Yes

MI-FAA-DC-2KR-IR-B[-10]

2,000cd

L-864,

L-885

10-60VDC

Yes

MI-FAA-DC-2KR-IR-X[-10]

2,000cd

L-864,

L-885

10-60VDC

Yes

B[-10]: B = basic model X[-10]: IO = 4x Input and 4x Output (IO) Interface

10 = 10-year warranty EF = Ethernet Switch, 2x fiber SC multimode Female, 2x

copper RJ-45

E = 1x Ethernet copper RJ-45

10 = 10-year warranty

Available mounting set options:

MS-MI-192 (mounting bracket as AISI304 acid-proof stainless steel, nuts and bolts A4 steel)

MS-MI-160 (mounting set as AISI316 acid-proof stainless steel, nuts and bolts A4 steel)

Medium-Intensity 2000cd compact series manual

Page 6of 21

1.3 Product highlights

Figure 1: Main functional parts of light head

1. Location of photocell and GPS (do not cover)

2. Spirit level

3. Location of cable glands (M20 (2 pcs), M25 (2 pcs))

Factory installation:

All models: 1 M25 gland attached to light, all other glands sealed

Accessories:

Basic models: 1 M25 gland

Other models: 1 M25 gland, 2 M20 glands

Medium-Intensity 2000cd compact series manual

Page 7of 21

Figure 2: Main PCB of a light head (AC version)

Medium-Intensity 2000cd compact series manual

Page 8of 21

Figure 3: Main PCB with E, EF and IO add-on cards

Medium-Intensity 2000cd compact series manual

Page 9of 21

2 SAFETY INSTRUCTIONS

In this section are general safety instructions for the device. Please read the instructions carefully before

installing or using the device to avoid any personal, environmental or material damages.

2.1 General considerations

Install device observing manufactures installation guide.

Use only cables and connectors specified by the manufacturer and in compliance with local electrical code.

Keep your device away from heat sources, dust, smoke or other harmful substances.

Do not modify the device unless otherwise approved by the manufacturer.

If you have any error situation with the device, do not try to fix it by yourself, contact your reseller.

2.2 Environmental considerations

The European Parliament and the Council of European Union issued directive 2012/19/EU to contribute to

sustainable production and consumption by, as a first priority, the prevention of WEEE and, in addition, by

the re-use, recycling and other forms of recovery of such wastes so as to reduce the disposal of waste and

to contribute to the efficient use of resources and the retrieval of valuable secondary raw materials.

Obelux aviation obstacle light products sold inside European Union can be returned to manufacturer if no

local WEEE separate collection and re-use services are available. Please contact Obelux for details.

Obelux does not refurbish returned items but forwards them to authorized WEEE treatment facility.

2.3 Personal considerations

HIGH VOLTAGE! Device contains high voltage which is very dangerous; do not try to service the device

when it is powered on.

Obelux aviation obstruction lights are Class 2M LED devices. This class is safe for accidental viewing under

all operating conditions. However, it may not be eye-safe for a person who deliberately stares into the LED

beam by overcoming their natural aversion response to the very bright light.

Medium-Intensity 2000cd compact series manual

Page 10 of 21

3 INSTALLATION

3.1 Device installation

Install the obstruction light to selected mounting point using quality-made fasteners. Level the light using a

spirit level (bubble level) if necessary. Tighten bolts and nuts. The light has 6 holes for M8 bolts on the

mounting plate. Photocell is located on top of the light under the glass and should have an uninterrupted

view of the sky to work correctly. There are two different size cable glands used on the device: M25 cable

glands for 6-17 mm cable diameter and M20 cable glands for 6-12 mm cable diameter. Make sure that all

unused glands or gland holes are sealed.

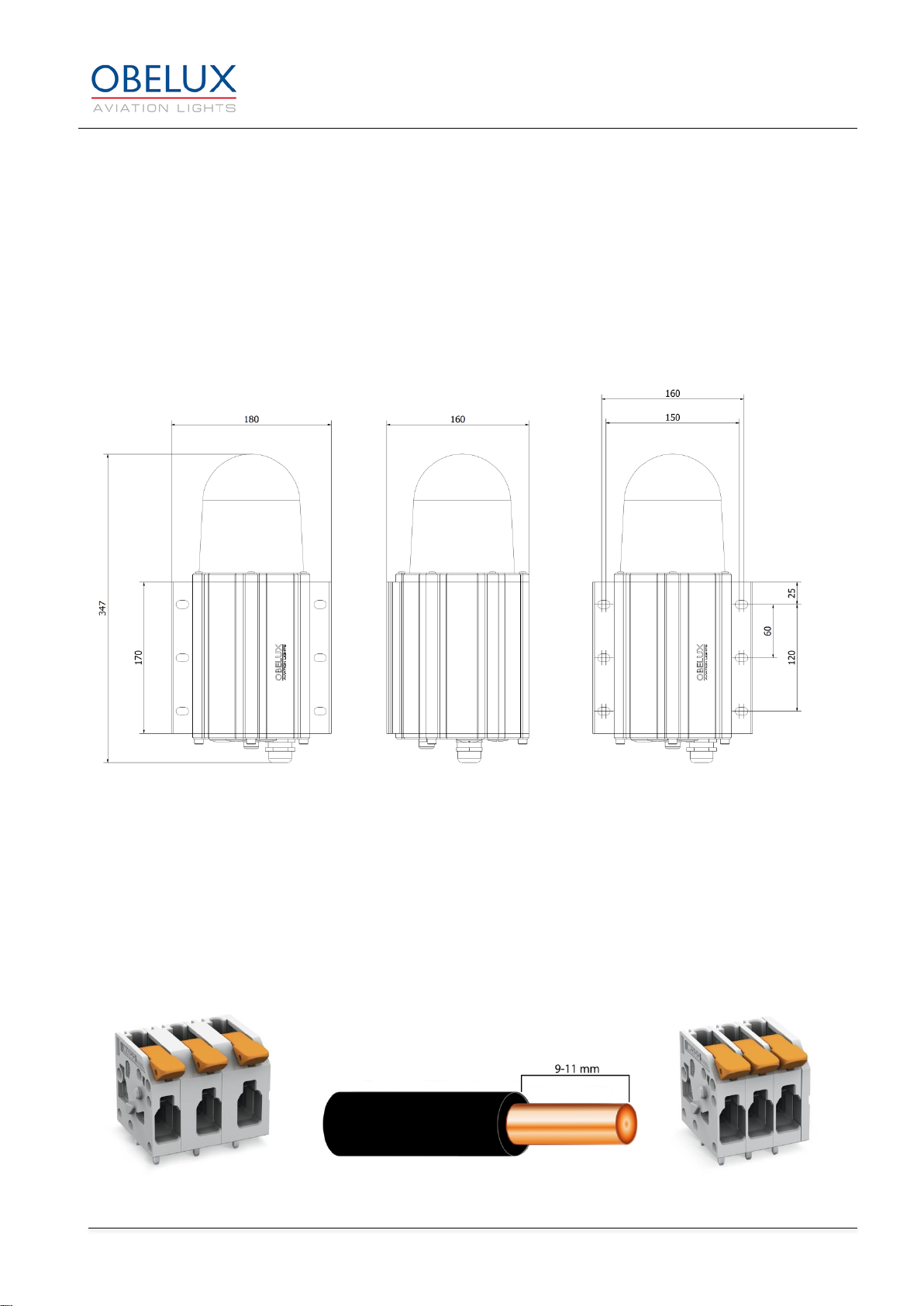

Figure 4: Dimensions (mm)

3.2 Wiring

Route cables using cable glands on back of the light head. Connect power cable wires securely to Power IN

terminal block connector. Power OUT terminal can be used to distribute power to the next light head.

Connect Modbus/RS-485 cable wires to Modbus/RS-485 IN/OUT connector. Use the same connector to

distribute data signals to next light head. Connect alarm relay cable wires to alarm relay connector. Lights

are easy to chain using lights’ internal connectors.

Mains Power Alarm relay/RS-485

Figure 5: Terminal block connectors and wire strip length
