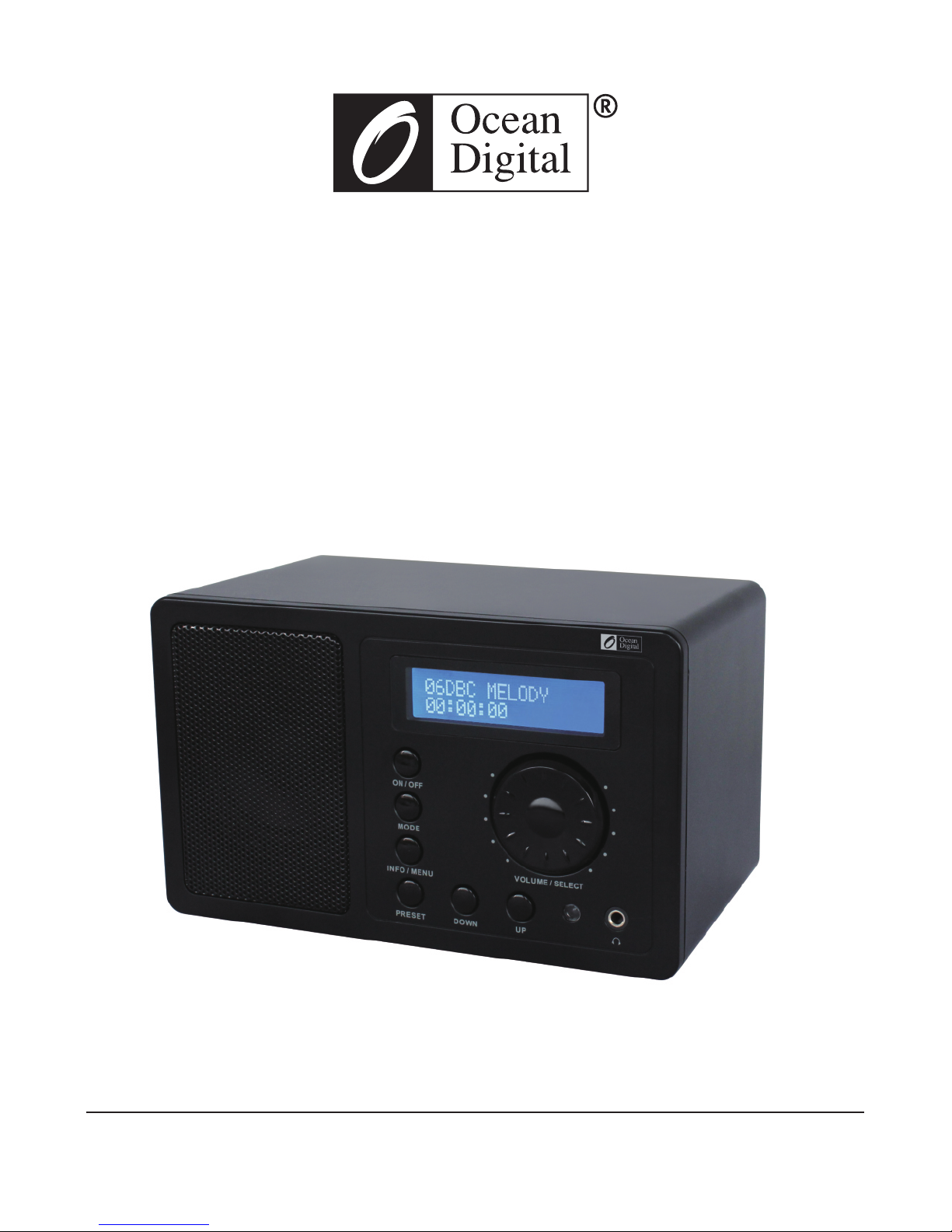

DAB+ / FM Digital Radio

with bluetooth

User Manual

DB-220B

Please read this user manual carefully before using the receiver.

Location of Controls

Front

Back

1. Speaker

2. LCD Display

3. VOLUME/SELECT

- Dial to increase the volume level

or decrease the volume level

- Confirm the selection

- Adjust the backlight level in Standby

mode

4. ON/OFF

- Press to stand by ON/OFF

5. MODE

- Press choose different mode between

DAB/FM/BT.

6. PRESET

- Press and hold to store the favorite

station

- Press briefly to recall the favorite

station

7. INFO/MENU

- Press to go through the station

information

- Hold to enter the MENU

8. DOWN

- Press to go to the previous station or

go back to the up menu

9. UP

- Press to go the next station or enter

the sub menu

10. IR sensor

11. Earphone jack

12. Antenna

13. Line out

14. DC IN jack

45 6 7

MODE

ON / OFF

INFO / MENU

PRES ET UP

DOWN

8 9 10 11

12 13 14

Remote control

1. Power: Turns the radio on or into standby mode

2. Mute: Audio mute on or off

3. Mode: Change the mode between DAB+/FM/

bluetooth

4. Scan: Press it to scan FM or DAB station

5. Info: Press it to browse over the information

6. 1--10: Numeric buttons for Store and Recall

functions

- Hold the numeric button can store the station as

preset.

- Press the numeric button can recall the stored

station.

7. Alarm1/2: Press it to set the alarm

8. Menu: Press it to go for Menu settings

9. ▲/▼: Press ▲ for volume up and ▼ for volume

down.

10. : Press it to scroll the previous station or

frequency or option

11. : Press it to scroll the next station or

frequency or option

12. Select: Press it to confirm the operation

13. CLK Set: Press it to set the clock

14. Sleep: Press it to set the sleep time

15. Dimmer: Press to choose different backlight

level. (High level/Middle level/Low

level)

1. Switching your radio on for the first time

1.1 Power Supply

Mains Adaptor (supplied with the package).

Connect the mains adaptor to the DC power socket of the radio to the wall socket.

1.2 Extend the telescopic aerial as far as it can go. Always make sure that the aerial is

extended to ensure the maximum signal strength and the best possible sound quality.

1.3 Press the ON/OFF to turn the radio on from standby. The LCD backlight will light up during

the operation of the radio, and begin to scan for the stations. Once the scan has finished;

the radio will select the first alphanumerically found station.

1.4 When the radio is powered on for the first time, it will start "Full Scan" for available Digital

Radio stations. When the scan is completed, the first station (alphabetically) will begin to

play.

1.5 If there no stations the display will shows “OFF AIR”. And a “Full Scan” can be done to find

DAB stations manually.

1.6 Press the ON/OFF button again; the radio will go to standby mode. The display will show

the clock.

1.7 Adjust the volume

Tune the “VOLUME/SELECT” to adjust the volume level.

1.8 To explore the stations that have been found, you can press DOWN or UP button to skip to

the next found station. When you find a station that you would like to listen to, and then

press the “VOLUME/SELECT” button, or after 5 seconds, the radio will shows “TUNING”

on the display then auto select the current station which showed on the LCD.

2. Changing the Mode

The DAB Radio has three modes of operation:

○ DAB Radio

○ FM Radio

○ bluetooth mode

Press the “MODE” button to select FM/DAB/bluetooth mode, or use the MODE key on the

remote control to change Mode.

Under DAB mode, you can listen to DAB radio stations.

Under FM mode, you can listen to FM radio stations.

Under bluetooth mode, you can enjoy the music from your bluetooth device trough the radio

device.

1) Press the Mode button until a bluetooth mode is shown on the LCD Display.

2) The radio is now ready for pairing. Turn on the bluetooth on your device and look up the

device named “DB-220B” from the list and select it. It will start pairing with the radio.

3) If the connection is successful, it will show “Connected” on your bluetooth device list. And

the radio will show “PAIRED” on the display.

4) You can start playing the music from your bluetooth device through the radio adaptor.

3. Main Menu

Long press the INFO/MENU to enter the main menu, and then press DOWN or UP to see the

menu list.

In DAB mode, the main menu will be as following:

Remark: In FM mode, you can simply press the DIAL/SELECT for auto scan to search the FM

stations.

In FM Mode, the main menu will be as follow:

In BT Mode, then main menu will be the same as the FM mode.

3.1 SET TIME

When the display shows “SET TIME”, then press VOLUME/SELECT to confirm, then you

can set the time and date by press UP or DOWN button, after setting, press

VOLUME/SELECT to confirm.

3.2 SET BACKLIGHT

There are three levels: HIGHT LEVEL, MIDDLE LEVEL and LOW LEVEL.

Press UP or DOWN to choose the level you need, then press VOLUME/SELECT to

confirm.

3.3 SLEEP TIMER

You can set the radio go to standby mode as sleep by OFF, 10m’, 20’, to 90minures.

3.4 ALARM TIMER

There are 2 alarms available on the radio. Follow the following steps to set the alarm:

1) Turn on the radio by press ON/OFF, then long press INFO/MENU to see the main

menus.

2) Press DOWN or UP to show “ALARM TIMER” on the display, then press

VOLUME/SELECT to confirm.

3) The display will show “Alarm 1”, if you want to set alarm 2, just press DOWN or UP, and

then press VOLUME/SELECT to confirm.

4) The display will show “OFF” on the display, press DOWN or UP to show “ON” on the

display, and then press VOLUME/SELECT to confirm.

5) The display will show alarm type for you to choose, there are FM/DAB/BEEP types,

DB220 V1.21 This is the firmware version

SET TIME Clock Time set

SET BACKLIGHT Low level/Middle level/High level

ALARM TIMER

SLEEP TIMER OFF/10/20/30/40/50/60/70/80/90minutes

PI code Reserved for further service

DB220 V1.21 This is the firmware version

SET TIME Clock Time set

SET BACKLIGHT Low level/Middle level/High level

ALARM TIMER

SLEEP TIMER OFF/10/20/30/40/50/60/70/80/90minutes

press DOWN or UP to show the alarm type you need on the display, such as Beep, and

then press VOLUME/SELECT to confirm.

6) The display shows “00:00”, press the UP or DOWN button to adjust the Hour and push

down the rotary knob to confirm, then set the minute accordingly and confirm to finish

the setting.

When alarm is triggered, alarming:

1. You can press ON/OFF button to turn off the alarm.

2. If the wake up mode is set to DAB+, but there is no signal on the DAB+ station, then alarm

will be triggered without sound, just the display will show the alarm icon.

3.5 PI code

This is service ID, reserved for further service.

3.6 Scanning for FM stations

1) Auto Scan

You can long press DOWN or UP to scan the stations automatically, the radio will stop

to playing once one station is searched.

2) Manual Tune

You can short press DOWN or UP to scan for stations by 0.05MHz every time. You can

press “Dial/Select” knob to confirm the choice or wait for 5s then turn to the displayed

station automatically.

3.7 Scanning for DAB stations.

1) Manual Tune

In DAB mode, Long press VOLUME/SELECT to enter the manual tune, then press

DOWN or UP to select a specific digital radio channel frequency from 5A to 13F, and

press VOLUME/SELECT to confirm.

2) Full Scan

You can use the scan key on the remote control to do the full scan if necessary.

3.8 Factory reset

There may be times when you need to reset your receiver back to its original factory

settings i.e. when you move the radio to another part of the country, so that you can pick

up the national DAB stations in that area. If you don't do this, then when you select a

station on the radio, it may no longer be available.

1) Hold the MODE button, then the display will show “Press Enter Key to Reset”;

2) Press VOLUME/SELECT to confirm, then the display will show “System Reset”, and

followed with “System Reset OK” means the reset is finished,

3) Then the radio will go for DAB auto scan and play the first alphanumerically found

station, if there is no available station; the display will show “NO SERV”. If there is no

DAB signal, the display will show “No signal”

REMARK: Please note that once the reset has taken place, you will lose all of your stored

presets both DAB and FM, and the internal DAB registry.

4. STORE and RECALL

4.1 Storing stations

You can store up to 10 of your favorite stations by the preset function; this will enable you

to get access your favorite station quickly.

1) To store a preset, you must first be listening to the station that you would like to save,

2) Then press PRESET button show “Preset X”(X=1-10) on the display, press UP or

DOWN to choose the station numbers you need.

3) Then long press VOLUME/SELECT to store the station, the display will show “Preset X

stored” which means the radio has been stored successfully.

Also you can cover with the existing stored stations as the same operation successfully.

4.2 Recalling a stored station

1) Short press the “PRESET” button,

2) Then short press UP or DOWN to choose the station you want to listen.

3) Short press VOLUME/SELECT button to confirm the select. Then the radio will turn to

the station you want listening.

Troubleshooting

If you are experiencing problems with your DAB+ radio there are some quick and easy checks

that you can do, which may help to solve the problem.

Radio reception is poor

- For DAB+ digital reception, ensure you are in an area that can receive DAB+ signals.

- Please check that the aerial is extended for the maximum signal strength and improved

reception.

- Perform FULL scan. See 3.7.

- Try moving your radio to an alternative location to see if the reception improves. Please

remember to scan for DAB+ stations again once you have moved your radio (See 3.7).

- Check that you do not have other electrical equipment too close to your radio, causing

interference.

No sound

- For mains powered radio, please check that the mains power lead is connected at the side

of the radio and the mains power wall socket is switched on.

WEEE and Recycling

The European laws do not allow any more the disposal of old or defective

electric or electronic devices with the household waste. Return your product to

a municipal collection point for recycling to dispose of it. This system is

financed by the industry and ensures environmentally responsible disposal and

the recycling of valuable raw materials.

Ocean Digital Technology Ltd.

Flat B, 12/F., Yeung Yiu Chung (No.8) Ind. Bldg.,

20 Wang Hoi Road, Kowloon Bay,

Hong Kong

Email: support@oceandigital.com.hk

Inhaltsverzeichnis

Andere Ocean Digital Radio Handbücher

Ocean Digital

Ocean Digital WR-880N Bedienungsanleitung

Ocean Digital

Ocean Digital WR-100F Bedienungsanleitung

Ocean Digital

Ocean Digital WR-390 Bedienungsanleitung

Ocean Digital

Ocean Digital WR-230SF Bedienungsanleitung

Ocean Digital

Ocean Digital WR-330 Bedienungsanleitung

Ocean Digital

Ocean Digital WR-230 Bedienungsanleitung

Ocean Digital

Ocean Digital WR-210N Bedienungsanleitung

Ocean Digital

Ocean Digital WR-80 Bedienungsanleitung

Ocean Digital

Ocean Digital WR-238 Bedienungsanleitung

Ocean Digital

Ocean Digital WR-800F Bedienungsanleitung

Ocean Digital

Ocean Digital WR-210CB Bedienungsanleitung

Ocean Digital

Ocean Digital DB-280C Bedienungsanleitung

Ocean Digital

Ocean Digital DBA-01C8 Bedienungsanleitung

Ocean Digital

Ocean Digital WR-282 Bedienungsanleitung

Ocean Digital

Ocean Digital WR-330D Bedienungsanleitung

Ocean Digital

Ocean Digital DB-230B Bedienungsanleitung

Ocean Digital

Ocean Digital WR-210CB Bedienungsanleitung

Ocean Digital

Ocean Digital MA-80 Bedienungsanleitung

Ocean Digital

Ocean Digital WR-202 Bedienungsanleitung

Ocean Digital

Ocean Digital DB-332 Bedienungsanleitung

Ocean Digital

Ocean Digital WR-23D Bedienungsanleitung

Ocean Digital

Ocean Digital DK-336 Bedienungsanleitung

Ocean Digital

Ocean Digital WR-336N Bedienungsanleitung

Ocean Digital

Ocean Digital DK-821B Bedienungsanleitung

Beliebte Radio Handbücher anderer Marken

EisSound

EisSound KBSound iSelect Bedienungsanleitung

Midland

Midland 1001LWX Bedienungsanleitung

Konig

Konig HAV-SR41 Bedienungsanleitung

Roberts

Roberts exprssion Bedienungsanleitung

VDigi

VDigi DD3.0 Bedienungsanleitung

Radio Shack

Radio Shack 21-1863 Bedienungsanleitung

Roberts

Roberts Stream 207 Bedienungsanleitung

Sony

Sony Walkman SRF-M97 Bedienungsanleitung

Stanley

Stanley FatMax FMC770 Bedienungsanleitung

auna

auna DAB-Radio 10026947 Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER UR190 Bedienungsanleitung

HYT

HYT TC-320 Bedienungsanleitung

auna multimedia

auna multimedia Yellowstone 10026851 Bedienungsanleitung

B-Tech

B-Tech GMRS-V2 Bedienungsanleitung

Weierwei

Weierwei VEV-V8 Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER DAB750 Bedienungsanleitung

Telefunken

Telefunken TF-1505 Bedienungsanleitung

Makita

Makita LXRM03 Bedienungsanleitung
