OHAUS Adventurer series Bedienungsanleitung
Quick Start Guide Adventurer™Balances
Ohaus Corporation www.ohaus.com iAdventurer™Balances Quick Start Guide
ASSEMBLY

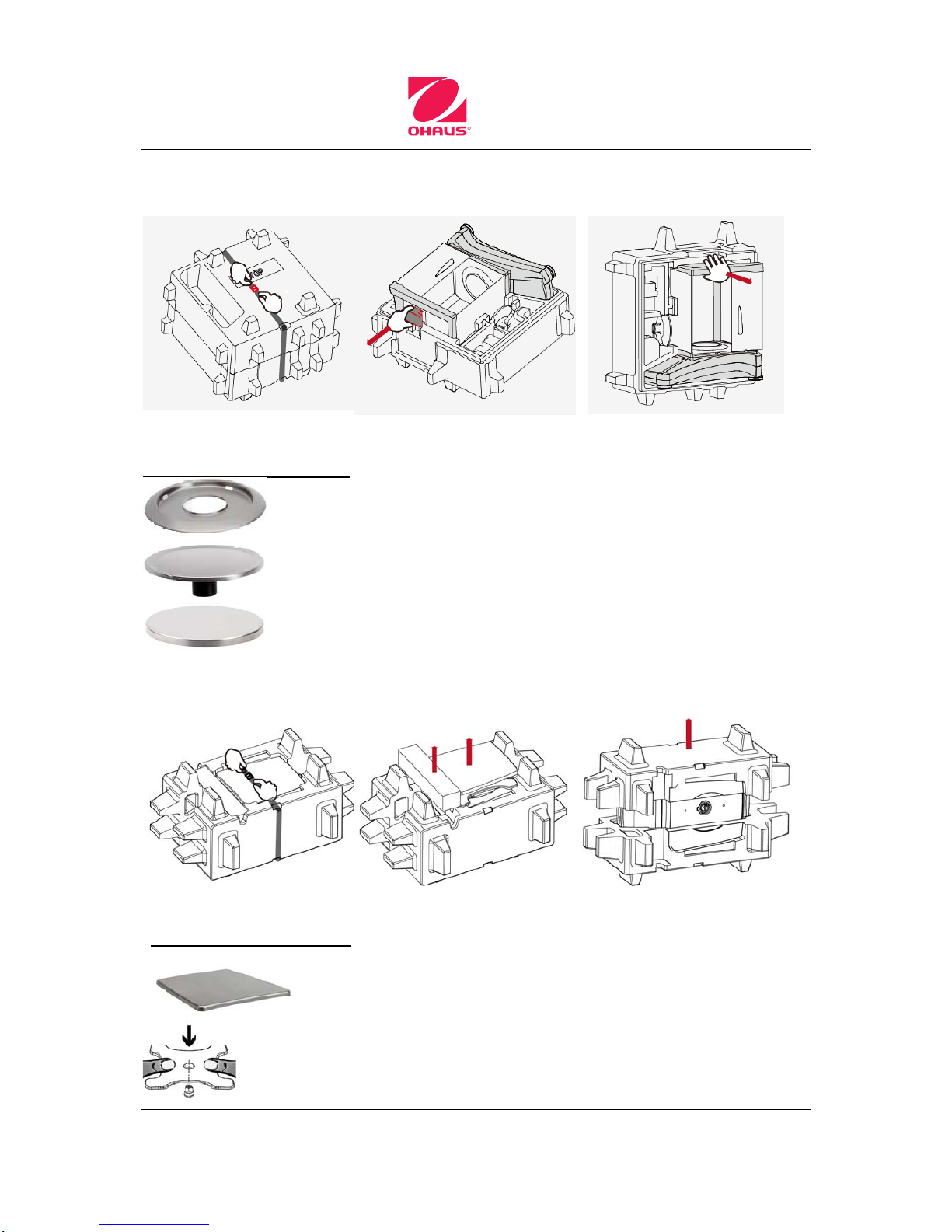

1) Unpack the balance
1) Remove the binder 2) Take out the red cube 3) Take out the balance
For 1mg and 0.1mg Models:
- Wind Ring
- Weighing pan (90mm) for 0.1mg model
-Weighing pan (130mm) for 1mg model
2) Install Wing ring and weighing pan
1) Remove the binder 2) Take out the adaptor box and
weighing pan 3) Take out the balance
For 0.1g and 0.01g Models:
- Weighing pan (175x195mm) for 0.1g and 0.01g balance
- Pan support, push the pan support to the end, tightly connect with cone.
Adventurer™Balances Quick Start Guide
Adventurer™Balances Quick Start Guide ii Ohaus Corporation www.ohaus.com
SAFETY PRECAUTIONS
CAUTION: Read all safety warnings before installing, making connections, or
servicing this equipment. Failure to comply with these warnings could result in
personal injury and/or property damage. Retain all instructions for future reference.
•Verify that the AC adapter’s input voltage range and plug type are compatible with the
local AC power to be used.
•Make sure that the power cord does not pose a potential obstacle or tripping hazard.
•The balance is for indoor use only.
•Use the balance only in dry locations.
•Do not drop loads on the pan.
•Use only approved accessories and peripherals.
•Operate the equipment only under ambient conditions specified in these instructions.
•Disconnect the equipment from the power supply when cleaning.
•Do not operate the equipment in hazardous or unstable environments.
•Service should only be performed by authorized personnel.
•Do not position the balance such that it is difficult to reach the power connection.
CONTROLS

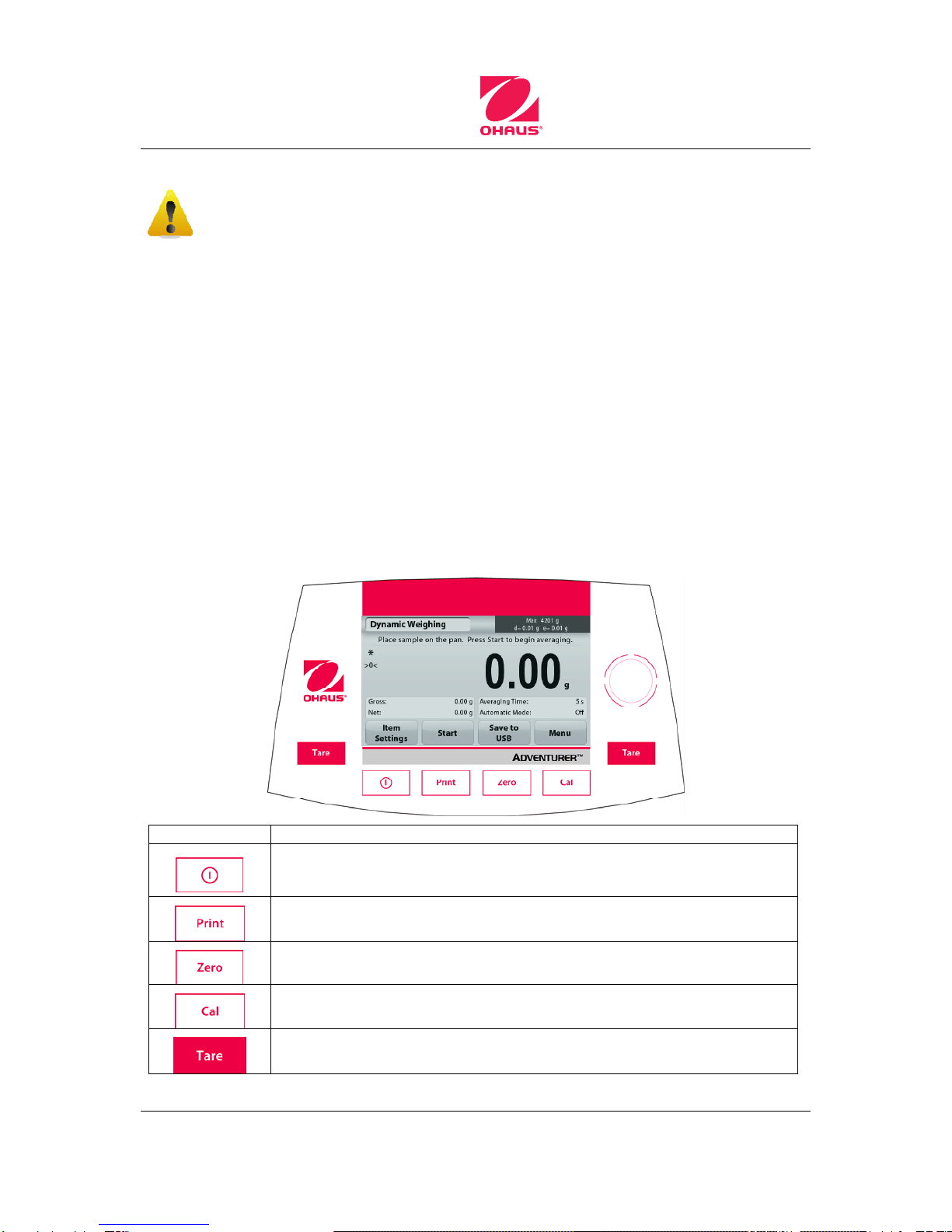

Button Action
Short Press (if powered Off): Turns on the scale
Long Press (if powered On): Turns off the scale
Note: The balance will automatically power on when power is connected.
Short Press: Prints the present data to a printer or a computer.
Short Press: Perform Zero operation
Short Press: Perform Calibration operation
Short Press: Perform Tare operation
Quick Start Guide Adventurer™Balances
Ohaus Corporation www.ohaus.com iii Adventurer™Balances Quick Start Guide
Main Application Screen

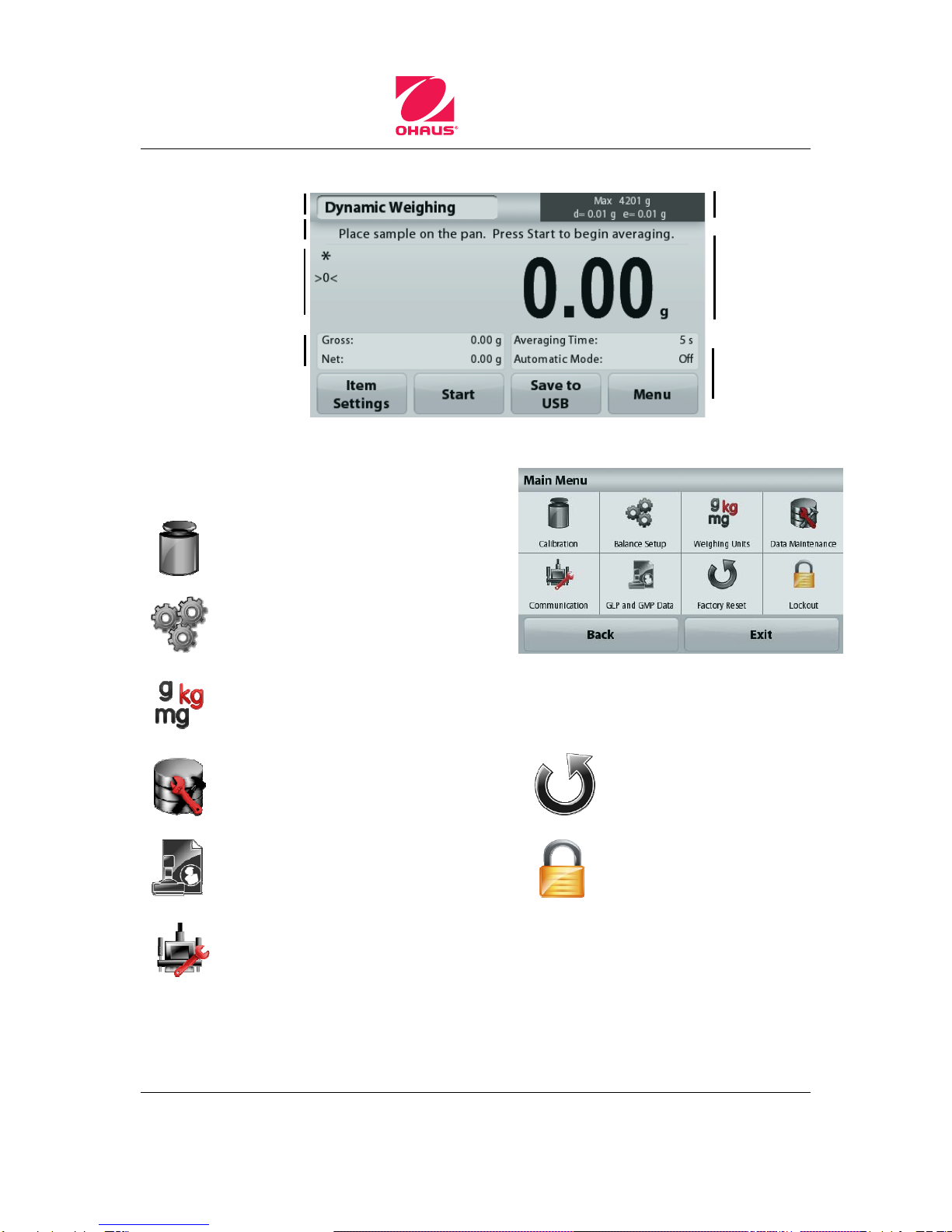

MENU & SCREEN NAVIGATION
Touch Menu to open the menu list.
Calibration:
Touch to view calibration options.
Balance Setup:
Touch to view and change balance settings.
Weighing Units:
Touch to view and change weighing units.
Data Maintenance:
Touch to view data maintenance settings.
Factory Reset:
Touch to do a Factory reset of menu
settings.
GLP and GMP Data:
Insert user data for traceability.
Lockout:
Touch to view lockout options.
Communication:
Touch to view COM Device Settings and
Print Settings.
Application
Instructional Messages
Stability (*), Net (NET),
Gross (G) and/or center
of zero (>0<) indicators
Reference Fields Application Buttons:
Functions vary by
Result Field: Information
varies by application
Touch gto change unit
Capacity and readability
Adventurer™Balances Quick Start Guide
Adventurer™Balances Quick Start Guide iv Ohaus Corporation www.ohaus.com
APPLICATIONS
The balance can be configured to operate in various Application modes.
Touch the top left Application field (weighing in the example below):

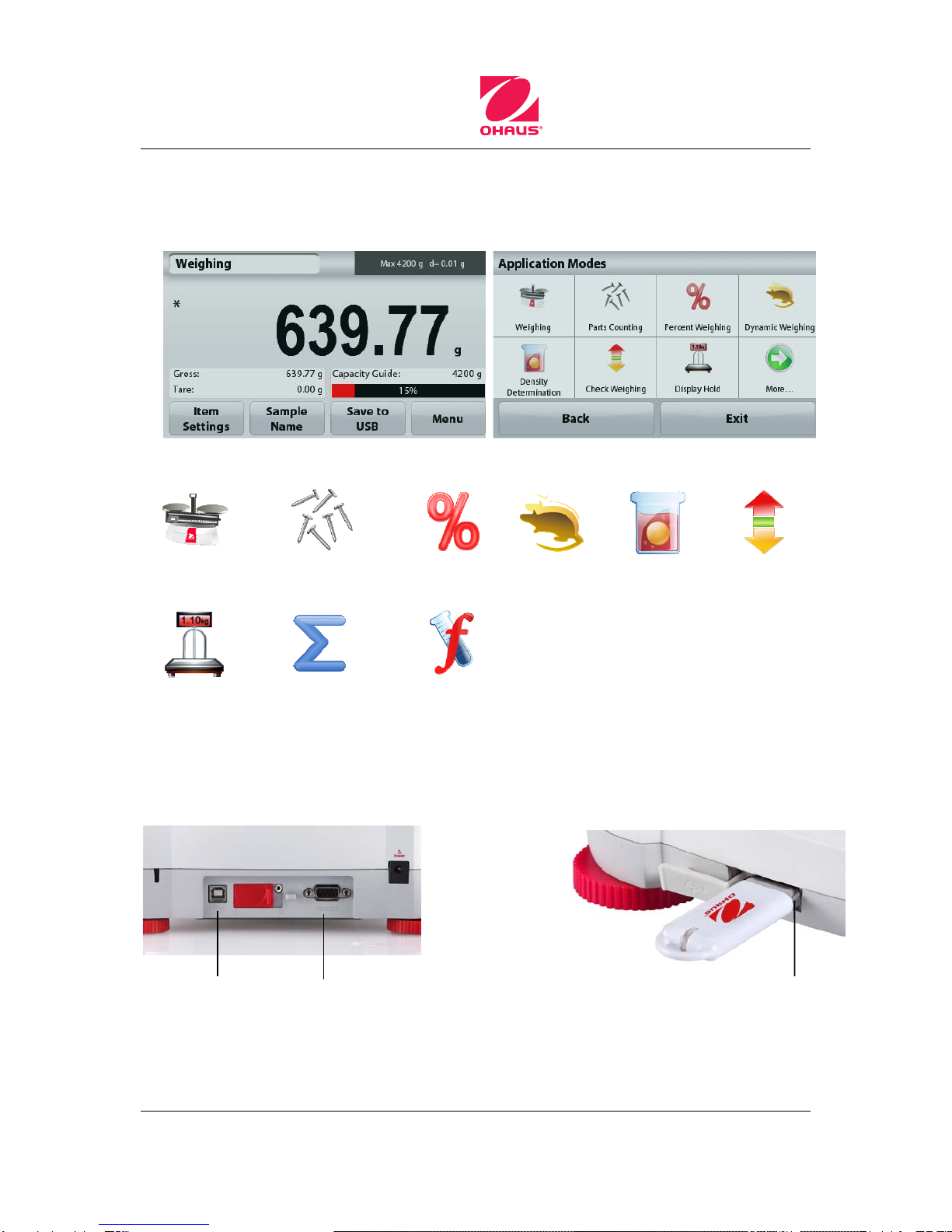

The Adventurer Balance has 9 application modes, as follows:
Weighing Parts Counting Percent
Weighing
Dynamic
(Animal)
Weighing
Density
Determination Check
Weighing
Display
Hold Totalization/Statistics
Formulation
Connecting the Interface
Use the built-in RS-232 Port to connect either to a computer or a printer with a standard (straight-through)
serial cable. Or connect using the scale’s USB port.
Interface connections on the rear of the balance: USB connection on the front of the balance:
.
USB1: Used to connect to PC only USB2: Used to connect a USB flash driver only
RS232: Used to connect to PC or Printer
USB1 RS232 USB2
Quick Start Guide Adventurer™Balances
Ohaus Corporation www.ohaus.com vAdventurer™Balances Quick Start Guide

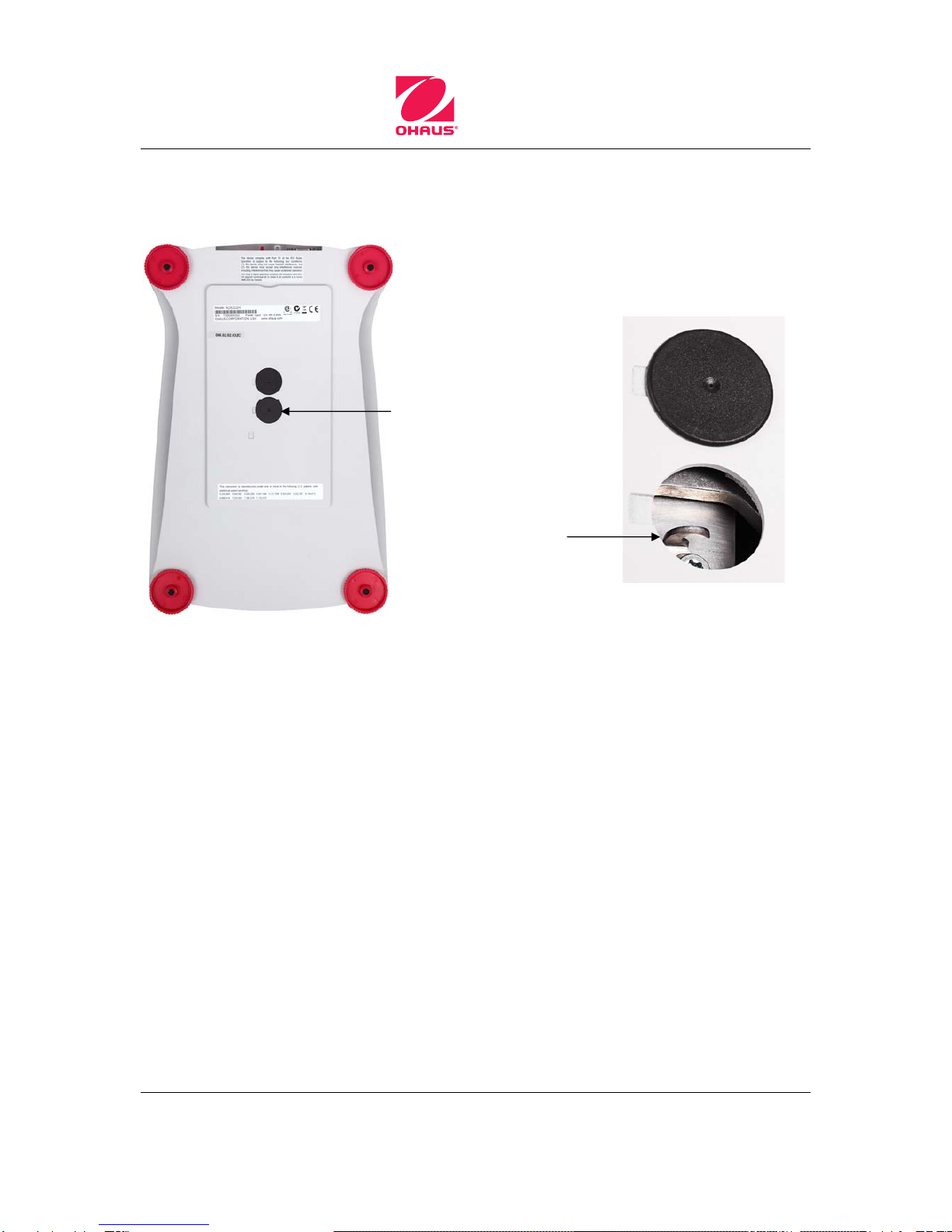

Weigh Below Hook
To use this feature, remove power from the balance, then remove the protective cover for the weigh
below opening.
Weigh below
protective cover
Weigh below hook
Adventurer™Balances Quick Start Guide
Adventurer™Balances Quick Start Guide vi Ohaus Corporation www.ohaus.com
Ohaus Corporation
7 Campus Drive
Suite 310
Parsippany, NJ 07054 USA
Tel: (973) 377-9000
Fax: (973) 944-7177
With offices worldwide.
www.ohaus.com
*30111760*
P/N 30111760A © 2014 Ohaus Corporation, all rights reserved.
sales@novatech-usa.com
www.novatech-usa.com
Tel: (866) 433-6682 Fax: (866) 433-6684
Tel: (281) 359-8538 Fax: (281) 359-0084
