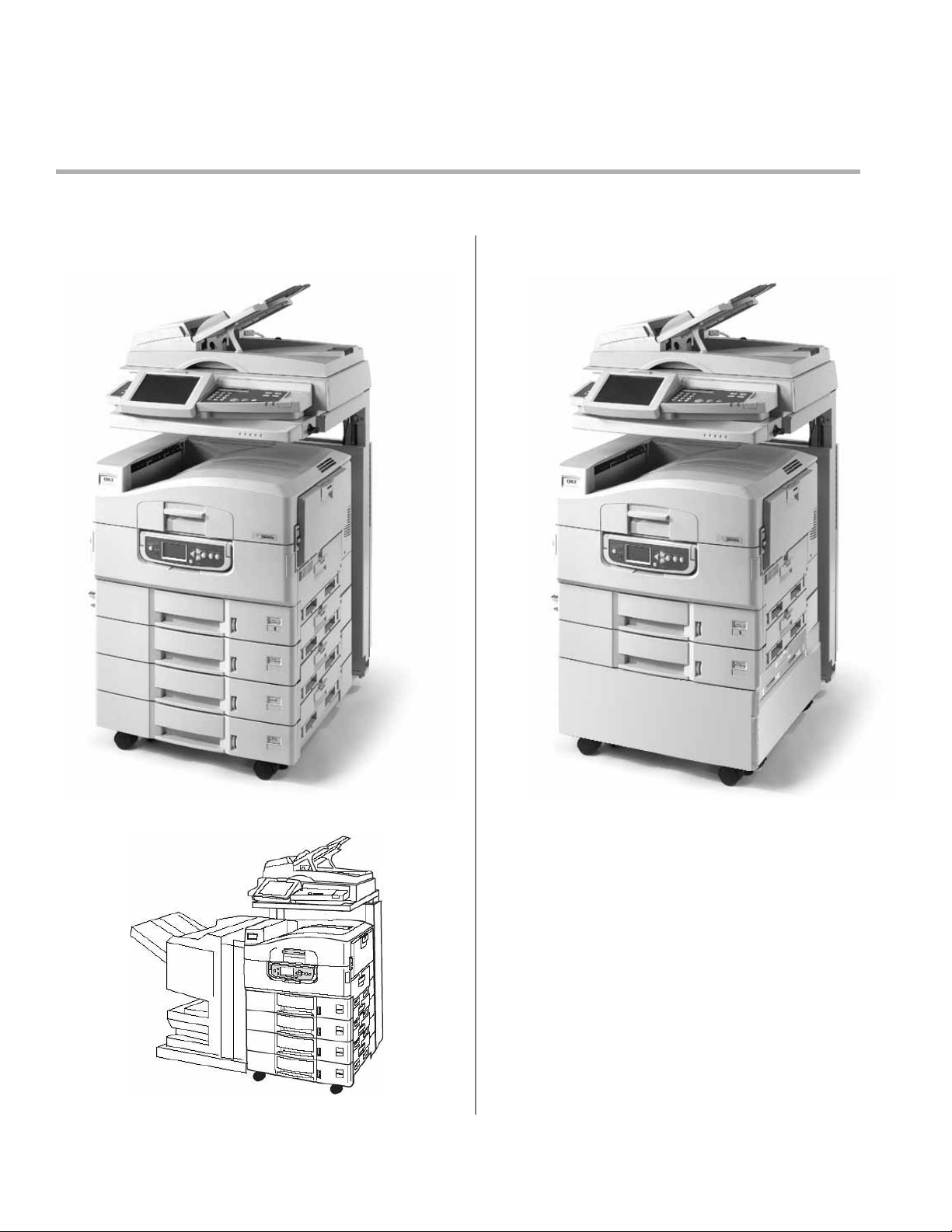

ES3640e MFP
Technician’s Installation Guide
Configuration A
with High Capacity Feeder
With optional Finisher:
Configuration B
with Second Tray and Cabinet
ES3640e MFP
ES3640e
MFP
01_Finis
ES3640e MFP
22
Do not begin installation
of this device
before reading
this entire Installation Guide.
Important safety warnings
follow.
ES3640e MFP Warning Icon.jpg
3
Overview
Configuration A
ES3640e MFP Configuration A is shipped in four units:
1
Printer
2
High-capacity Feeder
3
Scanner
4
Stand
See page 11 for more information.
Configuration B
ES3640e MFP Configuration B is shipped in five units:
1
Printer
2
Second Paper Tray
3
Cabinet
4
Scanner
5
Stand
See page 11 for more information.
ES3640e MFP 05.jpg
ES3640e MFP 07.jpg
ES3640e MFP 06.jpg
ES3640e MFP 02.jpg
ES3640e MFP 89a.jpg
ES3640e MFP 05.jpg
ES3640e MFP 06.jpg
ES3640e MFP 02.jpg
ES3640e MFP 04.jpg
ES3640e MFP 11.jpg
ES3640e MFP 89a.jpg
4
Basic Requirements
Space
Electrical:
Voltage: 110-127 VAC, 60 Hz
Power consumption, Operating:
•1,500 W maximum
•750 W typical
Environmental:
Temperature: 50-90°F
Humidity: 20-80% RH
Assembly
Assembly involves the following steps:
Install the printer on its Support:
•Configuration A: High Capacity Feeder
•Configuration B: Cabinet/Second Paper Tray
Prepare the printer.
Assemble the stand.
Mount the scanner on the Stand and Secure it to
the Shelf.
Make the Scanner Connections
Attach the Printer to the stand.
Finish the Installation.
Connect to the Network
Minimum Height
72 inches (1.83 m)
Minimum Width
•standard
• with optional finisher
78 inches (1.98 m)
109 inches (2.77 m)
Minimum Depth
73 inches (1.85 m)
NOTE
You will need the following tools to
assemble the unit:
• 14 mm socket wrench
• Standard tip screwdriver
• Small Phillips tip screwdriver
• Larger Phillips tip screwdriver
Socket
Wrenchj
pg
5
Step 1 Install the Printer on its
Support.
Configuration A: High Capacity Feeder
1. Unpack the High Capacity Feeder (HCF) and
remove any external shipping tape/restraints.
2. Unpack the printer and remove any external
shipping tape.
3. Note the location of the pins (
1
) on the HCF:
4. Lift the printer onto the HCF, aligning the holes on
the bottom of the printer with the pins on the
HCF.
5. Go to “Step 2 Prepare the Printer” on page 7.
Accessories in Printer Box
Paper Catcher
CDs
Toner Cartridges
Ferrite Core for Network Connection
3 Power Cables (printer, scanner , main)
Power Strip
2 Screws for securing Power Strip to Stand
4 Light Shield Bags (for temporary storage of
drums when outside printer)
ES3640e MFP 101.jpg
ES3640e MFP 07.jpg
Caution Hurt Back
ES3640e MFP 15.jpg
6
Configuration B: Cabinet/Second Tray
1. Unpack the printer cabinet and remove any
packing materials. Note the location of the pins
(
1
).
2. Unpack the second paper tray and remove any
packing materials.
3. Place the second paper tray on the cabinet
aligning the pins with the sockets.
4. Unpack the printer and remove any shipping tape.
5. Note the location of the pins (1) on the tray.
6. Align the printer with the second paper tray, then
lower the printer onto the tray/cabinet..
ES3640e MFP
ES3640e MFP
ES3640e MFP
Caution Hurt Back Icon.jpg
ES3640e MFP
7
Step 2 Prepare the Printer.
1. Load paper in the trays.
a. Pull out the tray.
b. Squeeze the release on the paper guides and
move them apart.
c. Remove the brightly colored shipping
restraint.
d. Set the guides (a, b) for the paper size and
load paper. Note: The default is letter size,
long edge feed.
e. Close the tray.
2. Snap the Paper Catcher into the top of the printer.
3. Open the printer cover.
ES3640e
MFP
ES3640e
MFP
ES3640e MFP
ES3640e MFP
ES3640e MFP
ES3640e MFP
open_top_cover_f
8
4. Lift the operator panel, open the front cover and
remove the shipping tape. Close the front cover.
5. Remove the colored image drum packing pieces.
6. For each drum, remove the tape and the
protective sheets.
7. Remove locks and seals for each drum.
ES3640e
MFP 16.jpg
ES3640e
MFP
ES3640e MFP 19.jpg
ES36
40e
MFP
20.jp
g
ES3640e MFP 21.jpg
ES3640e MFP 22.jpg
9
8. For each color toner cartridge:
a. Shake the toner cartridge from side to side
to distribute toner.
b. Remove sealing tape and insert the cartridge
into the corresponding color drum in the
printer.
c. Lock the toner cartridge with the lever.
9. Close the top cover.
10. Remove the backing from the strip on the back of
the Handy Reference Guide and apply the guide
to the printer.
ES3640e MFP 23.jpg
ES3640e MFP 24.jpg
ES3640e MFP 25.jpg
ES3640e MFP 26.jpg
ES3640e MFP
HandyRef_Co
10
Step 3 Assemble the Stand.
Accessories in the Stand Box
ES3640e MFP 99.jpg
ES3640e MFP 13a.jpg
8 Leg Bolts with Lock Washers and Flat
Washers for Stand Legs
2 Screws with Lock Washers and Flat Washers
for Bottom of Printer Brackets
2 Screws with Lock Washers and Flat Washers
for Plate Lock Mechanism
2 Screws with Lock Washers and Flat Washers
for attaching the Printer to the Bumper
Brackets
4 Small Screws with Lock Washers and Flat
Washers for Top of Printer Brackets
16 Medium Screws with Lock Washers and Flat
Washers
2 Cable Clips for attaching DCD cable (see
“Accessories in Scanner Box”“Accessories in
Scanner Box” on page 15) to the stand.
2 Bumper Brackets
3 Tie Wraps (to secure cabling)
2 Printer Brackets
